Description
Acme threads have a 29-degree flank angle, which differs from standard 60-degree metric and unified threads. Use the right gauge for the thread form.

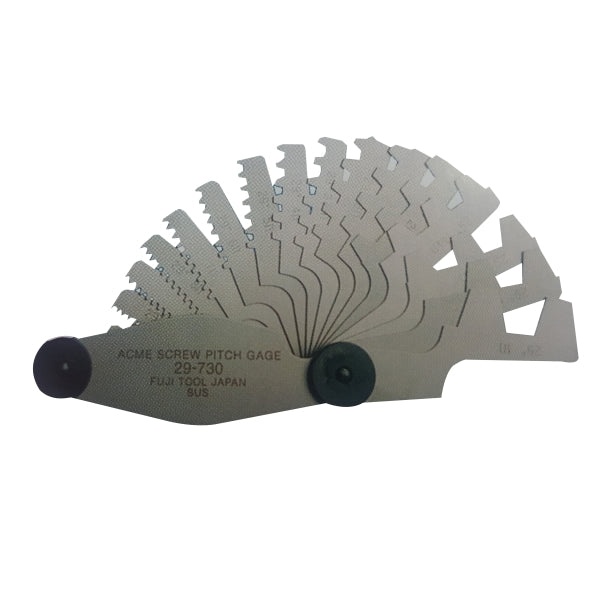

FUJI Acme Pitch Gauge 30°
An acme pitch gauge is a set of thin leaves, each cut to a specific thread pitch, used to check the pitch of acme threads. The leaf that fits the thread flank exactly identifies the pitch. Machinists and inspectors use it to identify lead screws and check threading work.
Key Features
- Each leaf is marked with its pitch
- Match the leaf to the thread flank, not the crest
- The 29-degree angle applies to acme threads only
Specifications
| Model |
Specification |
Sold as |
| 30-720 |
2-20MM(30'/12PCS) |
1 pc |
- Brand: FUJI
- Country of origin: Japan
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- Lead time: approx. 45 days from order (imported / made-to-order item).
