Description
The best wire size depends on the thread pitch, so order the wire size that matches your thread.

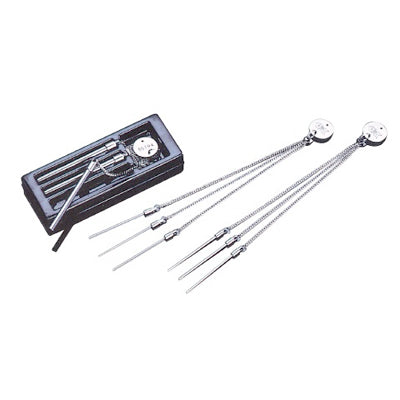

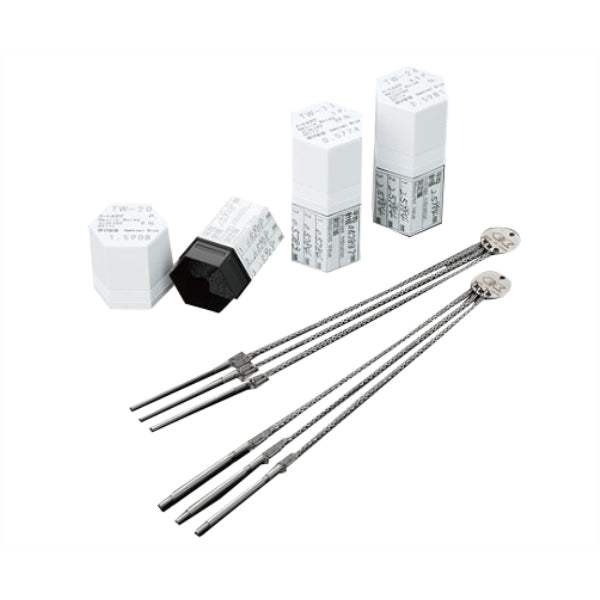

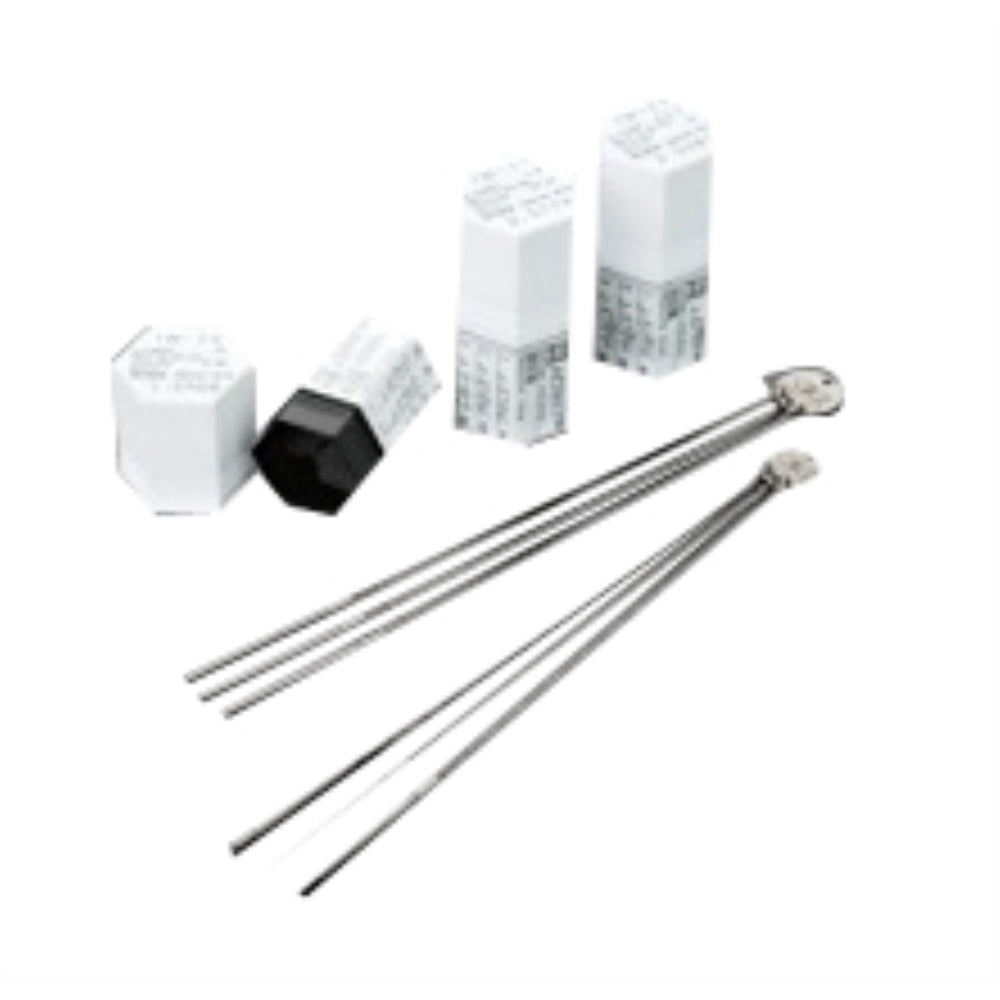

TC Three-Wire Thread Measuring Gauge
A three-wire set is a group of precision wires placed in the thread grooves and measured over with a micrometer to find the pitch diameter of a thread. Toolmakers and inspectors use it for accurate thread checks.
Key Features
- Place two wires on one side and one on the other
- Measure over the wires with a micrometer
- Choose the wire size for the thread pitch
Specifications
| Model |
Specification |
Sold as |
| TW-01 |
0.2MM(0.1155) |
1 pc |
| TW-02 |
0.25MM(0.1443) |
1 pc |
| TW-03 |
0.30MM(0.1732) |
1 pc |
| TW-04 |
0.35MM(0.2021) |
1 pc |
| TW-05 |
0.4MM(0.2309) |
1 pc |
| TW-06 |
0.45MM(0.2598) |
1 pc |
| TW-07 |
0.5MM(0.2887) |
1 pc |
| TW-08 |
0.6MM(0.3464) |
1 pc |
| TW-09 |
0.75MM(0.4330) |
1 pc |
| TW-10 |
28TPI(0.5196) |
1 pc |
| TW2-0.577 |
0.577mm/1.0mm |
1 pc |
| TW-12 |
1.25MM(0.7217) |
1 pc |
| TW-13 |
18TPI(0.7954) |
1 pc |
| TW-09 |
0.4330(0.75pitch) |
1 pc |
| TW-15 |
1.75MM(1.0227) |
1 pc |
| TW-16 |
2.0MM(1.1547) |
1 pc |
| TW-17 |
12TPI(1.1932) |
1 pc |
| TW-18 |
11TPI(1.3016) |
1 pc |
| TW-19 |
2.5MM(1.4434) |
1 pc |
| TW-20 |
9TPI(1.5908) |
1 pc |
| TW-21 |
3.0MM(1.7897) |
1 pc |
| TW-22 |
3.5MM(2.0454) |
1 pc |
| TW-23 |
4.0MM(2.3863) |
1 pc |
| TW-24 |
4.5MM(2.5981) |
1 pc |
| TW-25 |
5.0MM(2.8868) |
1 pc |
| TW-26 |
5.5MM(3.1817) |
1 pc |
| TW-27 |
4TPI(3.5794) |
1 pc |
- Brand: TC
- Country of origin: Japan
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- Lead time: approx. 45 days from order (imported / made-to-order item).
