Description
Confirm the radius as well as the diameter, because variants in the same line are specified by both.

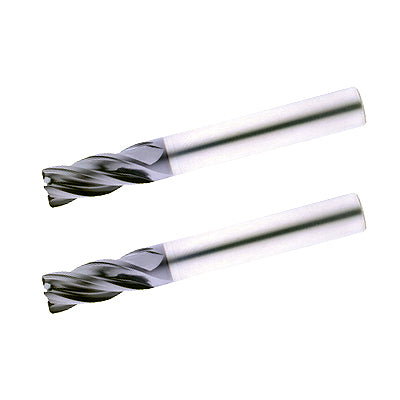

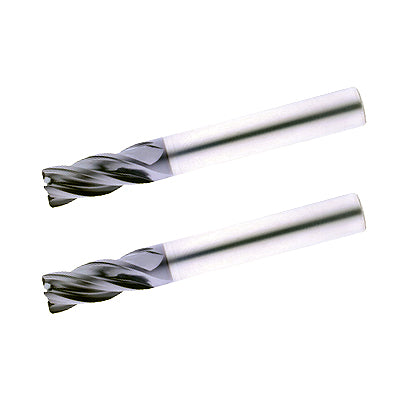

YG-1 SUS-WIN Radius End Mill 4F
A corner radius end mill for pocketing and contouring where a radius on the part corner or a stronger cutting edge is needed. Used on milling machines and machining centers in mold shops, job shops and production plants. It is designed for stainless steel and similar tough materials.
Key Features
- Corner radius strengthens the edge against chipping and leaves a filleted floor edge.
- Programmed corner radius must match the tool radius of the variant.
- Flute count varies by size; fewer flutes give chip room, more give a finer finish.
- Match the shank diameter to your collet or holder before ordering.
Specifications
| Model |
Specification |
Sold as |
| SCRE4-03R02T |
D3.0(R0.2)X6X10X60 (CG9B3503002) |
1 pc |
| SCRE4-04R02T |
D4.0(R0.2)X6X12X60 (CG9B3504002) |
1 pc |
| SCRE4-05R02T |
D5.0(R0.2)X6X15X60 (CG9B3505002) |
1 pc |
| SCRE4-06R03T |
D6.0(R0.3)X6X15X60 (CG9B3506003) |
1 pc |
| SCRE4-08R03T |
D8.0(R0.3)X8X20X80 (CG9B3508003) |
1 pc |
| SCRE4-10R03T |
D10.0(R0.3)X10X25X80 (CG9B3510003) |
1 pc |
| SCRE4-10R05T |
D10.0-R0.5 |
1 pc |
| SCRE4-12R05T |
D12.0(R0.5)X12X30X100 (CG9B3512005) |
1 pc |
| SCRE4-20R05T |
D20.0(R0.5)X20X48X110 (CG9B3520005) |
1 pc |
| SCRE4-035R02T |
D3.5(R0.2)X6X10X60 (CG9B3503502) |
1 pc |
| SCRE4-045R02T |
D4.5(R0.2)X6X14X60 (CG9B3504502) |
1 pc |
| SCRE4-055R02T |
D5.5(R0.2)X6X15X60 (CG9B3505502) |
1 pc |
| SCRE4-065R03T |
D6.5(R0.3)X8X18X60 (CG9B3506503) |
1 pc |
| SCRE4-07R03T |
D7.0(R0.3)X8X20X80 (CG9B3507003) |
1 pc |
| SCRE4-085R03T |
D8.5(R0.3)X10X22X80 (CG9B3508503) |
1 pc |
| SCRE4-09R03T |
D9.0(R0.3)X10X25X80 (CG9B3509003) |
1 pc |
| SCRE4-16R05T |
D16.0(R0.5)X16X42X110 (CG9B3516005) |
1 pc |
- Brand: YG-1
- Country of origin: Korea
About YG-1
YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
