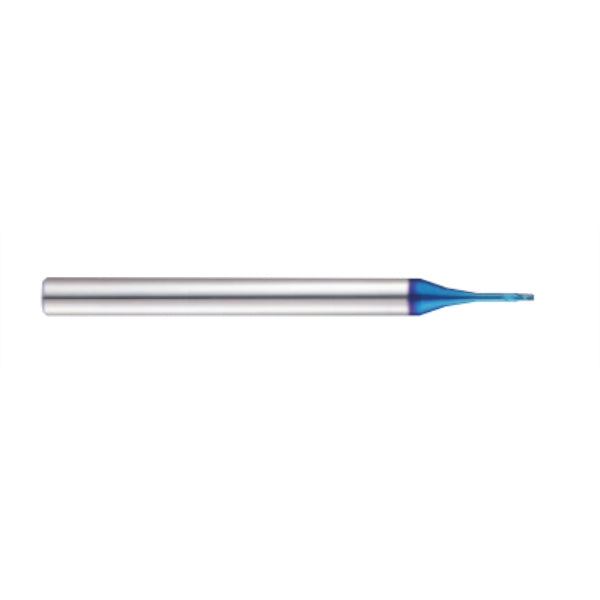

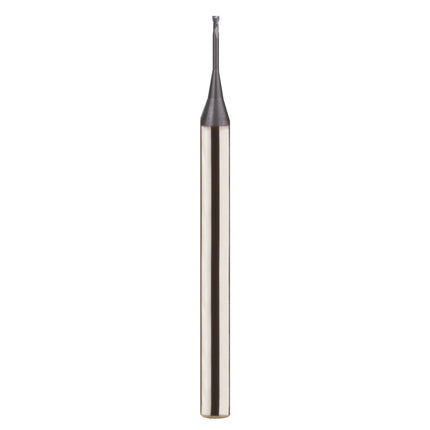

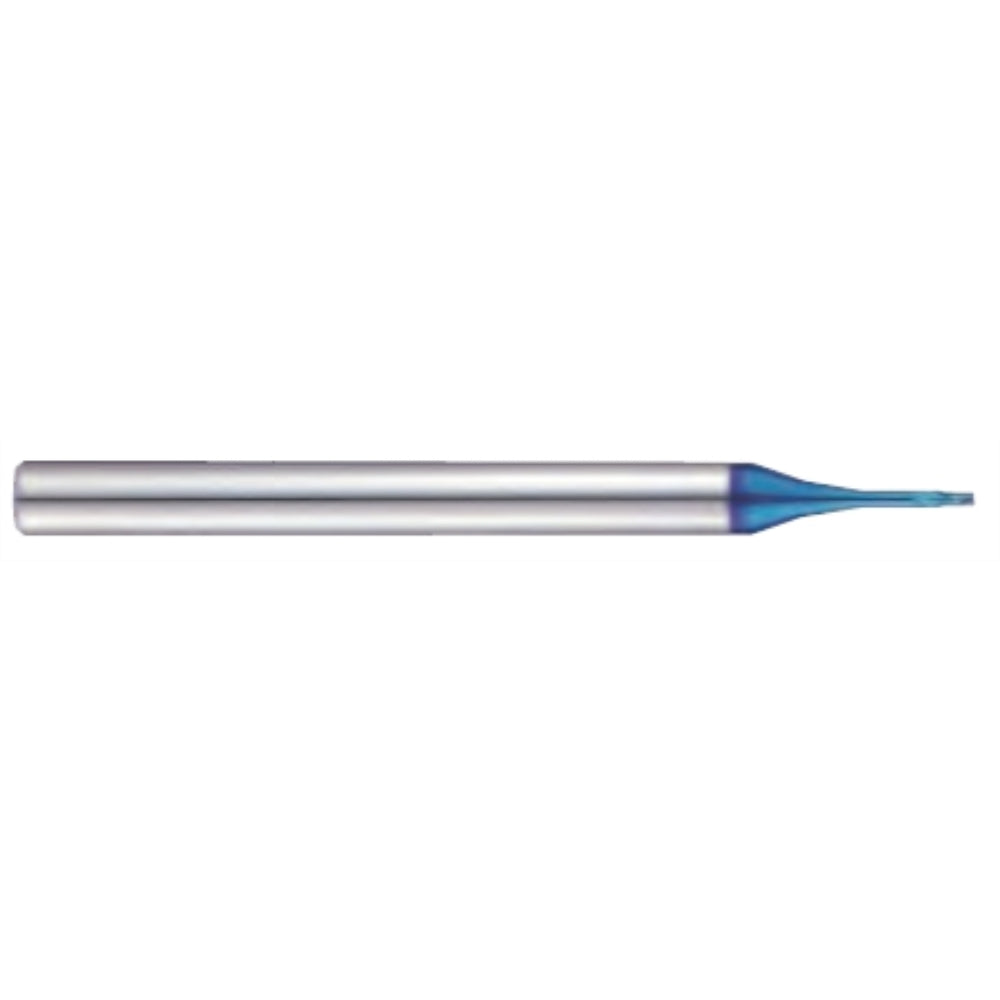

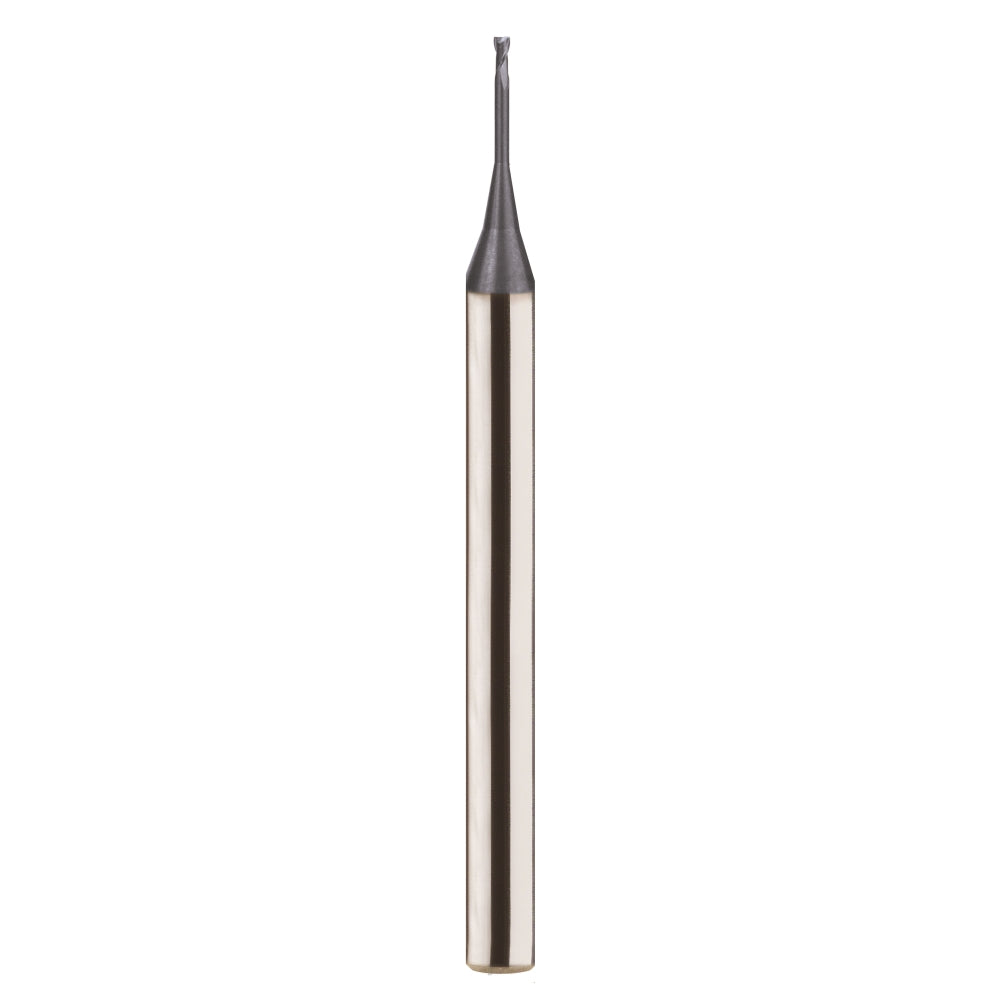

YG-1 X5070 (S) Long Neck Radius End Mill 2F

Description

Confirm the radius as well as the diameter, because variants in the same line are specified by both.

YG-1 X5070 (S) Long Neck Radius End Mill 2F

A long neck corner radius end mill for pocketing and contouring where a radius on the part corner or a stronger cutting edge is needed. Used on milling machines and machining centers in mold shops, job shops and production plants.

Key Features

  • Corner radius strengthens the edge against chipping and leaves a filleted floor edge.
  • Programmed corner radius must match the tool radius of the variant.
  • Long reach increases deflection; reduce depth of cut and feed for stable cutting.
  • Match the shank diameter to your collet or holder before ordering.

Specifications

Model Specification Sold as
SXCRE2-01R01-03X D1.0-R0.1-03 (SG8A600100103) 1 pc
SXCRE2-015R03-8X D1.5-R0.3-8 (SG8A600150308) 1 pc
SXCRE2-015R03-10X D1.5-R0.3-10 (SG8A600150310) 1 pc
SXCRE2-010R03-6X D1.0-R0.3-6 (SG8A600100306) 1 pc
SXCRE2-020R03-12X D2.0(R0.3)X4X3(12)X50 (SG8A600200312) 1 pc
SXCRE2-015R02-12X D1.5(R0.2)X4X2.5(12)X50 (SG8A600150212) 1 pc
SXCRE2-015R01-4X D1.5-R0.1-4 (SG8A600150104) 1 pc

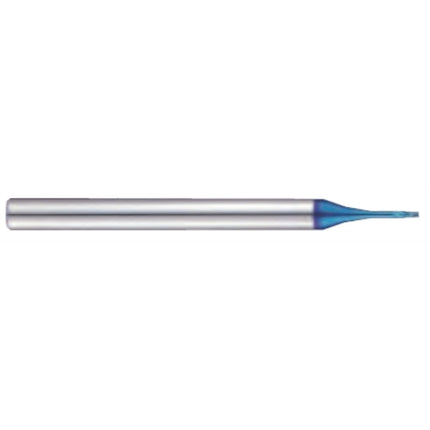

SXCRE2-020R01-8X D2.0(R0.1)X4X3(8)X50 (SG8A600200108) 1 pc
SXCRE2-06R15-15X D6(R1.5)X6X9(15)X60 (SG8A600601515) 1 pc
SXCRE2-006R01-4X D0.6-R0.1 (SG8A600060106) 1 pc
SXCRE2-006R02-4X D0.6-R0.2 (SG8A600060204) 1 pc
SXCRE2-015R02-4X D1.5-R0.2-4 (SG8A600150204) 1 pc
SXCRE2-02R03-8X D2.0(R0.3)X4X3(8)X50 (SG8A600200308) 1 pc
SXCRE2-010R02-6X D1.0(R0.2)X4X2(6)X50 (SG8A600100206) 1 pc
SXCRE2-010R03-4X D1.0(R0.3)X4X2(4)X50 (SG8A600100304) 1 pc
SXCRE2-015R05-8X D1.5(R0.5)X4X2.5(8)X50 (SG8A600150508) 1 pc
SXCRE2-02R03-10X D2.0-R0.3-10 (SG8A600200310) 1 pc
SXCRE2-008R005-4X D0.8-R0.05-4 (SG8A6000800504) 1 pc
SXCRE2-020R01-10X D2(R0.1)X4X3(10)X50 (SG8A600200110) 1 pc
SXCRE2-010R01-10X D1(R0.1)X4X2(10)X50 (SG8A600100110) 1 pc
SXCRE2-10R0.2-25X D10(R2)X10X15(25)X70 (SG8A601002025) 1 pc
SXCRE2-010R03-3X D1(R0.3)X4X2(3)X50 (SG8A600100303) 1 pc
SXCRE2-015R02-6X D1.5(R0.2)X4X2.5(6)X50 (SG8A600150206) 1 pc
SXCRE2-04R10-10X D4(R1)X6X6(10)X55 (SG8A600401010) 1 pc
SXCRE2-04R03-10X D4(R0.3)X6X6(10)X55 (SG8A600400310) 1 pc
SXCRE2-006R005-6X D0.6-R0.05 (SG8A600600506) 1 pc
SXCRE2-006R002-6X D0.6(R0.05)X4X0.9(6)X45 (SG8A6000600506) 1 pc
SXCRE2-006R005-4X D0.6(R0.05)X4X0.9(4)X45 (SG8A6000600504) 1 pc
SXCRE2-020R01-16X D2(R0.1)X4X3(16)X50 (SG8A600200116) 1 pc
SXCRE2-006R01-2X D0.6(R0.1)X4X0.9(2)X45 (SG8A600060102) 1 pc
SXCRE2-010R03-4X D1.0-R0.3-4 (SG8A600100304) 1 pc
SXCRE2-010R03-10X D1.0-R0.3-10 (SG8A600100310) 1 pc
SXCRE2-06R02-15X D6.0-R0.2-15 (SG8A600600215) 1 pc
SXCRE2-060R05-15X D6.0(R0.5)X6X9(15)X60 (SG8A600600515) 1 pc
SXCRE2-020R02-12X D2.0(R0.2)X4X3(12)X50 (SG8A600200212) 1 pc
SXCRE2-02R01-12X D2.0-R0.1-12 (SG8A600200112) 1 pc
SXCRE2-040R03-12X D4.0(R0.3)X6X6(12)X55 (SG8A600400312) 1 pc
SXCRE2-03R03-8X D3.0-R0.3-8 (SG8A600300308) 1 pc
SXCRE2-03R05-10X D3.0(R0.5)X6X4.5(10)X55 (SG8A600300510) 1 pc
SXCRE2-12R1.0-18X D12.0-R1.0-18 (SG8A601201018) 1 pc
SXCRE2-025R05-8X D2.5-R0.5-8 (SG8A600250508) 1 pc

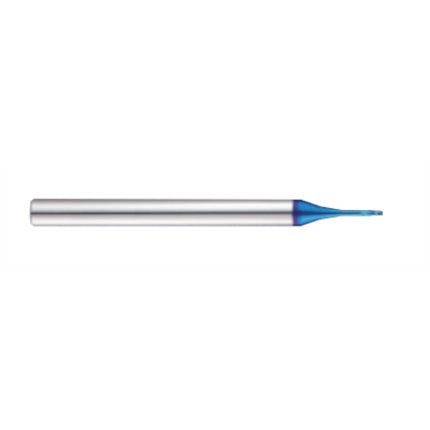

SXCRE2-030R10-8X D3-R1.0-8 (SG8A600301008) 1 pc
SXCRE2-04R01-12X D4.0-R0.1-12 (SG8A600400112) 1 pc
SXCRE2-03R02-8X D3.0-R0.2-8 (SG8A600300208) 1 pc
SXCRE2-025R05-10X D2.5(R0.5)X4X3.5(10)X55 (SG8A600250510) 1 pc
SXCRE2-04R01-16X D4.0-R0.1-16 (SG8A600400116) 1 pc
SXCRE2-02R01-6X D2.0-R0.1-6 (SG8A600200106) 1 pc
SXCRE2-03R02-20X D3.0(R0.2)X6X4.5(20)X60 (SG8A600300220) 1 pc
SXCRE2-03R01-8X D3.0(R0.1)X6X4.5(8)X55 (SG8A600300108) 1 pc
SXCRE2-040R03-25X D4.0(R0.3)X6X6(25)X60 (SG8A600400325) 1 pc
SXCRE2-10R0.2-25X D10.0-R0.2-25 (SG8A601000225) 1 pc
SXCRE2-10R0.3-25X D10.0-R0.3-25 (SG8A601000325) 1 pc
SXCRE2-080R02-20X D8.0(R0.2)X8X12(20)X65 (SG8A600800220) 1 pc
SXCRE2-008R02-4X D0.8-R0.2-4 (SG8A600080204) 1 pc
SXCRE2-008R02-6X D0.8-R0.2-6 (SG8A600080206) 1 pc
SXCRE2-008R01-2X D0.8(R0.1)X4X1.2(2)X45 (SG8A600080102) 1 pc
SXCRE2-080R1-20X D8.0-R1.0-20 (SG8A600801020) 1 pc
SXCRE2-120R05-30X D12.0(R0.5)X12X18(30)X80 (SG8A601200530) 1 pc
SXCRE2-030R03-10X D3.0(R0.3)X6X4.5(10)X55 (SG8A600300310) 1 pc
SXCRE2-025R05-16X D2.5(R0.5)X4X3.5(16)X55 (SG8A600250516) 1 pc

40 more sizes are available in the option selector.

  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

Confirm the radius as well as the diameter, because variants in the same line are specified by both.YG-1 X5070 (S)... Read more

SKU: kb-201-2067

$29.67 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
