Description
Check the corner radius as well as diameter, since the same diameter is sold in several radii.

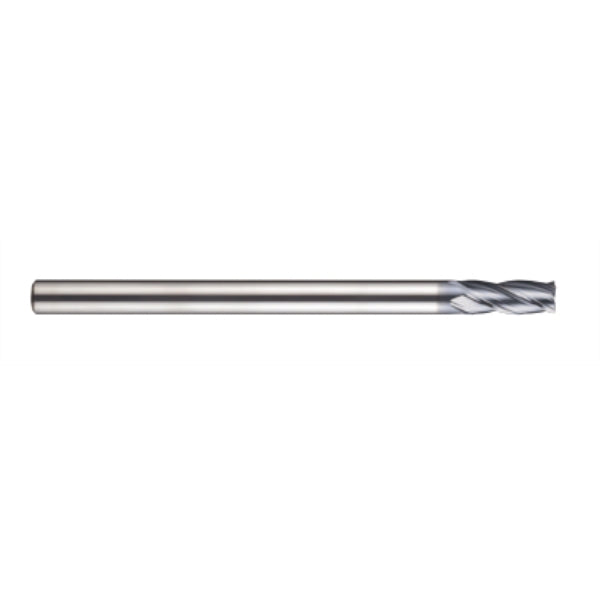

YG-1 X-POWER (S) Radius End Mill 4F
A solid carbide end mill with a rounded corner radius instead of a sharp corner. It is used for pocketing, profiling and shoulder milling where the corner radius strengthens the edge and leaves a fillet in the part. Common on CNC machining centers in general machining and mold work.
Key Features
- Corner radius sets the fillet left at pocket floors and walls
- Match diameter and shank to the collet or holder
- Check flute count and length of cut against the job
- Long-neck versions reduce clearance problems in deep pockets
Specifications
| Model |
Specification |
Sold as |
| SXCRE4-04R01 |
D4.0-R0.1 (SEM81904001) |
1 pc |
| SXCRE4-20R05 |
D20(R0.5)X20X45X110 (SEM81920005) |
1 pc |
| SXCRE4-10R01 |
D10.0-R0.1X10X25X90 (SEM81910001) |
1 pc |
| SXCRE4-05R01 |
D5(R0.1)X6X13X50 (SEM81905001) |
1 pc |
| SXCRE4-20R1 |
D20.0(R1.0)X20X45X110 (SEM81920010) |
1 pc |
- Brand: YG-1
- Country of origin: Korea
About YG-1
YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
