Description
Confirm the radius as well as the diameter, because variants in the same line are specified by both.

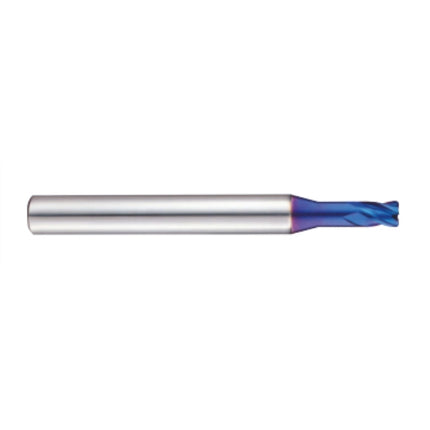

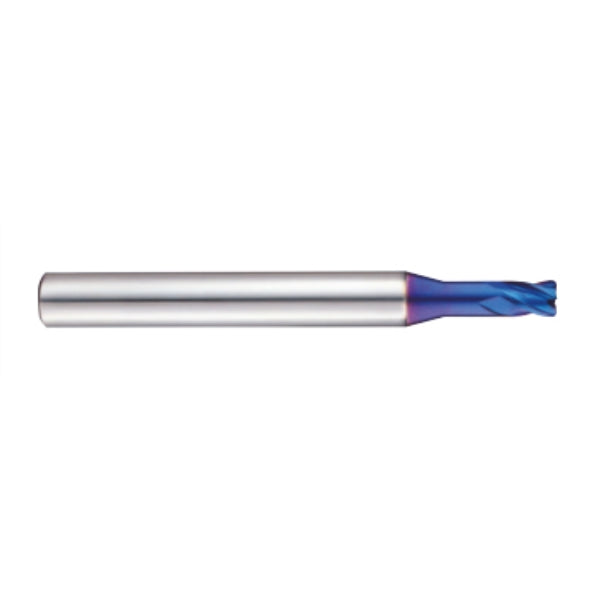

YG-1 X-5070 (S) Long Neck Radius End Mill 4F
A long neck corner radius end mill for pocketing and contouring where a radius on the part corner or a stronger cutting edge is needed. Used on milling machines and machining centers in mold shops, job shops and production plants.
Key Features

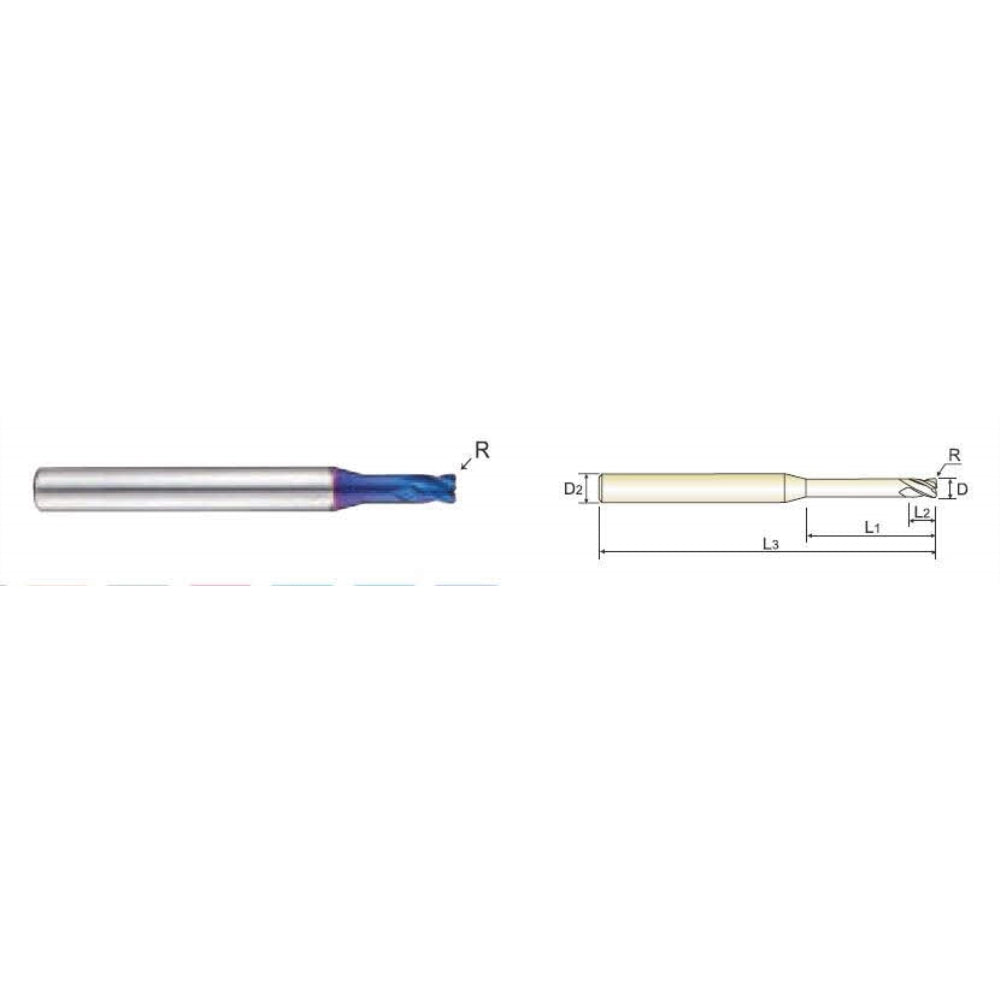

- Corner radius strengthens the edge against chipping and leaves a filleted floor edge.
- Programmed corner radius must match the tool radius of the variant.
- Long reach increases deflection; reduce depth of cut and feed for stable cutting.
- Match the shank diameter to your collet or holder before ordering.
Specifications
| Model |
Specification |
Sold as |
| SXCRE4-02R05-6X |
D2(R0.5)X4X3(6)X50 (SG8A470200506) |
1 pc |
| SXCRE4-02R05-8X |
D2(R0.5)X4X3(8)X50 (SG8A470200508) |
1 pc |
| SXCRE4-04R1-20X |
D4(R1)X6X6(20)X60 (SG8A470401020) |
1 pc |
| SXCRE4-04R1-10X |
D4(R1)X6X6(10)X55 (SG8A470401010) |
1 pc |
| SXCRE4-04R1-25X |
D4(R1)X6X6(25)X60 (SG8A470401025) |
1 pc |
| SXCRE4-02R05-6X |
D2(R0.5)X4X3(6)X50 ( |
1 pc |
- Brand: YG-1
- Country of origin: Korea
About YG-1
YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
