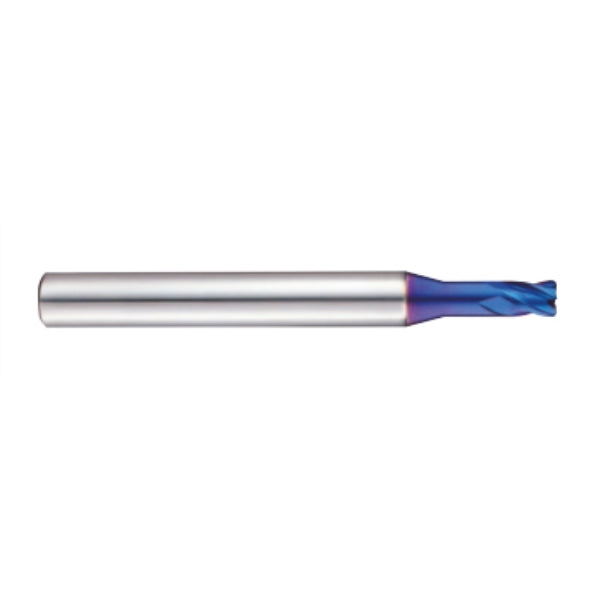

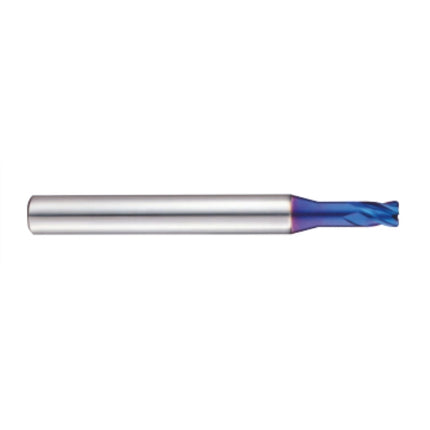

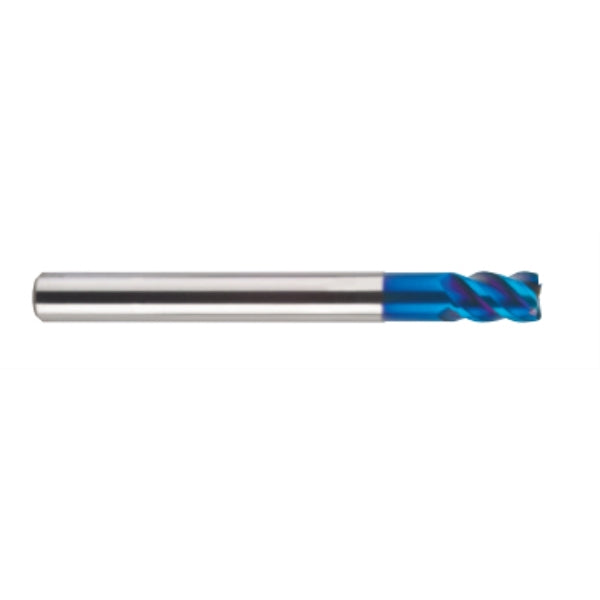

YG-1 X5070 (S) Long Neck Radius End Mill 4F

Description

Confirm the radius as well as the diameter, because variants in the same line are specified by both.

YG-1 X5070 (S) Long Neck Radius End Mill 4F

A long neck corner radius end mill for pocketing and contouring where a radius on the part corner or a stronger cutting edge is needed. Used on milling machines and machining centers in mold shops, job shops and production plants.

Key Features

  • Corner radius strengthens the edge against chipping and leaves a filleted floor edge.
  • Programmed corner radius must match the tool radius of the variant.
  • Long reach increases deflection; reduce depth of cut and feed for stable cutting.
  • Match the shank diameter to your collet or holder before ordering.

Specifications

Model Specification Sold as
SXCRE4-08R20-20X D8(R2)X8X12(20)X70 (SG8A470802020) 1 pc
SXCRE4-01R03-6X D1.0-R0.3 (SG8A470100306) 1 pc
SXCRE4-01R01-3X D1.0-R0.1-3 (SG8A470100103) 1 pc
SXCRE4-01R01-4X D1.0-R0.1-4 (SG8A470100104) 1 pc
SXCRE4-01R03-3X D1.0-R0.3 (SG8A470100303) 1 pc
SXCRE4-080R15-20X D8.0(R1.5)X8X12(20)X70 (SG8A470801520) 1 pc
SXCRE4-080R10.0-25BX D8.0-R10.0-25 (SG8B900801025) 1 pc
SXCRE4-04R01-10X D4(R0.1)X6X6(10)X55 (SG8A470400110) 1 pc
SXCRE4-080R0.5-25BX D8.0-R0.5-25 (SG8B900800525) 1 pc
SXCRE4-03R05-20X D3.0-R0.5-20 (SG8A470300520) 1 pc
SXCRE4-04R0.5-20X D4.0-R0.5-20 (SG8A470400520) 1 pc
SXCRE4-10R1.0-25X D10.0-R1.0-25 (SG8A471001025) 1 pc
SXCRE4-03R05-100X D3.0-R0.5-10 (SG8A470300510) 1 pc
SXCRE4-03R10-10X D3.0-R1.0-10 (SG8A470301010) 1 pc
SXCRE4-03R03-10X D3.0-R0.3-10 (SG8A470300310) 1 pc
SXCRE4-03R03-12X D3.0(R0.3)X6X4(12)X55 (SG8A470300312) 1 pc
SXCRE4-03R03-16X D3.0-R0.3-16 (SG8A470300316) 1 pc
SXCRE4-03R05-12X D3(R0.5)X6X4(12)X55 (SG8A470300512) 1 pc
SXCRE4-03R10-12X D3.0-R1.0-12 (SG8A470301012) 1 pc
SXCRE4-04R03-12X D4.0-R0.3-12 (SG8A470400312) 1 pc
SXCRE4-04R05-12X D4.0-R0.5-12 (SG8A470400512) 1 pc
SXCRE4-03R03-20X D3.0-R0.3-20 (SG8A470300320) 1 pc
SXCRE4-03R10-16X D3.0-R1.0-16 (SG8A470301016) 1 pc
SXCRE4-04R02-20X D4.0-R0.2-20 (SG8A470400220) 1 pc
SXCRE4-03R10-20X D3.0-R1.0-20 (SG8A470301020) 1 pc
SXCRE4-04R05-25X D4(R0.5)X6X6(25)X60 (SG8A470400525) 1 pc
SXCRE4-03R02-20X D3(R0.2)X6X4(20)X60 (SG8A470300220) 1 pc
SXCRE4-08R2-20X D8(R2)X8X12(20)X70 (SG8A470802020) 1 pc
SXCRE4-03R03-8X D3(R0.3)X6X4(8)X55 (SG8A470300308) 1 pc
SXCRE4-04R03-16X D4.0(R0.3)X6X6(16)X55 (SG8A470400316) 1 pc
SXCRE4-04R03-20X D4.0(R0.3)X6X6(20)X60 (SG8A470400320) 1 pc
SXCRE4-06R05-15X D6.0(R0.5)X6X9(15)X60 (SG8A470600515) 1 pc
SXCRE4-12R1-30X D12.0(R1)X12X18(30)X80 (SG8A471201030) 1 pc
SXCRE4-04R02-16X D4.0-R0.2-16 (SG8A470400216) 1 pc
SXCRE4-060R1-15X D6.0(R1)X6X9(15)X60 (SG8A470601015) 1 pc
SXCRE4-03R02-12X D3.0(R0.2)X6X4(12)X55 (SG8A470300212) 1 pc
SXCRE4-04R02-12X D4.0(R0.2)X6X6(12)X55 (SG8A470400212) 1 pc
SXCRE4-04R10-12X D4.0-R1.0-12 (SG8A470401012) 1 pc
SXCRE4-060R02-15X D6.0(R0.2)X6X9(15)X60 (SG8A470600215) 1 pc
SXCRE4-12R05-30X D12(R0.5)X12X18(30)X80 (SG8A471200530) 1 pc
SXCRE4-12R03-30X D12.0-R0.3-30 (SG8A471200330) 1 pc
SXCRE4-04R01-16X D4(R0.1)X6X6(16)X55 (SG8A470400116) 1 pc
SXCRE4-04R01-20X D4(R0.1)X6X6(20)X60 (SG8A470400120) 1 pc
SXCRE4-03R02-16X D3(R0.2)X6X4(16)X55 (SG8A470300216) 1 pc
SXCRE4-03R05-16X D3(R0.5)X6X4(16)X55 (SG8A470300516) 1 pc
SXCRE4-04R10-20X D4.0-R1.0-20 (SG8A470401020) 1 pc
SXCRE4-06R2-15X D6(R2)X6X9(15)X60 (SG8A470602015) 1 pc

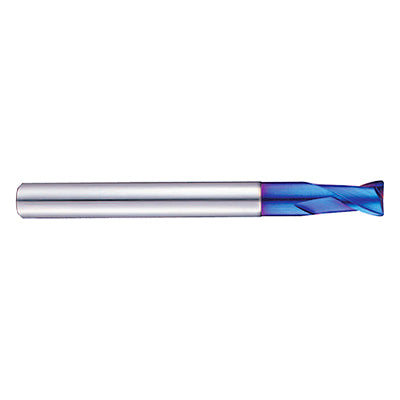

SXCRE4-060R1-15X D6.0-R1.0-15 (SG8A) 1 pc
SXCRE4-10R2.0-25X D10.0-R2.0-25 (SG8A471002025) 1 pc
SXCRE4-04R05-16X D4.0(R0.5)X6X6(16)X55 (SG8A470400516) 1 pc
SXCRE4-08R1-20X D8.0-R1.0-20 (SG8A470801020) 1 pc
SXCRE4-015R03-6X D1.5-R0.3-6 (SG8A470150306) 1 pc
SXCRE4-08R0.2-20X D8(R0.2)X8X12(20)X70 (SG8A470800220) 1 pc
SXCRE4-10R0.2-25X D10.0-R0.2-25 (SG8A471000225) 1 pc
SXCRE4-04R10-16X D4.0-R1.0-16 (SG8A470401016) 1 pc
SXCRE4-040R05-10X D4.0(R0.5)X6X6(10)X55 (SG8A470400510) 1 pc
SXCRE4-08R05-20X D8(R0.5)X8X12(20)X70 (SG8A470800520) 1 pc
SXCRE4-015R0-6X D1.5(R0.2)X4X2.5(6)X50 (SG8A470150206) 1 pc
SXCRE4-08R03-20X D8(R0.3)X8X12(20)X70(SG8A470800320) 1 pc
SXCRE4-04R02-10X D4.0-R0.2-10 (SG8A470400210) 1 pc

23 more sizes are available in the option selector.

  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

Confirm the radius as well as the diameter, because variants in the same line are specified by both.YG-1 X5070 (S)... Read more

SKU: kb-201-2798

$35.96 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
