Description
Confirm the radius as well as the diameter, because variants in the same line are specified by both.

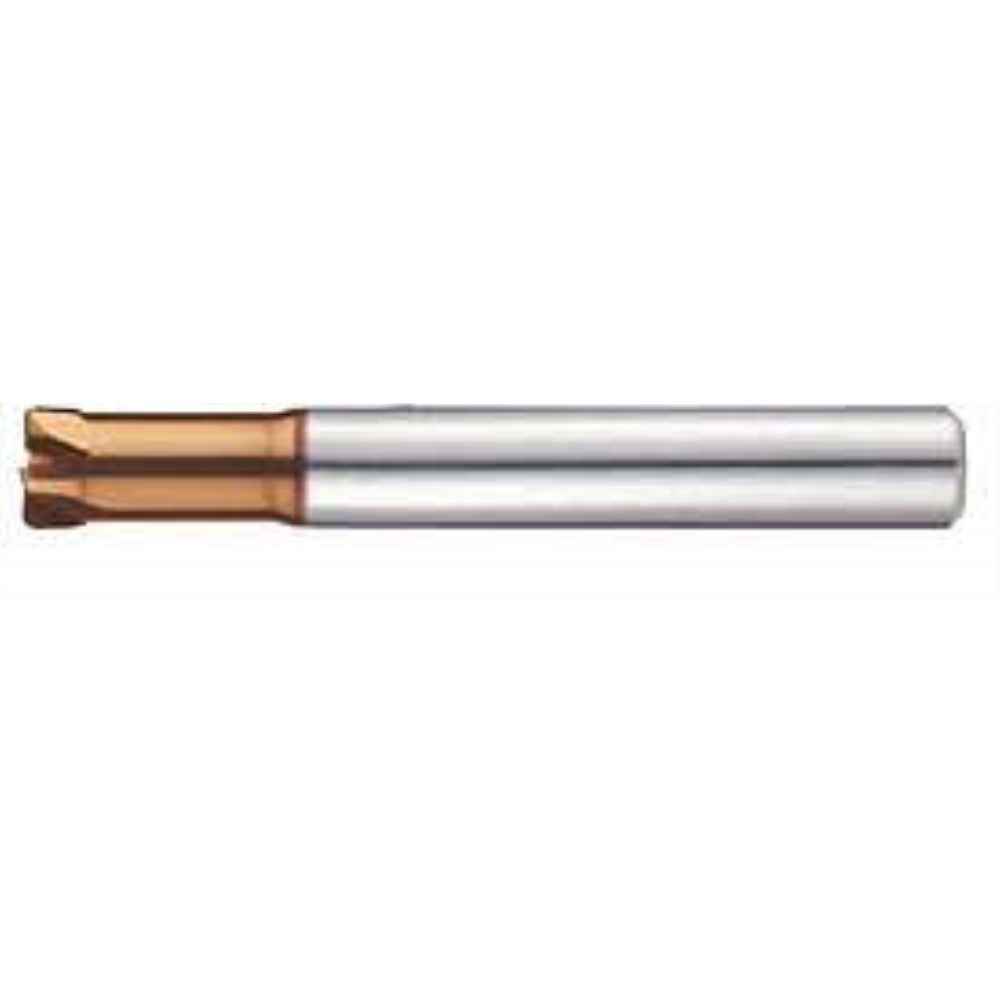

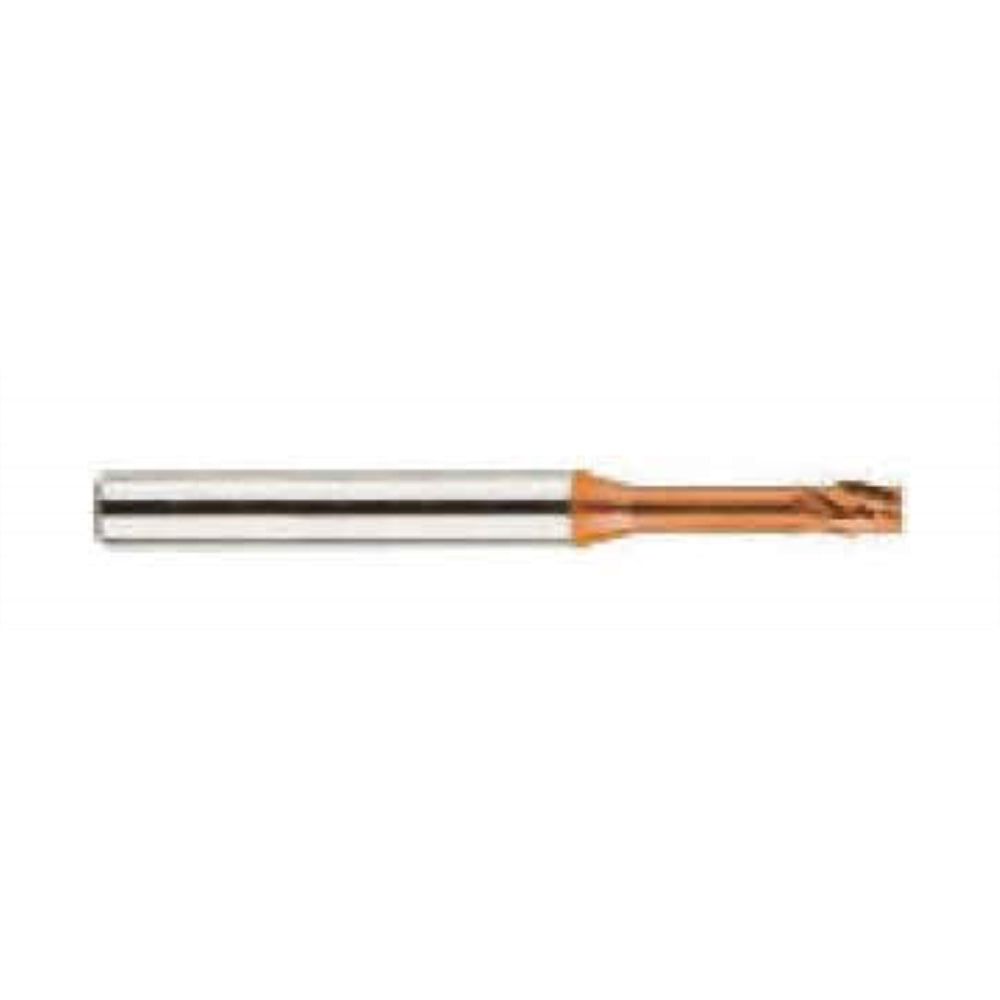

YG-1 NX-5070 Radius End Mill 4F
A corner radius end mill for pocketing and contouring where a radius on the part corner or a stronger cutting edge is needed. Used on milling machines and machining centers in mold shops, job shops and production plants.
Key Features
- Corner radius strengthens the edge against chipping and leaves a filleted floor edge.
- Programmed corner radius must match the tool radius of the variant.
- Flute count varies by size; fewer flutes give chip room, more give a finer finish.
- Match the shank diameter to your collet or holder before ordering.
Specifications
| Model |
Specification |
Sold as |
| NXCRE2-020R05-NX |
D2(R0.5)X6X2(6)X50 (SGNF1002005) |
1 pc |
| NXCRE2-030R05-NX |
D3(R0.5)X6X3(8)X60(SGNF1003005) |
1 pc |
| NXCRE2-040R05-NX |
D4(R0.5)X6X4(10)X60 (SGNF1004005) |
1 pc |
| NXCRE2-060R05-NX |
D6(R0.5)X6X6(12)X60 (SGNF1006005) |
1 pc |
| NXCRE2-080R05-NX |
D8(R0.5)X8X8(16)X70 (SGNF1008005) |
1 pc |
| NXCRE2-080R1-NX |
D8(R1)X8X8(16)X70 (SGNF1008010) |
1 pc |
| NXCRE2-10R05-NX |
D10(R0.5)X10X10(20)X75 (SGNF1010005) |
1 pc |
| NXCRE2-12R05-NX |
D12(R0.5)X12X12(25)X80 (SGNF1012005) |
1 pc |
| NXCRE2-10R1-NX |
D10(R1)X10X10(20)X75 (SGNF1010010) |
1 pc |
| NXCRE2-060R10-NX |
D6(R1)X6X6(12)X60 (SGNF1006010) |
1 pc |
| NXCRE2-080-NX |
D8X8X12(30)X80 (SGNF1108030) |
1 pc |
| NXCRE2-060R03-NX |
D6(R0.3)X6X6(12)X60 (SGNF1006003) |
1 pc |
| NXCRE2-12R1-NX |
12(R1)X12X12(25)X80 (SGNF1012010) |
1 pc |
- Brand: YG-1
- Country of origin: Korea
About YG-1
YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
