YG-1 Carbide Coated Drill

Description

Check the work material the drill is made for and the shank type; use a rigid holder and avoid deep holes beyond its length rating.

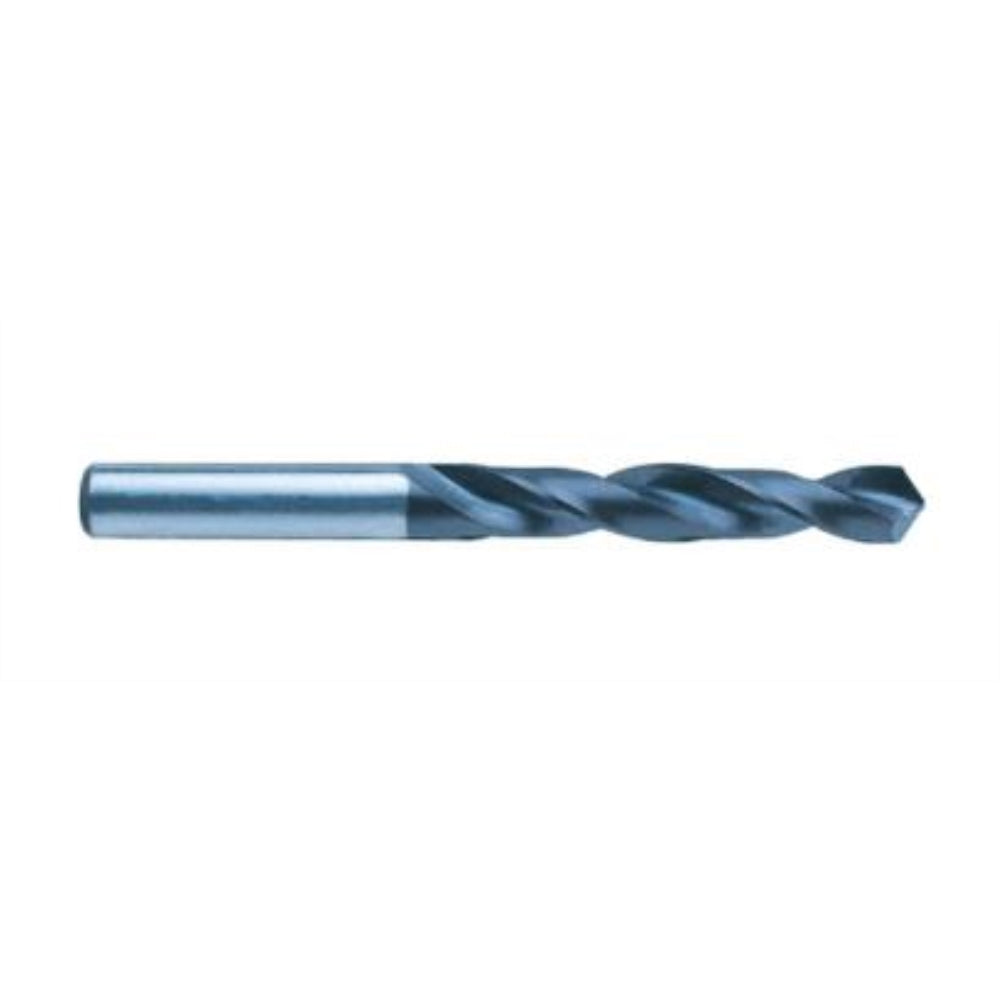

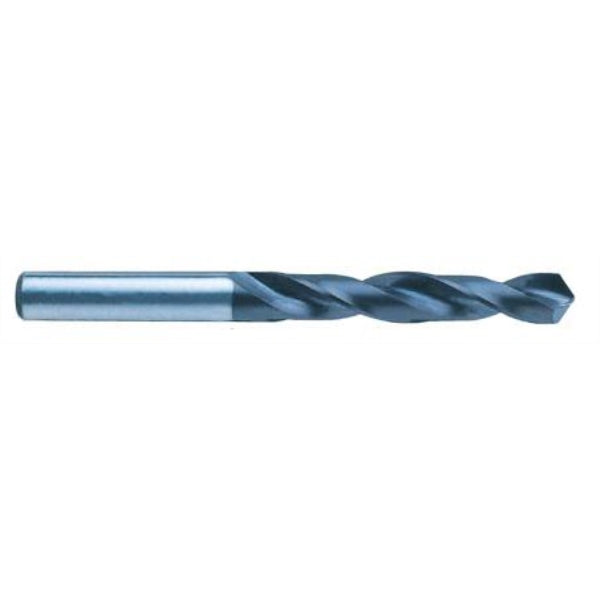

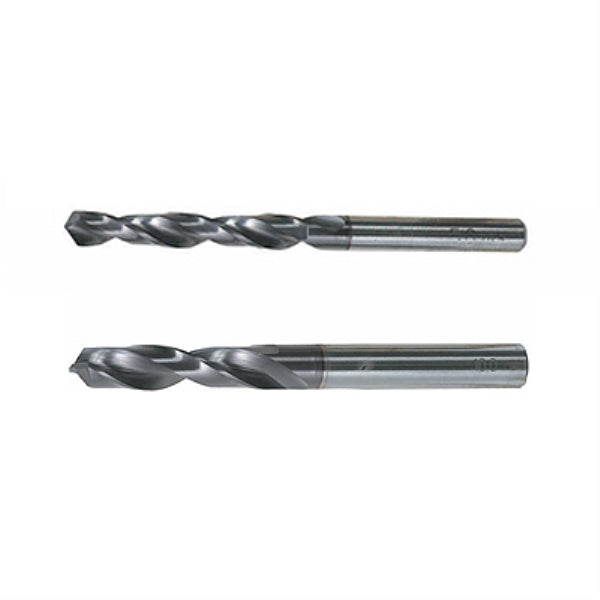

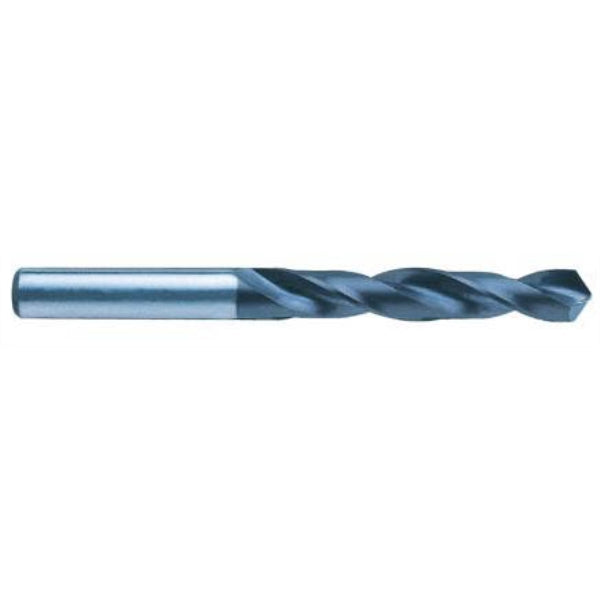

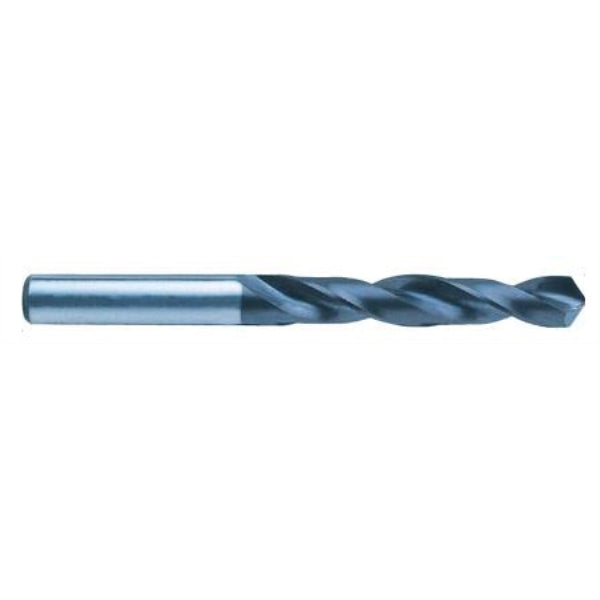

YG-1 Carbide Coated Drill

A solid carbide drill produces accurate round holes in steel, cast iron and other materials on CNC machines and drilling machines. It is used in production machining and tool rooms.

Key Features

  • Choose by diameter, flute length and overall length.
  • Needs a rigid setup and a precise holder.
  • Check if it has coolant holes for through-tool coolant.

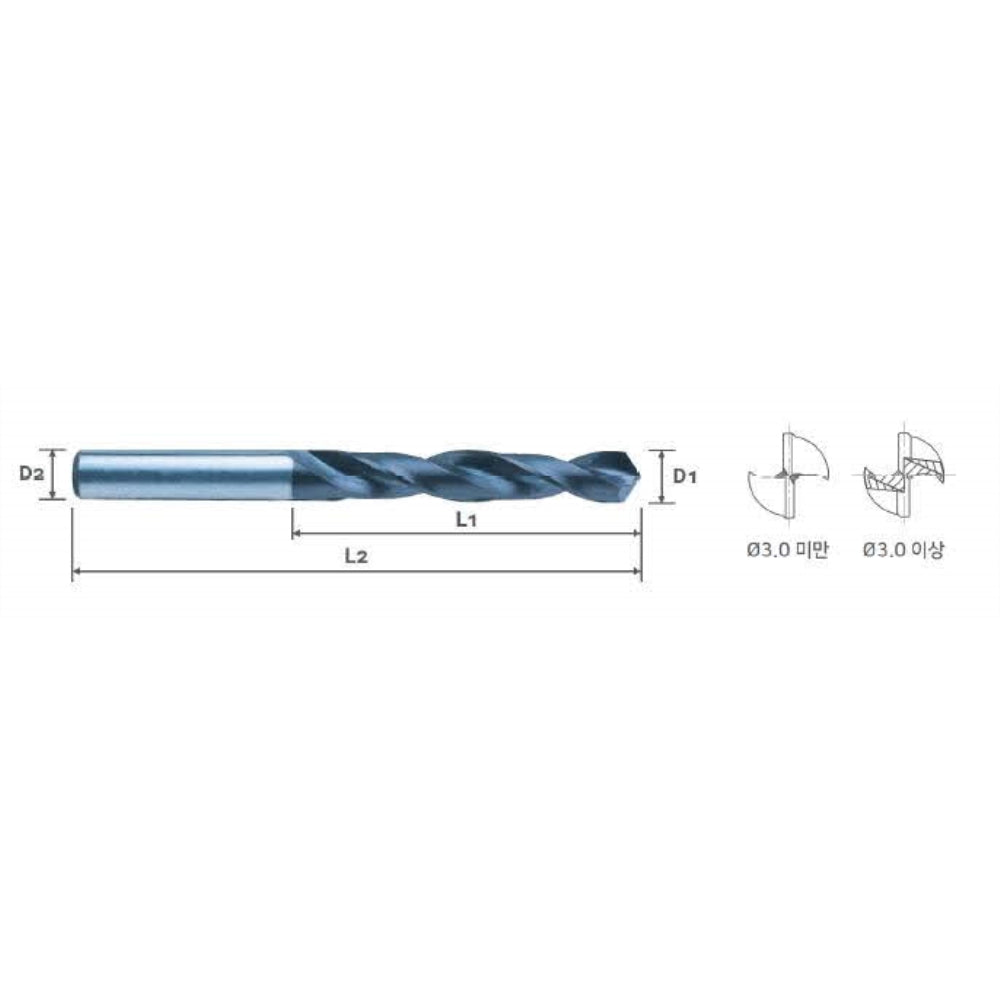

Specifications

Model Specification Sold as
CSD-020 D2.0X2X18X40 (H4401020) 1 pc
CSD-021 D2.1X2.1X18X40 (H4401021) 1 pc
CSD-022 D2.2X2.2X18X40 (H4401022) 1 pc
CSD-023 D2.3X2.3X18X40 (H4401023) 1 pc
CSD-024 D2.4X2.4X18X40 (H4401024) 1 pc
CSD-025 D2.5X2.5X22X45 (H4401025) 1 pc
CSD-026 D2.6X2.6X22X45 (H4401026) 1 pc
CSD-027 D2.7X2.7X22X45 (H4401027) 1 pc
CSD-028 D2.8X2.8X22X45 (H4401028) 1 pc
CSD-029 D2.9X2.9X22X45 (H4401029) 1 pc
CSD-030 D3.0X3.0X25X50 (H4401030) 1 pc
CSD-031 D3.1X3.1X25X50 (H4401031) 1 pc
CSD-032 D3.2X3.2X25X50 (H4401032) 1 pc
CSD-033 D3.3X3.3X28X50 (H4401033) 1 pc
CSD-034 D3.4X3.4X28X50 (H4401034) 1 pc
CSD-035 D3.5X3.5X28X50 (H4401035) 1 pc
CSD-036 D3.6X3.6X30X55 (H4401036) 1 pc
CSD-037 D3.7X3.7X30X55 (H4401037) 1 pc
CSD-038 D3.8X3.8X30X55 (H4401038) 1 pc
CSD-039 D3.9X3.9X30X55 (H4401039) 1 pc
CSD-040 D4.0X4X30X55 (H4401040) 1 pc
CSD-041 D4.1X4.1X34X60 (H4401041) 1 pc
CSD-042 D4.2X4.2X34X60 (H4401042) 1 pc
CSD-043 D4.3X4.3X34X60 (H4401043) 1 pc
CSD-044 D4.4X4.4X34X60 (H4401044) 1 pc
CSD-045 D4.5X4.5X34X60 (H4401045) 1 pc
CSD-046 D4.6X4.6X38X65 (H4401046) 1 pc
CSD-047 D4.7X4.7X38X65 (H4401047) 1 pc
CSD-048 D4.8X4.8X38X65 (H4401048) 1 pc
CSD-049 D4.9X4.9X38X65 (H4401049) 1 pc
CSD-050 D5.0X5X38X65 (H4401050) 1 pc
CSD-051 D5.1X5.1X38X65 (H4401051) 1 pc
CSD-052 D5.2X5.2X38X65 (H4401052) 1 pc
CSD-053 D5.3X5.3X38X65 (H4401053) 1 pc
CSD-054 D5.4X5.4X38X65 (H4401054) 1 pc
CSD-055 D5.5X5.5X38X65 (H4401055) 1 pc
CSD-056 D5.6X5.6X40X75 (H4401056) 1 pc
CSD-057 D5.7X5.7X40X75 (H4401057) 1 pc
CSD-058 D5.8X5.8X40X75 (H4401058) 1 pc
CSD-059 D5.9X5.9X40X75 (H4401059) 1 pc
CSD-060 D6.0X6X40X75 (H4401060) 1 pc
CSD-061 D6.1X6.1X40X75 (H4401061) 1 pc
CSD-062 D6.2X6.2X40X75 (H4401062) 1 pc
CSD-063 D6.3X6.3X40X75 (H4401063) 1 pc
CSD-064 D6.4X6.4X40X75 (H4401064) 1 pc
CSD-065 D6.5X6.5X40X75 (H4401065) 1 pc
CSD-066 D6.6X6.6X46X80 (H4401066) 1 pc
CSD-067 D6.7X6.7X46X80 (H4401067) 1 pc
CSD-068 D6.8X6.8X46X80 (H4401068) 1 pc
CSD-069 D6.9X6.9X46X80 (H4401069) 1 pc
CSD-070 D7.0X7X46X80 (H4401070) 1 pc
CSD-071 D7.1X7.1X46X80 (H4401071) 1 pc
CSD-072 D7.2X7.2X46X80 (H4401072) 1 pc
CSD-073 D7.3X7.3X46X80 (H4401073) 1 pc
CSD-075 D7.5X7.5X46X80 (H4401075) 1 pc
CSD-077 D7.7X7.7X50X85 (H4401077) 1 pc
CSD-078 D7.8X7.8X50X85 (H4401078) 1 pc
CSD-079 D7.9X7.9X50X85 (H4401079) 1 pc
CSD-080 D8.0X8X50X85 (H4401080) 1 pc
CSD-081 D8.1X8.1X50X85 (H4401081) 1 pc

40 more sizes are available in the option selector.

  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

Check the work material the drill is made for and the shank type; use a rigid holder and avoid deep... Read more

SKU: kb-206-0933

$10.55 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
