Description
Check the drilling depth rating (such as 3D or 5D) against your hole depth.

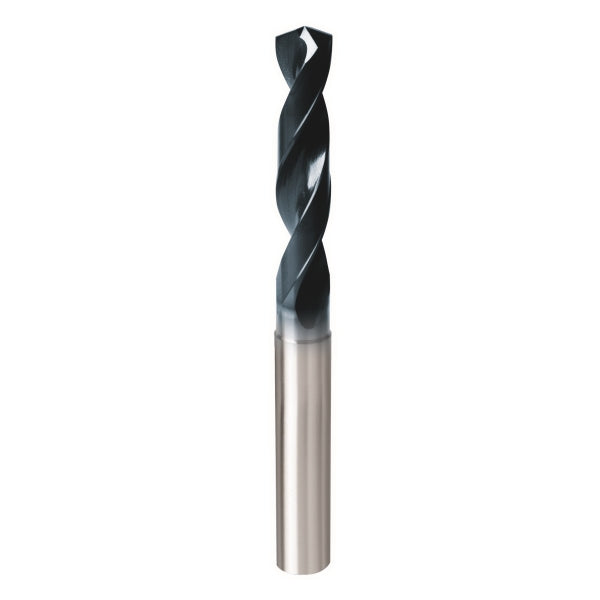

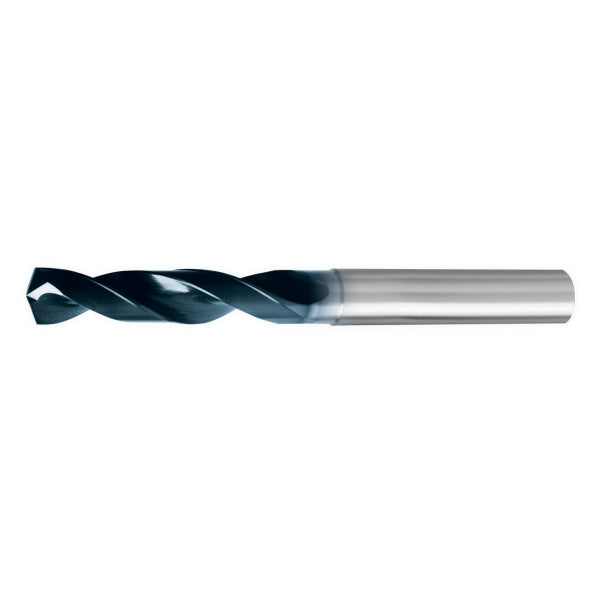

OSG GP Carbide Drill, 3D
A solid carbide drill for fast, accurate holes in steel, cast iron and other metals. Used on CNC machining centers and lathes in production and job shops.
Key Features
- Needs a rigid setup, a precise holder and low runout.
- Coolant, especially through-tool, improves chip removal and tool life.
- Check diameter, flute length, shank and drilling depth for the variant.
Specifications
| Model |
Specification |
Sold as |
| GP-010-3D |
D1.0X3X6X45(GP3D1010K) |
1 pc |
| GP-011-3D |
D1.1X3X7X45(GP3D1011K) |
1 pc |
| GP-012-3D |
D1.2X3X8X45(GP3D1012K) |
1 pc |
| GP-013-3D |
D1.3X3X8X45(GP3D1013K) |
1 pc |
| GP-014-3D |
D1.4X3X9X45(GP3D1014K) |
1 pc |
| GP-015-3D |
D1.5X3X9X45(GP3D1015K) |
1 pc |
| GP-016-3D |
D1.6X3X10X45(GP3D1016K) |
1 pc |
| GP-017-3D |
D1.7X3X10X45(GP3D1017K) |
1 pc |
| GP-018-3D |
D1.8X3X11X45(GP3D1018K) |
1 pc |
| GP-019-3D |
D1.9X3X11X45(GP3D1019K) |
1 pc |
| GP-021-3D |
D2.1X3X14X53(GP3D1021K) |
1 pc |
| GP-022-3D |
D2.2X3X14X53(GP3D1022K) |
1 pc |
| GP-023-3D |
D2.3X3X14X53(GP3D1023K) |
1 pc |
| GP-024-3D |
D2.4X3X14X53(GP3D1024K) |
1 pc |
| GP-027-3D |
D2.7X3X17X53(GP3D1027K) |
1 pc |
| GP-029-3D |
D2.9X3X17X53(GP3D1029K) |
1 pc |
| GP-031-3D |
D3.1X4X20X58(GP3D1031K) |
1 pc |
| GP-032-3D |
D3.2X4X20X58(GP3D1032K) |
1 pc |
| GP-033-3D |
D3.3X4X20X58(GP3D1033K) |
1 pc |
| GP-034-3D |
D3.4X4X20X58(GP3D1034K) |
1 pc |
| GP-036-3D |
D3.6X4X22X58(GP3D1036K) |
1 pc |
| GP-037-3D |
D3.7X4X22X58(GP3D1037K) |
1 pc |
| GP-038-3D |
D3.8X4X22X58(GP3D1038K) |
1 pc |
| GP-039-3D |
D3.9X4X22X58(GP3D1039K) |
1 pc |
| GP-041-3D |
D4.1X5X24X62(GP3D1041K) |
1 pc |
| GP-044-3D |
D4.4X5X24X62(GP3D1044K) |
1 pc |
| GP-046-3D |
D4.6X5X26X62(GP3D1046K) |
1 pc |
| GP-047-3D |
D4.7X5X26X62(GP3D1047K) |
1 pc |
| GP-048-3D |
D4.8X5X26X62(GP3D1048K) |
1 pc |
| GP-049-3D |
D4.9X5X26X62(GP3D1049K) |
1 pc |
| GP-053-3D |
D5.3X6X28X66(GP3D1053K) |
1 pc |
| GP-054-3D |
D5.4X6X28X66(GP3D1054K) |
1 pc |
| GP-056-3D |
D5.6X6X28X66(GP3D1056K) |
1 pc |
| GP-057-3D |
D5.7X6X28X66(GP3D1057K) |
1 pc |
| GP-058-3D |
D5.8X6X28X66(GP3D1058K) |
1 pc |
| GP-059-3D |
D5.9X6X28X66(GP3D1059K) |
1 pc |
| GP-061-3D |
D6.1X7X34X74(GP3D1061K) |
1 pc |
| GP-062-3D |
D6.2X7X34X74(GP3D1062K) |
1 pc |
| GP-063-3D |
D6.3X7X34X74(GP3D1063K) |
1 pc |
| GP-064-3D |
D6.4X7X34X74(GP3D1064K) |
1 pc |
| GP-066-3D |
D6.6X7X34X74(GP3D1066K) |
1 pc |
| GP-067-3D |
D6.7X7X34X74(GP3D1067K) |
1 pc |
| GP-068-3D |
D6.8X7X34X74(GP3D1068K) |
1 pc |
| GP-069-3D |
D6.9X7X34X74(GP3D1069K) |
1 pc |
| GP-071-3D |
D7.1X8X41X79(GP3D1071K) |
1 pc |
| GP-072-3D |
D7.2X8X41X79(GP3D1072K) |
1 pc |
| GP-073-3D |
D7.3X8X41X79(GP3D1073K) |
1 pc |
| GP-074-3D |
D7.4X8X41X79(GP3D1074K) |
1 pc |
| GP-076-3D |
D7.6X8X41X79(GP3D1076K) |
1 pc |
| GP-077-3D |
D7.7X8X41X79(GP3D1077K) |
1 pc |
| GP-078-3D |
D7.8X8X41X79(GP3D1078K) |
1 pc |
| GP-079-3D |
D7.9X8X41X79(GP3D1079K) |
1 pc |
| GP-081-3D |
D8.1X9X43X84(GP3D1081K) |
1 pc |
| GP-082-3D |
D8.2X9X43X84(GP3D1082K) |
1 pc |
| GP-083-3D |
D8.3X9X43X84(GP3D1083K) |
1 pc |
| GP-084-3D |
D8.4X9X43X84(GP3D1084K) |
1 pc |
| GP-086-3D |
D8.6X9X43X84(GP3D1086K) |
1 pc |
| GP-087-3D |
D8.7X9X43X84(GP3D1087K) |
1 pc |
| GP-088-3D |
D8.8X9X43X84(GP3D1088K) |
1 pc |
| GP-089-3D |
D8.9X9X43X84(GP3D1089K) |
1 pc |
40 more sizes are available in the option selector.
- Brand: OSG
- Country of origin: Korea
About OSG
OSG of Japan is a major manufacturer of taps, drills, end mills and thread-forming tools for metalworking.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
