Description
Confirm the thread standard, size and pitch, and whether the tap suits blind or through holes.

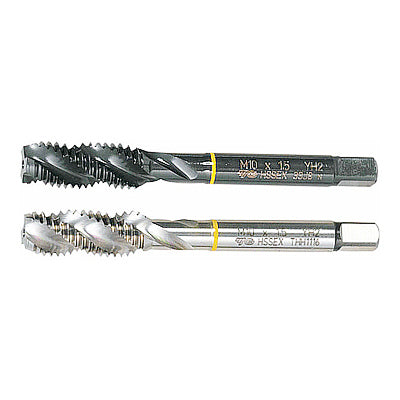

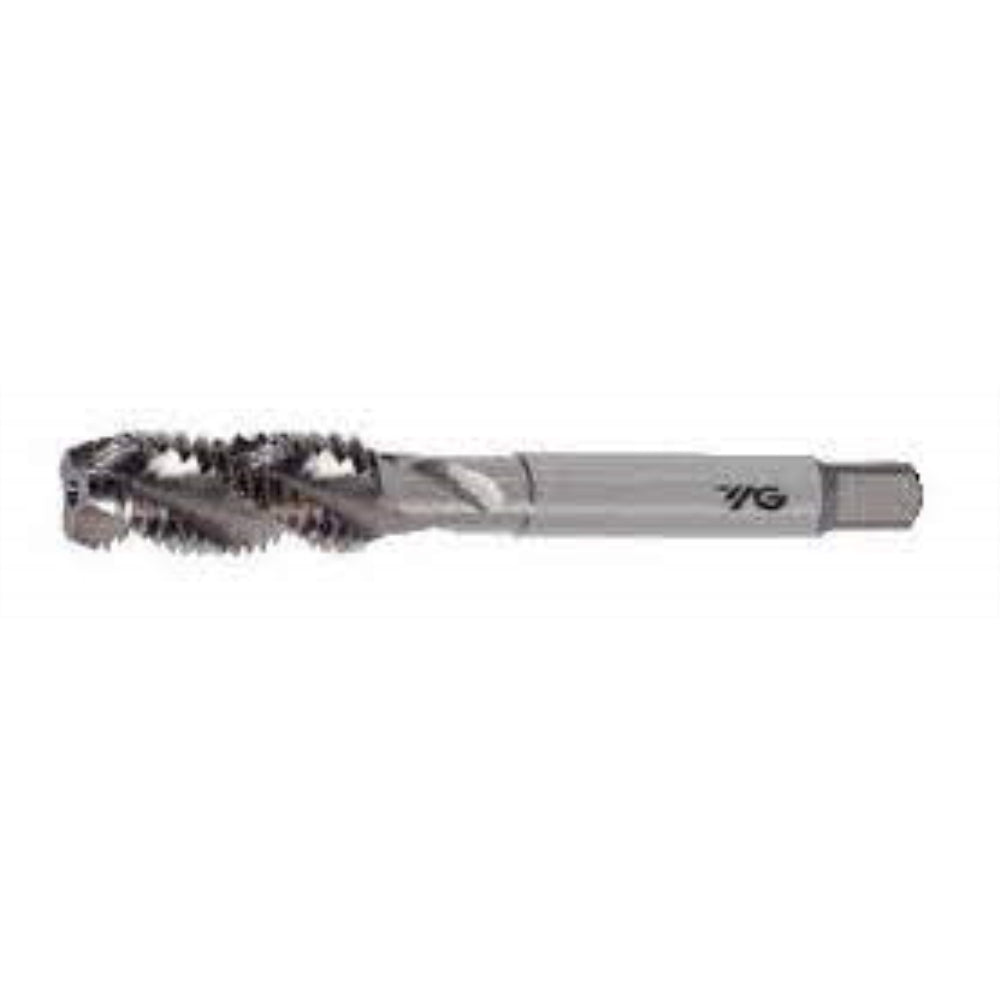

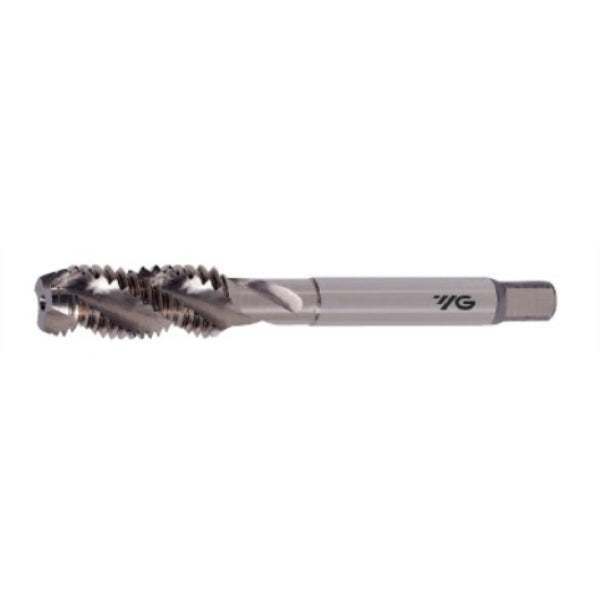

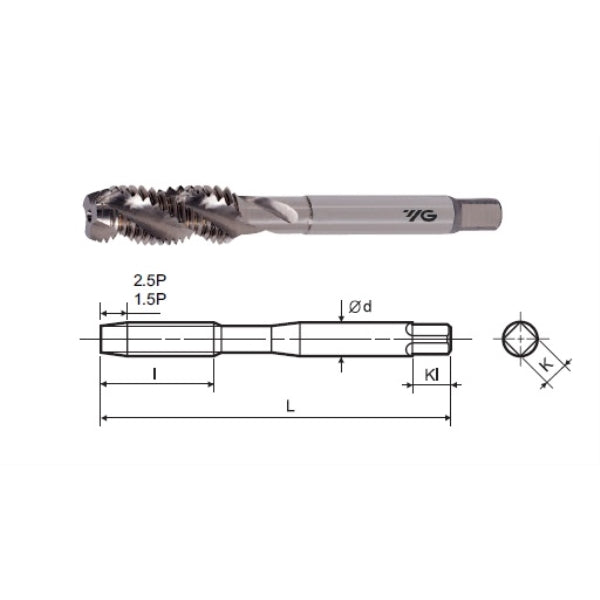

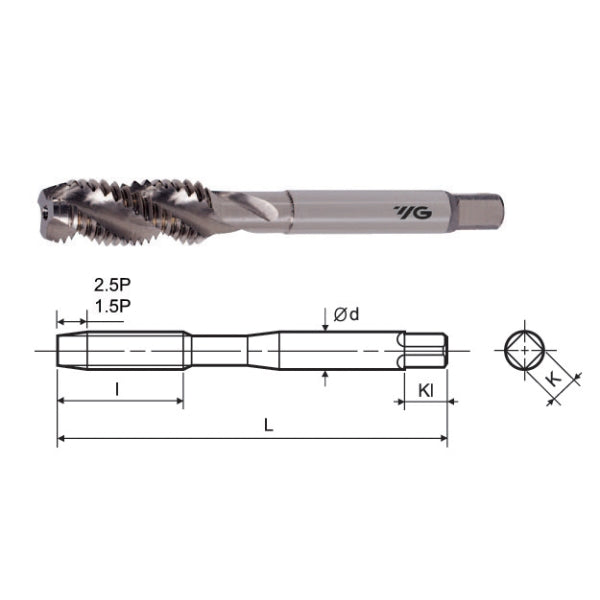

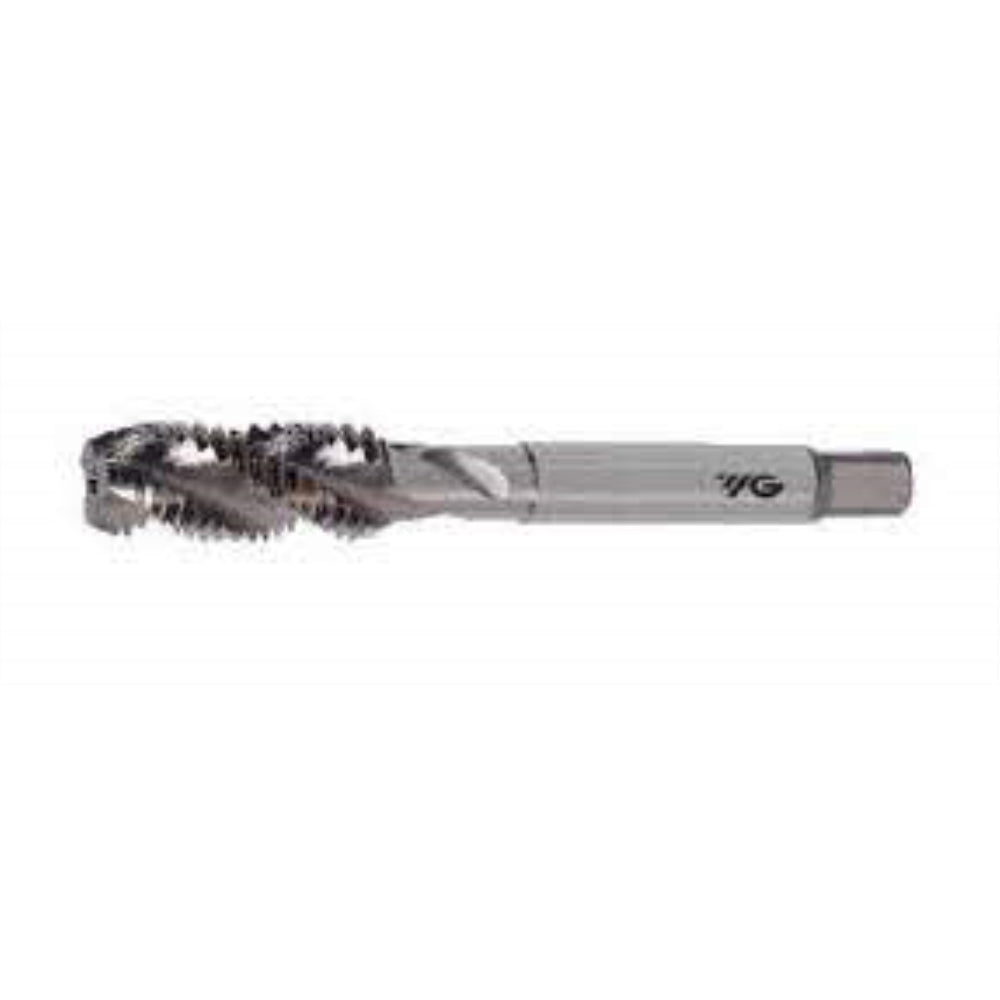

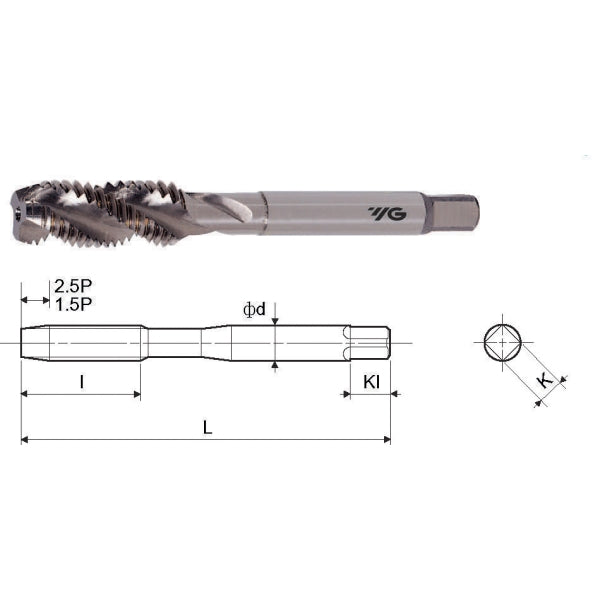

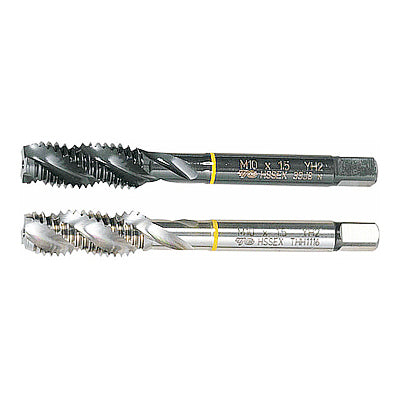

YG-1 Spiral Flute Tap, Bright
A spiral flute tap for cutting internal threads in blind holes on machining centers and tapping machines. The helical flute lifts chips out of the hole to prevent packing.
Key Features
- Spiral flutes draw chips back out of the hole, which suits blind holes.
- Match thread size, pitch and tolerance class to your gauge.
- Works in machine tapping; use cutting fluid suited to the workpiece.
Specifications
| Model |
Specification |
Sold as |
| SFT014-030I |
M1.4X0.3 (T2809071) |
1 pc |
| SFT016-035I |
M1.6X0.35 (T2809091) |
1 pc |
| SFT020-040I |
M2X0.4 (T2809131) |
1 pc |
| SFT026-045I |
M2.6X0.45 (T2809491) |
1 pc |
| SFT030-050I |
M3X0.5 (T2809202) |
1 pc |
| SFT035-060I |
M3.5X0.6 (T2809222) |
1 pc |
| SFT040-070I |
M4X0.7 (T2809242) |
1 pc |
| SFT045-075I |
M4.5X0.75 (T2809262) |
1 pc |
| SFT050-080I |
M5X0.8 YH2 60.0L (T2809282) |
1 pc |
| SFT060-075I |
M6X0.75 (T2809322) |
1 pc |
| SFT060-100I |
M6X1.0 (T2809312) |
1 pc |
| SFT070-100I |
M7X1.0 (T2809342) |
1 pc |
| SFT080-100I |
M8X1.0 (T2809372) |
1 pc |
| SFT080-125I |
M8X1.25 (T2809362) |
1 pc |
| SFT090-100I |
M9X1.0 (T2809402) |
1 pc |
| SFT100-075I |
M10X0.75 (T2809452) |
1 pc |
| SFT100-100I |
M10X1.0 (T2809442) |
1 pc |
| SFT100-125I |
M10X1.25 (T2809432) |
1 pc |
| SFT100-150I |
M10X1.5 (T2809422) |
1 pc |
| SFT120-125I |
M12X1.25 (T2809522) |
1 pc |
| SFT120-150I |
M12X1.5 (T2809512) |
1 pc |
| SFT120-175I |
M12X1.75 (T2809502) |
1 pc |
| SFT140-100I |
M14X1.0 (T2809572) |
1 pc |
| SFT140-150I |
M14X1.5 (T2809552) |
1 pc |
| SFT140-200I |
M14X2.0 (T2809542) |
1 pc |
| SFT160-100I |
M16X1.0 (T2809622) |
1 pc |
| SFT160-150I |
M16X1.5 (T2809612) |
1 pc |
| SFT160-200I |
M16X2.0 (T2809602) |
1 pc |
| SFT180-100I |
M18X1.0 (T2809682) |
1 pc |
| SFT180-150I |
M18X1.5 (T2809672) |
1 pc |
| SFT180-200I |
M18X2.0 (T2809663) |
1 pc |
| SFT180-250I |
M18X2.5 (T2809653) |
1 pc |
| SFT200-100I |
M20X1.0 (T2809732) |
1 pc |
| SFT200-150I |
M20X1.5 (T2809723) |
1 pc |
| SFT200-200I |
M20X2.0 (T2809713) |
1 pc |
| SFT200-250I |
M20X2.5 (T2809703) |
1 pc |
| SFT220-100I |
M22X1.0 (T2809772) |
1 pc |
| SFT220-150I |
M22X1.5 (T2809763) |
1 pc |
| SFT220-250I |
M22X2.5 (T2809743) |
1 pc |
| SFT240-150I |
M24X1.5 (T2809803) |
1 pc |
| SFT240-200I |
M24X2.0 (T2809793) |
1 pc |
| SFT240-300I |
M24X3.0 (T2809783) |
1 pc |
| SFT250-150I |
M25X1.5 (T2809833) |
1 pc |
| SFT250-200I |
M25X2.0 (T2809823) |
1 pc |
| SFT260-150I |
M26X1.5 (T2809853) |
1 pc |
| SFT270-150I |
M27X1.5 (T2809883) |
1 pc |
| SFT270-200I |
M27X2.0 (T2809873) |
1 pc |
| SFT270-300I |
M27X3.0 (T2809863) |
1 pc |
| SFT300-150I |
M30X1.5 (T2809973) |
1 pc |
| SFT300-200I |
M30X2.0 (T2809963) |
1 pc |
| SFT300-300I |
M30X3.0 (T2809953) |
1 pc |
| SFT300-350I |
M30X3.5 (T2809944) |
1 pc |
| SFT330-150I |
M33X1.5 (T2809A73) |
1 pc |
| SFT360-150I |
M36X1.5 (T2809B63) |
1 pc |
| SFT400-200I |
M40X2.0(T2809C53) |
1 pc |
| SFT1-8I |
U1x8UNC (T2839783) |
1 pc |
| SFT010-025I |
M1.0X0.25 (T2809011) |
1 pc |
| SFT012-025I |
M1.2X0.25 (T2809051) |
1 pc |
| SFT018-035I |
M1.8X0.35 (T2809112) |
1 pc |
| SFT022-045I |
M2.2X0.45 (T2809151) |
1 pc |
40 more sizes are available in the option selector.
- Brand: YG-1
- Country of origin: Korea
About YG-1
YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
