OSG Long Spiral Flute Tap (Bright)

  • VendorOSG

Description

Confirm the thread standard, size and pitch, and whether the tap suits blind or through holes.

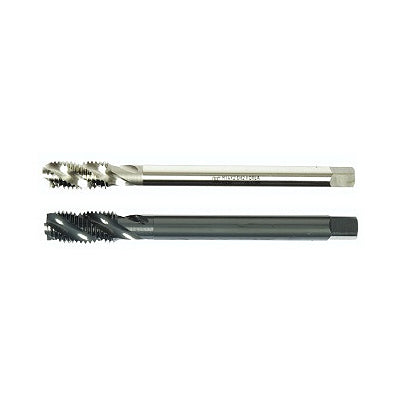

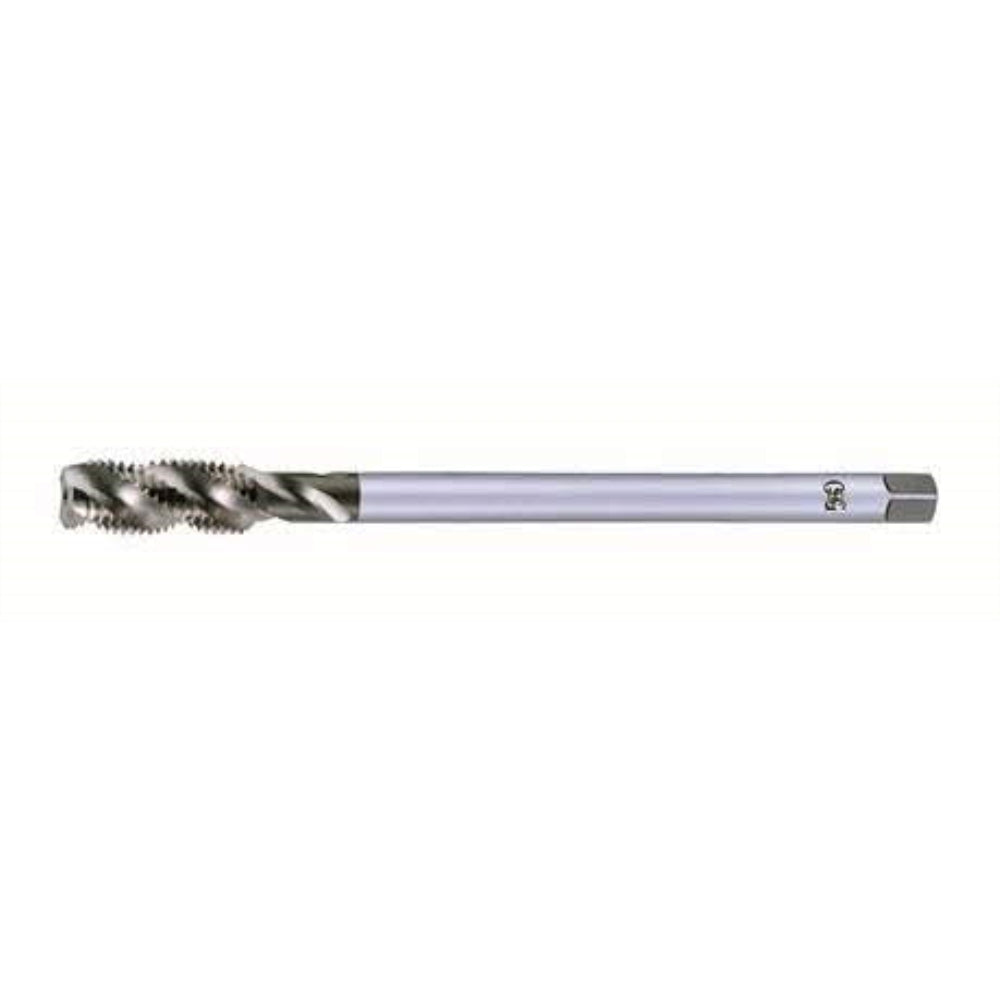

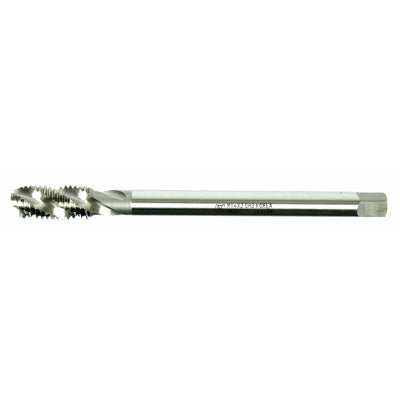

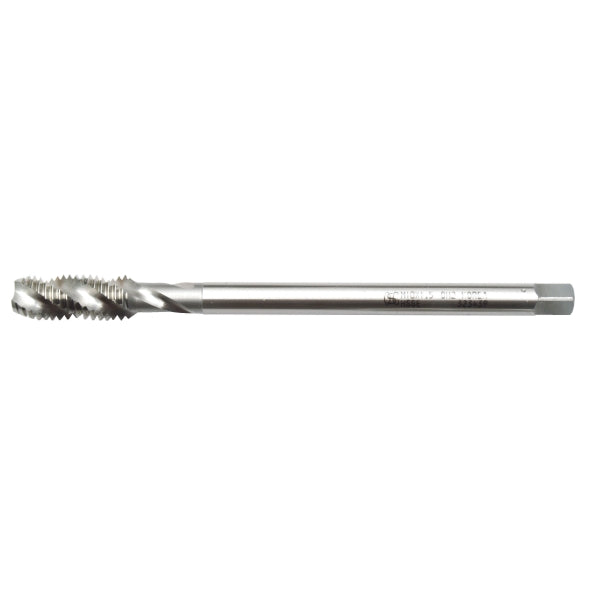

OSG Long Spiral Flute Tap (Bright)

A spiral flute tap for cutting internal threads in blind holes on machining centers and tapping machines. The helical flute lifts chips out of the hole to prevent packing.

Key Features

  • Spiral flutes draw chips back out of the hole, which suits blind holes.
  • Match thread size, pitch and tolerance class to your gauge.
  • Works in machine tapping; use cutting fluid suited to the workpiece.
  • Long shank gives reach into deep or recessed holes.

Specifications

Model Specification Sold as
LSFT020-80B LT-SFT M2X0.4-80 (17760K) 1 pc
LSFT030-100B LT-SFT M3X0.5-100L (13310K) 1 pc
LSFT040-100B LT-SFT M4X0.7-100L (13318K) 1 pc
LSFT050-100B LT-SFT M5X0.8-100L (13326K) 1 pc
LSFT060-100B LT-SFT M6X1.0-100L (13334K) 1 pc
LSFT080-100B LT-SFT M8X1.25-100L (13342K) 1 pc
LSFT100-100B LT-SFT M10X1.5-100L (13350K) 1 pc
LSFT120-100B LT-SFT M12X1.75-100L (13366K) 1 pc
LSFT030-120B LT-SFT M3X0.5-120L (13311K) 1 pc
LSFT040-120B LT-SFT M4X0.7-120L (13319K) 1 pc
LSFT050-120B LT-SFT M5X0.8-120L (13327K) 1 pc
LSFT060-120B LT-SFT M6X1.0-120L (13335K) 1 pc
LSFT080-120B LT-SFT M8X1.25-120L (13343K) 1 pc
LSFT100-120B LT-SFT M10X1.5-120L (13351K) 1 pc
LSFT120-120B LT-SFT M12X1.75-120L (13367K) 1 pc
LSFT140-120B LT-SFT M14X2.0-120L (13391K) 1 pc
LSFT160-120B LT-SFT M16X2.0-120L (13406K) 1 pc
LSFT030-150B LT-SFT M3X0.5-150L (13312K) 1 pc
LSFT040-150B LT-SFT M4X0.7-150L (13320K) 1 pc
LSFT050-150B LT-SFT M5X0.8-150L (13328K) 1 pc
LSFT060-150B LT-SFT M6X1.0-150L (13336K) 1 pc
LSFT080-150B LT-SFT M8X1.25-150L (13344K) 1 pc
LSFT100-150B LT-SFT M10X1.5-150L (13352K) 1 pc
LSFT120-150B LT-SFT M12X1.75-150L (13368K) 1 pc
LSFT140-150B LT-SFT M14X2.0-150L (13392K) 1 pc
LSFT160-150B LT-SFT M16X2.0-150L (13407K) 1 pc
LSFT200-150B LT-SFT M20X2.5-150L (13439K) 1 pc
LSFT220-150B LT-SFT M22X2.5-150L (13455K) 1 pc
LSFT240-150B LT-SFT M24X3.0-150L (13471K) 1 pc
LSFT060-200B LT-SFT M6X1.0-200L (13337K) 1 pc
LSFT080-200B LT-SFT M8X1.25-200L (13345K) 1 pc
LSFT120-200B LT-SFT M12X1.75-200L (13369K) 1 pc
LSFT160-200B LT-SFT M16X2.0-200L (13408K) 1 pc
LSFT180-200B LT-SFT M18X2.5-200L (13424K) 1 pc
LSFT200-200B LT-SFT M20X2.5-200L (13440K) 1 pc
LSFT240-200B LT-SFT M24X3.0-200L (13472K) 1 pc
LSFT160-250B LT-SFT M16X2.0-250L (13409K) 1 pc
LSFT200-250B LT-SFT M20X2.5-250L (13441K) 1 pc
LSFT220-250B LT-SFT M22X2.5-250L (13457K) 1 pc
LSFT300-250B LT-SFT M30X3.5-250L (13489K) 1 pc
LSFT240-250B LT-SFT M24X3.0X250 (13473K) 1 pc
LSFT023-80B LT-SFT M2.3X0.4-80L 1 pc
LSFT025-80B LT-SFT M2.5X0.45-80L 1 pc
LSFT026-80B LT-SFT M2.6X0.45-80L 1 pc
LSFT020-100B LT-SFT M2X0.4-100L 1 pc
LSFT023-100B LT-SFT M2.3X0.4-100L 1 pc
LSFT025-100B LT-SFT M2.5X0.45-100L(17769K) 1 pc
LSFT026-100B LT-SFT M2.6X0.45-100L 1 pc
LSFT120-100B1 LT-SFT M12X1.25-100L 1 pc
LSFT140-100B LT-SFT M14X2.0-100L(13390K) 1 pc
LSFT140-150B1 LT-SFT M14X1.5-150L (13400K) 1 pc
LSFT160-150B1 LT-SFT M16X1.5-150L(13415K) 1 pc
LSFT180-150B1 LT-SFT M18X1.5-150L (13431K) 1 pc
LSFT180-150B LT-SFT M18X2.5-150L (13423k) 1 pc
LSFT220-150B1 LT-SFT M22X1.5-150L 1 pc
LSFT240-150B1 LT-SFT M24X1.5-150L 1 pc
LSFT100-200B LT-SFT M10X1.5-200L(13353K) 1 pc
LSFT120-200B1 LT-SFT M12X1.25-200L 1 pc
LSFT120-200B2 LT-SFT M12X1.5-200L (13377K) 1 pc
LSFT140-200B1 LT-SFT M14X1.5-200L(13401K) 1 pc

16 more sizes are available in the option selector.

  • Brand: OSG
  • Country of origin: Korea

About OSG

OSG of Japan is a major manufacturer of taps, drills, end mills and thread-forming tools for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

Confirm the thread standard, size and pitch, and whether the tap suits blind or through holes.OSG Long Spiral Flute Tap... Read more

SKU: kb-211-2308

$32.07 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    Confirm the thread standard, size and pitch, and whether the tap suits blind or through holes.

    OSG Long Spiral Flute Tap (Bright)

    A spiral flute tap for cutting internal threads in blind holes on machining centers and tapping machines. The helical flute lifts chips out of the hole to prevent packing.

    Key Features

    • Spiral flutes draw chips back out of the hole, which suits blind holes.
    • Match thread size, pitch and tolerance class to your gauge.
    • Works in machine tapping; use cutting fluid suited to the workpiece.
    • Long shank gives reach into deep or recessed holes.

    Specifications

    Model Specification Sold as
    LSFT020-80B LT-SFT M2X0.4-80 (17760K) 1 pc
    LSFT030-100B LT-SFT M3X0.5-100L (13310K) 1 pc
    LSFT040-100B LT-SFT M4X0.7-100L (13318K) 1 pc
    LSFT050-100B LT-SFT M5X0.8-100L (13326K) 1 pc
    LSFT060-100B LT-SFT M6X1.0-100L (13334K) 1 pc
    LSFT080-100B LT-SFT M8X1.25-100L (13342K) 1 pc
    LSFT100-100B LT-SFT M10X1.5-100L (13350K) 1 pc
    LSFT120-100B LT-SFT M12X1.75-100L (13366K) 1 pc
    LSFT030-120B LT-SFT M3X0.5-120L (13311K) 1 pc
    LSFT040-120B LT-SFT M4X0.7-120L (13319K) 1 pc
    LSFT050-120B LT-SFT M5X0.8-120L (13327K) 1 pc
    LSFT060-120B LT-SFT M6X1.0-120L (13335K) 1 pc
    LSFT080-120B LT-SFT M8X1.25-120L (13343K) 1 pc
    LSFT100-120B LT-SFT M10X1.5-120L (13351K) 1 pc
    LSFT120-120B LT-SFT M12X1.75-120L (13367K) 1 pc
    LSFT140-120B LT-SFT M14X2.0-120L (13391K) 1 pc
    LSFT160-120B LT-SFT M16X2.0-120L (13406K) 1 pc
    LSFT030-150B LT-SFT M3X0.5-150L (13312K) 1 pc
    LSFT040-150B LT-SFT M4X0.7-150L (13320K) 1 pc
    LSFT050-150B LT-SFT M5X0.8-150L (13328K) 1 pc
    LSFT060-150B LT-SFT M6X1.0-150L (13336K) 1 pc
    LSFT080-150B LT-SFT M8X1.25-150L (13344K) 1 pc
    LSFT100-150B LT-SFT M10X1.5-150L (13352K) 1 pc
    LSFT120-150B LT-SFT M12X1.75-150L (13368K) 1 pc
    LSFT140-150B LT-SFT M14X2.0-150L (13392K) 1 pc
    LSFT160-150B LT-SFT M16X2.0-150L (13407K) 1 pc
    LSFT200-150B LT-SFT M20X2.5-150L (13439K) 1 pc
    LSFT220-150B LT-SFT M22X2.5-150L (13455K) 1 pc
    LSFT240-150B LT-SFT M24X3.0-150L (13471K) 1 pc
    LSFT060-200B LT-SFT M6X1.0-200L (13337K) 1 pc
    LSFT080-200B LT-SFT M8X1.25-200L (13345K) 1 pc
    LSFT120-200B LT-SFT M12X1.75-200L (13369K) 1 pc
    LSFT160-200B LT-SFT M16X2.0-200L (13408K) 1 pc
    LSFT180-200B LT-SFT M18X2.5-200L (13424K) 1 pc
    LSFT200-200B LT-SFT M20X2.5-200L (13440K) 1 pc
    LSFT240-200B LT-SFT M24X3.0-200L (13472K) 1 pc
    LSFT160-250B LT-SFT M16X2.0-250L (13409K) 1 pc
    LSFT200-250B LT-SFT M20X2.5-250L (13441K) 1 pc
    LSFT220-250B LT-SFT M22X2.5-250L (13457K) 1 pc
    LSFT300-250B LT-SFT M30X3.5-250L (13489K) 1 pc
    LSFT240-250B LT-SFT M24X3.0X250 (13473K) 1 pc
    LSFT023-80B LT-SFT M2.3X0.4-80L 1 pc
    LSFT025-80B LT-SFT M2.5X0.45-80L 1 pc
    LSFT026-80B LT-SFT M2.6X0.45-80L 1 pc
    LSFT020-100B LT-SFT M2X0.4-100L 1 pc
    LSFT023-100B LT-SFT M2.3X0.4-100L 1 pc
    LSFT025-100B LT-SFT M2.5X0.45-100L(17769K) 1 pc
    LSFT026-100B LT-SFT M2.6X0.45-100L 1 pc
    LSFT120-100B1 LT-SFT M12X1.25-100L 1 pc
    LSFT140-100B LT-SFT M14X2.0-100L(13390K) 1 pc
    LSFT140-150B1 LT-SFT M14X1.5-150L (13400K) 1 pc
    LSFT160-150B1 LT-SFT M16X1.5-150L(13415K) 1 pc
    LSFT180-150B1 LT-SFT M18X1.5-150L (13431K) 1 pc
    LSFT180-150B LT-SFT M18X2.5-150L (13423k) 1 pc
    LSFT220-150B1 LT-SFT M22X1.5-150L 1 pc
    LSFT240-150B1 LT-SFT M24X1.5-150L 1 pc
    LSFT100-200B LT-SFT M10X1.5-200L(13353K) 1 pc
    LSFT120-200B1 LT-SFT M12X1.25-200L 1 pc
    LSFT120-200B2 LT-SFT M12X1.5-200L (13377K) 1 pc
    LSFT140-200B1 LT-SFT M14X1.5-200L(13401K) 1 pc

    16 more sizes are available in the option selector.

    • Brand: OSG
    • Country of origin: Korea

    About OSG

    OSG of Japan is a major manufacturer of taps, drills, end mills and thread-forming tools for metalworking.
