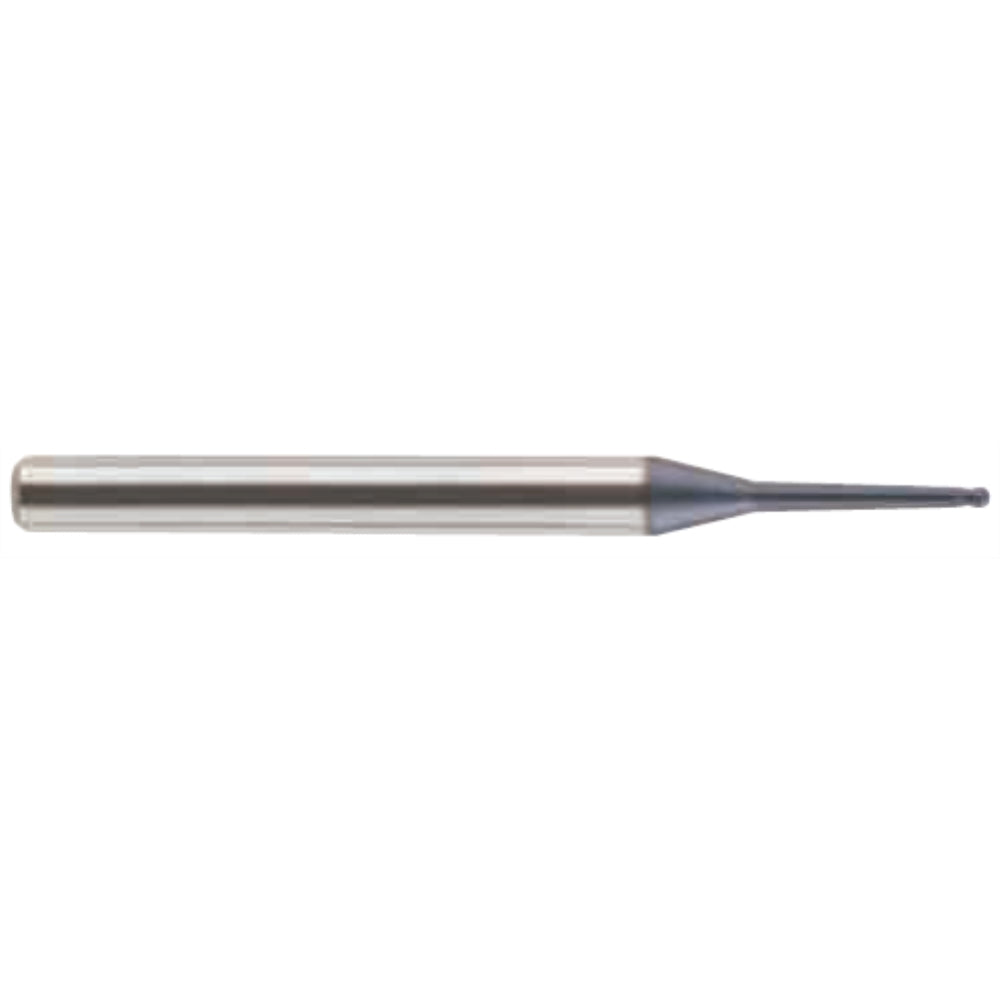

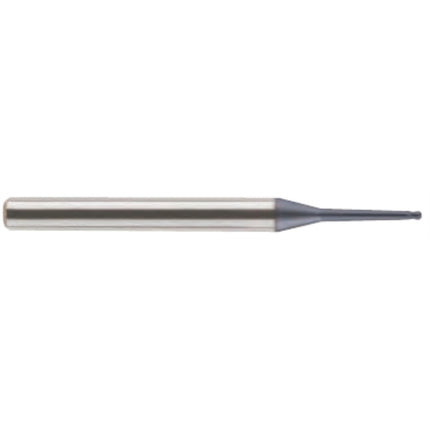

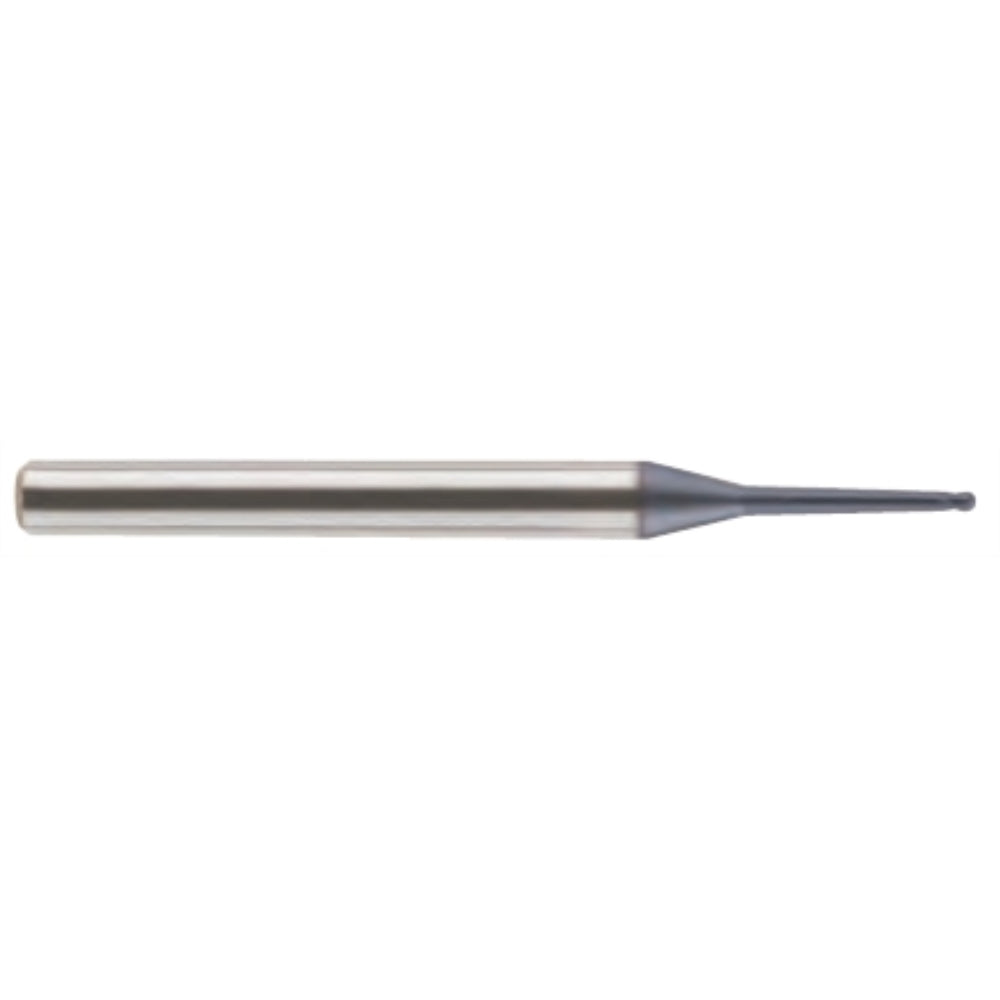

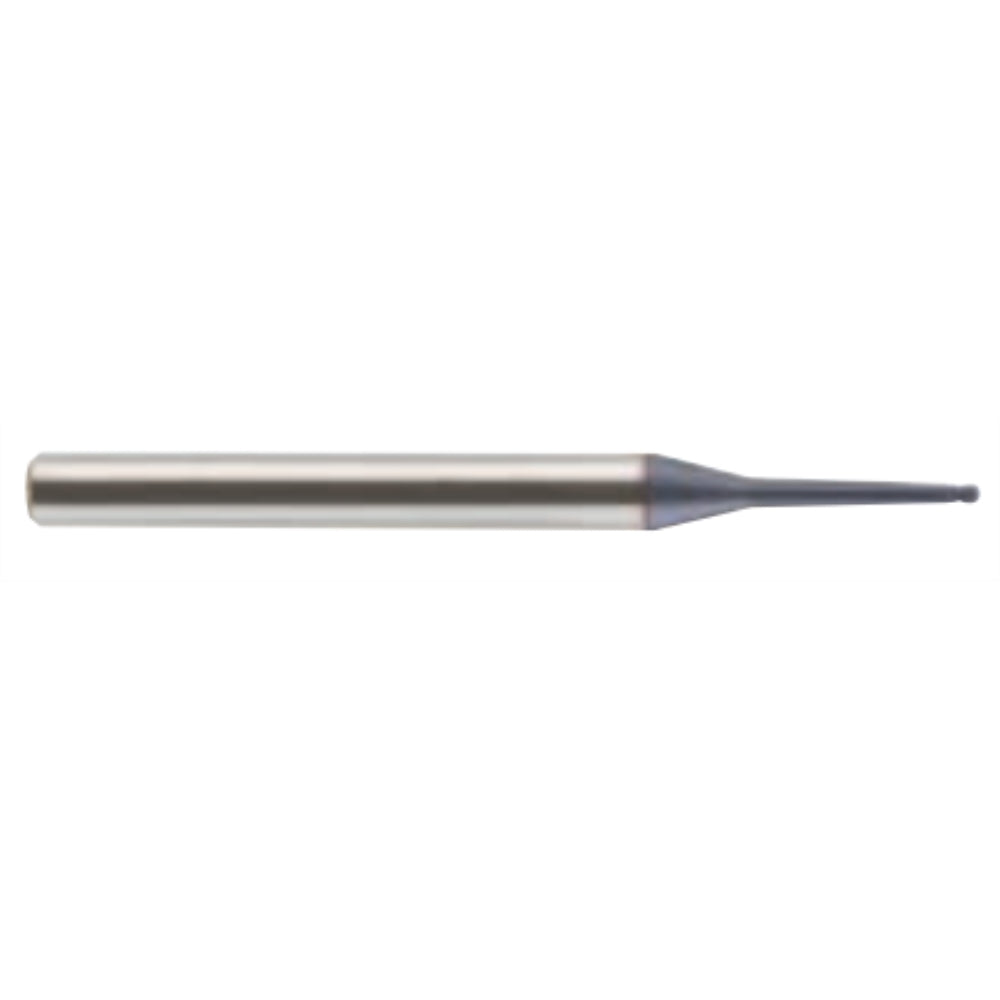

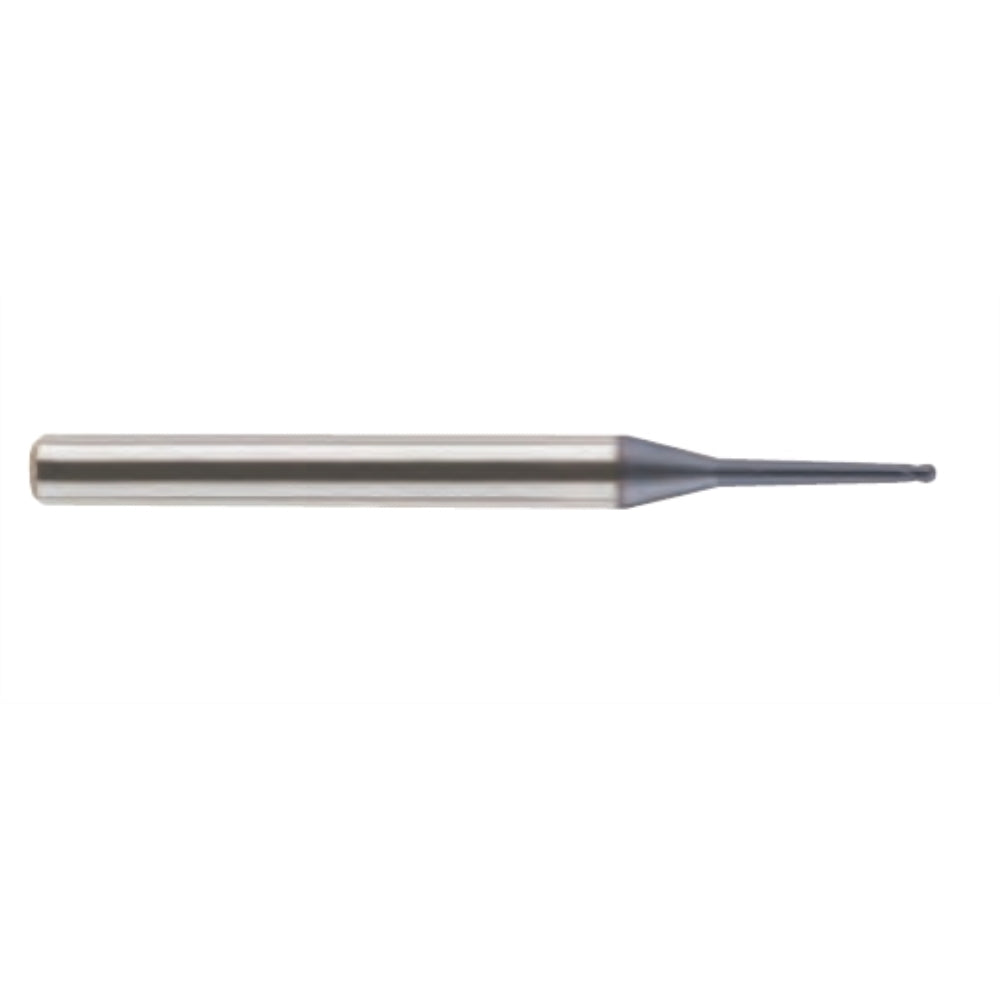

YG-1 4G TAPER NECK BALL E/M (2F)

Description

Confirm the radius as well as the diameter, because variants in the same line are specified by both.

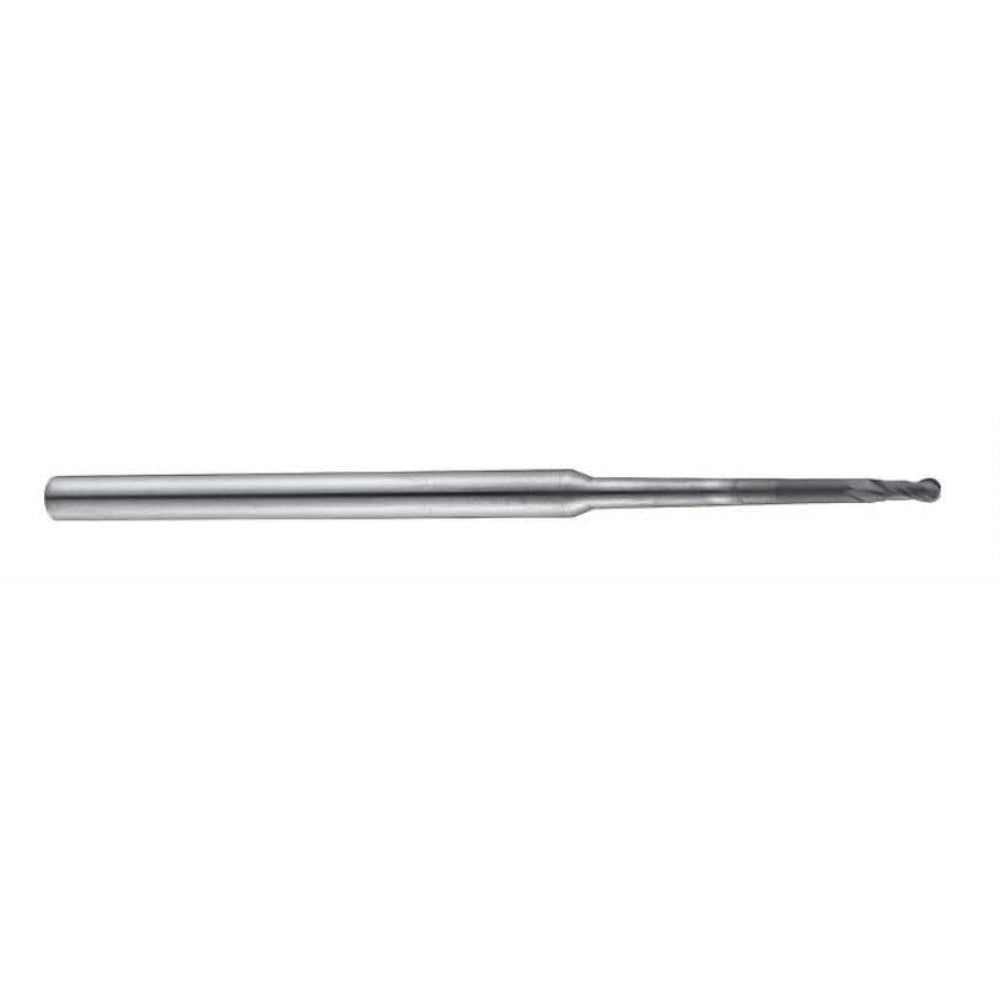

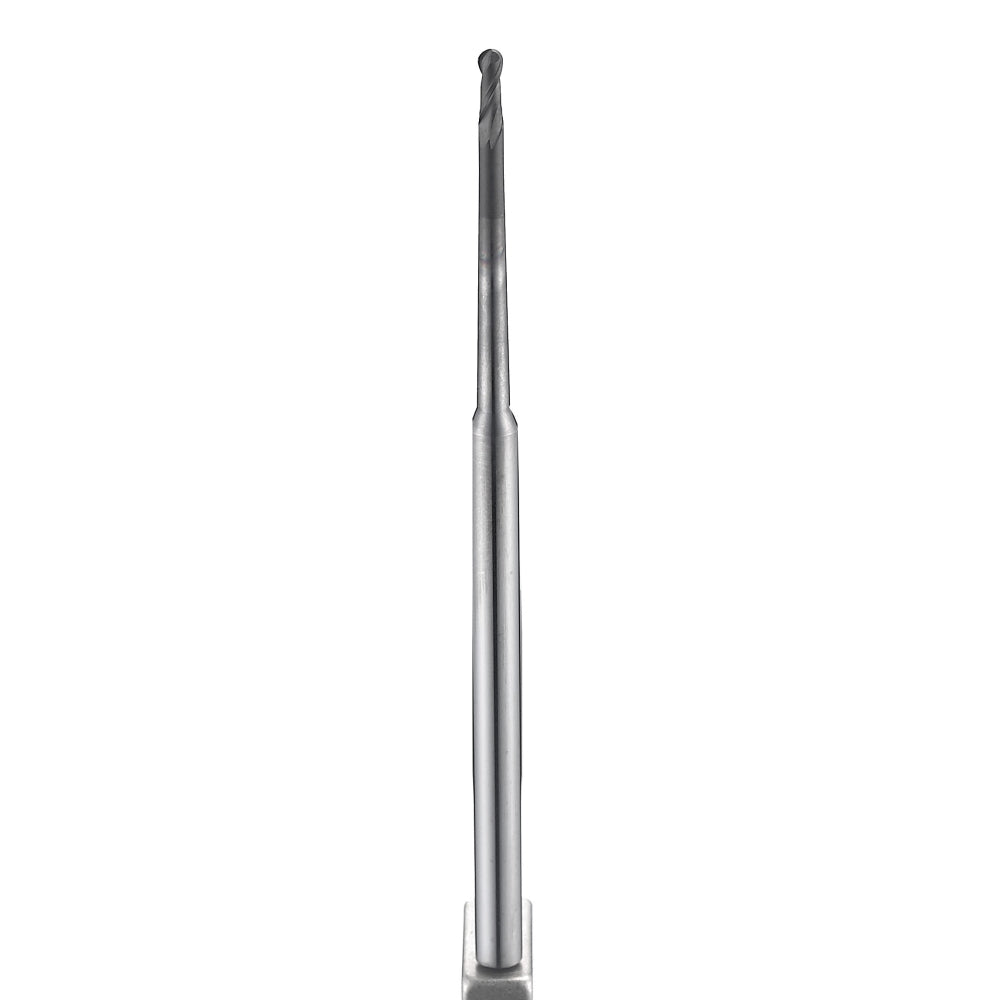

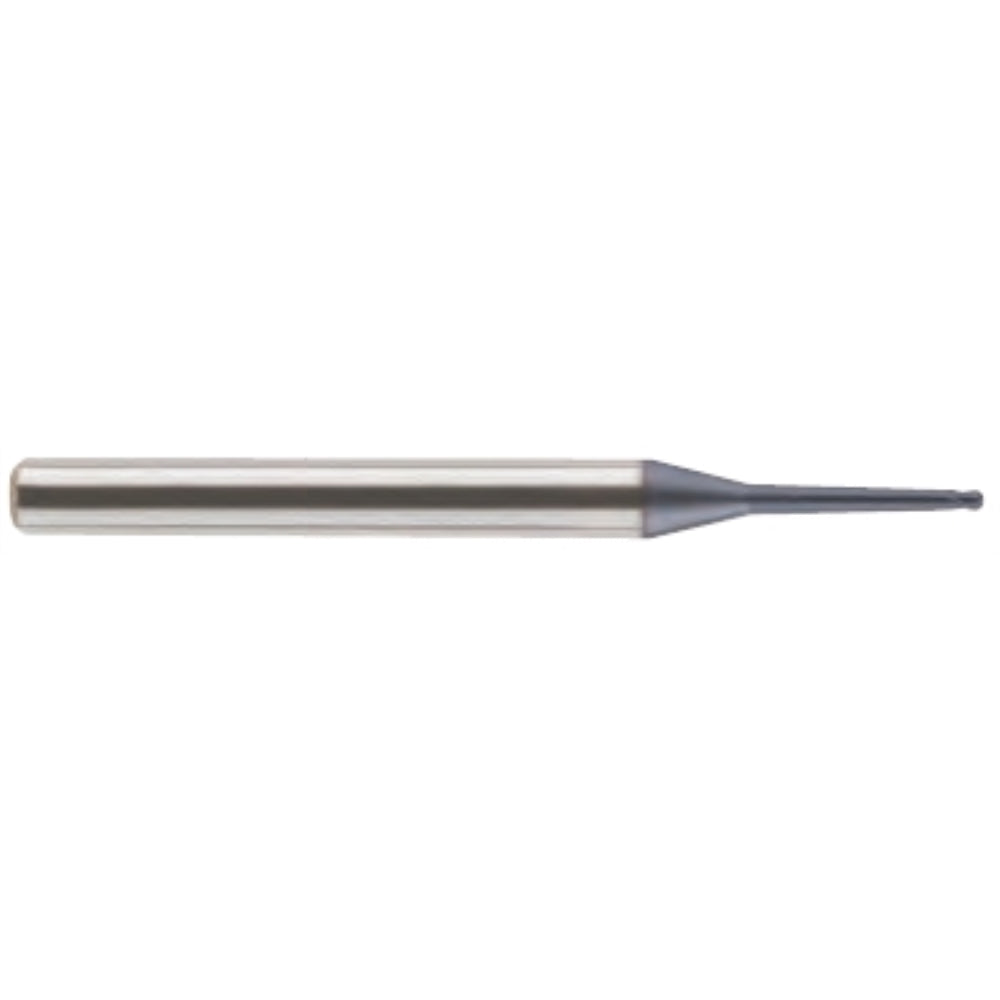

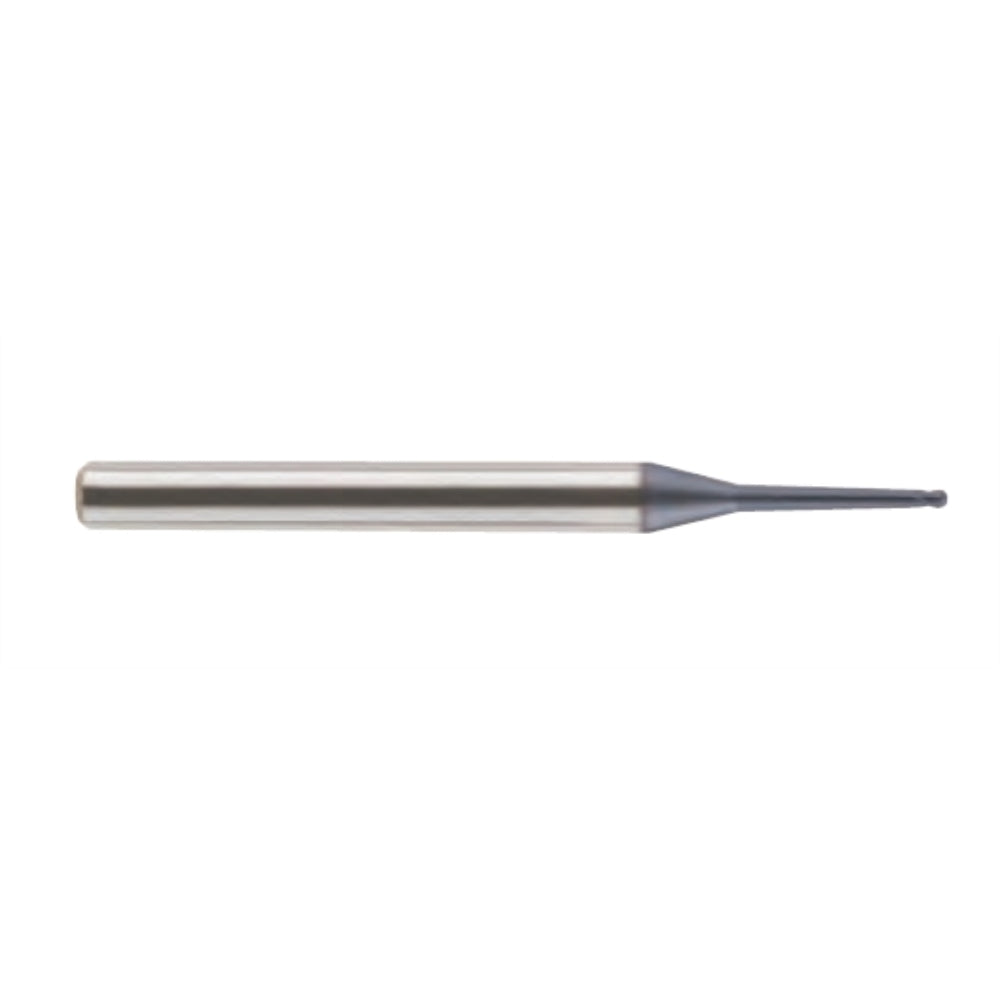

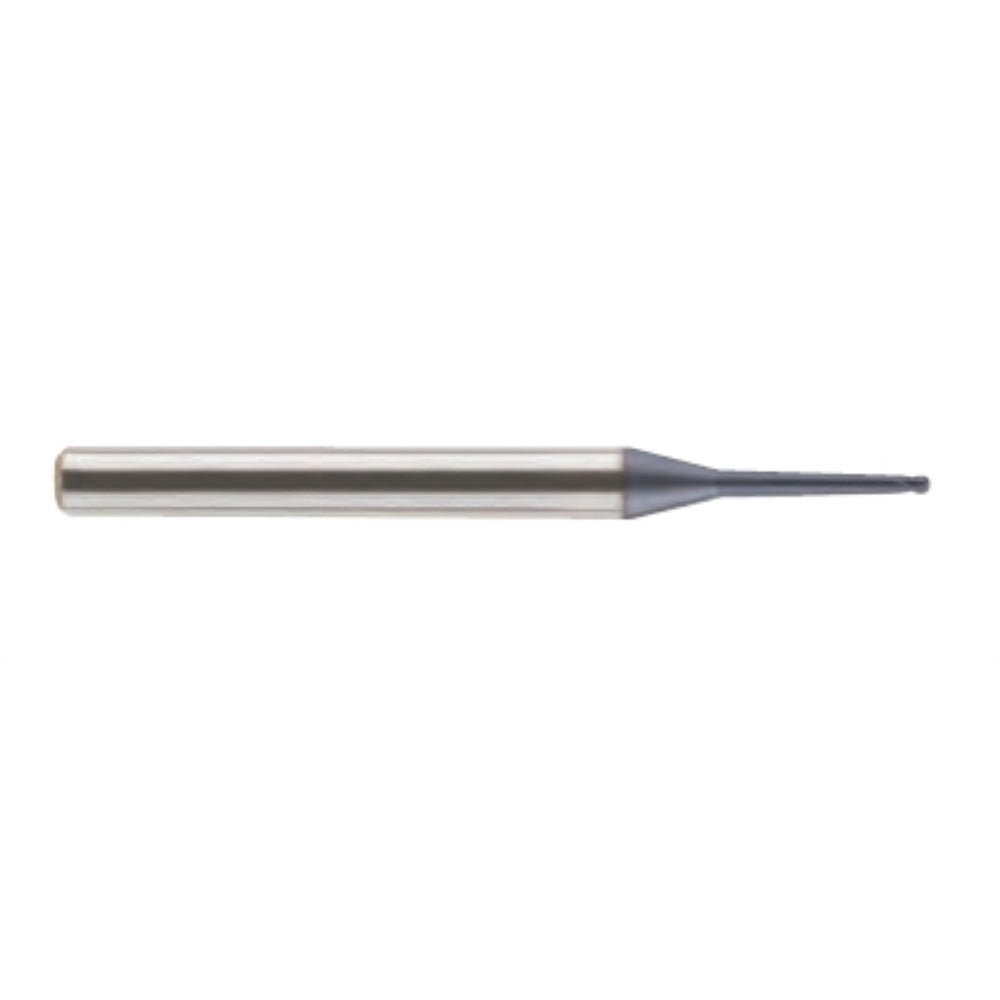

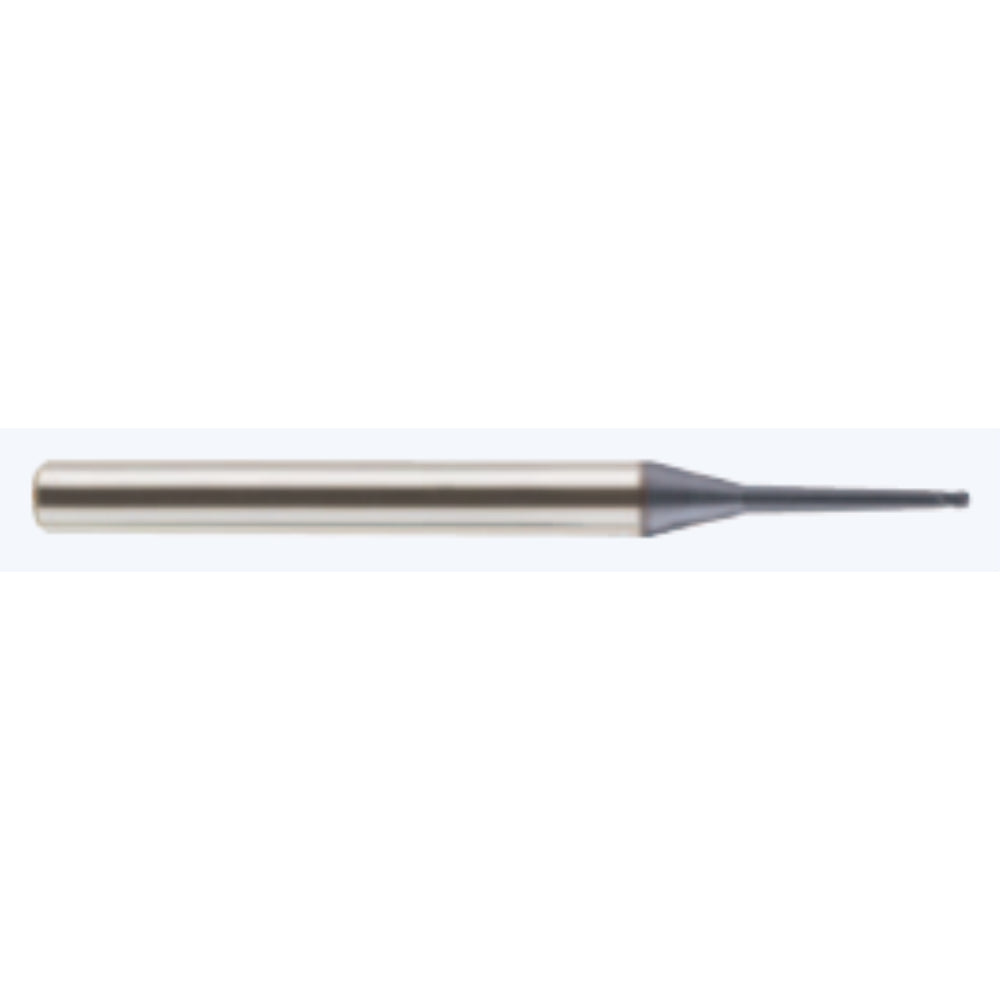

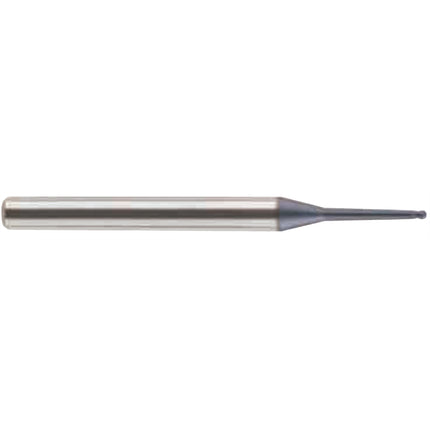

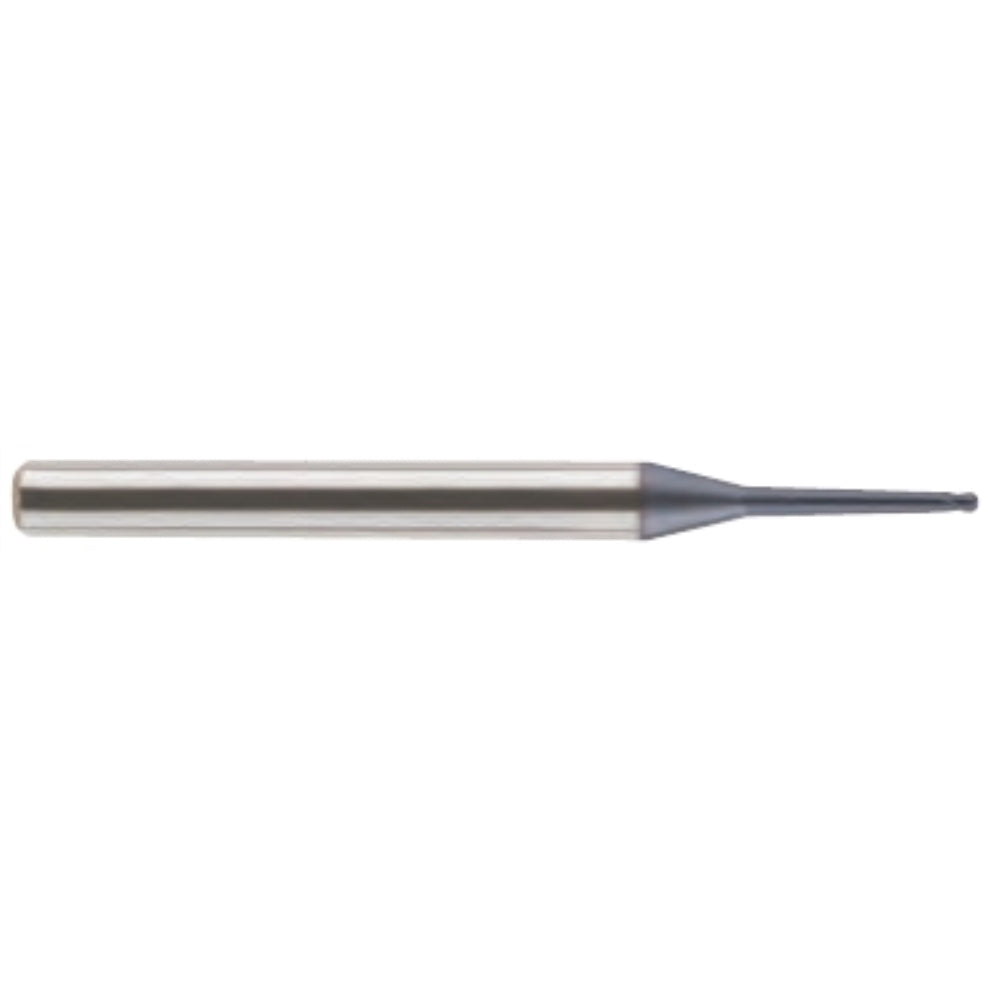

YG-1 4G TAPER NECK BALL E/M (2F)

A ball end mill for 3D contouring, mold and die surfaces, and rounded pocket floors. Used on milling machines and machining centers in mold shops, job shops and production plants.

Key Features

  • Ball nose leaves a full-radius profile; stepover sets the scallop height on curved surfaces.
  • Cutting speed is lowest at the tip, so keep the tool engaged off dead center.
  • Flute count varies by size; fewer flutes give chip room, more give a finer finish.
  • Match the shank diameter to your collet or holder before ordering.

Specifications

Model Specification Sold as
4SRIBE-015R-40-3˚ D3.0X8X4.5(40)X90(3˚) (SEME560303040) 1 pc
4SRIBE-020R-40-1˚ D4.0X6X6(40)X90(1˚) (SEME560401040) 1 pc
4SRIBE-025R-60-1˚ D5.0X8X10(60)X120(1˚) (SEME560501060) 1 pc
4SRIBE-030R-60-1˚ D6.0X8X12(60)X120(1˚) (SEME560601060) 1 pc
4SRIBE-015R-30-1˚ D3.0X6X6(30)X70(1˚) (SEME560301030) 1 pc
4SRIBE-015R-30-3˚ D3.0X6X4.5(30)X70(3˚) (SEME560303030) 1 pc
4SRIBE-010R-30-3˚ D2.0X6X5(30)X70(3˚) (SEME560203030) 1 pc
4SRIBE-010R-16-2˚ D2X4X2(16)X50(2˚) (SEME560202016) 1 pc
4SRIBE-050R-70-1˚ D10X12X18(70)X130(1˚) (SEME561001070) 1 pc
4SRIBE-050R-70-1.5˚ D10X14X18(70)X130(1.5˚) (SEME561001570) 1 pc
4SRIBE-005R-25-3˚ D1.0X4X1(25)X60(3˚) (SEME560103025) 1 pc
4SRIBE-0075R-30-3˚ D1.5X6X1.5(30)X70(3˚) (SEME560153030) 1 pc
4SRIBE-020R-50-3˚ D4X10X6(50)X100(3˚) (SEME560403050) 1 pc
4SRIBE-030R-60-3˚ D6X12X12(60)X120(3˚) (SEME560603060) 1 pc
4SRIBE-010R-16-30' D2X4X2(16)X50(30") (SEME560200516) 1 pc
4SRIBE-010R-50-1˚ D2.0X6X2(50)X100(1˚) (SEME560201050) 1 pc
4SRIBE-120R-100-1˚ D12.0X16X22(100)X200(1˚) (SEME5612010100 1 pc
4SRIBE-010R-30-1˚30' D2.0X6X2(30)X70(1˚30') (SEME560201530) 1 pc
4SRIBE-020R-70-1˚ D4.0X8X6(8)X120(1˚) (SEME560401070) 1 pc
4SRIBE-020R-60-1˚30' D4.0X8X6(60)X110(1˚5') (SEME560401560) 1 pc
4SRIBE-020R-50-1˚ D4X6X6(50)X100(1˚) (SEME560401050) 1 pc
4SRIBE-0075R-40-3˚ D1.5X6X1.5(40)X80(3˚) (SEME560153040) 1 pc
4SRIBE-010R-40-3˚ D2X6X2(40)X80(3˚) (SEME560203040 ) 1 pc
4SRIBE-040R-70-1˚ D8.0X10X14(70)X130(1˚) (SEME560801070) 1 pc
4SRIBE-0004R-10-1.5˚ D0.8X4X0.8(10)X50(1.5°) (SEME560081510) 1 pc
4SRIBE-005R-10-1.5˚ D1X4X1(10)X50(1.5°) (SEME560101510) 1 pc
4SRIBE-020R-30-1˚ D4X6X6(30)X80(1°) (SEME560401030) 1 pc
4SRIBE-010R-25-05' D2X4X2(25)X60(0.5°) (SEME560200525) 1 pc
4SRIBE-015R-20-1˚ D3X6X4.5(20)X65(1˚) (SEME560301020) 1 pc
4SRIBE-010R-30-05' D2X4X2(30)X70(0.5°) (SEME560200530) 1 pc
4SRIBE-010R-16-1.5' D2.0X4X2(16)X50(1.5°) (SEME560201516) 1 pc
4SRIBE-025R-60-1.5˚ D5.0X8X10(60)X120(1.5°) (SEME560501560) 1 pc
4SRIBE-040R-70-1.5˚ D8.0X12X14(70)X130(1.5°) (SEME560801570 ) 1 pc
4SRIBE-030R-40-1˚ 3X6X4.5(40)X80(1˚) (SEME560301040) 1 pc
4SRIBE-06R-30-1˚ D1.2X4X1.2(30)X70(1˚) (SEME560121030) 1 pc
4SRIBE-015R-50-1˚ D3.0X6X4.5(50)X90(1˚) (SEME560301050) 1 pc
4SRIBE-015R-50-1˚30 D3.0X6X4.5(50)X90(1˚30) (SEME560301550) 1 pc
4SRIBE-015R-30-2˚ D3.0X6X4.5(30)X70(2˚) (SEME560302030) 1 pc
4SRIBE-0075R-30-2˚ D1.5X4X1.5(30)X70(2˚) (SEME560152030) 1 pc
4SRIBE-005R-30-2˚ D1.0X4X1(30)X70(2˚) (SEME560102030) 1 pc
4SRIBE-003R-12-2˚ D0.6X4X0.6(12)X50(2˚) (SEME560062012) 1 pc
4SRIBE-005R-30-3˚ D1.0X6X1(30)X70(3˚) (SEME560103030) 1 pc
4SRIBE-0075R-16-2˚ D1.5X4X1.5(16)X50(2˚) (SEME560152016) 1 pc
4SRIBE-005R-16-2˚ D1.0X4X1(16)X50(2˚) (SEME560102016) 1 pc
4SRIBE-005R-20-2˚ D1.0X4X1(20)X50(2˚) (SEME560102020) 1 pc
4SRIBE-0075R-20-2˚ D1.5X4X1.5(20)X50(2˚) (SEME560152020) 1 pc
4SRIBE-010R-60-2˚ D2.0X6X2(60)X100(2˚) (SEME560202060) 1 pc
4SRIBE-010R-20-2˚ D2X4X2(20)X55(2˚) (SEME560202020) 1 pc
4SRIBE-050R-20-1˚ D1.0X4X1(20)X50(1˚) (SEME560101020) 1 pc
4SRIBE-075R-20-1˚ D1.5X4X1.5(20)X50(1˚) (SEME560151020) 1 pc
4SRIBE-010R-40-1˚ D2X6X2X5(40)X80(1˚) (SEME560201040) 1 pc
4SRIBE-010R-60-1˚ D2X6X2X5(60)X100(1˚) (SEME560201060) 1 pc
4SRIBE-015R-60-1˚ D3X6X4.5X6(60)X100(1˚) (SEME560301060) 1 pc
4SRIBE-020R-60-1˚ D4X8X6X8(60)X110(1˚) (SEME560401060) 1 pc
4SRIBE-060R-100-3˚ D12X20X22(100)X200(3˚) (SEME5612030100) 1 pc
4SRIBE-005R-10-2˚ 1X4X1(10)X50(2˚) (SEME560102010) 1 pc
4SRIBE-015R-40-1˚30 D3.0X6X4.5(40)X80(1˚30) (SEME560301540) 1 pc
4SRIBE-003R-6-1˚ 0.6X4X0.6(6)X50(1˚) (SEME560061006) 1 pc
4SRIBE-004R-10-1˚ 0.8X4X0.8(10)X50(1˚) (SEME560081010) 1 pc
4SRIBE-004R-10-2˚ 0.8X4X0.8(10)X50(2˚) SEME560082010) 1 pc

40 more sizes are available in the option selector.

  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

Confirm the radius as well as the diameter, because variants in the same line are specified by both.YG-1 4G TAPER... Read more

SKU: kb-212-6272

$52.96 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
