Description
Confirm the thread standard (metric, UNC/UNF) and pitch, and check whether you need a single tap or a full set.

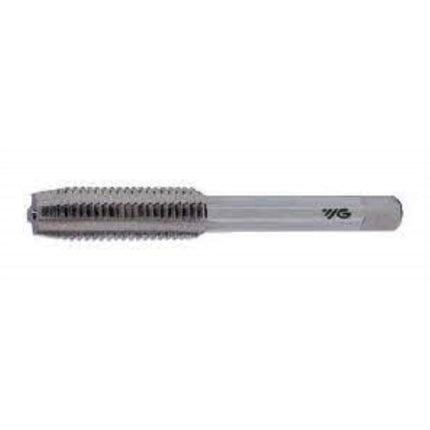

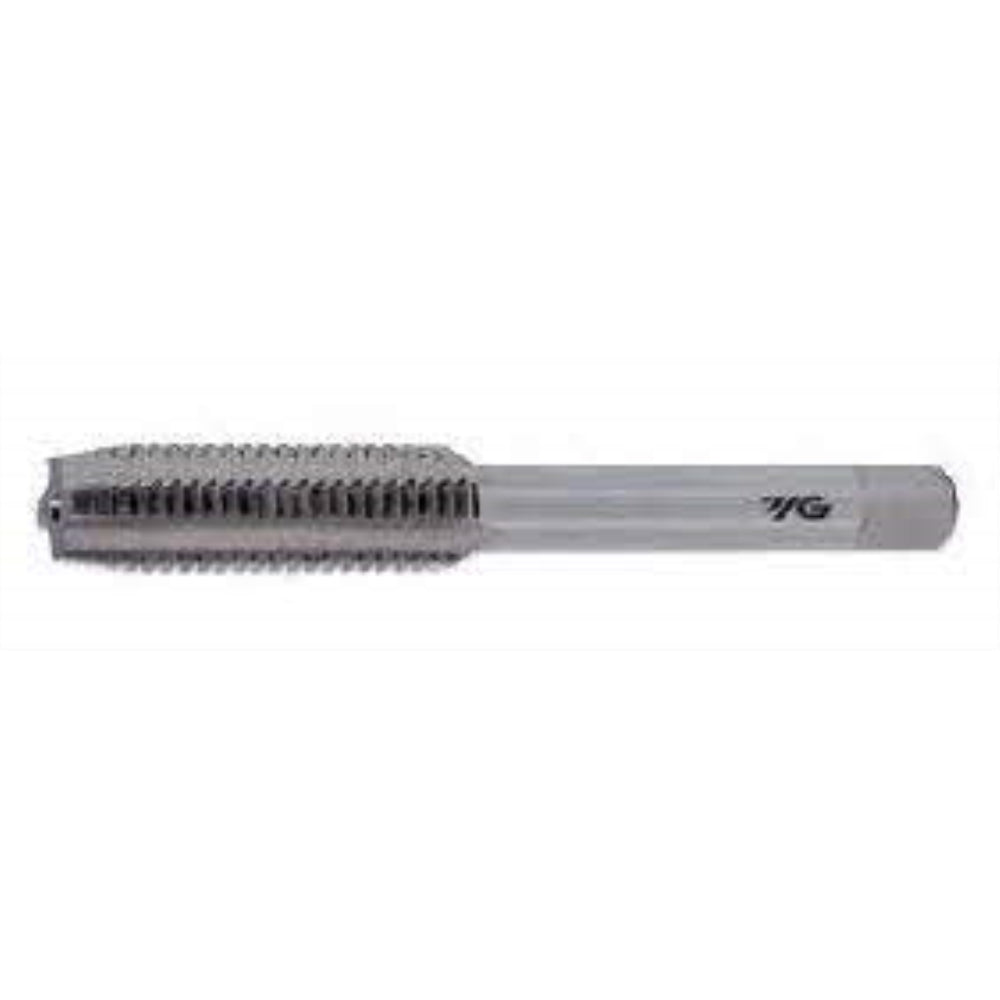

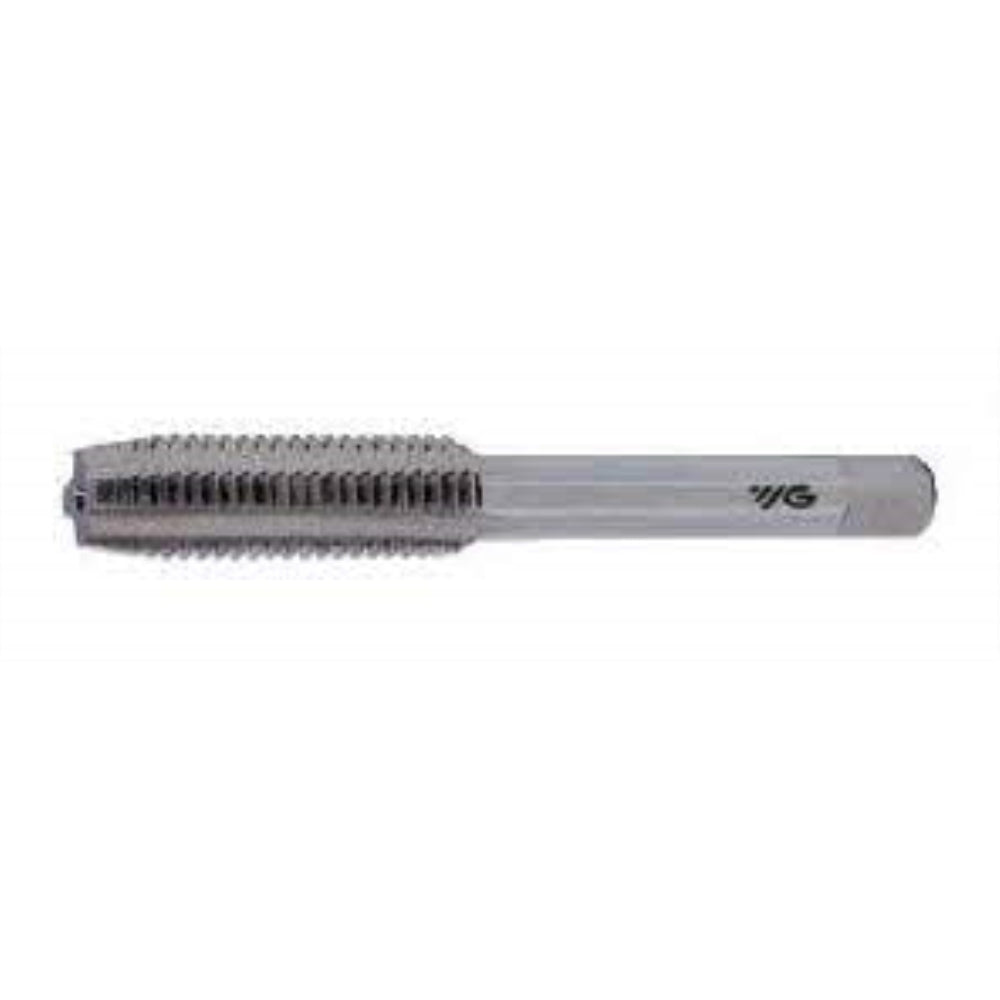

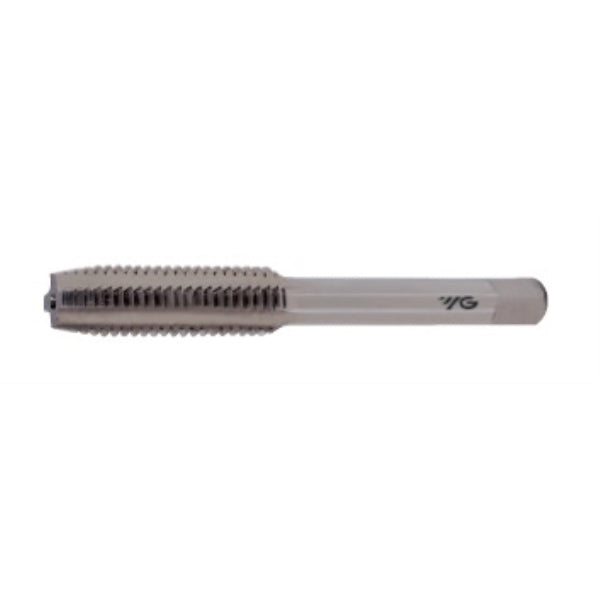

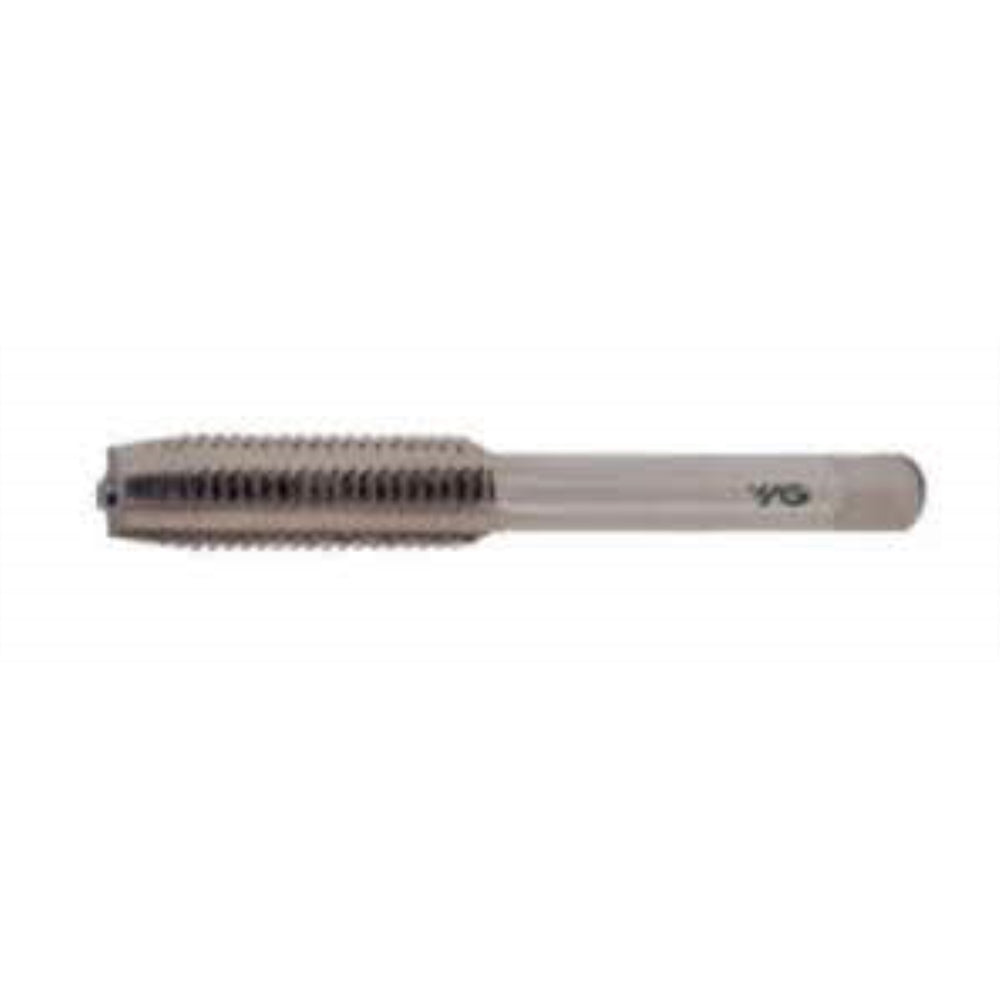

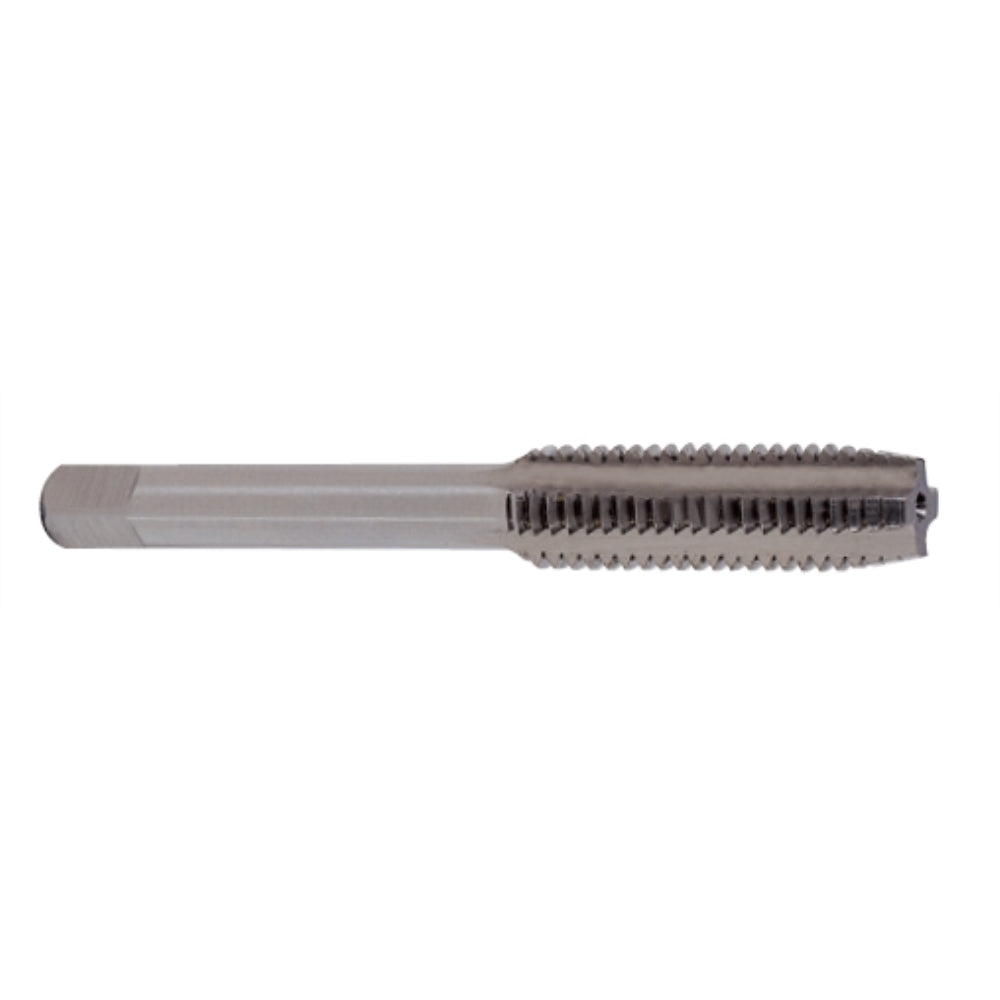

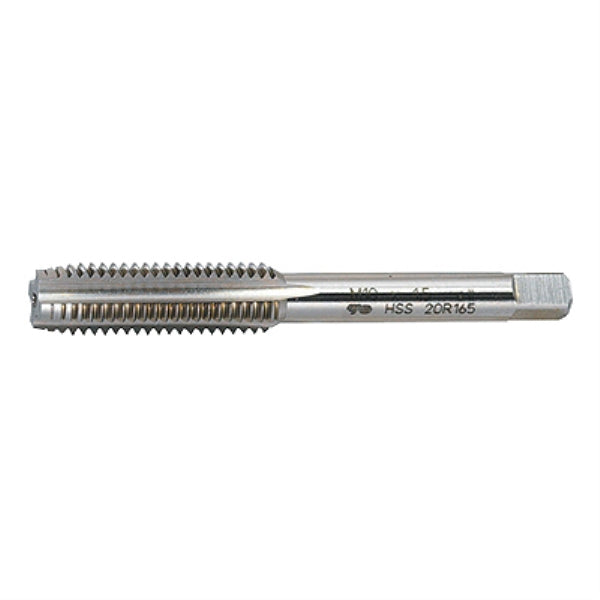

YG-1 Hand Tap (HSS) Set
A hand tap for cutting internal threads by hand with a tap wrench, or in light machine use. Used in maintenance, fitting and repair work, often supplied in taper, plug and bottoming types or as a set.
Key Features
- Start with the taper (No.1) tap, then follow with plug or bottoming taps as needed.
- Use a tap wrench and keep the tap square to the hole.
- Back off regularly to break chips, and apply cutting fluid.
- Check the thread standard, size and pitch against the listing.
Specifications
| Model |
Specification |
Sold as |
| HT030-050Y |
M3X0.5 (T7099209) |
1 pc |
| HT040-050Y |
M4X0.5 (T7099259) |
1 pc |
| HT040-070Y |
M4X0.7 (T7099249) |
1 pc |
| HT050-080Y |
M5X0.8 (T7099289) |
1 pc |
| HT060-075Y |
M6X0.75 (T7099329) |
1 pc |
| HT060-100Y |
M6X1.0 (T7099319) |
1 pc |
| HT080-100Y |
M8X1.0(T7099379) |
1 pc |
| HT080-125Y |
M8X1.25 (T7099369) |
1 pc |
| HT100-100Y |
M10X1.0(T7099449) |
1 pc |
| HT100-125Y |
M10X1.25 (T7099439) |
1 pc |
| HT100-150Y |
M10X1.5 (T7099429) |
1 pc |
| HT120-100Y |
M12X1.0(T7099539) |
1 pc |
| HT120-125Y |
M12X1.25(T7099529) |
1 pc |
| HT120-150Y |
M12X1.5 (T7099519) |
1 pc |
| HT120-175Y |
M12X1.75 (T7099509) |
1 pc |
| HT140-150Y |
M14X1.5(T7099559) |
1 pc |
| HT140-200Y |
M14X2.0 (T7099549) |
1 pc |
| HT160-100Y |
M16X1.0 (T7099629) |
1 pc |
| HT160-150Y |
M16X1.5 (T7099619) |
1 pc |
| HT160-200Y |
M16X2.0 (T7099609) |
1 pc |
| HT180-100Y |
M18x1.0(T7099689) |
1 pc |
| HT180-150Y |
M18x1.5(T7099679) |
1 pc |
| HT180-200Y |
M18X2.0(T7099669) |
1 pc |
| HT180-250Y |
M18X2.5 (T7099659) |
1 pc |
| HT200-150Y |
M20x1.5 (T7099729) |
1 pc |
| HT200-250Y |
M20X2.5 (T7099709) |
1 pc |
| HT220-150Y |
M22x1.5 |
1 pc |
| HT220-250Y |
M22X2.5 (T7099749) |
1 pc |
| HT240-300Y |
M24X3.0 (T7099789) |
1 pc |
| HT250-150Y |
M25x1.5 |
1 pc |
| HT270-300Y |
M27x3.0 (T7099869) |
1 pc |
| HT300-150Y |
M30X1.5 |
1 pc |
| HT300-200Y |
M30x2.0 |
1 pc |
| HT300-300Y |
M30X3.0(T7099959) |
1 pc |
| HT300-350Y |
M30X3.5 (T7099949) |
1 pc |
| HT330-350Y |
M33X3.5 (T7099A49) |
1 pc |
| HT360-400Y |
M36x4.0 (T7099B39) |
1 pc |
| HT3/8-16Y |
U3/8-16UNC (T7199489) |
1 pc |
| HT020-040Y |
M2X0.4 (T7099139) |
1 pc |
| HT035-060Y |
M3.5X0.6 |
1 pc |
| HT070-100Y |
M7X1.0 |
1 pc |
| HT140-100Y |
M14X1.0 (T7099579) |
1 pc |
| HT200-100Y |
M20X1.0 |
1 pc |
| HT200-200Y |
M20X2.0 (T7099719) |
1 pc |
| HT220-100Y |
M22X1.0 |
1 pc |
| HT240-100Y |
M24X1.0 |
1 pc |
| HT240-200Y |
M24X2.0(T7099799) |
1 pc |
| HT260-150Y |
M26X1.5 |
1 pc |
| HT280-200Y |
M28X2.0 |
1 pc |
| HT360-200Y |
M36X2.0 |
1 pc |
| HT050-050Y |
M5X0.5 (T7099299) |
1 pc |
| HT1/2-13Y |
U1/2-13UNC (T7199569) |
1 pc |
| HT025-045Y |
M2.5X0.45 |
1 pc |
| HT100-32 |
M10X32UNF (T7199349) |
1 pc |
| HT1/4-20Y |
U1/4-20UNC (T7199409) |
1 pc |
| HT5/8-11Y |
5/8-11UNC II 95.0L (T7199649) |
1 pc |
| HT5/16-18Y |
U5/16-18UNC II 70.0L (T7199449) |
1 pc |
| HT060-32 |
M6X32UNC (T7199249) |
1 pc |
| HT3/8-24Y |
U3/8-24UNF II 75.0L (T7199509 ) |
1 pc |
| HT026-045Y |
M2.6X0.45 II 44.0L (T7099499) |
1 pc |
2 more sizes are available in the option selector.
- Brand: YG-1
- Country of origin: Korea
About YG-1
YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.
