Description
Pilot diameter and taper both need to match.

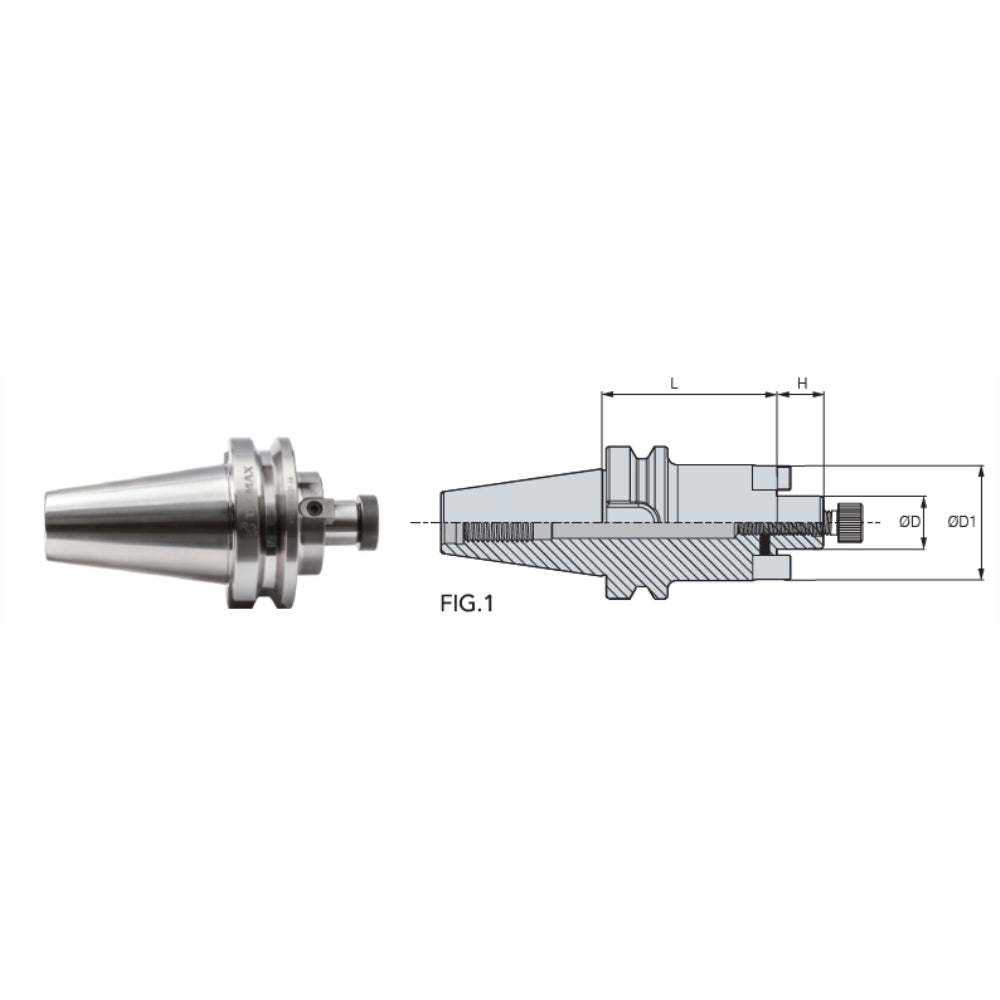

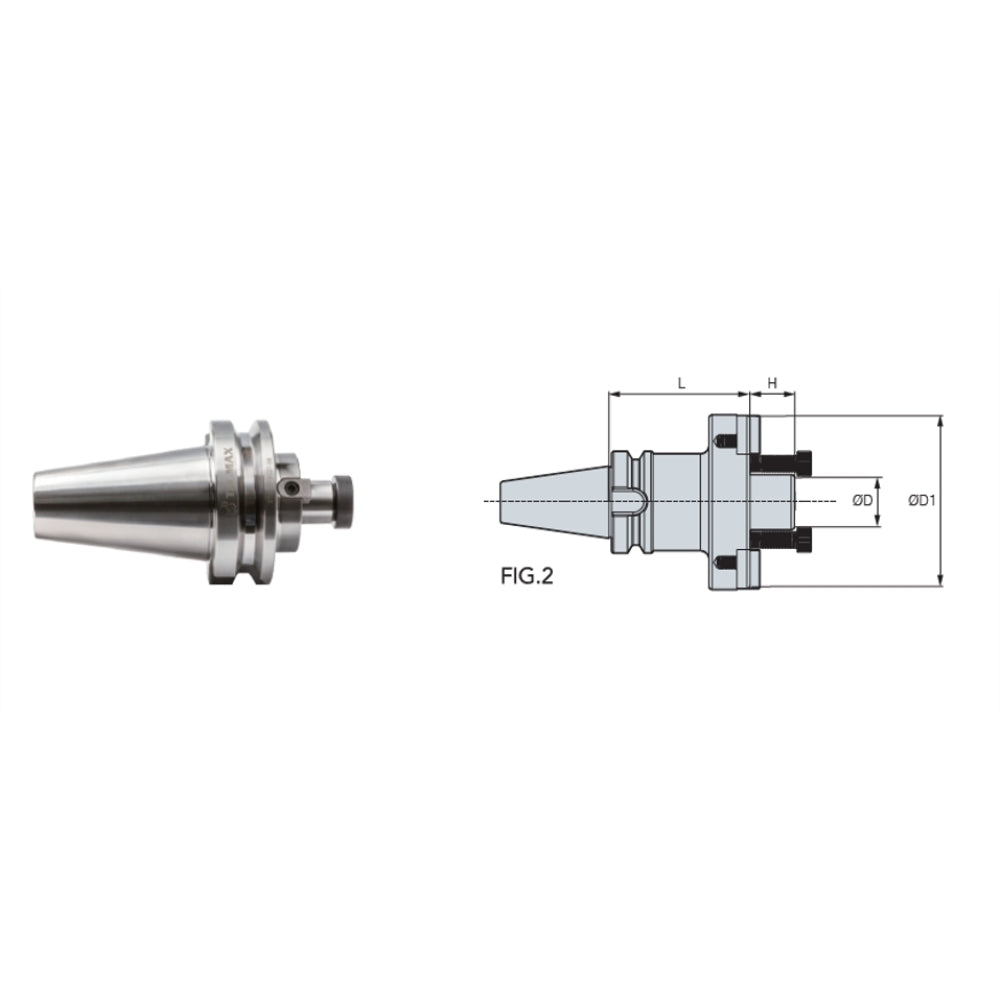

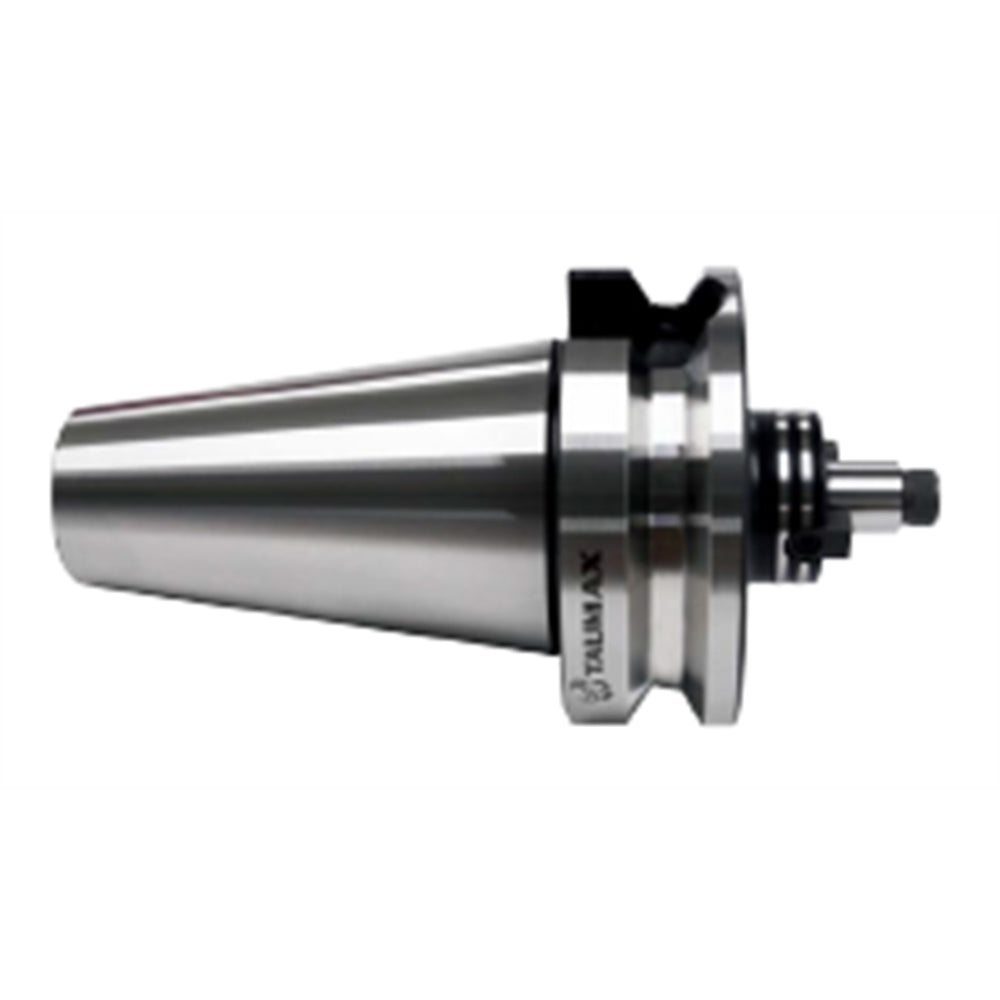

DINE FMC Face Mill Arbor TAUMAX
An FMC face mill arbor in the TAUMAX series holds face mills with a cross-key drive on machine tapers such as BT30. It is used on machining centers for face milling.
Key Features
- Match the spindle taper in the part number to your machine
- Pilot diameter (such as 22 mm) must match the cutter bore
- Length in the part number sets the gauge length of the holder
- Clean the faces before mounting the cutter
Specifications
| Model |
Specification |
Sold as |
| BT30-FMC16-35 |
BT30-TFMC16-35 |
1 pc |
| BT30-FMC22-45 |
BT30-TFMC22-45 |
1 pc |
| BT30-FMC27-45 |
BT30-TFMC27-45 |
1 pc |
| BT40-FMC16-40 |
BT40-TFMC16-40 |
1 pc |
| BT40-FMC22-40 |
BT40-TFMC22-40 |
1 pc |
| BT40-FMC22-100 |
BT40-TFMC22-100 |
1 pc |
| BT40-FMC27-40 |
BT40-TFMC27-40 |
1 pc |
| BT40-FMC27-100 |
BT40-TFMC27-100 |
1 pc |
| BT40-FMC32-50 |
BT40-TFMC32-50 |
1 pc |
| BT50-FMC16-55 |
BT50-TFMC16-55 |
1 pc |
| BT50-FMC22-55 |
BT50-TFMC22-55 |
1 pc |
| BT50-FMC27-55 |
BT50-TFMC27-55 |
1 pc |
| BT50-FMC27-100 |
BT50-TFMC27-100 |
1 pc |
| BT50-FMC32-100 |
BT50-TFMC32-100 |
1 pc |
| BT50-FMC32-55 |
BT50-TFMC32-55 |
1 pc |
| BT50-FMC32-75 |
BT50-TFMC32-75 |
1 pc |

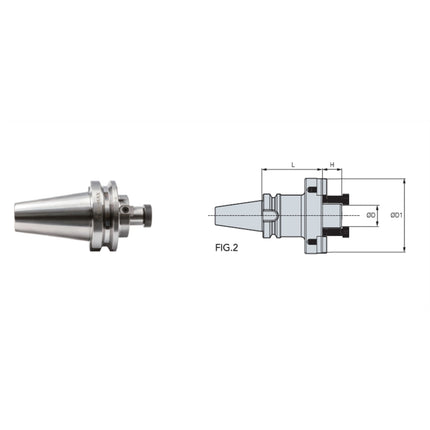

| BT50-FMC40-55(D160 |
BT50-TFMC40-55(D160) |
1 pc |
- Brand: DINE
- Country of origin: Korea
About DINE
DINE of South Korea makes tool holders and work accessories for machining centers, including collet, hydraulic and shrink-fit chucks.
