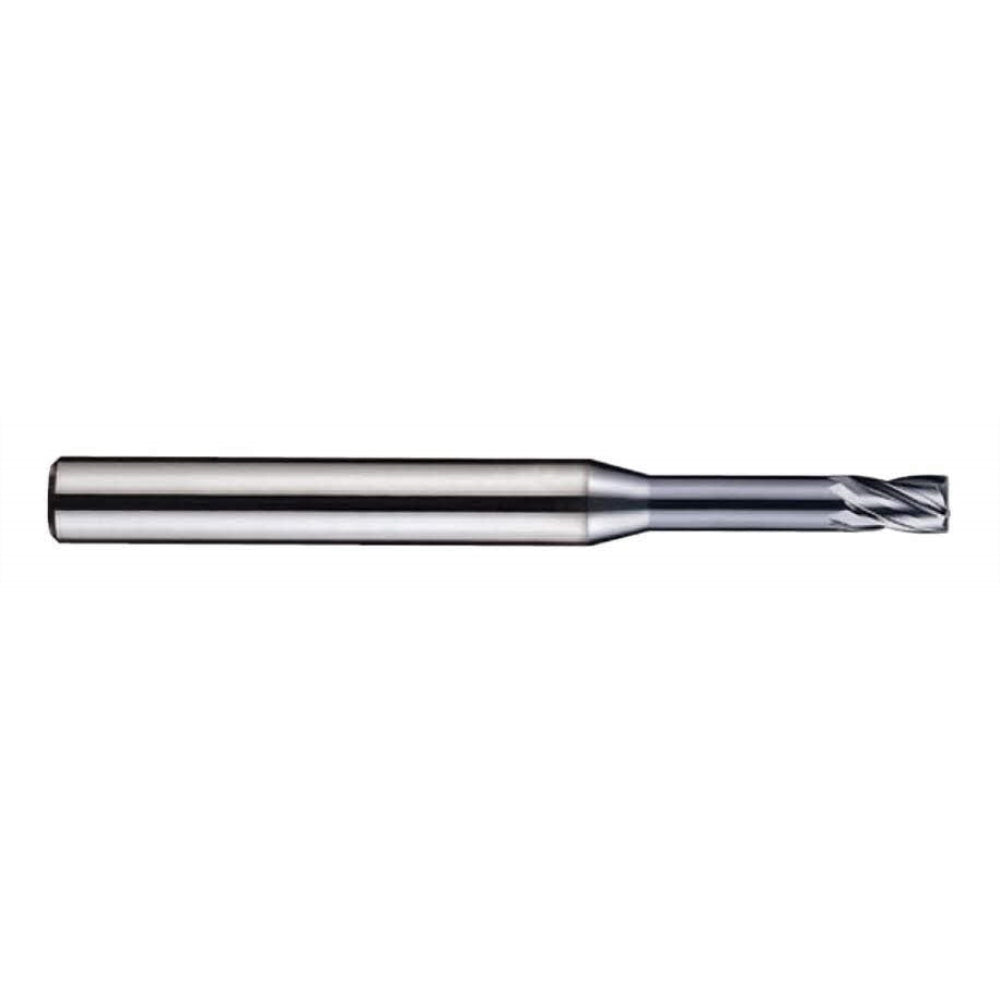

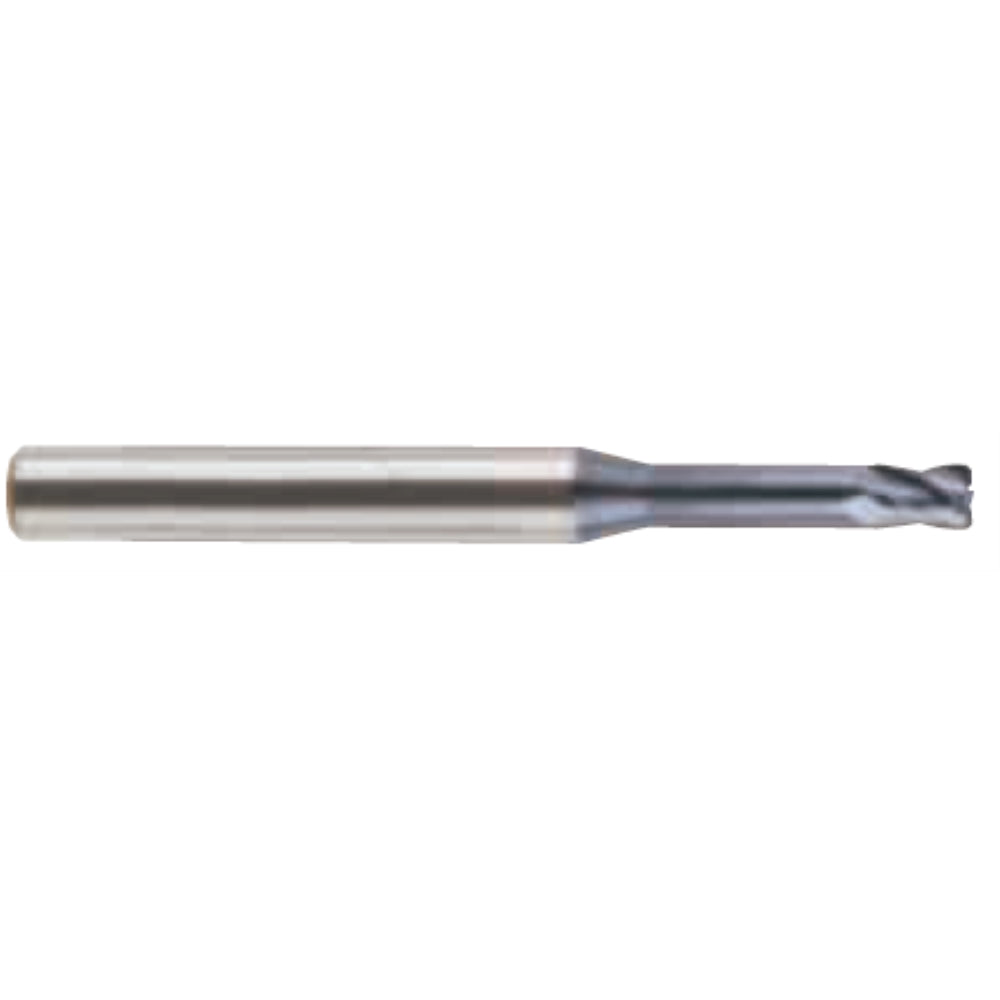

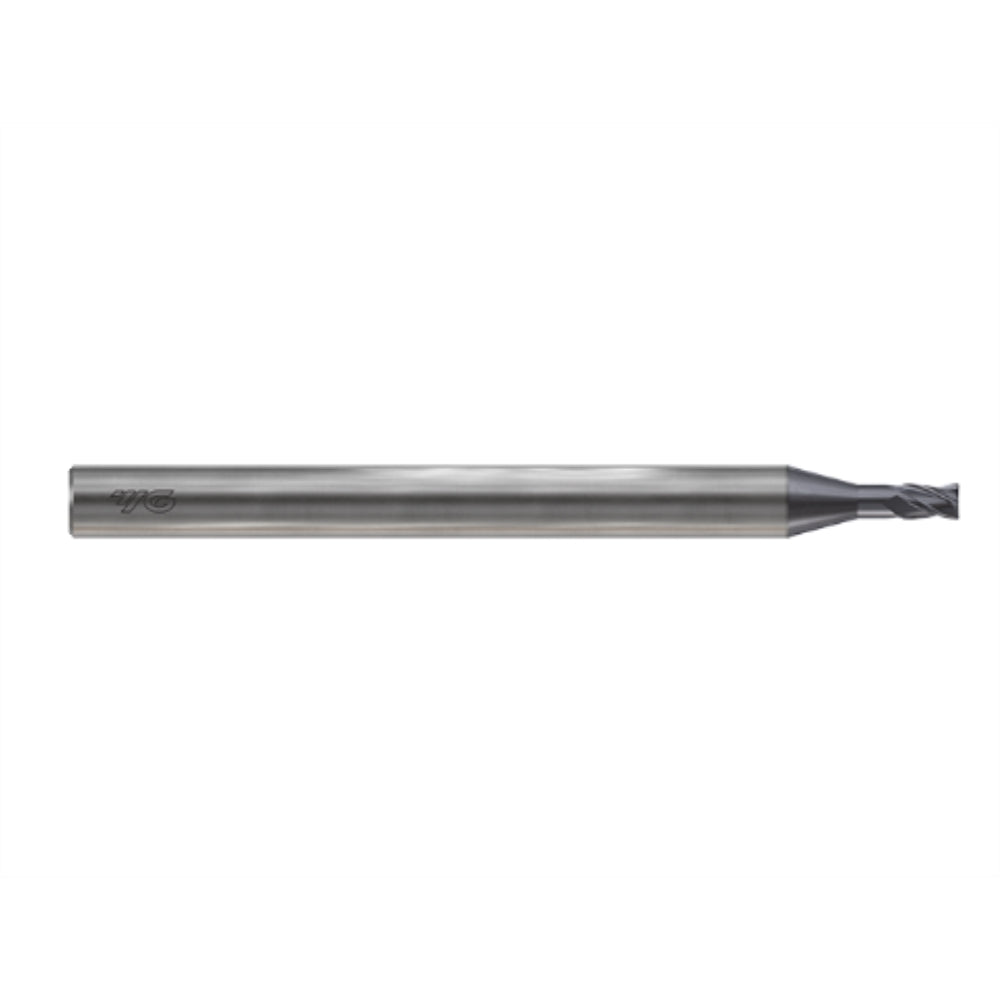

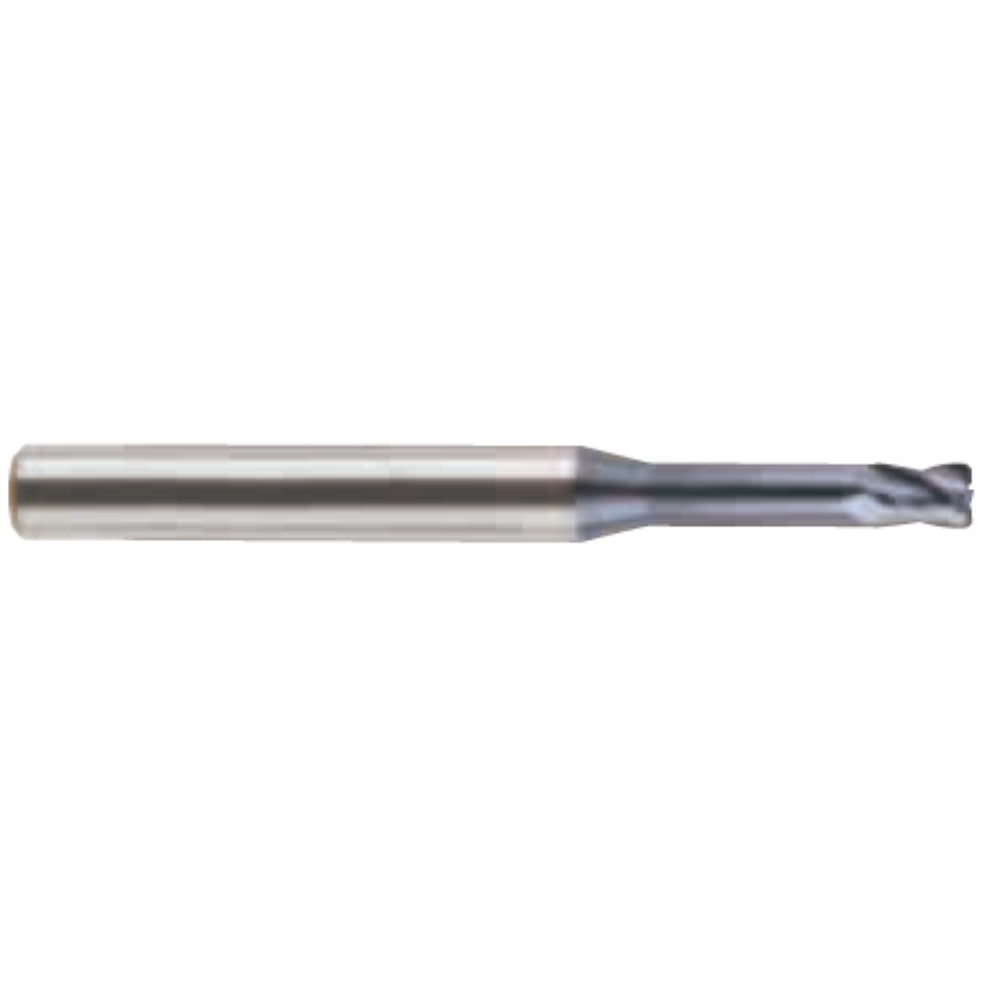

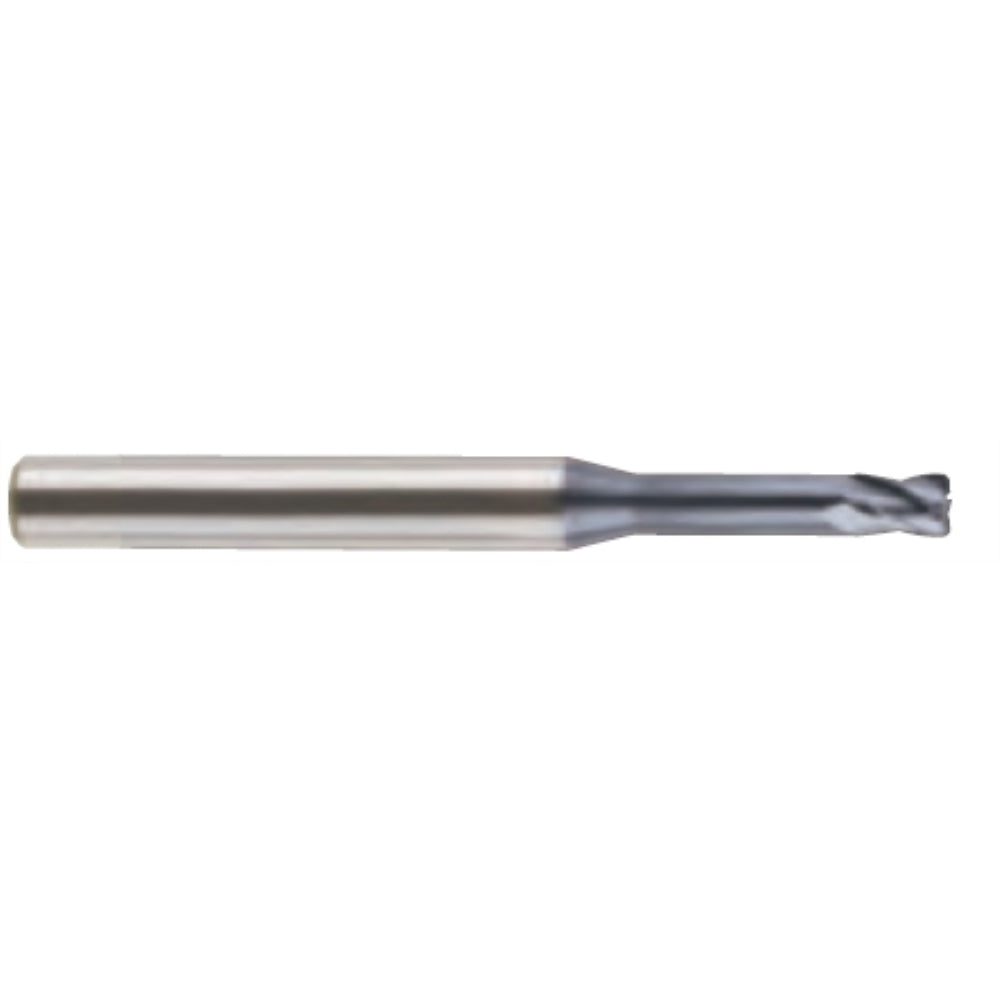

YG-1 4G MILLS Rib Radius End Mill, 4F

Description

Confirm the radius as well as the diameter, because variants in the same line are specified by both.

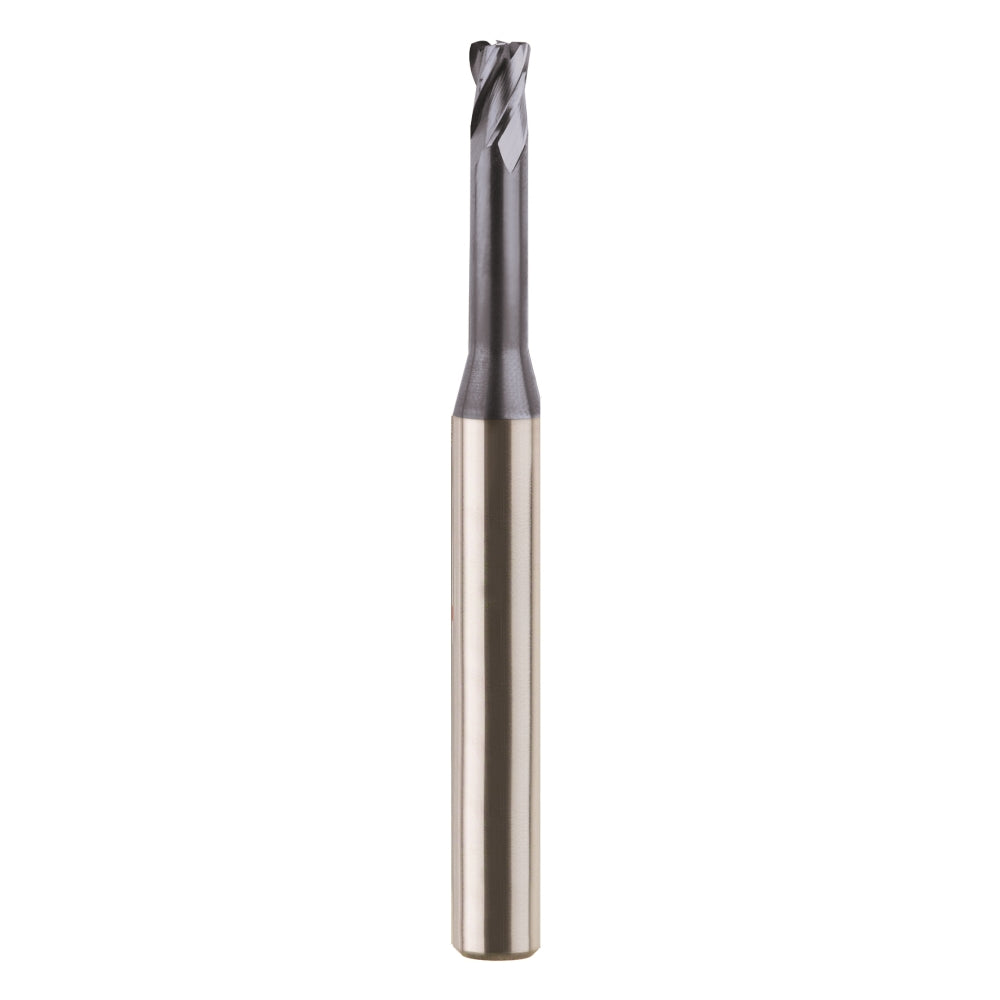

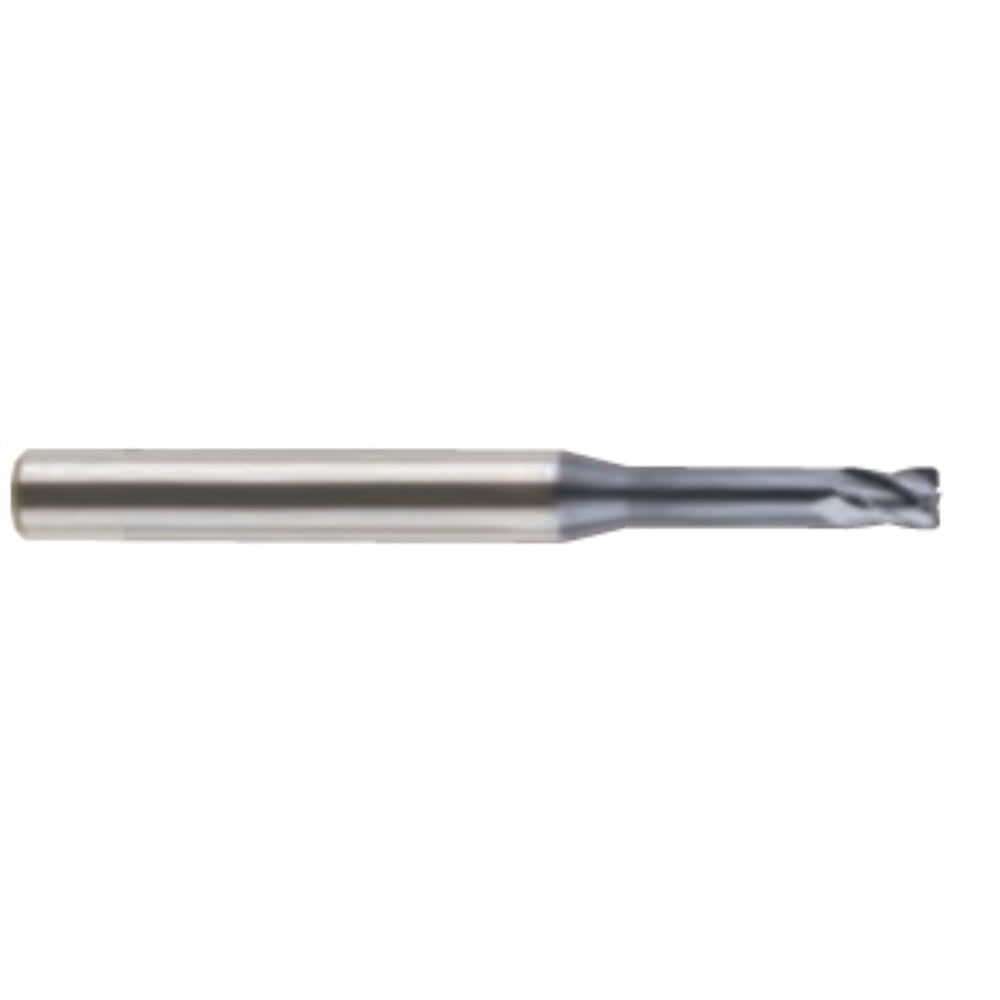

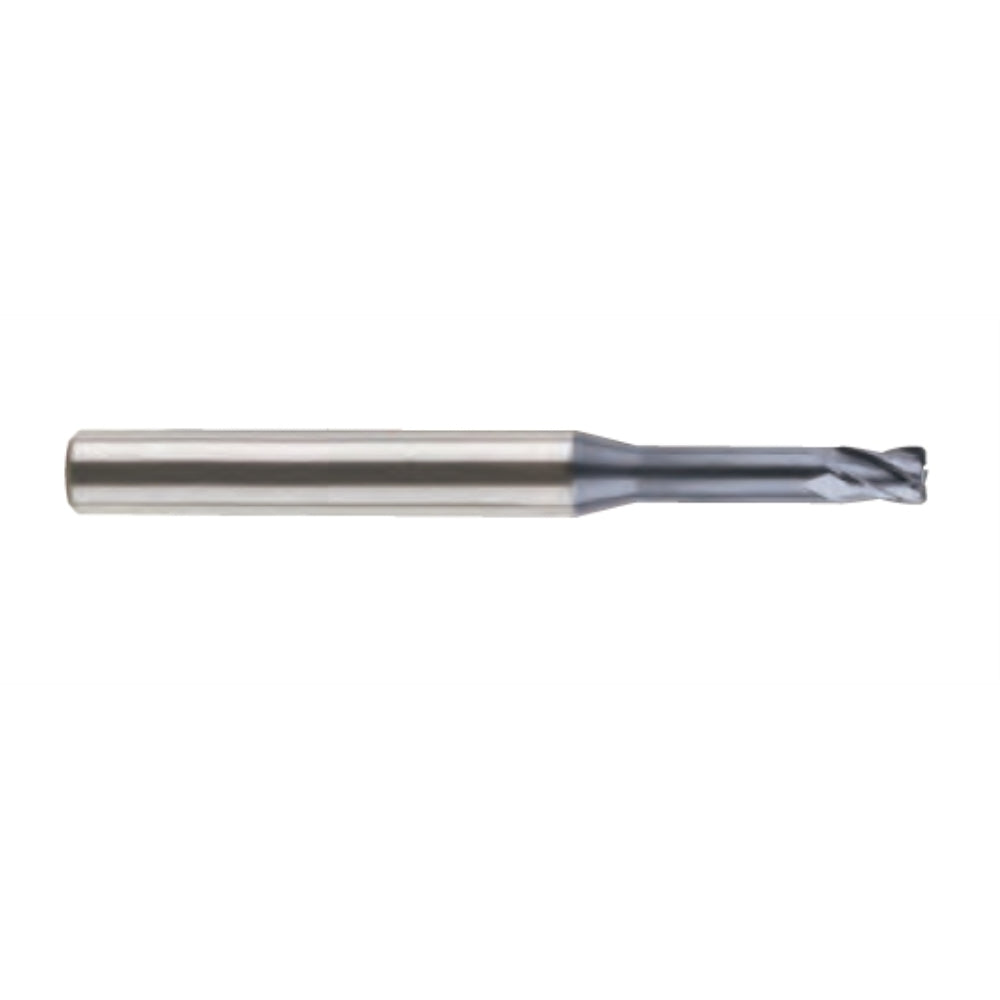

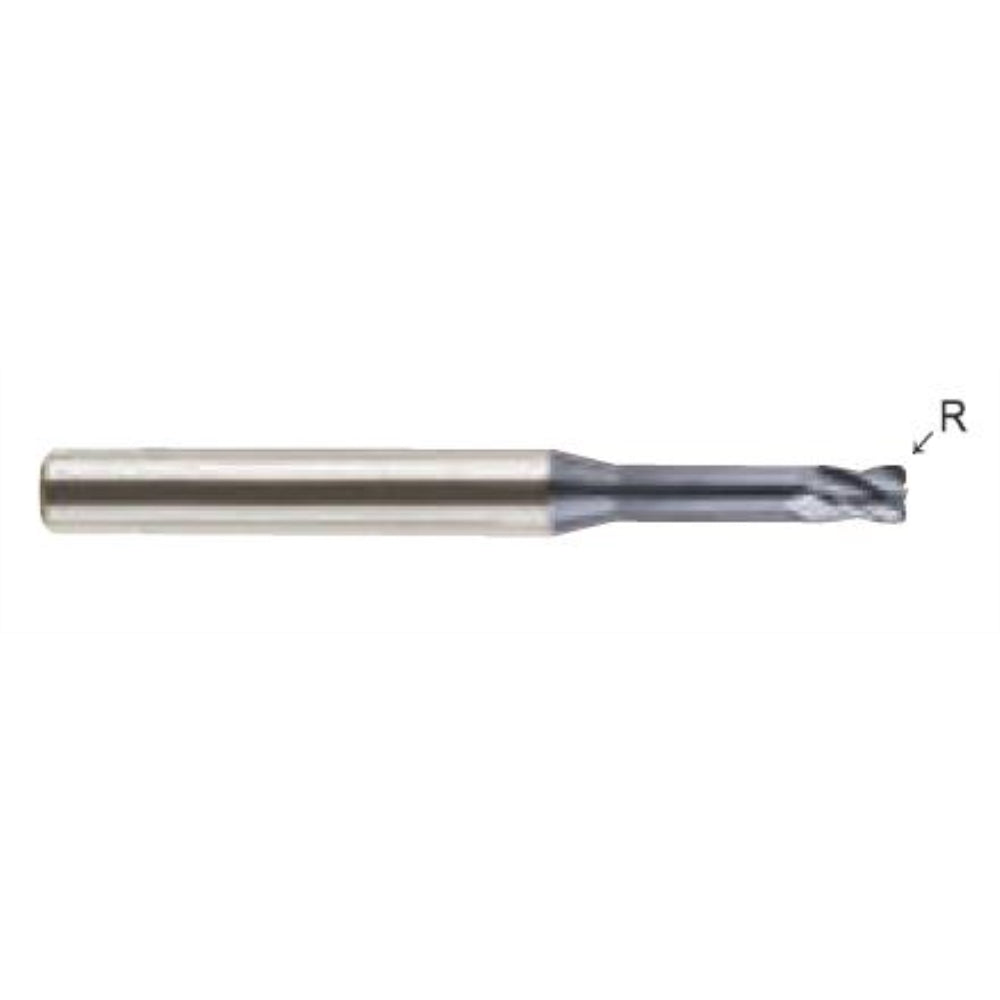

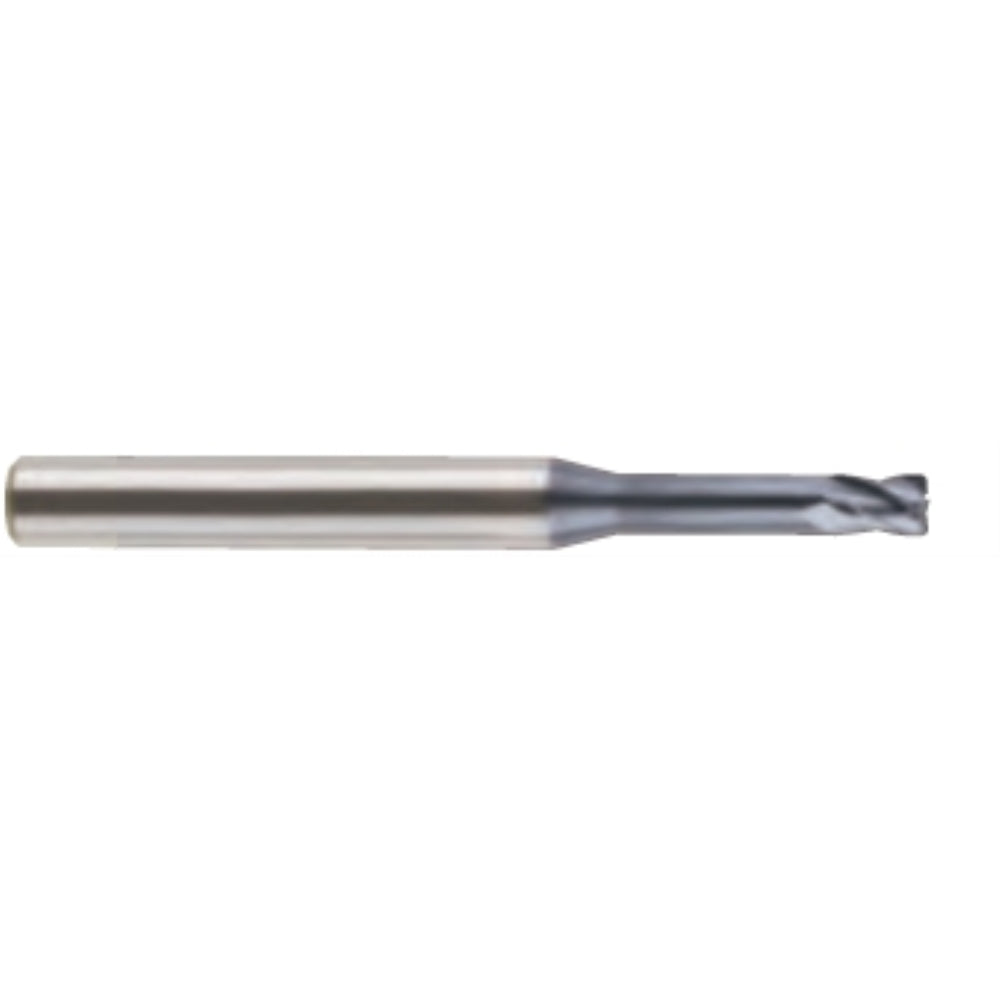

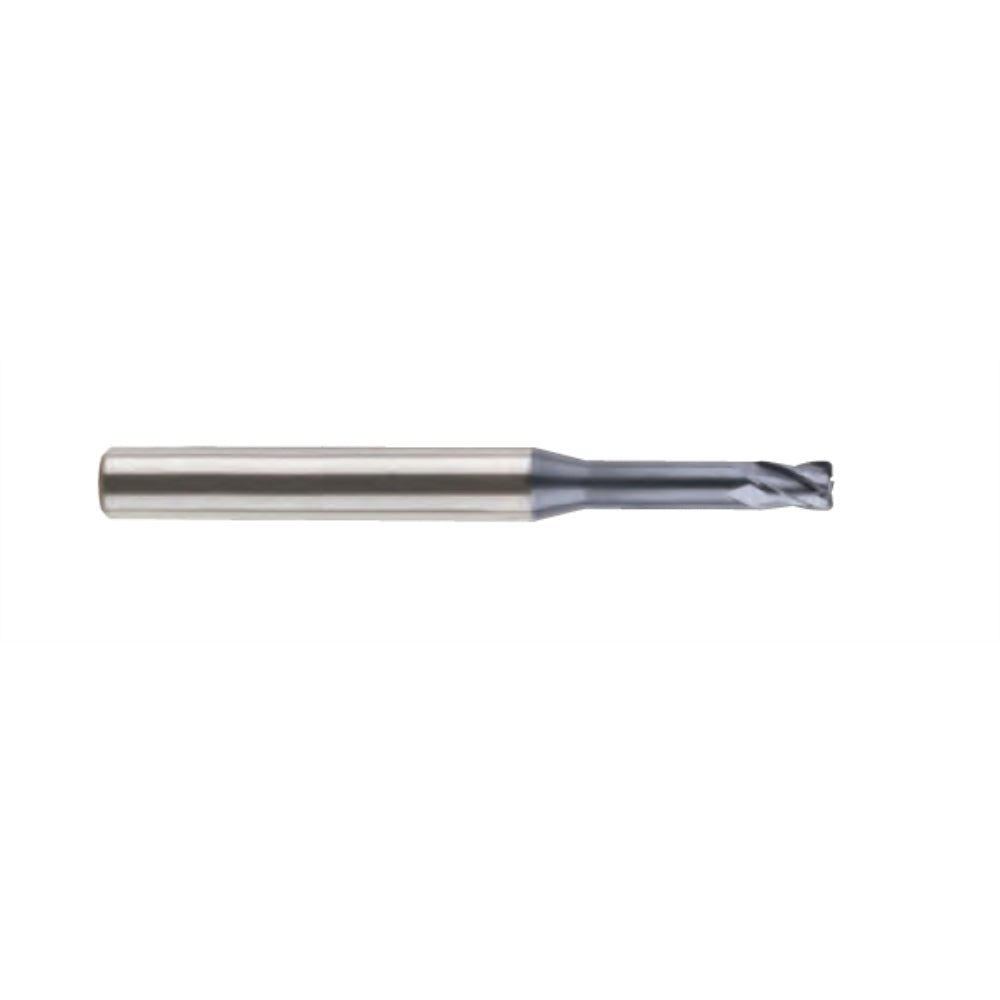

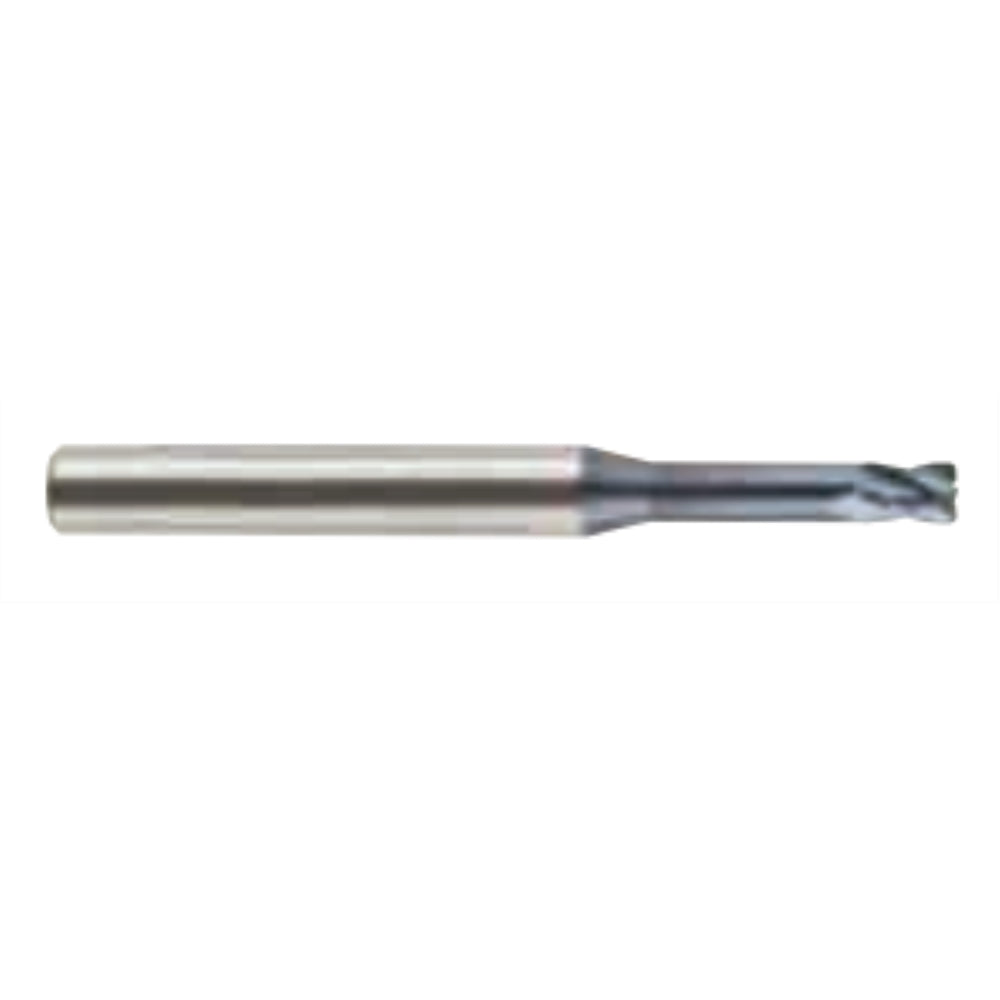

YG-1 4G MILLS Rib Radius End Mill, 4F

A corner radius end mill for pocketing and contouring where a radius on the part corner or a stronger cutting edge is needed. Used on milling machines and machining centers in mold shops, job shops and production plants.

Key Features

  • Corner radius strengthens the edge against chipping and leaves a filleted floor edge.
  • Programmed corner radius must match the tool radius of the variant.
  • Flute count varies by size; fewer flutes give chip room, more give a finer finish.
  • Match the shank diameter to your collet or holder before ordering.

Specifications

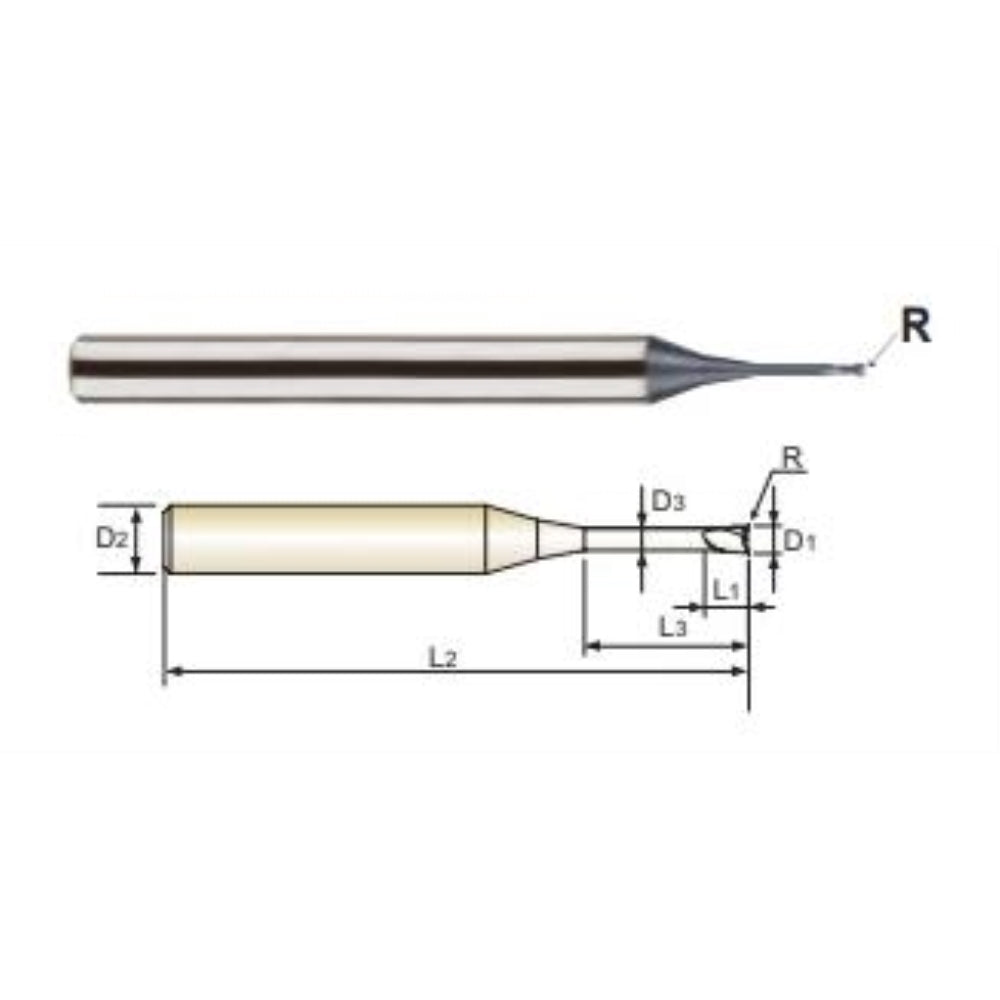

Model Specification Sold as
4SRICRE4-020R0.5-16 D2(R0.5)X4X3(16)X50 (SEME640200516) 1 pc
4SRICRE4-020R0.5-20 D2(R0.5)X4X3(20)X50 (SEME640200520) 1 pc
4SRICRE4-020R0.1-16 D2(R0.1)X4X3(16)X50 (SEME640200116) 1 pc
4SRICRE4-020R0.1-12 D2(R0.1)X4X3(12)X50 (SEME640200112) 1 pc
4SRICRE4-015R0.5-16 D1.5(R0.5)X4X2.3(16)X50 (SEME640150516 1 pc
4SRICRE4-020R0.5-15 D5(R1.0)X6X8(15)X60 (SEME6405010) 1 pc
4SRICRE4-020R0.5-14 D2(R0.5)X4X3(14)X50 (SEME640200514) 1 pc
4SRICRE4-020R0.5-30 D2(R0.5)X4X3(30)X70 (SEME640200530) 1 pc
4SRICRE4-020R0.3-8 D2(R0.3)X4X3(8)X50 (SEME640200308) 1 pc
4SRICRE4-030R0.2-35 D3(R0.2)X6X4.5(35)X70 (SEME640300235) 1 pc
4SRICRE4-025R0.2-20 D2.5(R0.2)X4X4(20)X50 (SEME640250220) 1 pc
4SRICRE4-03R0.2-26 D3(R0.2)X6X4.5(26)X65 (SEME640300226) 1 pc
4SRICRE4-03R02-12 D3(R0.2)X6X4.5(12)X50 (SEME640300212) 1 pc
4SRICRE4-050R0.5-30 D5(R0.5)X6X8(30)X70 (SEME640500530) 1 pc
4SRICRE4-03R02-20 D3(R0.2)X6X4.5(20)X60 (SEME640300220) 1 pc
4SRICRE4-04R02-12 D4(R0.2)X6X6(12)X50 (SEME640400212) 1 pc
4SRICRE4-03R0.2-30 D3(R0.2)X6X4.5(30)X70 (SEME640300230) 1 pc
4SRICRE4-025R0.1-20 D2.5(R0.1)X4X4(20)X50 (SEME640250120) 1 pc
4SRICRE4-03R02-14 D3(R0.2)X6X4.5(14)X60 (SEME640300214) 1 pc
4SRICRE4-050R2-15 D5(R2)X6X8(15)X60 (SEME6405020) 1 pc
4SRICRE4-025R0.2-30 D2.5(R0.2)X4X4(30)X70 (SEME640250230) 1 pc
4SRICRE4-020R0.5-12 D2(R0.5)X4X3(12)X50 (SEME640200512) 1 pc
4SRICRE4-050R1.5-15 D5(R1.5)X6X8(15)X60 (SEME6405015) 1 pc
4SRICRE4-025R0.2-08 D2.5(R0.2)X4X4(8)X50 (SEME640250208) 1 pc
4SRICRE4-025R0.5-16 D2.5(R0.5)X4X4(16)X50 (SEME640250516) 1 pc
4SRICRE4-025R0.5-20 D2.5(R0.5)X4X4(20)X50 (SEME640250520) 1 pc
4SRICRE4-025R0.5-12 D2.5(R0.5)X4X4(12)X50 (SEME640250512) 1 pc
4SRICRE4-025R0.5-25 D2.5(R0.5)X4X4(10)X50 (SEME640250510) 1 pc
4SRICRE4-020R0.5-10 D2(R0.5)X4X3(10)X50 (SEME640200510) 1 pc
4SRICRE4-020R0.5-6 D2(R0.5)X4X3(6)X50 (SEME640200506) 1 pc
4SRICRE4-020R0.5-8 D2(R0.5)X4X3(8)X50 (SEME640200508) 1 pc
4SRICRE4-020R0.2-12 D2(R0.2)X4X3(12)X50 (SEME640200212) 1 pc
4SRICRE4-020R0.2-20 D2(R0.2)X4X3(20)X50 (SEME640200220) 1 pc
4SRICRE4-020R0.2-6 D2(R0.2)X4X3(6)X50 (SEME640200206) 1 pc
4SRICRE4-020R0.2-10 D2.0(R0.2)X4X3(10)X50 (SEME640200210) 1 pc
4SRICRE4-020R0.2-8 D2(R0.2)X4X3(8)X50 (SEME640200208) 1 pc
4SRICRE4-020R0.2-16 D2(R0.2)X4X3(16)X50 (SEME640200216) 1 pc
4SRICRE4-020R0.2-14 D2(R0.2)X4X3(14)X50 (SEME640200214) 1 pc
4SRICRE4-020R0.3-12 D2(R0.3)X4X3(12)X50 (SEME640200312) 1 pc
4SRICRE4-020R0.3-22 D2(R0.3)X4X3(22)X60 (SEME640200322) 1 pc
4SRICRE4-012R0.2-6 1.2(R0.2)X4X1.8(6)X50 (SEME640120206) 1 pc
4SRICRE4-012R0.1-10 D1.2(R0.1)X4X1.8(10)X50 (SEME640120110) 1 pc
4SRICRE4-020R0.1-10 D2(R0.1)X4X3(10)X50 (SEME640200110) 1 pc
4SRICRE4-030R0.1-10 D3(R0.1)X6X4.5(10)X50 (SEME640300110) 1 pc

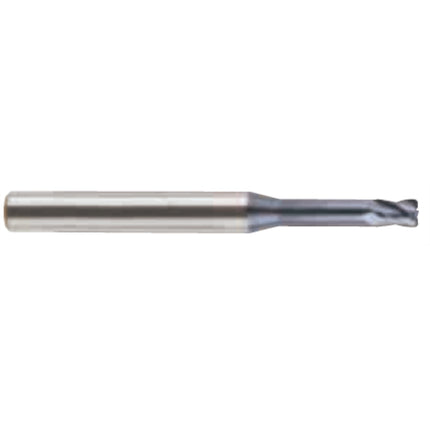

4SRICRE4-015R0.3-6 D1.5(R0.3)X4X2.3(6)X50 (SEME640150306) 1 pc
4SRICRE4-015R0.3-8 D1.5(R0.3)X4X2.3(8)X50 (SEME640150308) 1 pc
  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
