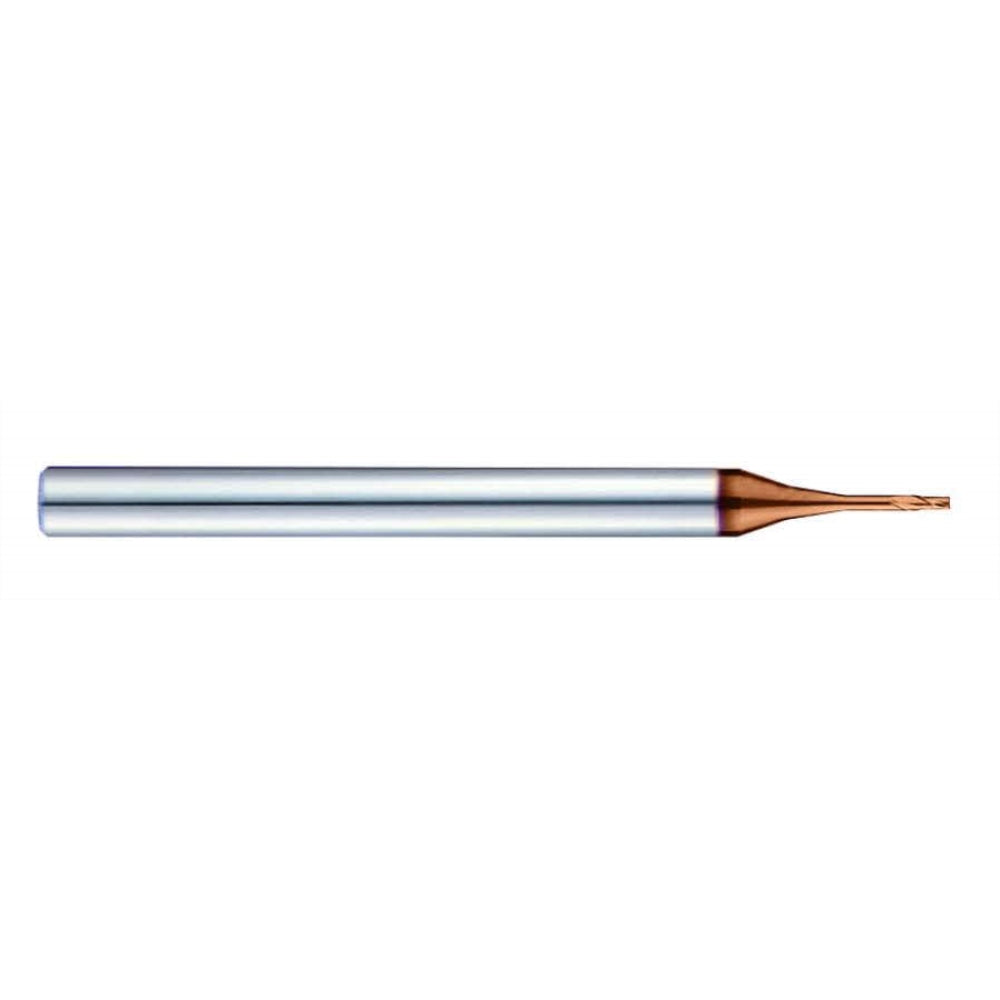

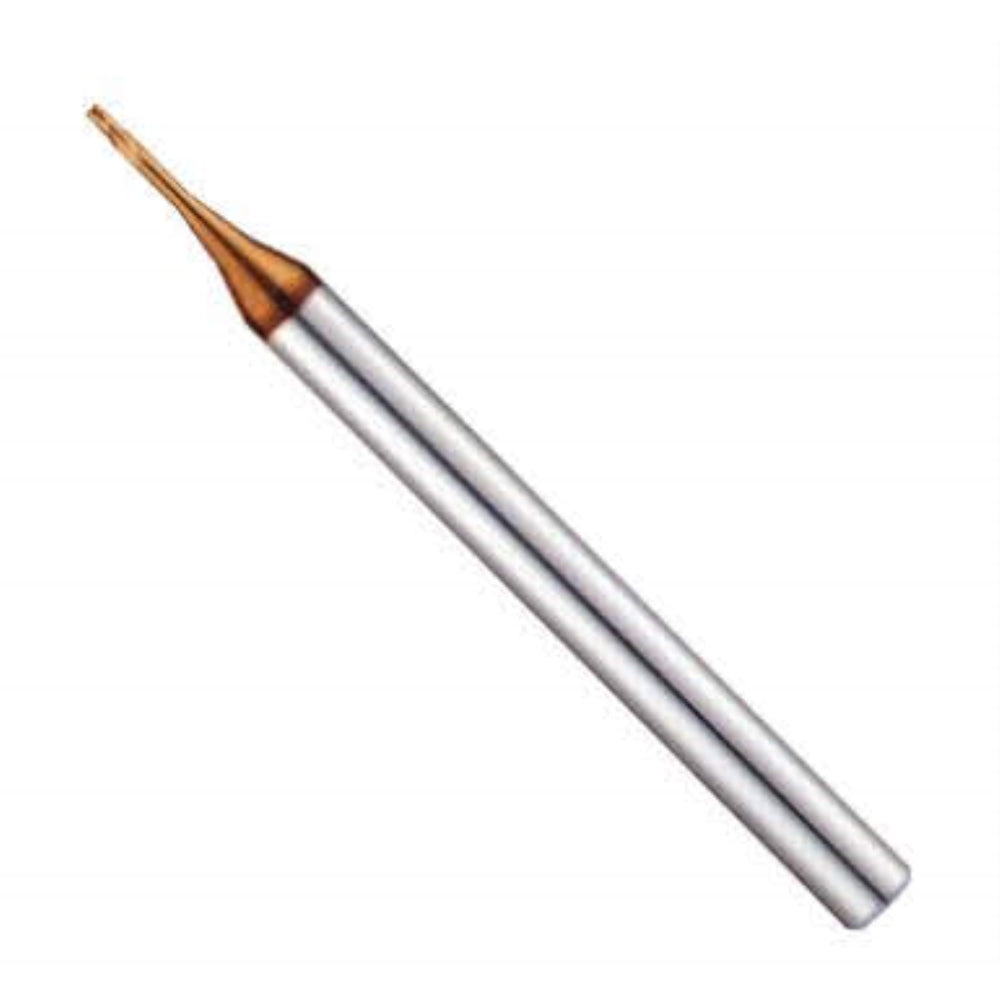

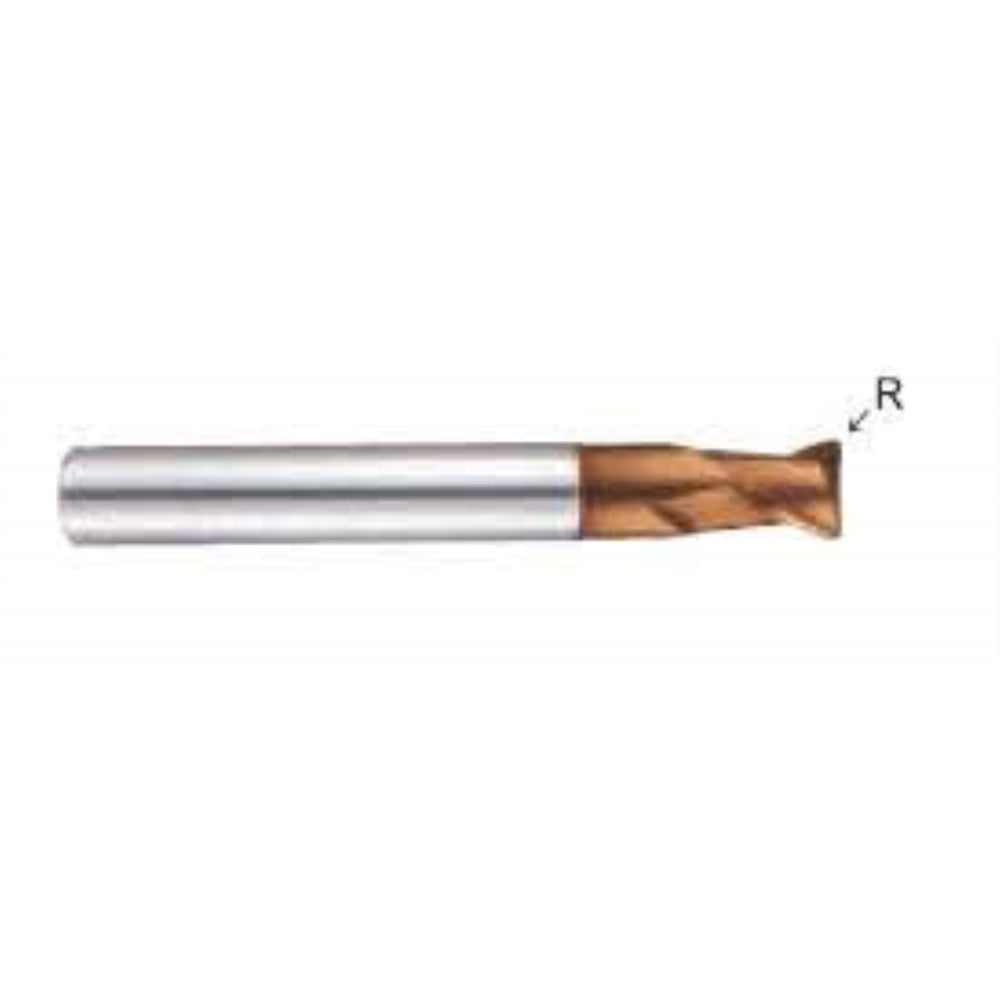

A long neck corner radius end mill for pocketing and contouring where a radius on the part corner or a stronger cutting edge is needed. Used on milling machines and machining centers in mold shops, job shops and production plants.
| Model |
Specification |
Sold as |
| NXCRE2-4R05-NX |
D4.0(R0.5)X6X6(12)X55 (SGNF040400512) |
1 pc |
| NXCRE2-4R05-NX-10 |
D4.0(R0.5)X6X6(10)X55 (SGNF040400510) |
1 pc |
| NXCRE2-6R02-NX-20 |
D6(R0.2)X6X9(20)X60 (SGNF0406002) |
1 pc |
| NXCRE2-3R03-NX-8 |
D3(R0.3)X6X4.5(8)X55 (SGNF040300308) |
1 pc |
| NXCRE2-2R03-NX-8 |
D2(R0.3)X4X3(8)X45(SGNF040200308) |
1 pc |
| NXCRE2-3R01-NX-12 |
D3.0(R0.1)X6X4.5(12)X55 (SGNF040300112) |
1 pc |
| NXCRE2-3R01-NX-16 |
D3.0(R0.1)X6X4.5(16)X55 (SGNF040300116) |
1 pc |
| NXCRE2-006R02-4-NX |
D0.6(R0.2)X4X0.9(4)X40 (SGNF040060204) |
1 pc |
| NXCRE2-006R02-6-NX |
D0.6(R0.2)X4X0.9(6)X40 (SGNF040060206 ) |
1 pc |
| NXCRE2-4R05-NX-16 |
D4(R0.5)X6X6(16)X55 (SGNF040400516 ) |
1 pc |
| NXCRE2-3R05-NX-16 |
D3(R0.5)X6X4.5(16)X55 (SGNF040300516) |
1 pc |
| NXCRE-025R05-NX |
D2.5(0.5R)X4X3.5(10)X55 (SGNF040250510) |
1 pc |
| NXCRE-015R05-12-NX |
D1.5(R0.5)X4X2.5(12)X45 (SGNF040150512) |
1 pc |
| NXCRE2-3R03-NX-16 |
D3(R0.3)X6X4.5(16)X55 (SGNF040300316) |
1 pc |
| NXCRE2-1R04-NX-20 |
D4.0(R1.0)X6X6(20)X60(SGNF040401020) |
1 pc |
| NXCRE2-4R05-NX-26 |
D4.0(R0.5)X6X6(26)X60 (SGNF040400526) |
1 pc |
| NXCRE2-12R1-NX-30 |
D12(R1)X12X18(30)X80 (SGNF0412010) |
1 pc |
| NXCRE2-3R05-NX-12 |
D3(R0.5)X6X4.5(12)X55 (SGNF040300512) |
1 pc |
| NXCRE2-2R05-NX-16 |
D2(R0.5)X4X3(16)X45 (SGNF040200516) |
1 pc |
| NXCRE2-3R05-NX-20 |
D3(R0.5)X6X4.5(20)X60 (SGNF040300520) |
1 pc |
| NXCRE2-4R05-NX-20 |
D4.0(R0.5)X6X6(20)X60 (SGNF040400520) |
1 pc |
| NXCRE2-2R05-NX-06 |
D2(R0.5)X4X3(6)X45 (SGNF040200506) |
1 pc |
| NXCRE2-2R01-NX-8 |
2(R0.1)X4X3(8)X45 (SGNF040200108) |
1 pc |
| NXCRE2-3R02-NX-12 |
D3(R0.2)X6X4.5(12)X55 (SGNF040300212) |
1 pc |
YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.
