YG-1 G-CUT Diamond Coated Ball End Mill 4F

Description

Confirm the radius as well as the diameter, because variants in the same line are specified by both.

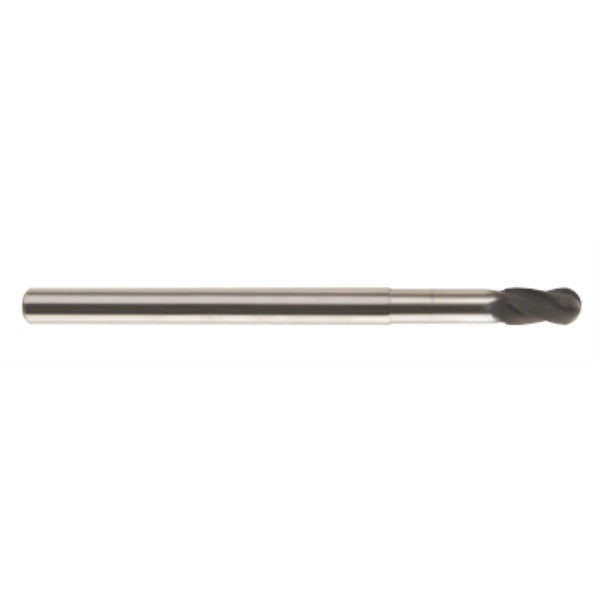

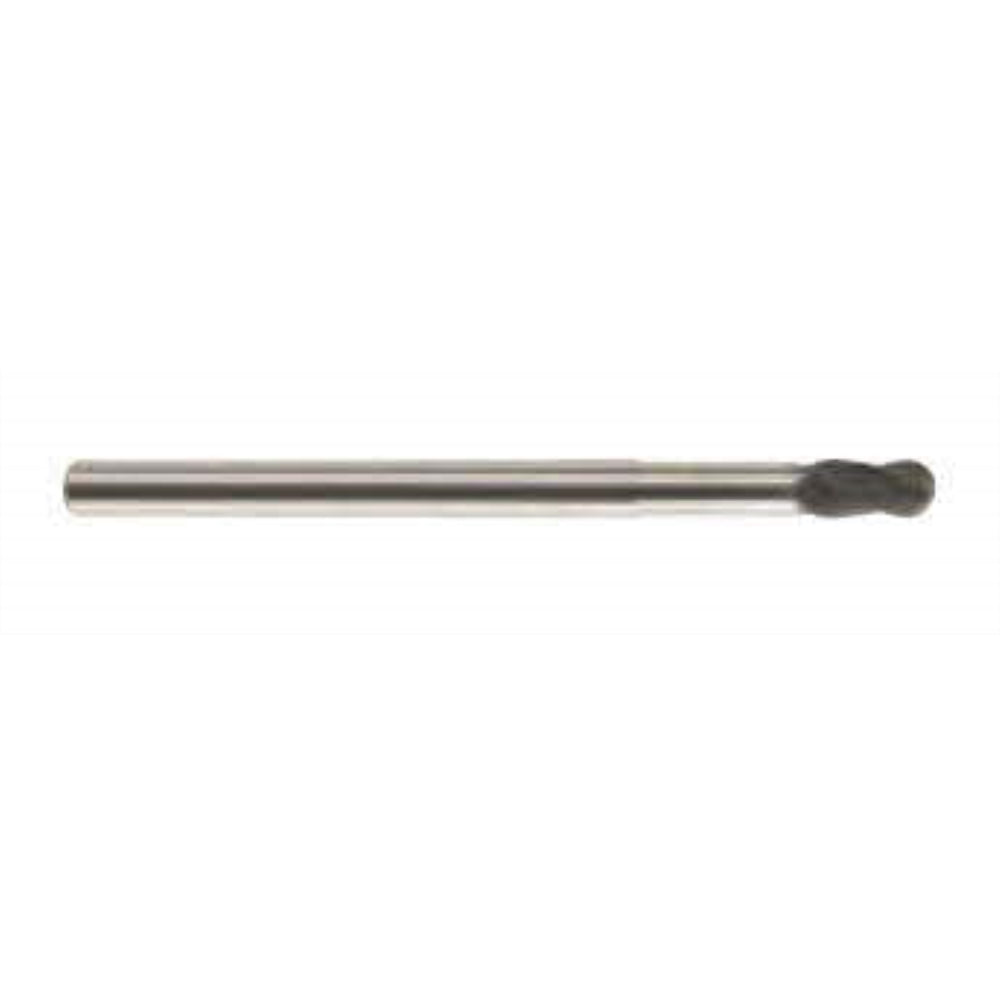

YG-1 G-CUT Diamond Coated Ball End Mill 4F

A ball end mill for 3D contouring, mold and die surfaces, and rounded pocket floors. Used on milling machines and machining centers in mold shops, job shops and production plants. The diamond coating suits graphite, composites and other abrasive non-ferrous materials.

Key Features

  • Ball nose leaves a full-radius profile; stepover sets the scallop height on curved surfaces.
  • Cutting speed is lowest at the tip, so keep the tool engaged off dead center.
  • Flute count varies by size; fewer flutes give chip room, more give a finer finish.
  • Match the shank diameter to your collet or holder before ordering.

Specifications

Model Specification Sold as
GBE4-010R-25 D2X4X6(25)X80 (EIE2202025) 1 pc
GBE4-005-10 4F 1X4X3(10)X60 (EIE2201010) 1 pc
GBE4-080R-150 D16X16X50X150 (EIE22160150) 1 pc
GBE4-100R-200 D20X20X60X200 (EIE22200200) 1 pc
GBE4-080R-200 D16X16X50X200 (EIE22160200) 1 pc
GBE4-020R D4.0X4X12X60 (EIE22040060) 1 pc
GBE4-040R-110 D8.0X8X25X110 (EIE22080110) 1 pc
GBE4-050R-110 D10.0X10X30X110 (EIE22100110) 1 pc
GBE4-005R-20 D1X4X3(20)X60 (EIE2201020) 1 pc
GBE4-005R-30 D1X4X3(30)X80 (EIE2201030) 1 pc
GBE4-075R-30 D1.5X4X4(30)X80 (EIE2201530) 1 pc
GBE4-010R-40 D2.0X4X6(40)X100 (EIE2202040) 1 pc
GBE4-015R-30 D3.0X4X9(30)X100 (EIE2203030) 1 pc
GBE4-015R-50 D3X4X9(50)X100 (EIE2203050) 1 pc
GBE4-020R-80 D4.0X4X12X80 (EIE22040080) 1 pc
GBE4-030R-110 D6.0X6X20X110 (EIE22060110) 1 pc
GBE4-040R-130 D8X8X25X130 (EIE22080130) 1 pc
GBE4-050R-130 D10X10X30X130 (EIE22100130) 1 pc
GBE4-010R-20 D2X4X6(20)X80 (EIE2202020) 1 pc
GBE4-025R-80 D5X6X15X80 (EIE22050080) 1 pc
GBE4-005R-15 4F 1X4X3(15)X60 (EIE2201015) 1 pc
GBE4-010 4F 2X4X6(15)X80 (EIE2202015) 1 pc
GBE4-010R-30 D2.0X4X6(30)X80 (EIE2202030) 1 pc
GBE4-040R-150 D8.0X8X25X150 (EIE22080150) 1 pc
GBE4-050R-150 D10.0X10X30X150 (EIE22100150) 1 pc
GBE4-060R-180 D12.0X12X35X180 (EIE22120180) 1 pc
GBE4-015R-40 D3.0X4X9(40)X100 (EIE2203040) 1 pc
GBE4-060R-150 D12X12X35X150 (EIE22120150) 1 pc
GBE4-020R-130 D4X4X12X130 (EIE22040130) 1 pc
GBE4-030R-130 D6X6X20X130 (EIE22060130) 1 pc
GBE4-020R-110 D4X4X12X110 (EIE22040110) 1 pc
GBE4-050R-180 D10X10X30X180 (EIE22100180) 1 pc
GBE4-075R-20 D1.5X4X4(20)X80 (EIE2201520) 1 pc
GBE4-010R-10 D2X4X6(10)X80 (EIE2202010) 1 pc
GBE4-015R-25 D3X4X9(25)X100 (EIE2203025) 1 pc
GBE4-020R-150 D4X4X12X150 (EIE22040150) 1 pc
GBE4-025R-110 D5X6X15(25)X110 (EIE22050110) 1 pc
GBE4-030R-180 D6X6X20X180 (EIE22060180) 1 pc
GBE4-040R-200 D8X8X25X200 (EIE22080200) 1 pc
GBE4-060R-200 D12X12X35X200 (EIE22120200) 1 pc
GBE4-060R-110 D12X12X35X110 (EIE22120110) 1 pc
GBE4-030R-150 D6X6X20X150 (EIE22060150) 1 pc
GBE4-060R-130 D12X12X35X130 (EIE22120130) 1 pc
GBE4-015R-20 D3.0X4X9(20)X100 (EIE2203020) 1 pc
GBE4-005R-25 D1X4X3(25)X80 (EIE2201025) 1 pc
GBE4-0075-10 4F 1.5X4X4(10)X80 (EIE2201510) 1 pc
  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
