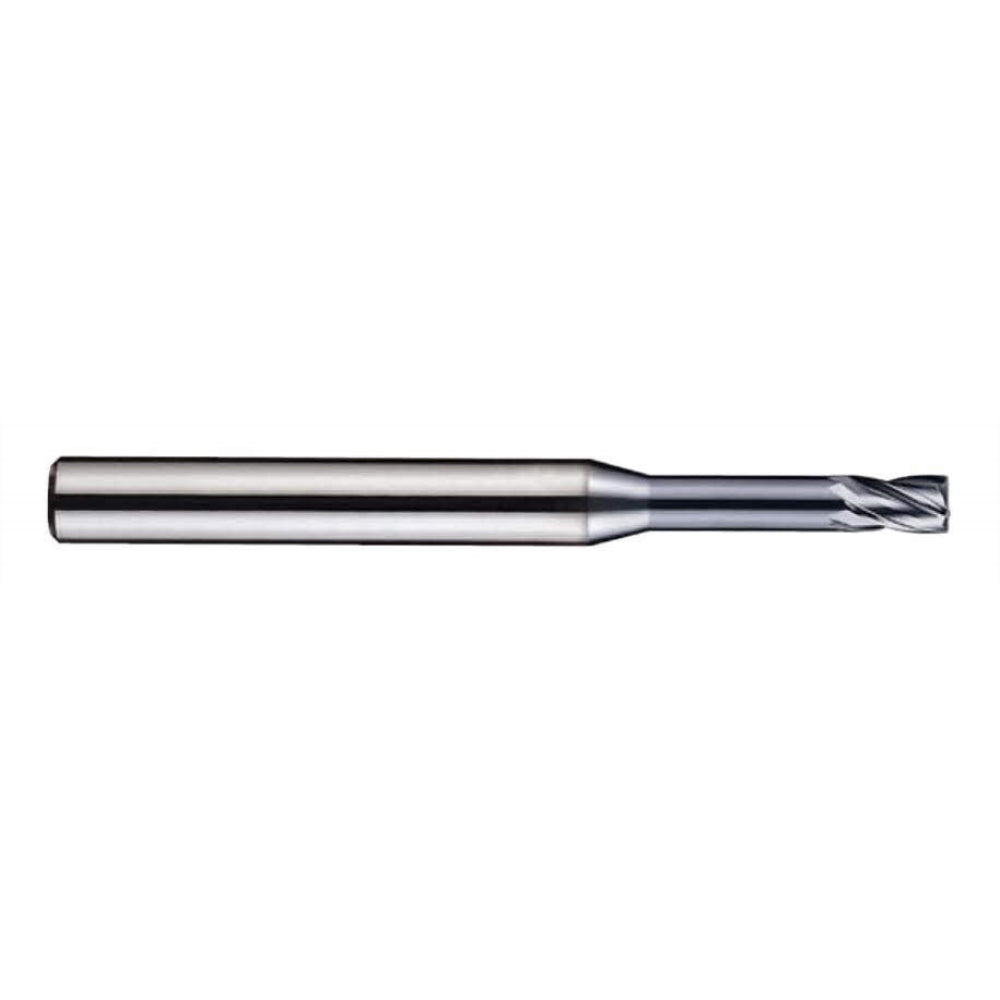

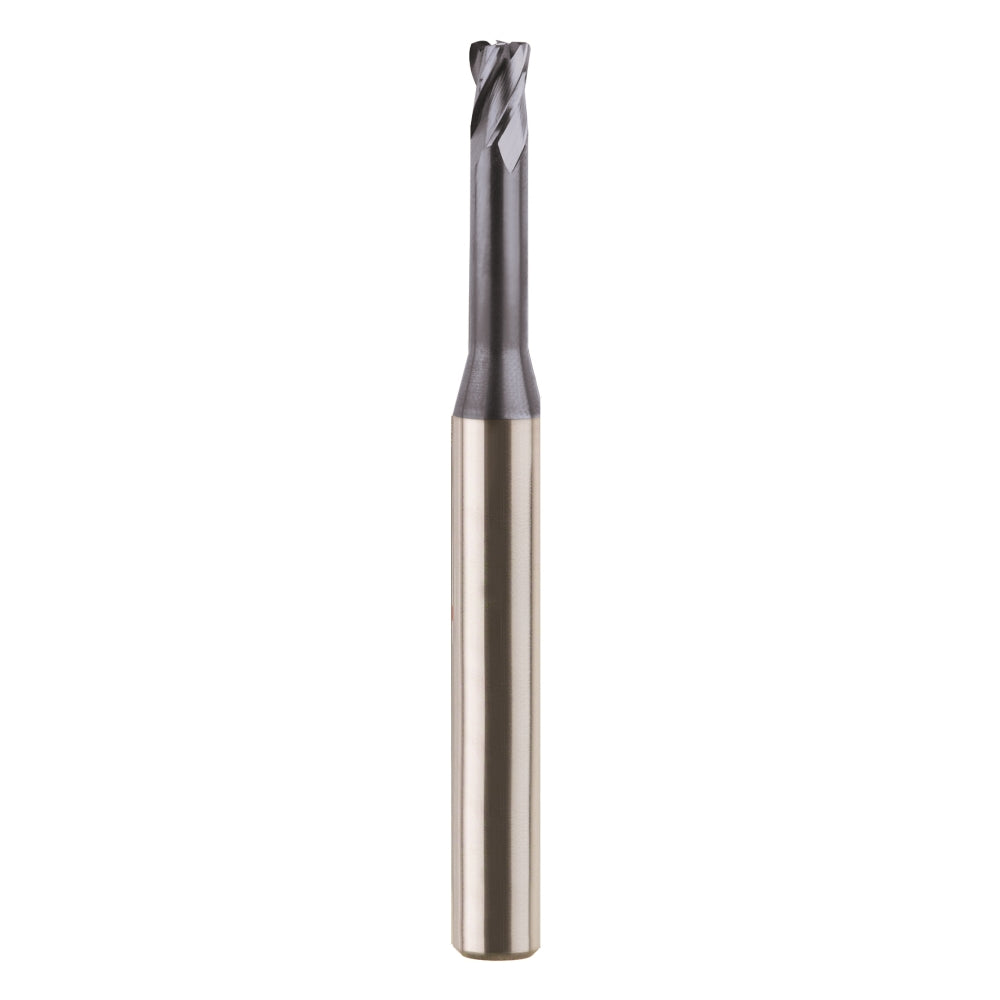

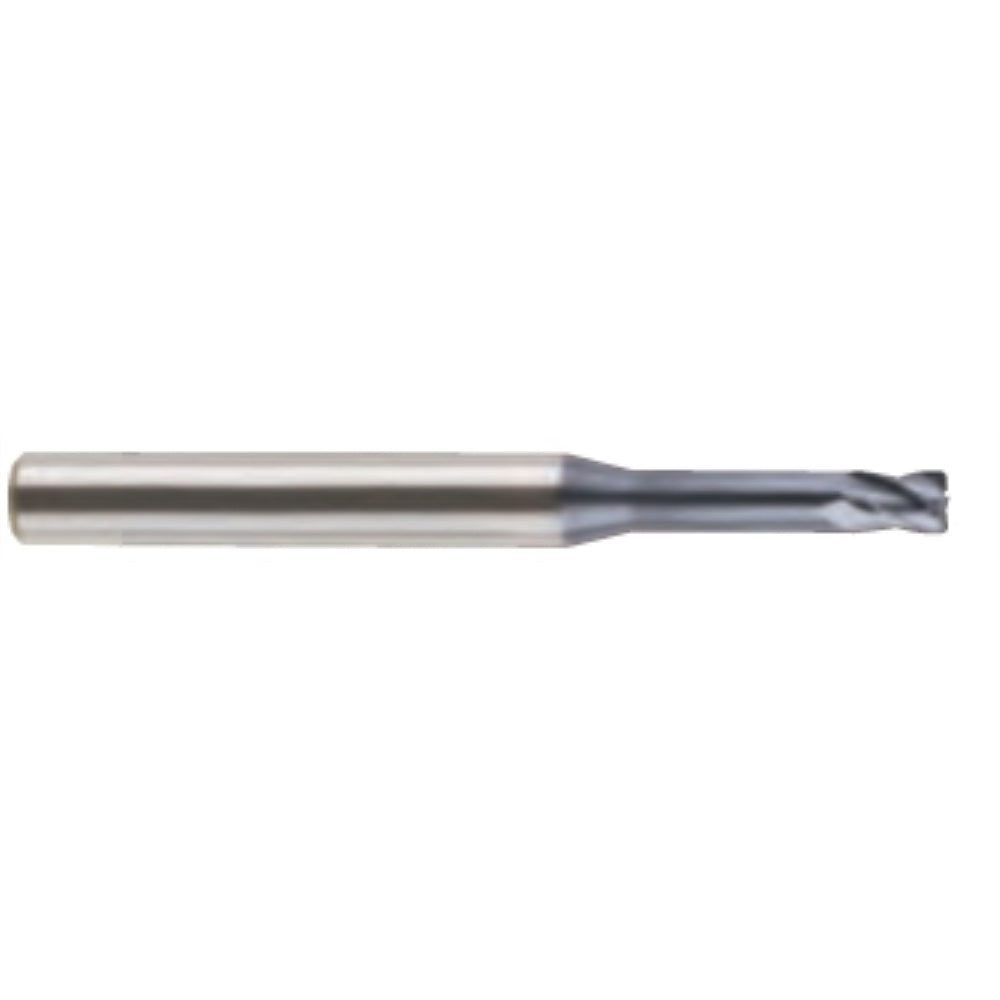

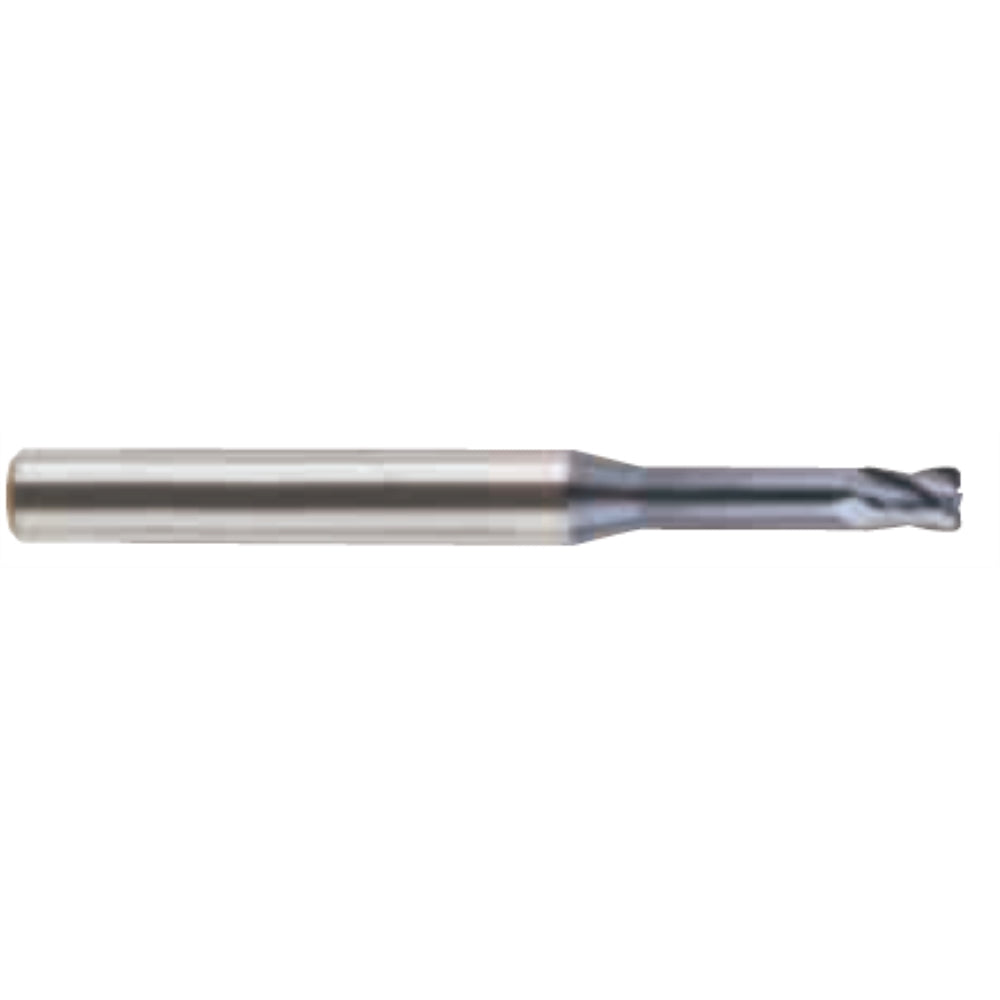

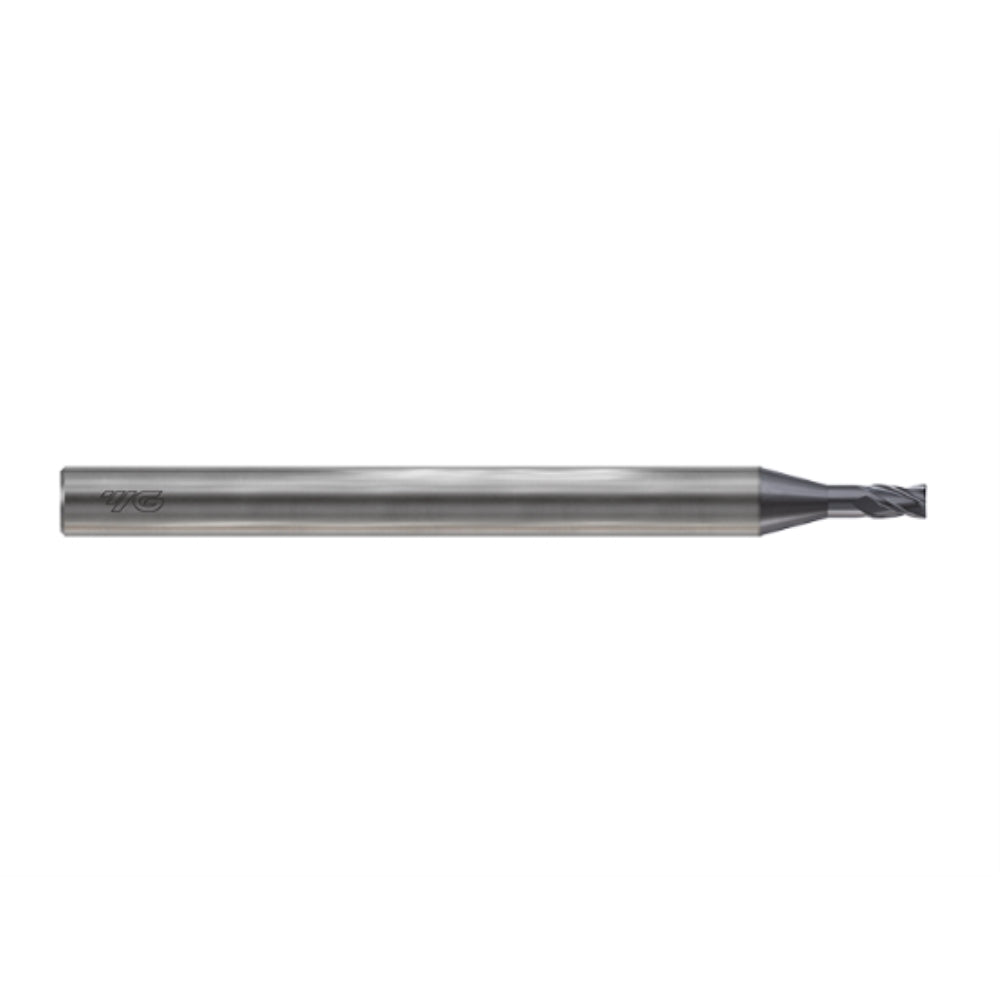

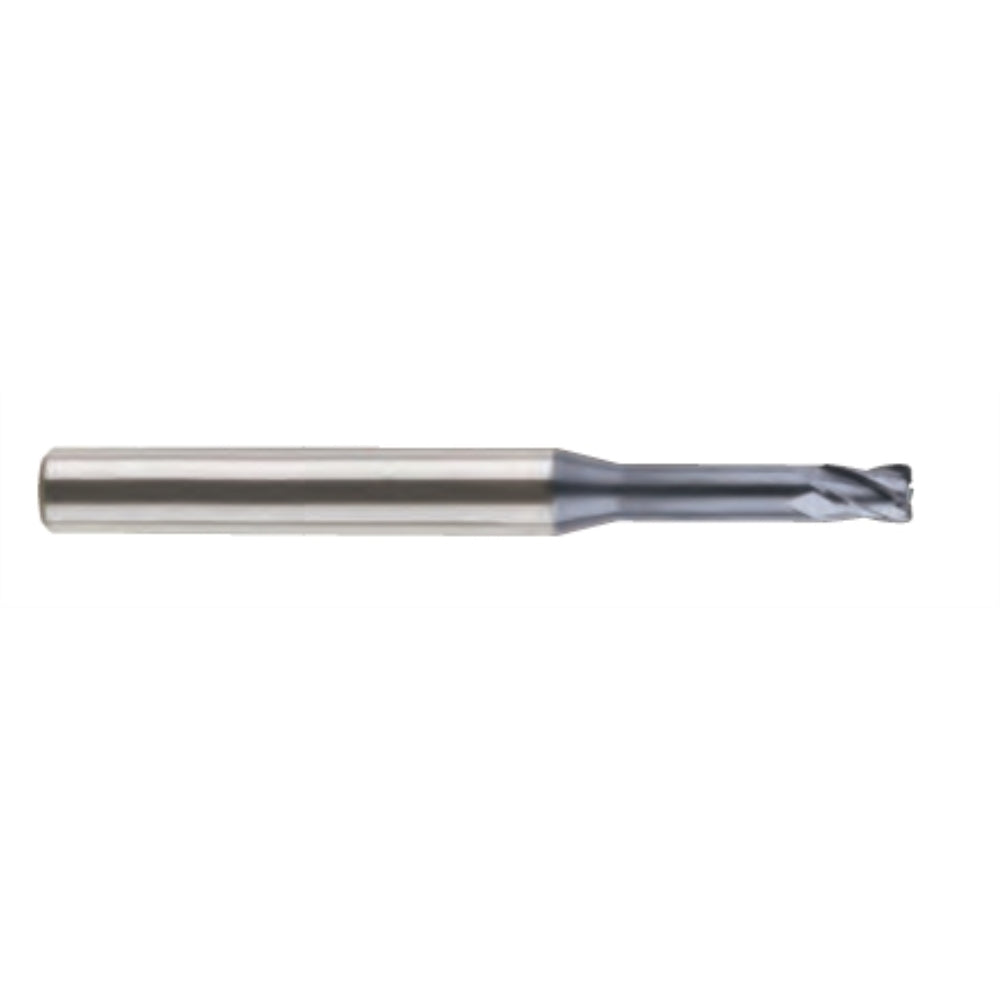

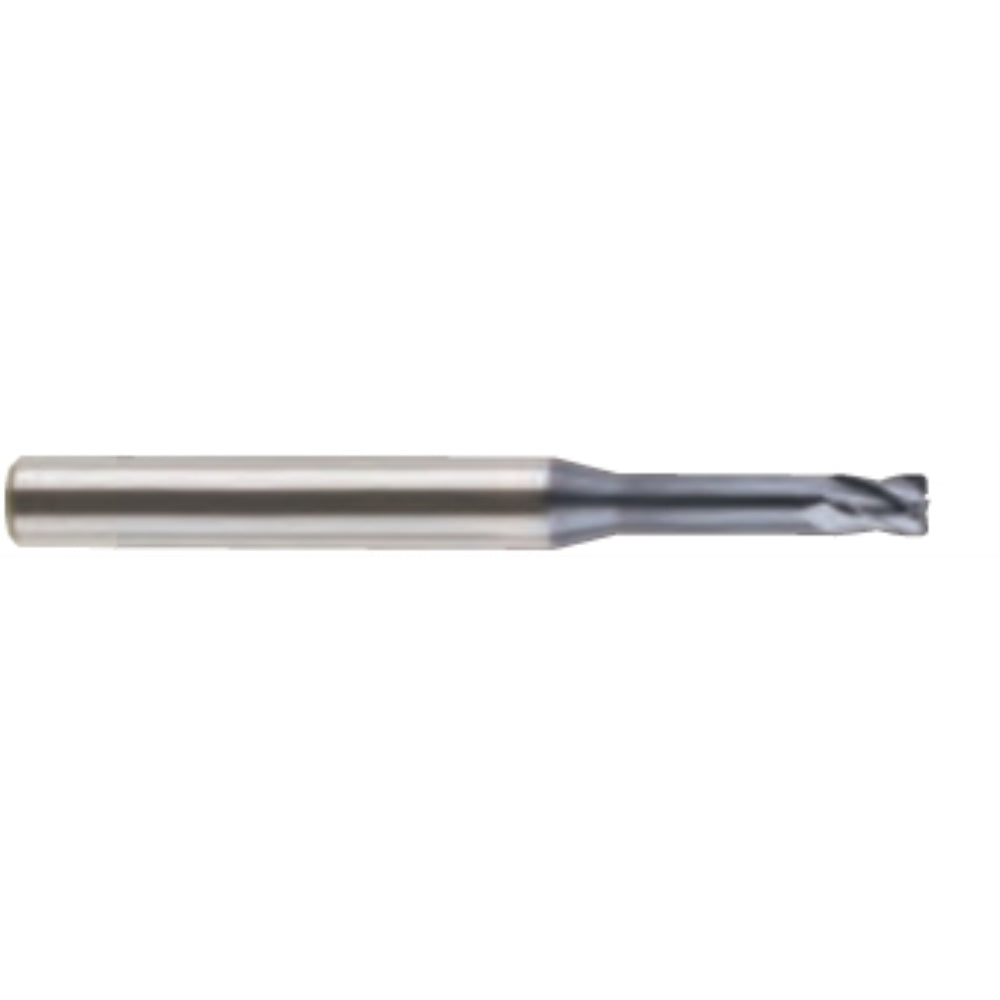

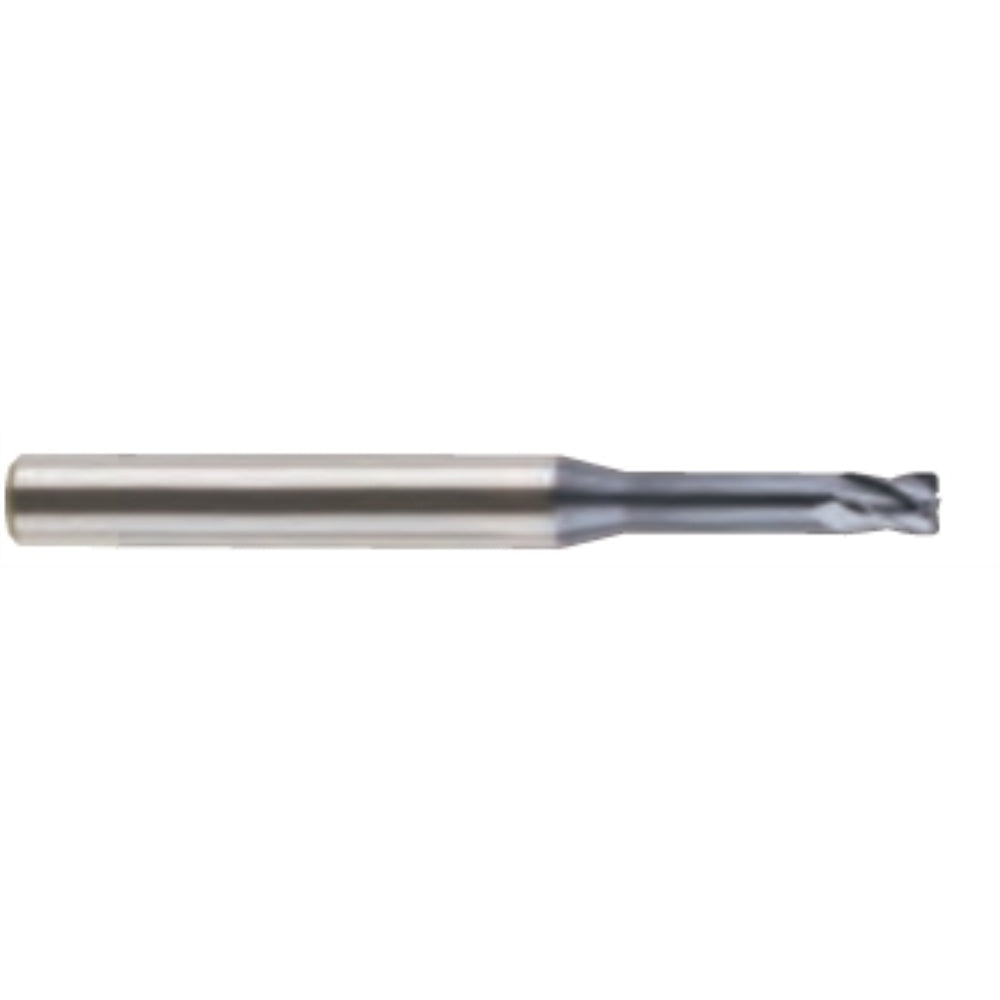

YG-1 4G MILL Long Neck Radius End Mill, 4F

Description

YG-1 4G MILL Long Neck Radius End Mill, 4F

A corner-radius end mill has a rounded corner on its flat end, used for pocketing, profiling and finishing where an internal radius is wanted. A reduced-diameter neck gives extra reach into deep pockets and walls. It is used on CNC machining centers and milling machines in mold, die and general machining.

Key Features

  • The corner radius is stronger than a sharp corner and resists chipping.
  • Long neck reaches deep features but flexes more; use lighter cuts.
  • Check the work material and coating the series is made for.
  • Choose by diameter, flute count, length and shank to suit your holder.

Specifications

Model Specification Sold as
4SRICRE4-040R0.5-14 D4(R0.5)X6X6(14)X60 (SEME640400514) 1 pc
4SRICRE4-040R0.5-12 D4(R0.5)X6X6(12)X50 (SEME640400512) 1 pc
4SRICRE4-040R0.5-10 D4(R0.5)X6X6(10)X50 (SEME640400510) 1 pc
4SRICRE4-040R1-30 D4(R1)X6X6(30)X70 (SEME640401030) 1 pc
4SRICRE4-015R05-10 D1.5(R0.5)X4X2.3(10)X50 (SEME640150510) 1 pc
4SRICRE4-015R03-10 D1.5(R0.3)X4X2.3(10)X50 (SEME640150310) 1 pc
4SRICRE4-05R05-30 D10(R0.5)X10X15(30)X75 (SEME6410005) 1 pc
4SRICRE4-120R1-50 D12(R1)X12X30(50)X110 (SEME6412010110) 1 pc
4SRICRE4-040R1-16 D4(R1)X6X6(16)X60 (SEME640401016) 1 pc
4SRICRE4-040R1-20 D4(R1)X6X6(20)X60 (SEME640401020) 1 pc
4SRICRE4-015R02-8 D1.5(R0.2)X4X2.3(8)X50 (SEME640150208) 1 pc
4SRICRE4-010R02-6 D1(R0.2)X4X1.5(6)X50 (SEME640100206) 1 pc
4SRICRE4-015R05-8 D1.5(R0.5)X4X2.3(8)X50 (SEME640150508) 1 pc
4SRICRE4-040R1-26 D4(R1)X6X6(26)X65 (SEME640401026) 1 pc
4SRICRE4-040R1-30 D4(R1)X6X6(30)X70 (SEME640401030) 1 pc
4SRICRE4-120R05-50 D12(R0.5)X12X30(50)X110 (SEME6412005110) 1 pc
4SRICRE4-015R03-12 D1.5(R0.3)X4X2.3(12)X50 (SEME640150312) 1 pc
4SRICRE4-010R01-6 D1(R0.1)X4X1.5(6)X50 (SEME640100106) 1 pc
4SRICRE4-010R01-4 D(R0.1)X4X1.5(4)X50 (SEME640100104) 1 pc
4SRICRE4-010R02-10 D1(R0.2)X4X1.5(10)X50 (SEME640100210) 1 pc
4SRICRE4-015R02-6 D1.5(R0.2)X4X2.3(6)X50 (SEME640150206) 1 pc
4SRICRE4-015R02-12 D1.5(R0.2)X4X2.3(12)X50 (SEME640150212) 1 pc
4SRICRE4-040R1-10 D4(R1)X6X6(10)X60 (SEME640401010) 1 pc
4SRICRE4-040R1-40 D4(R1)X6X6(40)X70 (SEME640401040) 1 pc
4SRICRE4-010R01-8 D1(R0.1)X4X1.5(8)X50 (SEME640100108) 1 pc
4SRICRE4-010R02-4 D1.0(R0.2)X4X1.5(4)X50 (SEME640100204) 1 pc
4SRICRE4-010R02-8 D1(R0.2)X4X1.5(8)X50 (SEME640100208) 1 pc
4SRICRE4-010R02-20 D1(R0.2)X4X1.5(20)X50 (SEME640100220) 1 pc
4SRICRE4-015R05-4 D1.5(R0.5)X4X2.3(4)X50 (SEME640150504) 1 pc
4SRICRE4-120R15-32 D12(R1.5)X12X18(32)X80 (SEME6412015) 1 pc
4SRICRE4-200R1-40 D20(R1)X20X25(40)X100 (SEME6420010) 1 pc
4SRICRE4-015R02-16 D1.5(R0.2)X4X2.3(16)X50 (SEME640150216) 1 pc
4SRICRE4-040R1-14 D4(R1)X6X6(14)X60 (SEME640401014) 1 pc
4SRICRE4-015R03-22 D1.5(R0.3)X4X2.3(22)X60 (SEME640150322) 1 pc
4SRICRE4-040R1-35 D4.0(R1)X6X6(35)X70 (SEME640401035) 1 pc
4SRICRE4-060R1-30 D6(R1)X6X15(30)X90 (SEME6406010090) 1 pc
4SRICRE4-060R1-20 D6(R1)X6X9(20)X60 (SEME6406010) 1 pc
4SRICRE4-060R2-20 D6(R2)X6X9(20)X60 (SEME6406020) 1 pc
4SRICRE4-015R05-12 D1.5(R0.5)X4X2.3(12)X50 (SEME640150512) 1 pc
4SRICRE4-015R05-6 D1.5(R0.5)X4X2.3(6)X50 (SEME640150506) 1 pc
4SRICRE4-120R20-32 D12(R2)X12X18(32)X80 (SEME6412020) 1 pc
4SRICRE4-060R05-20 D6(R0.5)X6X9(20)X60 (SEME6406005) 1 pc
4SRICRE4-060R02 D6(R0.2)X6X9(20)X60 (SEME6406002) 1 pc
4SRICRE4-160R05-35 D16(R0.5)X16X20(35)X100 (SEME6416005) 1 pc
4SRICRE4-015R01-10 D1.5(R0.1)X4X2.3(10)X50 (SEME640150110) 1 pc
4SRICRE4-015R01-12 D1.5(R0.1)X4X2.3(12)X50 (SEME640150112) 1 pc
4SRICRE4-015R01-8 D1.5(R0.1)X4X2.3(8)X50 (SEME640150108) 1 pc
4SRICRE4-120R03-32 D12(R0.3)X12X18(32)X80 (SEME6412003) 1 pc
4SRICRE4-20R05-55 D20(R0.5)X20X40(55)X150 (SEME6420005150) 1 pc
4SRICRE4-015R02-10 D1.5(R0.2)X4X2.3(10)X50 (SEME640150210) 1 pc
4SRICRE4-015R01-16 D1.5(R0.1)X4X2.3(16)X50 (SEME640150116) 1 pc
4SRICRE4-160R05-50 D16(R0.5)X16X35(50)X150 (SEME6416005150) 1 pc
  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

YG-1 4G MILL Long Neck Radius End Mill, 4FA corner-radius end mill has a rounded corner on its flat end,... Read more

SKU: kb-802-1495

$28.86 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    YG-1 4G MILL Long Neck Radius End Mill, 4F

    A corner-radius end mill has a rounded corner on its flat end, used for pocketing, profiling and finishing where an internal radius is wanted. A reduced-diameter neck gives extra reach into deep pockets and walls. It is used on CNC machining centers and milling machines in mold, die and general machining.

    Key Features

    • The corner radius is stronger than a sharp corner and resists chipping.
    • Long neck reaches deep features but flexes more; use lighter cuts.
    • Check the work material and coating the series is made for.
    • Choose by diameter, flute count, length and shank to suit your holder.

    Specifications

    Model Specification Sold as
    4SRICRE4-040R0.5-14 D4(R0.5)X6X6(14)X60 (SEME640400514) 1 pc
    4SRICRE4-040R0.5-12 D4(R0.5)X6X6(12)X50 (SEME640400512) 1 pc
    4SRICRE4-040R0.5-10 D4(R0.5)X6X6(10)X50 (SEME640400510) 1 pc
    4SRICRE4-040R1-30 D4(R1)X6X6(30)X70 (SEME640401030) 1 pc
    4SRICRE4-015R05-10 D1.5(R0.5)X4X2.3(10)X50 (SEME640150510) 1 pc
    4SRICRE4-015R03-10 D1.5(R0.3)X4X2.3(10)X50 (SEME640150310) 1 pc
    4SRICRE4-05R05-30 D10(R0.5)X10X15(30)X75 (SEME6410005) 1 pc
    4SRICRE4-120R1-50 D12(R1)X12X30(50)X110 (SEME6412010110) 1 pc
    4SRICRE4-040R1-16 D4(R1)X6X6(16)X60 (SEME640401016) 1 pc
    4SRICRE4-040R1-20 D4(R1)X6X6(20)X60 (SEME640401020) 1 pc
    4SRICRE4-015R02-8 D1.5(R0.2)X4X2.3(8)X50 (SEME640150208) 1 pc
    4SRICRE4-010R02-6 D1(R0.2)X4X1.5(6)X50 (SEME640100206) 1 pc
    4SRICRE4-015R05-8 D1.5(R0.5)X4X2.3(8)X50 (SEME640150508) 1 pc
    4SRICRE4-040R1-26 D4(R1)X6X6(26)X65 (SEME640401026) 1 pc
    4SRICRE4-040R1-30 D4(R1)X6X6(30)X70 (SEME640401030) 1 pc
    4SRICRE4-120R05-50 D12(R0.5)X12X30(50)X110 (SEME6412005110) 1 pc
    4SRICRE4-015R03-12 D1.5(R0.3)X4X2.3(12)X50 (SEME640150312) 1 pc
    4SRICRE4-010R01-6 D1(R0.1)X4X1.5(6)X50 (SEME640100106) 1 pc
    4SRICRE4-010R01-4 D(R0.1)X4X1.5(4)X50 (SEME640100104) 1 pc
    4SRICRE4-010R02-10 D1(R0.2)X4X1.5(10)X50 (SEME640100210) 1 pc
    4SRICRE4-015R02-6 D1.5(R0.2)X4X2.3(6)X50 (SEME640150206) 1 pc
    4SRICRE4-015R02-12 D1.5(R0.2)X4X2.3(12)X50 (SEME640150212) 1 pc
    4SRICRE4-040R1-10 D4(R1)X6X6(10)X60 (SEME640401010) 1 pc
    4SRICRE4-040R1-40 D4(R1)X6X6(40)X70 (SEME640401040) 1 pc
    4SRICRE4-010R01-8 D1(R0.1)X4X1.5(8)X50 (SEME640100108) 1 pc
    4SRICRE4-010R02-4 D1.0(R0.2)X4X1.5(4)X50 (SEME640100204) 1 pc
    4SRICRE4-010R02-8 D1(R0.2)X4X1.5(8)X50 (SEME640100208) 1 pc
    4SRICRE4-010R02-20 D1(R0.2)X4X1.5(20)X50 (SEME640100220) 1 pc
    4SRICRE4-015R05-4 D1.5(R0.5)X4X2.3(4)X50 (SEME640150504) 1 pc
    4SRICRE4-120R15-32 D12(R1.5)X12X18(32)X80 (SEME6412015) 1 pc
    4SRICRE4-200R1-40 D20(R1)X20X25(40)X100 (SEME6420010) 1 pc
    4SRICRE4-015R02-16 D1.5(R0.2)X4X2.3(16)X50 (SEME640150216) 1 pc
    4SRICRE4-040R1-14 D4(R1)X6X6(14)X60 (SEME640401014) 1 pc
    4SRICRE4-015R03-22 D1.5(R0.3)X4X2.3(22)X60 (SEME640150322) 1 pc
    4SRICRE4-040R1-35 D4.0(R1)X6X6(35)X70 (SEME640401035) 1 pc
    4SRICRE4-060R1-30 D6(R1)X6X15(30)X90 (SEME6406010090) 1 pc
    4SRICRE4-060R1-20 D6(R1)X6X9(20)X60 (SEME6406010) 1 pc
    4SRICRE4-060R2-20 D6(R2)X6X9(20)X60 (SEME6406020) 1 pc
    4SRICRE4-015R05-12 D1.5(R0.5)X4X2.3(12)X50 (SEME640150512) 1 pc
    4SRICRE4-015R05-6 D1.5(R0.5)X4X2.3(6)X50 (SEME640150506) 1 pc
    4SRICRE4-120R20-32 D12(R2)X12X18(32)X80 (SEME6412020) 1 pc
    4SRICRE4-060R05-20 D6(R0.5)X6X9(20)X60 (SEME6406005) 1 pc
    4SRICRE4-060R02 D6(R0.2)X6X9(20)X60 (SEME6406002) 1 pc
    4SRICRE4-160R05-35 D16(R0.5)X16X20(35)X100 (SEME6416005) 1 pc
    4SRICRE4-015R01-10 D1.5(R0.1)X4X2.3(10)X50 (SEME640150110) 1 pc
    4SRICRE4-015R01-12 D1.5(R0.1)X4X2.3(12)X50 (SEME640150112) 1 pc
    4SRICRE4-015R01-8 D1.5(R0.1)X4X2.3(8)X50 (SEME640150108) 1 pc
    4SRICRE4-120R03-32 D12(R0.3)X12X18(32)X80 (SEME6412003) 1 pc
    4SRICRE4-20R05-55 D20(R0.5)X20X40(55)X150 (SEME6420005150) 1 pc
    4SRICRE4-015R02-10 D1.5(R0.2)X4X2.3(10)X50 (SEME640150210) 1 pc
    4SRICRE4-015R01-16 D1.5(R0.1)X4X2.3(16)X50 (SEME640150116) 1 pc
    4SRICRE4-160R05-50 D16(R0.5)X16X35(50)X150 (SEME6416005150) 1 pc
    • Brand: YG-1
    • Country of origin: Korea

    About YG-1

    YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

    Ordering & Shipping

    • Genuine product sourced through official Korean distribution
    • Ships worldwide from South Korea by FedEx International Priority Express
    • Import duties and taxes are payable by the recipient
    • Bulk and trade pricing available on request
