Description
Confirm the radius as well as the diameter, because variants in the same line are specified by both.

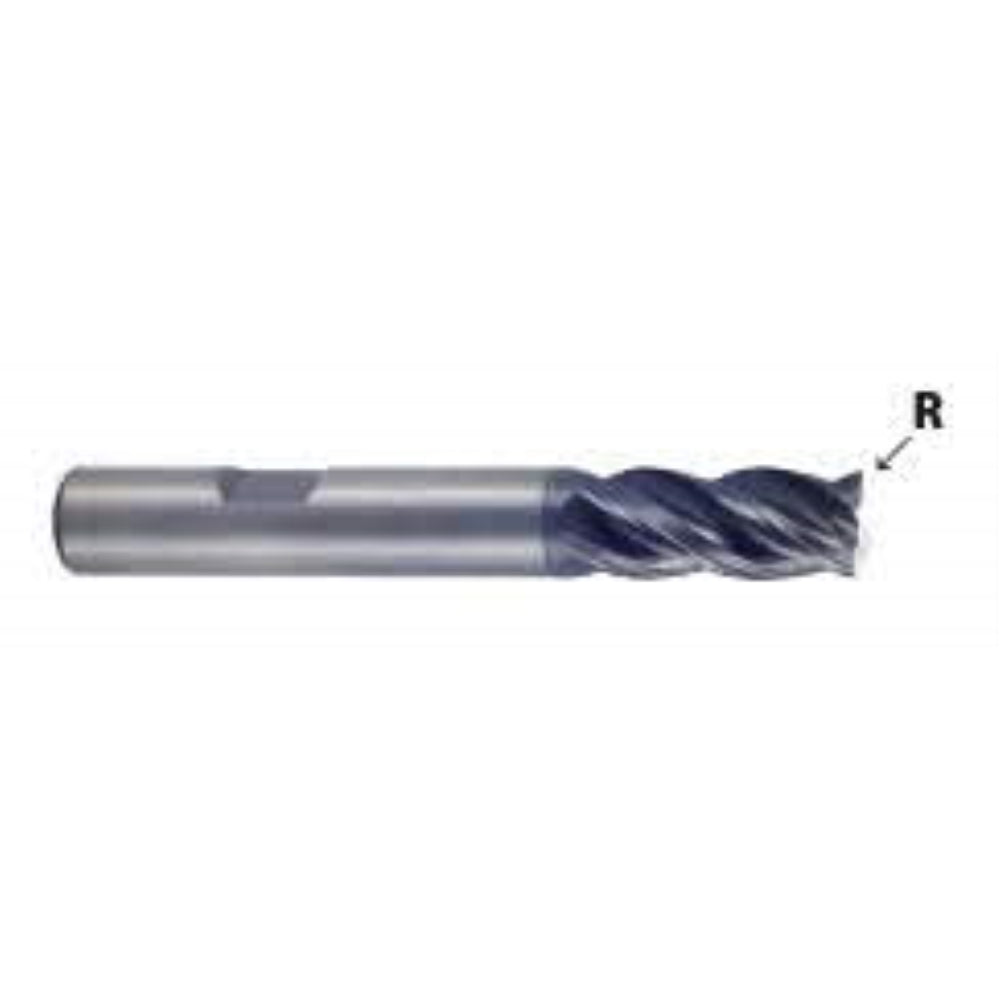

YG-1 V7 PLUS 4-Flute Long Radius
A long-reach corner radius end mill for pocketing and contouring where a radius on the part corner or a stronger cutting edge is needed. Used on milling machines and machining centers in mold shops, job shops and production plants.
Key Features
- Corner radius strengthens the edge against chipping and leaves a filleted floor edge.
- Programmed corner radius must match the tool radius of the variant.
- Long reach increases deflection; reduce depth of cut and feed for stable cutting.
- Match the shank diameter to your collet or holder before ordering.
Specifications
| Model |
Specification |
Sold as |
| LVCRE4-060R03 |
D6.0(R0.3)X6X13X57 (GMF58060) |
1 pc |
| LVCRE4-080R05 |
D8.0(R0.5)X8X19X63 (GMF58080) |
1 pc |
| LVCRE4-040R03 |
D4.0(R0.3)X6X11X57 (GMF58040) |
1 pc |
| LVCRE4-030R03 |
D3.0(R0.3)X6X8X57 (GMF58030) |
1 pc |
| LVCRE4-120R05 |
D8.0(R0.5)X12X26X83 (GMF58120) |
1 pc |
| LVCRE4-060R03 |
D6.0(R0.3)X6X13X57 (GMF58903) |
1 pc |
| LVCRE4-080R10 |
D8.0(R1.0)X8X19X63 (GMF58906) |
1 pc |
| LVCRE4-160R10 |
D16.0(R1.0)X16X32X92 (GMF58160) |
1 pc |
- Brand: YG-1
- Country of origin: Korea
About YG-1
YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.
Ordering & Shipping
- Genuine product sourced through official Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
