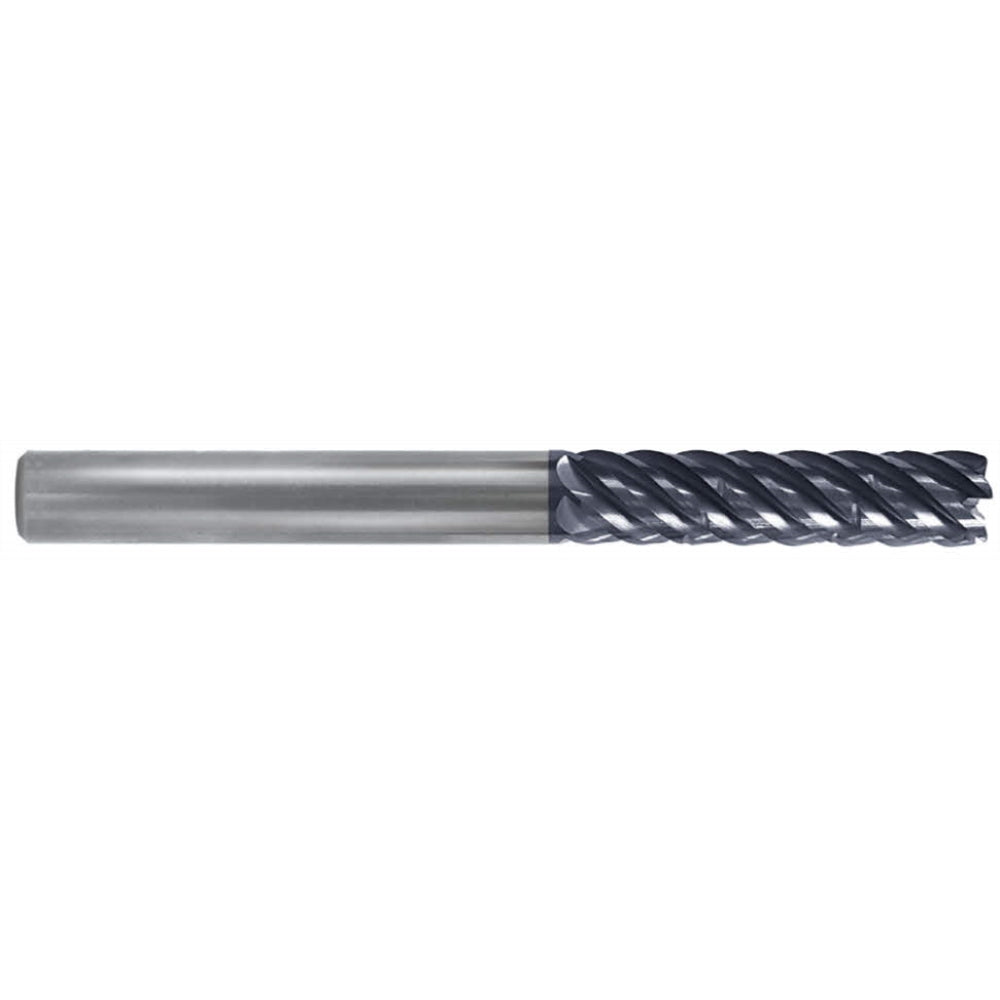

YG-1 V7 PLUS 6-Flute Long Radius Chip Splitter

Description

Confirm the radius as well as the diameter, because variants in the same line are specified by both.

YG-1 V7 PLUS 6-Flute Long Radius Chip Splitter

A long-reach corner radius end mill for pocketing and contouring where a radius on the part corner or a stronger cutting edge is needed. Used on milling machines and machining centers in mold shops, job shops and production plants.

Key Features

  • Corner radius strengthens the edge against chipping and leaves a filleted floor edge.
  • Programmed corner radius must match the tool radius of the variant.
  • Long reach increases deflection; reduce depth of cut and feed for stable cutting.
  • Match the shank diameter to your collet or holder before ordering.

Specifications

Model Specification Sold as
VLCRE6-060R05-CS D6(R0.5)X6X24X75 (GMI2506005) 1 pc
VLCRE6-060R10-CS D6(R1)X6X24X75 (GMI2506010) 1 pc
VLCRE6-080R05-CS D8(R0.5)X8X32X75 (GMI2508005) 1 pc
VLCRE6-080R10-CS D8(R1)X8X32X75 (GMI2508010) 1 pc
VLCRE6-080R15-CS D8(R1.5)X8X32X75 (GMI2508015) 1 pc
VLCRE6-080R20-CS D8(R2)X8X32X75 (GMI2508020) 1 pc
VLCRE6-100R05-CS D10(R0.5)X10X40X100 (GMI2510005) 1 pc
VLCRE6-100R10-CS D10(R1)X10X40X100 (GMI2510010) 1 pc
VLCRE6-100R15-CS D10(R1.5)X10X40X100 (GMI2510015) 1 pc
VLCRE6-100R20-CS D10(R2)X10X40X100 (GMI2510020) 1 pc
VLCRE6-120R05-CS D12(R0.5)X12X48X120 (GMI2512005) 1 pc
VLCRE6-120R10-CS D12(R1)X12X48X120 (GMI2512010) 1 pc
VLCRE6-120R15-CS D12(R1.5)X12X48X120 (GMI2512015) 1 pc
VLCRE6-120R20-CS D12(R2)X12X48X120 (GMI2512020) 1 pc
VLCRE6-120R30-CS D12(R3)X12X48X120 (GMI2512030) 1 pc
VLCRE6-160R10-CS D16(R1)X16X64X140 (GMI2516010) 1 pc
VLCRE6-160R15-CS D16(R1.5)X16X64X140 (GMI2516015) 1 pc
VLCRE6-160R20-CS D16(R2)X16X64X140 (GMI2516020) 1 pc
VLCRE6-160R30-CS D16(R3)X16X64X140 (GMI2516030) 1 pc
VLCRE6-200R10-CS D20(R1)X20X80X150 (GMI2520010) 1 pc
VLCRE6-200R15-CS D20(R1.5)X20X80X150 (GMI2520015) 1 pc
VLCRE6-200R20-CS D20(R2)X20X80X150 (GMI2520020) 1 pc
VLCRE6-200R30-CS D20(R3)X20X80X150 (GMI2520030) 1 pc
VLCRE6-200R40-CS D20(R4)X20X80X150 (GMI2520040) 1 pc
VLCRE6-200R50-CS D20(R5)X20X80X150 (GMI2520050) 1 pc
VLCRE6-250R10-CS D25(R1)X25X100X170 (GMI2525010) 1 pc
VLCRE6-250R15-CS D25(R1.5)X25X100X170 (GMI2525015) 1 pc
VLCRE6-250R20-CS D25(R2)X25X100X170 (GMI2525020) 1 pc
VLCRE6-250R30-CS D25(R3)X25X100X170 (GMI2525030) 1 pc
VLCRE6-250R40-CS D25(R4)X25X100X170 (GMI2525040) 1 pc
VLCRE6-250R50-CS D25(R5)X25X100X170 (GMI2525050) 1 pc
  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

Confirm the radius as well as the diameter, because variants in the same line are specified by both.YG-1 V7 PLUS... Read more

SKU: kb-958-0095

$21.99 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
