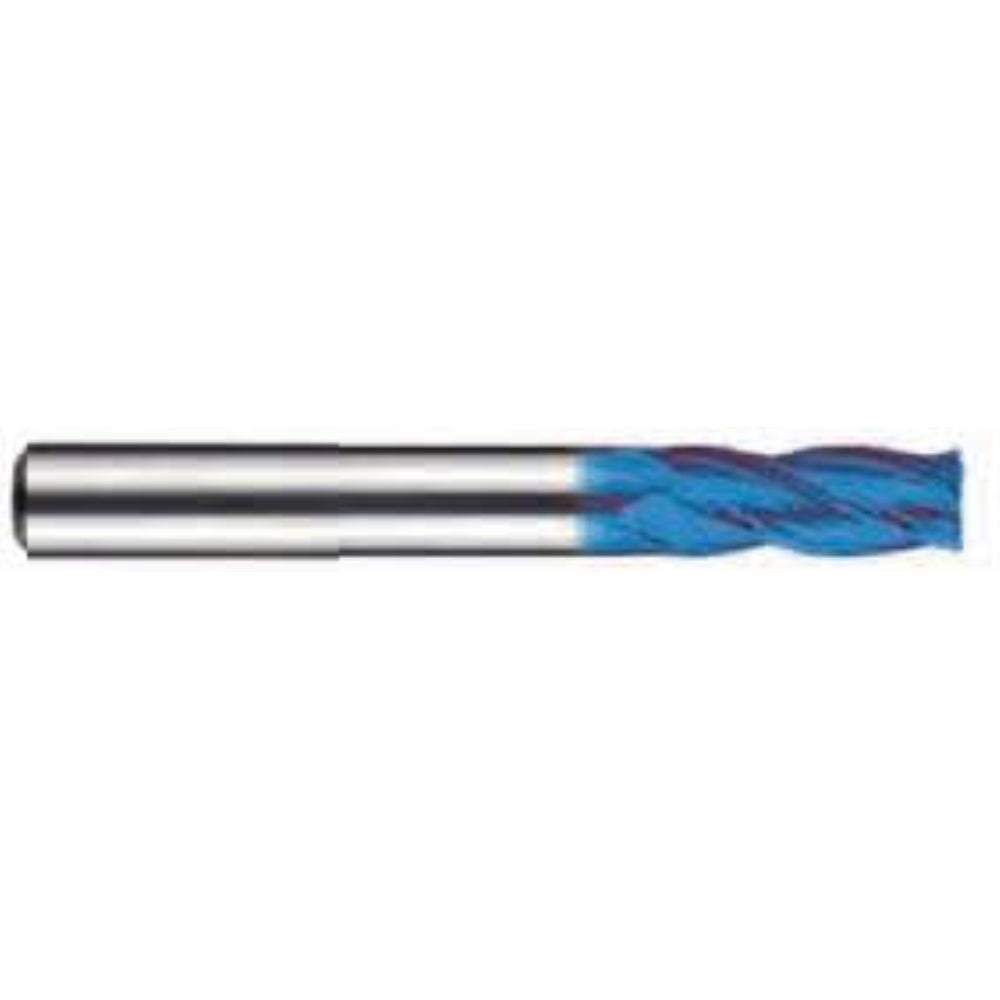

YG-1 E·FORCE Corner Radius End Mill 4F

Description

YG-1 E·FORCE Corner Radius End Mill 4F

A corner-radius end mill has a rounded corner on its flat end, used for pocketing, profiling and finishing where an internal radius is wanted. It is used on CNC machining centers and milling machines in mold, die and general machining.

Key Features

  • The corner radius is stronger than a sharp corner and resists chipping.
  • Check the work material and coating the series is made for.
  • Choose by diameter, flute count, length and shank to suit your holder.

Specifications

Model Specification Sold as
EFCRE4-010R002 D1(R0.02)X6X2.5X50 (GNX01010002) 1 pc
EFCRE4-010R005 D1(R0.05)X6X2.5X50 (GNX01010005) 1 pc
EFCRE4-010R01 D1(R0.1)X6X2.5X50 (GNX0101001) 1 pc
EFCRE4-010R02 D1(R0.2)X6X2.5X50 (GNX0101002) 1 pc
EFCRE4-010R03 D1(R0.3)X6X2.5X50 (GNX0101003) 1 pc
EFCRE4-012R002 D1.2(R0.02)X6X3X50 (GNX01012002) 1 pc
EFCRE4-012R005 D1.2(R0.05)X6X3X50 (GNX01012005) 1 pc
EFCRE4-012R01 D1.2(R0.1)X6X3X50 (GNX0101201) 1 pc
EFCRE4-012R02 D1.2(R0.2)X6X3X50 (GNX0101202) 1 pc
EFCRE4-012R03 D1.2(R0.3)X6X3X50 (GNX0101203) 1 pc
EFCRE4-025R005 D2.5(R0.05)X6X7X60 (GNX01025005) 1 pc
EFCRE4-025R01 D2.5(R0.1)X6X7X60 (GNX0102501) 1 pc
EFCRE4-025R02 D2.5(R0.2)X6X7X60 (GNX0102502) 1 pc
EFCRE4-025R03 D2.5(R0.3)X6X7X60 (GNX0102503) 1 pc
EFCRE4-025R05 D2.5(R0.5)X6X7X60 (GNX0102505) 1 pc
EFCRE4-040R005-60-4S D4(R0.05)X4X8X60 (GNX01040005604S) 1 pc
EFCRE4-040R01-60-4S D4(R0.1)X4X8X60 (GNX0104001604S) 1 pc
EFCRE4-040R02-60-4S D4(R0.2)X4X8X60 (GNX0104002604S) 1 pc
EFCRE4-040R03-60-4S D4(R0.3)X4X8X60 (GNX0104003604S) 1 pc
EFCRE4-040R05-60-4S D4(R0.5)X4X8X60 (GNX0104005604S) 1 pc
EFCRE4-040R10-60-4S D4(R1)X4X8X60 (GNX0104010604S) 1 pc
EFCRE4-045R01 D4.5(R0.1)X6X11X80 (GNX0104501) 1 pc
EFCRE4-045R02 D4.5(R0.2)X6X11X80 (GNX0104502) 1 pc
EFCRE4-045R03 D4.5(R0.3)X6X11X80 (GNX0104503) 1 pc
EFCRE4-045R05 D4.5(R0.5)X6X11X80 (GNX0104505) 1 pc
EFCRE4-060R010-60 D6(R0.1)X6X11X60 (GNX0106001060) 1 pc
EFCRE4-060R020-60 D6(R0.2)X6X11X60 (GNX0106002060) 1 pc
EFCRE4-060R030-60 D6(R0.3)X6X11X60 (GNX0106003060) 1 pc
EFCRE4-060R050-60 D6(R0.5)X6X11X60 (GNX0106005060) 1 pc
EFCRE4-060R10-60 D6(R1)X6X11X60 (GNX0106010060) 1 pc
EFCRE4-060R15-60 D6(R1.5)X6X11X60 (GNX0106015060) 1 pc
EFCRE4-060R20-60 D6(R2)X6X11X60 (GNX0106020060) 1 pc
EFCRE4-080R01 D8(R0.1)X8X19X100 (GNX0108001) 1 pc
EFCRE4-080R01-70 D8(R0.1)X8X16X70 (GNX0108001070) 1 pc
EFCRE4-080R02 D8(R0.2)X8X19X100 (GNX0108002) 1 pc
EFCRE4-080R02-70 D8(R0.2)X8X16X70 (GNX0108002070) 1 pc
EFCRE4-080R03 D8(R0.3)X8X19X100 (GNX0108003) 1 pc
EFCRE4-080R03-70 D8(R0.3)X8X16X70 (GNX0108003070) 1 pc
EFCRE4-080R05 D8(R0.5)X8X19X100 (GNX0108005) 1 pc
EFCRE4-080R05-70 D8(R0.5)X8X16X70 (GNX0108005070) 1 pc
EFCRE4-080R10 D8(R1)X8X19X100 (GNX0108010) 1 pc
EFCRE4-080R10-70 D8(R1)X8X16X70 (GNX0108010070) 1 pc
EFCRE4-080R15 D8(R1.5)X8X19X100 (GNX0108015) 1 pc
EFCRE4-080R15-70 D8(R1.5)X8X16X70 (GNX0108015070) 1 pc
EFCRE4-080R20 D8(R2)X8X19X100 (GNX0108020) 1 pc
EFCRE4-080R20-70 D8(R2)X8X16X70 (GNX0108020070) 1 pc
EFCRE4-080R25 D8(R2.5)X8X19X100 (GNX0108025) 1 pc
EFCRE4-080R25-70 D8(R2.5)X8X16X70 (GNX0108025070) 1 pc
EFCRE4-080R30 D8(R3)X8X19X100 (GNX0108030) 1 pc
EFCRE4-080R30-70 D8(R3)X8X16X70 (GNX0108030070) 1 pc
EFCRE4-100R01 D10(R0.1)X10X22X100 (GNX0110001) 1 pc
EFCRE4-100R01-75 D10(R0.1)X10X19X75 (GNX0110001075) 1 pc
EFCRE4-100R02 D10(R0.2)X10X22X100 (GNX0110002) 1 pc
EFCRE4-100R02-75 D10(R0.2)X10X19X75 (GNX0110002075) 1 pc
EFCRE4-100R03 D10(R0.3)X10X22X100 (GNX0110003) 1 pc
EFCRE4-100R03-75 D10(R0.3)X10X19X75 (GNX0110003075) 1 pc
EFCRE4-100R05 D10(R0.5)X10X22X100 (GNX0110005) 1 pc
EFCRE4-100R05-75 D10(R0.5)X10X19X75 (GNX0110005075) 1 pc
EFCRE4-100R10 D10(R1)X10X22X100 (GNX0110010) 1 pc
EFCRE4-100R10-75 D10(R1)X10X19X75 (GNX0110010075) 1 pc

39 more sizes are available in the option selector.

  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
