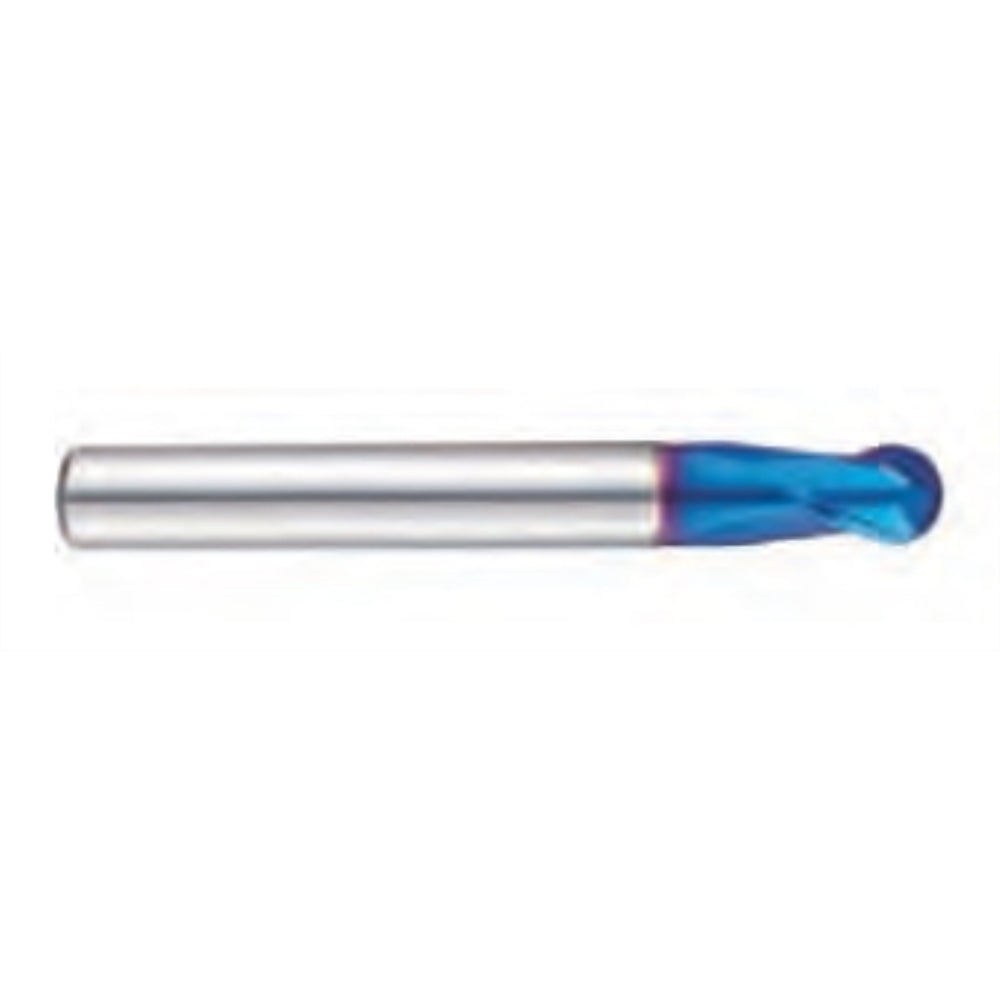

YG-1 E·FORCE Long Neck Ball End Mill, 2F

Description

YG-1 E·FORCE Long Neck Ball End Mill, 2F

A ball-nose end mill has a fully rounded tip for contouring curved surfaces, 3D profiling and cutting fillets. A reduced-diameter neck gives extra reach into deep pockets and walls. It is used on CNC machining centers and milling machines in mold, die and general machining.

Key Features

  • Rounded tip leaves a smooth radius in pockets and 3D surfaces.
  • Long neck reaches deep features but flexes more; use lighter cuts.
  • Check the work material and coating the series is made for.
  • Choose by diameter, flute count, length and shank to suit your holder.

Specifications

Model Specification Sold as
EFRIBE-0005R-0.2 D0.1X4X0.1(0.2)X40 (GNX46001002) 1 pc
EFRIBE-0005R-0.3 D0.1X4X0.1(0.3)X40 (GNX46001003) 1 pc
EFRIBE-0005R-0.5 D0.1X4X0.1(0.5)X40 (GNX46001005) 1 pc
EFRIBE-0005R-1 D0.1X4X0.1(1)X40 (GNX4600101) 1 pc
EFRIBE-001R-0.5 D0.2X4X0.2(0.5)X40 (GNX46002005) 1 pc
EFRIBE-001R-0.6 D0.2X4X0.2(0.6)X40 (GNX46002006) 1 pc
EFRIBE-001R-1 D0.2X4X0.2(1)X40 (GNX4600201) 1 pc
EFRIBE-001R-1.5 D0.2X4X0.2(1.5)X40 (GNX46002015) 1 pc
EFRIBE-001R-2 D0.2X4X0.2(2)X40 (GNX4600202) 1 pc
EFRIBE-001R-2.5 D0.2X4X0.2(2.5)X40 (GNX46002025) 1 pc
EFRIBE-001R-3 D0.2X4X0.2(3)X40 (GNX4600203) 1 pc
EFRIBE-0015R-1 D0.3X4X0.3(1)X40 (GNX4600301) 1 pc
EFRIBE-0015R-1.5 D0.3X4X0.3(1.5)X40 (GNX46003015) 1 pc
EFRIBE-0015R-2 D0.3X4X0.3(2)X40 (GNX4600302) 1 pc
EFRIBE-0015R-2.5 D0.3X4X0.3(2.5)X40 (GNX46003025) 1 pc
EFRIBE-0015R-3 D0.3X4X0.3(3)X40 (GNX4600303) 1 pc
EFRIBE-0015R-3.5 D0.3X4X0.3(3.5)X40 (GNX46003035) 1 pc
EFRIBE-0015R-4 D0.3X4X0.3(4)X40 (GNX4600304) 1 pc
EFRIBE-0015R-5 D0.3X4X0.3(5)X40 (GNX4600305) 1 pc
EFRIBE-002R-1 D0.4X4X0.4(1)X40 (GNX4600401) 1 pc
EFRIBE-002R-1.5 D0.4X4X0.4(1.5)X40 (GNX46004015) 1 pc
EFRIBE-002R-2 D0.4X4X0.4(2)X40 (GNX4600402) 1 pc
EFRIBE-002R-2.5 D0.4X4X0.4(2.5)X40 (GNX46004025) 1 pc
EFRIBE-002R-3 D0.4X4X0.4(3)X40 (GNX4600403) 1 pc
EFRIBE-002R-3.5 D0.4X4X0.4(3.5)X40 (GNX46004035) 1 pc
EFRIBE-002R-4 D0.4X4X0.4(4)X40 (GNX4600404) 1 pc
EFRIBE-002R-4.5 D0.4X4X0.4(4.5)X40 (GNX46004045) 1 pc
EFRIBE-002R-5 D0.4X4X0.4(5)X40 (GNX4600405) 1 pc
EFRIBE-002R-6 D0.4X4X0.4(6)X40 (GNX4600406) 1 pc
EFRIBE-002R-8 D0.4X4X0.4(8)X40 (GNX4600408) 1 pc
EFRIBE-002R-10 D0.4X4X0.4(10)X40 (GNX4600410) 1 pc
EFRIBE-0025R-1 D0.5X4X0.5(1)X45 (GNX4600501) 1 pc
EFRIBE-0025R-1.5 D0.5X4X0.5(1.5)X45 (GNX46005015) 1 pc
EFRIBE-0025R-2 D0.5X4X0.5(2)X45 (GNX4600502) 1 pc
EFRIBE-0025R-2.5 D0.5X4X0.5(2.5)X45 (GNX46005025) 1 pc
EFRIBE-0025R-3 D0.5X4X0.5(3)X45 (GNX4600503) 1 pc
EFRIBE-0025R-3.5 D0.5X4X0.5(3.5)X45 (GNX46005035) 1 pc
EFRIBE-0025R-4 D0.5X4X0.5(4)X45 (GNX4600504) 1 pc
EFRIBE-0025R-4.5 D0.5X4X0.5(4.5)X45 (GNX46005045) 1 pc
EFRIBE-0025R-5 D0.5X4X0.5(5)X45 (GNX4600505) 1 pc
EFRIBE-0025R-6 D0.5X4X0.5(6)X45 (GNX4600506) 1 pc
EFRIBE-0025R-8 D0.5X4X0.5(8)X45 (GNX4600508) 1 pc
EFRIBE-0025R-10 D0.5X4X0.5(10)X45 (GNX4600510) 1 pc
EFRIBE-0025R-12 D0.5X4X0.5(12)X45 (GNX4600512) 1 pc
EFRIBE-0025R-14 D0.5X4X0.5(14)X45 (GNX4600514) 1 pc
EFRIBE-0025R-16 D0.5X4X0.5(16)X45 (GNX4600516) 1 pc
EFRIBE-003R-1 D0.6X4X0.6(1)X45 (GNX4600601) 1 pc
EFRIBE-003R-2 D0.6X4X0.6(2)X45 (GNX4600602) 1 pc
EFRIBE-003R-3 D0.6X4X0.6(3)X45 (GNX4600603) 1 pc
EFRIBE-003R-4 D0.6X4X0.6(4)X45 (GNX4600604) 1 pc
EFRIBE-003R-6 D0.6X4X0.6(6)X45 (GNX4600606) 1 pc
EFRIBE-003R-8 D0.6X4X0.6(8)X45 (GNX4600608) 1 pc
EFRIBE-003R-10 D0.6X4X0.6(10)X45 (GNX4600610) 1 pc
EFRIBE-003R-12 D0.6X4X0.6(12)X45 (GNX4600612) 1 pc
EFRIBE-003R-14 D0.6X4X0.6(14)X45 (GNX4600614) 1 pc
EFRIBE-003R-16 D0.6X4X0.6(16)X45 (GNX4600616) 1 pc
EFRIBE-0035R-2 D0.7X4X0.7(2)X45 (GNX4600702) 1 pc
EFRIBE-0035R-4 D0.7X4X0.7(4)X45 (GNX4600704) 1 pc
EFRIBE-0035R-6 D0.7X4X0.7(6)X45 (GNX4600706) 1 pc
EFRIBE-0035R-8 D0.7X4X0.7(8)X45 (GNX4600708) 1 pc

40 more sizes are available in the option selector.

  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

YG-1 E·FORCE Long Neck Ball End Mill, 2FA ball-nose end mill has a fully rounded tip for contouring curved surfaces,... Read more

SKU: kb-958-0777

$38.99 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
