YG-1 E·FORCE Long Neck Corner Radius End Mill, 2F (Part 2)

Description

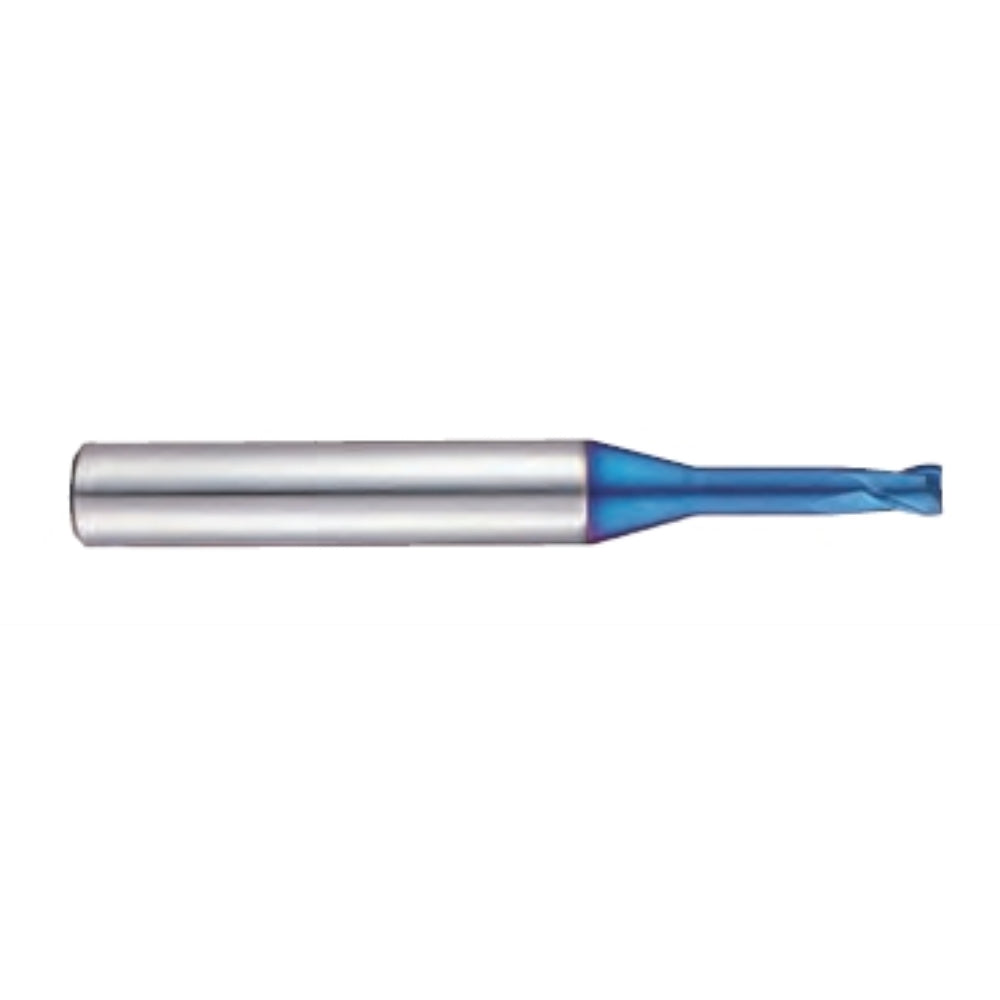

YG-1 E·FORCE Long Neck Corner Radius End Mill, 2F

A corner-radius end mill has a rounded corner on its flat end, used for pocketing, profiling and finishing where an internal radius is wanted. A reduced-diameter neck gives extra reach into deep pockets and walls. It is used on CNC machining centers and milling machines in mold, die and general machining.

Key Features

  • The corner radius is stronger than a sharp corner and resists chipping.
  • Long neck reaches deep features but flexes more; use lighter cuts.
  • Check the work material and coating the series is made for.
  • Choose by diameter, flute count, length and shank to suit your holder.

Specifications

Model Specification Sold as
EFRICRE2-008R002-10 D0.8(R0.02)X4X1.2(10)X45 (GNX6100800210) 1 pc
EFRICRE2-008R005-2 D0.8(R0.05)X4X1.2(2)X45 (GNX6100800502) 1 pc
EFRICRE2-008R005-3 D0.8(R0.05)X4X1.2(3)X45 (GNX6100800503) 1 pc
EFRICRE2-008R005-4 D0.8(R0.05)X4X1.2(4)X45 (GNX6100800504) 1 pc
EFRICRE2-008R005-6 D0.8(R0.05)X4X1.2(6)X45 (GNX6100800506) 1 pc
EFRICRE2-008R005-8 D0.8(R0.05)X4X1.2(8)X45 (GNX6100800508) 1 pc
EFRICRE2-008R005-10 D0.8(R0.05)X4X1.2(10)X45 (GNX6100800510) 1 pc
EFRICRE2-008R01-2 D0.8(R0.1)X4X1.2(2)X45 (GNX610080102) 1 pc
EFRICRE2-008R01-3 D0.8(R0.1)X4X1.2(3)X45 (GNX610080103) 1 pc
EFRICRE2-008R01-4 D0.8(R0.1)X4X1.2(4)X45 (GNX610080104) 1 pc
EFRICRE2-008R01-6 D0.8(R0.1)X4X1.2(6)X45 (GNX610080106) 1 pc
EFRICRE2-008R01-8 D0.8(R0.1)X4X1.2(8)X45 (GNX610080108) 1 pc
EFRICRE2-008R01-10 D0.8(R0.1)X4X1.2(10)X45 (GNX610080110) 1 pc
EFRICRE2-008R02-2 D0.8(R0.2)X4X1.2(2)X45 (GNX610080202) 1 pc
EFRICRE2-008R02-3 D0.8(R0.2)X4X1.2(3)X45 (GNX610080203) 1 pc
EFRICRE2-008R02-4 D0.8(R0.2)X4X1.2(4)X45 (GNX610080204) 1 pc
EFRICRE2-008R02-6 D0.8(R0.2)X4X1.2(6)X45 (GNX610080206) 1 pc
EFRICRE2-008R02-8 D0.8(R0.2)X4X1.2(8)X45 (GNX610080208) 1 pc
EFRICRE2-008R02-10 D0.8(R0.2)X4X1.2(10)X45 (GNX610080210) 1 pc
EFRICRE2-010R005-3 D1(R0.05)X4X1.5(3)X50 (GNX6101000503) 1 pc
EFRICRE2-010R005-4 D1(R0.05)X4X1.5(4)X50 (GNX6101000504) 1 pc
EFRICRE2-010R005-6 D1(R0.05)X4X1.5(6)X50 (GNX6101000506) 1 pc
EFRICRE2-010R005-8 D1(R0.05)X4X1.5(8)X50 (GNX6101000508) 1 pc
EFRICRE2-010R005-10 D1(R0.05)X4X1.5(10)X50 (GNX6101000510) 1 pc
EFRICRE2-010R005-12 D1(R0.05)X4X1.5(12)X50 (GNX6101000512) 1 pc
EFRICRE2-010R005-14 D1(R0.05)X4X1.5(14)X50 (GNX6101000514) 1 pc
EFRICRE2-010R005-16 D1(R0.05)X4X1.5(16)X50 (GNX6101000516) 1 pc
EFRICRE2-010R005-20 D1(R0.05)X4X1.5(20)X50 (GNX6101000520) 1 pc
EFRICRE2-010R005-22 D1(R0.05)X4X1.5(22)X60 (GNX6101000522) 1 pc
EFRICRE2-010R005-26 D1(R0.05)X4X1.5(26)X60 (GNX6101000526) 1 pc
EFRICRE2-010R01-3 D1(R0.1)X4X1.5(3)X50 (GNX610100103) 1 pc
EFRICRE2-010R01-4 D1(R0.1)X4X1.5(4)X50 (GNX610100104) 1 pc
EFRICRE2-010R01-6 D1(R0.1)X4X1.5(6)X50 (GNX610100106) 1 pc
EFRICRE2-010R01-8 D1(R0.1)X4X1.5(8)X50 (GNX610100108) 1 pc
EFRICRE2-010R01-10 D1(R0.1)X4X1.5(10)X50 (GNX610100110) 1 pc
EFRICRE2-010R01-12 D1(R0.1)X4X1.5(12)X50 (GNX610100112) 1 pc
EFRICRE2-010R01-14 D1(R0.1)X4X1.5(14)X50 (GNX610100114) 1 pc
EFRICRE2-010R01-16 D1(R0.1)X4X1.5(16)X50 (GNX610100116) 1 pc
EFRICRE2-010R01-20 D1(R0.1)X4X1.5(20)X50 (GNX610100120) 1 pc
EFRICRE2-010R01-22 D1(R0.1)X4X1.5(22)X60 (GNX610100122) 1 pc
EFRICRE2-010R01-26 D1(R0.1)X4X1.5(26)X60 (GNX610100126) 1 pc
EFRICRE2-010R02-3 D1(R0.2)X4X1.5(3)X50 (GNX610100203) 1 pc
EFRICRE2-010R02-4 D1(R0.2)X4X1.5(4)X50 (GNX610100204) 1 pc
EFRICRE2-010R02-8 D1(R0.2)X4X1.5(8)X50 (GNX610100208) 1 pc
EFRICRE2-010R02-10 D1(R0.2)X4X1.5(10)X50 (GNX610100210) 1 pc
EFRICRE2-010R02-12 D1(R0.2)X4X1.5(12)X50 (GNX610100212) 1 pc
EFRICRE2-010R02-14 D1(R0.2)X4X1.5(14)X50 (GNX610100214) 1 pc
EFRICRE2-010R02-16 D1(R0.2)X4X1.5(16)X50 (GNX610100216) 1 pc
EFRICRE2-010R02-20 D1(R0.2)X4X1.5(20)X50 (GNX610100220) 1 pc
EFRICRE2-010R02-22 D1(R0.2)X4X1.5(22)X60 (GNX610100222) 1 pc
EFRICRE2-010R02-26 D1(R0.2)X4X1.5(26)X60 (GNX610100226) 1 pc
EFRICRE2-010R03-3 D1(R0.3)X4X1.5(3)X50 (GNX610100303) 1 pc
EFRICRE2-010R03-4 D1(R0.3)X4X1.5(4)X50 (GNX610100304) 1 pc
EFRICRE2-010R03-6 D1(R0.3)X4X1.5(6)X50 (GNX610100306) 1 pc
EFRICRE2-010R03-8 D1(R0.3)X4X1.5(8)X50 (GNX610100308) 1 pc
EFRICRE2-010R03-10 D1(R0.3)X4X1.5(10)X50 (GNX610100310) 1 pc
EFRICRE2-010R03-12 D1(R0.3)X4X1.5(12)X50 (GNX610100312) 1 pc
EFRICRE2-010R03-14 D1(R0.3)X4X1.5(14)X50 (GNX610100314) 1 pc
EFRICRE2-010R03-16 D1(R0.3)X4X1.5(16)X50 (GNX610100316) 1 pc
EFRICRE2-010R03-20 D1(R0.3)X4X1.5(20)X50 (GNX610100320) 1 pc

40 more sizes are available in the option selector.

  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
