YG-1 E·FORCE Long Neck Corner Radius End Mill, 2F (Part 3)

Description

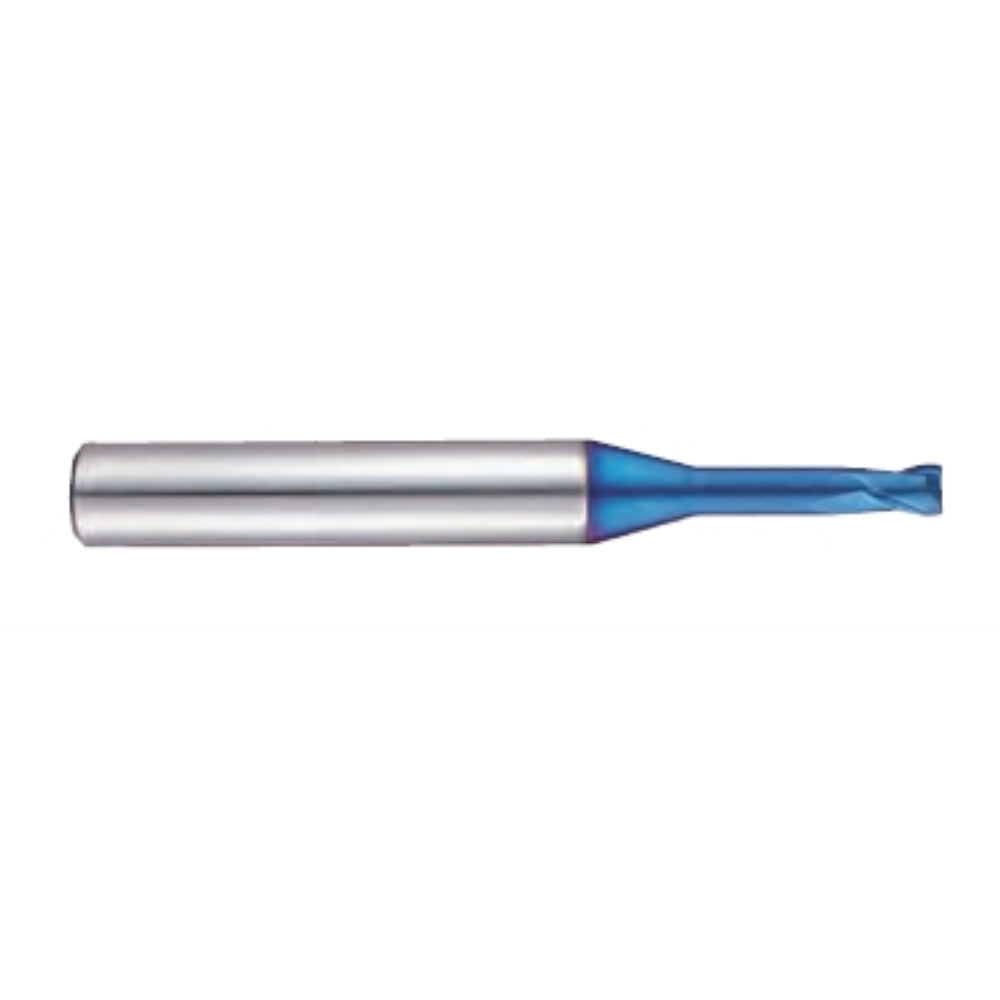

YG-1 E·FORCE Long Neck Corner Radius End Mill, 2F

A corner-radius end mill has a rounded corner on its flat end, used for pocketing, profiling and finishing where an internal radius is wanted. A reduced-diameter neck gives extra reach into deep pockets and walls. It is used on CNC machining centers and milling machines in mold, die and general machining.

Key Features

  • The corner radius is stronger than a sharp corner and resists chipping.
  • Long neck reaches deep features but flexes more; use lighter cuts.
  • Check the work material and coating the series is made for.
  • Choose by diameter, flute count, length and shank to suit your holder.

Specifications

Model Specification Sold as
EFRICRE2-015R005-16 D1.5(R0.05)X4X2.3(16)X50 (GNX6101500516) 1 pc
EFRICRE2-015R005-20 D1.5(R0.05)X4X2.3(20)X50 (GNX6101500520) 1 pc
EFRICRE2-015R005-22 D1.5(R0.05)X4X2.3(22)X60 (GNX6101500522) 1 pc
EFRICRE2-015R005-26 D1.5(R0.05)X4X2.3(26)X60 (GNX6101500526) 1 pc
EFRICRE2-015R01-4 D1.5(R0.1)X4X2.3(4)X50 (GNX610150104) 1 pc
EFRICRE2-015R01-6 D1.5(R0.1)X4X2.3(6)X50 (GNX610150106) 1 pc
EFRICRE2-015R01-8 D1.5(R0.1)X4X2.3(8)X50 (GNX610150108) 1 pc
EFRICRE2-015R01-10 D1.5(R0.1)X4X2.3(10)X50 (GNX610150110) 1 pc
EFRICRE2-015R01-12 D1.5(R0.1)X4X2.3(12)X50 (GNX610150112) 1 pc
EFRICRE2-015R01-14 D1.5(R0.1)X4X2.3(14)X50 (GNX610150114) 1 pc
EFRICRE2-015R01-16 D1.5(R0.1)X4X2.3(16)X50 (GNX610150116) 1 pc
EFRICRE2-015R01-20 D1.5(R0.1)X4X2.3(20)X50 (GNX610150120) 1 pc
EFRICRE2-015R01-22 D1.5(R0.1)X4X2.3(22)X60 (GNX610150122) 1 pc
EFRICRE2-015R01-26 D1.5(R0.1)X4X2.3(26)X60 (GNX610150126) 1 pc
EFRICRE2-015R02-4 D1.5(R0.2)X4X2.3(4)X50 (GNX610150204) 1 pc
EFRICRE2-015R02-6 D1.5(R0.2)X4X2.3(6)X50 (GNX610150206) 1 pc
EFRICRE2-015R02-8 D1.5(R0.2)X4X2.3(8)X50 (GNX610150208) 1 pc
EFRICRE2-015R02-10 D1.5(R0.2)X4X2.3(10)X50 (GNX610150210) 1 pc
EFRICRE2-015R02-12 D1.5(R0.2)X4X2.3(12)X50 (GNX610150212) 1 pc
EFRICRE2-015R02-14 D1.5(R0.2)X4X2.3(14)X50 (GNX610150214) 1 pc
EFRICRE2-015R02-16 D1.5(R0.2)X4X2.3(16)X50 (GNX610150216) 1 pc
EFRICRE2-015R02-20 D1.5(R0.2)X4X2.3(20)X50 (GNX610150220) 1 pc
EFRICRE2-015R02-22 D1.5(R0.2)X4X2.3(22)X60 (GNX610150222) 1 pc
EFRICRE2-015R02-26 D1.5(R0.2)X4X2.3(26)X60 (GNX610150226) 1 pc
EFRICRE2-015R03-4 D1.5(R0.3)X4X2.3(4)X50 (GNX610150304) 1 pc
EFRICRE2-015R03-6 D1.5(R0.3)X4X2.3(6)X50 (GNX610150306) 1 pc
EFRICRE2-015R03-8 D1.5(R0.3)X4X2.3(8)X50 (GNX610150308) 1 pc
EFRICRE2-015R03-10 D1.5(R0.3)X4X2.3(10)X50 (GNX610150310) 1 pc
EFRICRE2-015R03-12 D1.5(R0.3)X4X2.3(12)X50 (GNX610150312) 1 pc
EFRICRE2-015R03-14 D1.5(R0.3)X4X2.3(14)X50 (GNX610150314) 1 pc
EFRICRE2-015R03-16 D1.5(R0.3)X4X2.3(16)X50 (GNX610150316) 1 pc
EFRICRE2-015R03-20 D1.5(R0.3)X4X2.3(20)X50 (GNX610150320) 1 pc
EFRICRE2-015R03-22 D1.5(R0.3)X4X2.3(22)X60 (GNX610150322) 1 pc
EFRICRE2-015R03-26 D1.5(R0.3)X4X2.3(26)X60 (GNX610150326) 1 pc
EFRICRE2-015R05-4 D1.5(R0.5)X4X2.3(4)X50 (GNX610150504) 1 pc
EFRICRE2-015R05-6 D1.5(R0.5)X4X2.3(6)X50 (GNX610150506) 1 pc
EFRICRE2-015R05-8 D1.5(R0.5)X4X2.3(8)X50 (GNX610150508) 1 pc
EFRICRE2-015R05-10 D1.5(R0.5)X4X2.3(10)X50 (GNX610150510) 1 pc
EFRICRE2-015R05-12 D1.5(R0.5)X4X2.3(12)X50 (GNX610150512) 1 pc
EFRICRE2-015R05-14 D1.5(R0.5)X4X2.3(14)X50 (GNX610150514) 1 pc
EFRICRE2-015R05-16 D1.5(R0.5)X4X2.3(16)X50 (GNX610150516) 1 pc
EFRICRE2-015R05-20 D1.5(R0.5)X4X2.3(20)X50 (GNX610150520) 1 pc
EFRICRE2-015R05-22 D1.5(R0.5)X4X2.3(22)X60 (GNX610150522) 1 pc
EFRICRE2-015R05-26 D1.5(R0.5)X4X2.3(26)X60 (GNX610150526) 1 pc
EFRICRE2-020R01-6 D2(R0.1)X4X3(6)X50 (GNX610200106) 1 pc
EFRICRE2-020R01-8 D2(R0.1)X4X3(8)X50 (GNX610200108) 1 pc
EFRICRE2-020R01-10 D2(R0.1)X4X3(10)X50 (GNX610200110) 1 pc
EFRICRE2-020R01-12 D2(R0.1)X4X3(12)X50 (GNX610200112) 1 pc
EFRICRE2-020R01-14 D2(R0.1)X4X3(14)X50 (GNX610200114) 1 pc
EFRICRE2-020R01-16 D2(R0.1)X4X3(16)X50 (GNX610200116) 1 pc
EFRICRE2-020R01-20 D2(R0.1)X4X3(20)X50 (GNX610200120) 1 pc
EFRICRE2-020R01-22 D2(R0.1)X4X3(22)X60 (GNX610200122) 1 pc
EFRICRE2-020R01-26 D2(R0.1)X4X3(26)X60 (GNX610200126) 1 pc
EFRICRE2-020R01-30 D2(R0.1)X4X3(30)X70 (GNX610200130) 1 pc
EFRICRE2-020R01-35 D2(R0.1)X4X3(35)X70 (GNX610200135) 1 pc
EFRICRE2-020R02-8 D2(R0.2)X4X3(8)X50 (GNX610200208) 1 pc
EFRICRE2-020R02-10 D2(R0.2)X4X3(10)X50 (GNX610200210) 1 pc
EFRICRE2-020R02-12 D2(R0.2)X4X3(12)X50 (GNX610200212) 1 pc
EFRICRE2-020R02-14 D2(R0.2)X4X3(14)X50 (GNX610200214) 1 pc
EFRICRE2-020R02-16 D2(R0.2)X4X3(16)X50 (GNX610200216) 1 pc

40 more sizes are available in the option selector.

  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
