YG-1 E·FORCE Long Neck Corner Radius End Mill, 2F (Part 4)

Description

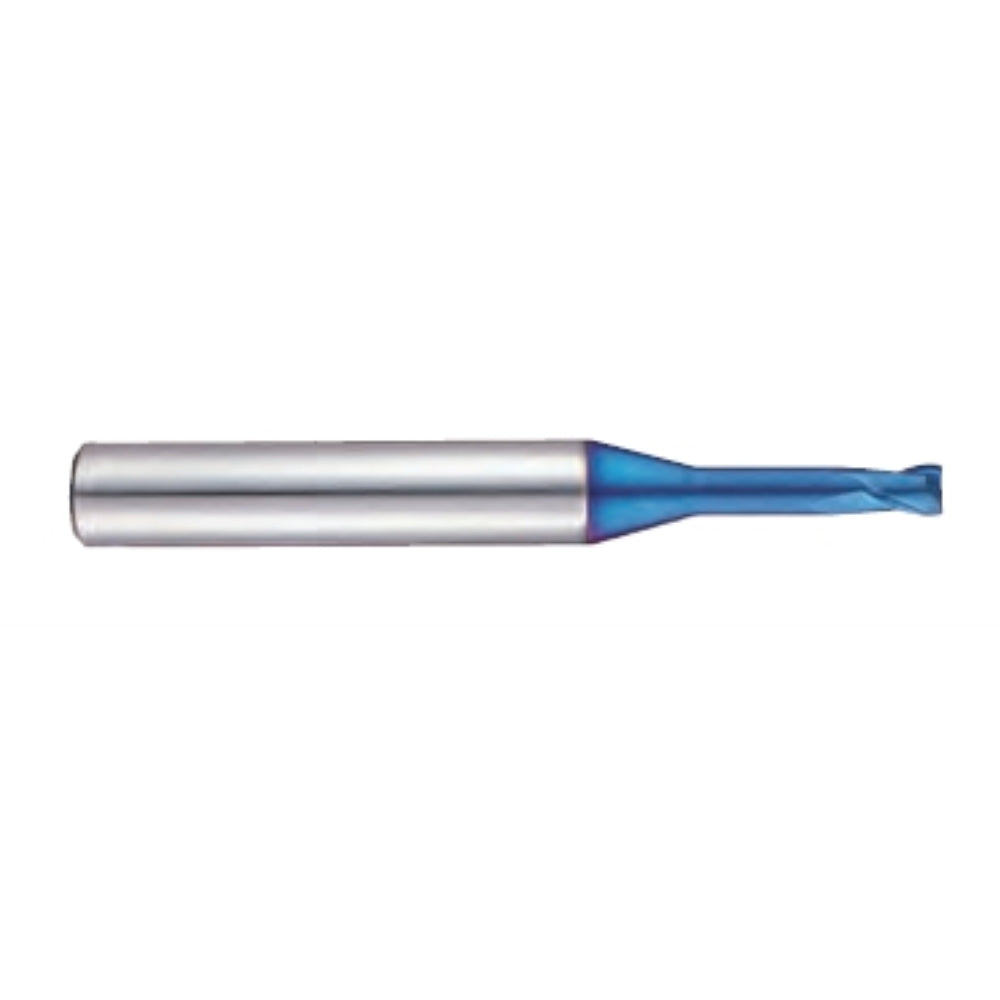

YG-1 E·FORCE Long Neck Corner Radius End Mill, 2F

A corner-radius end mill has a rounded corner on its flat end, used for pocketing, profiling and finishing where an internal radius is wanted. A reduced-diameter neck gives extra reach into deep pockets and walls. It is used on CNC machining centers and milling machines in mold, die and general machining.

Key Features

  • The corner radius is stronger than a sharp corner and resists chipping.
  • Long neck reaches deep features but flexes more; use lighter cuts.
  • Check the work material and coating the series is made for.
  • Choose by diameter, flute count, length and shank to suit your holder.

Specifications

Model Specification Sold as
EFRICRE2-025R02-20 D2.5(R0.2)X4X4(20)X50 (GNX610250220) 1 pc
EFRICRE2-025R02-26 D2.5(R0.2)X4X4(26)X60 (GNX610250226) 1 pc
EFRICRE2-025R02-30 D2.5(R0.2)X4X4(30)X70 (GNX610250230) 1 pc
EFRICRE2-025R03-8 D2.5(R0.3)X4X4(8)X50 (GNX610250308) 1 pc
EFRICRE2-025R03-10 D2.5(R0.3)X4X4(10)X50 (GNX610250310) 1 pc
EFRICRE2-025R03-12 D2.5(R0.3)X4X4(12)X50 (GNX610250312) 1 pc
EFRICRE2-025R03-14 D2.5(R0.3)X4X4(14)X50 (GNX610250314) 1 pc
EFRICRE2-025R03-16 D2.5(R0.3)X4X4(16)X50 (GNX610250316) 1 pc
EFRICRE2-025R03-20 D2.5(R0.3)X4X4(20)X50 (GNX610250320) 1 pc
EFRICRE2-025R03-26 D2.5(R0.3)X4X4(26)X60 (GNX610250326) 1 pc
EFRICRE2-025R03-30 D2.5(R0.3)X4X4(30)X70 (GNX610250330) 1 pc
EFRICRE2-025R05-8 D2.5(R0.5)X4X4(8)X50 (GNX610250508) 1 pc
EFRICRE2-025R05-10 D2.5(R0.5)X4X4(10)X50 (GNX610250510) 1 pc
EFRICRE2-025R05-12 D2.5(R0.5)X4X4(12)X50 (GNX610250512) 1 pc
EFRICRE2-025R05-14 D2.5(R0.5)X4X4(14)X50 (GNX610250514) 1 pc
EFRICRE2-025R05-16 D2.5(R0.5)X4X4(16)X50 (GNX610250516) 1 pc
EFRICRE2-025R05-20 D2.5(R0.5)X4X4(20)X50 (GNX610250520) 1 pc
EFRICRE2-025R05-26 D2.5(R0.5)X4X4(26)X60 (GNX610250526) 1 pc
EFRICRE2-025R05-30 D2.5(R0.5)X4X4(30)X70 (GNX610250530) 1 pc
EFRICRE2-030R01-8 D3(R0.1)X6X4.5(8)X50 (GNX610300108) 1 pc
EFRICRE2-030R01-10 D3(R0.1)X6X4.5(10)X50 (GNX610300110) 1 pc
EFRICRE2-030R01-12 D3(R0.1)X6X4.5(12)X50 (GNX610300112) 1 pc
EFRICRE2-030R01-14 D3(R0.1)X6X4.5(14)X60 (GNX610300114) 1 pc
EFRICRE2-030R01-16 D3(R0.1)X6X4.5(16)X60 (GNX610300116) 1 pc
EFRICRE2-030R01-20 D3(R0.1)X6X4.5(20)X60 (GNX610300120) 1 pc
EFRICRE2-030R01-30 D3(R0.1)X6X4.5(30)X70 (GNX610300130) 1 pc
EFRICRE2-030R01-35 D3(R0.1)X6X4.5(35)X70 (GNX610300135) 1 pc
EFRICRE2-030R01-40 D3(R0.1)X6X4.5(40)X80 (GNX610300140) 1 pc
EFRICRE2-030R01-50 D3(R0.1)X6X4.5(50)X100 (GNX610300150) 1 pc
EFRICRE2-030R02-8 D3(R0.2)X6X4.5(8)X50 (GNX610300208) 1 pc
EFRICRE2-030R02-10 D3(R0.2)X6X4.5(10)X50 (GNX610300210) 1 pc
EFRICRE2-030R02-12 D3(R0.2)X6X4.5(12)X50 (GNX610300212) 1 pc
EFRICRE2-030R02-14 D3(R0.2)X6X4.5(14)X60 (GNX610300214) 1 pc
EFRICRE2-030R02-16 D3(R0.2)X6X4.5(16)X60 (GNX610300216) 1 pc
EFRICRE2-030R02-20 D3(R0.2)X6X4.5(20)X60 (GNX610300220) 1 pc
EFRICRE2-030R02-26 D3(R0.2)X6X4.5(26)X65 (GNX610300226) 1 pc
EFRICRE2-030R02-30 D3(R0.2)X6X4.5(30)X70 (GNX610300230) 1 pc
EFRICRE2-030R02-35 D3(R0.2)X6X4.5(35)X70 (GNX610300235) 1 pc
EFRICRE2-030R02-40 D3(R0.2)X6X4.5(40)X80 (GNX610300240) 1 pc
EFRICRE2-030R02-50 D3(R0.2)X6X4.5(50)X100 (GNX610300250) 1 pc
EFRICRE2-030R03-8 D3(R0.3)X6X4.5(8)X50 (GNX610300308) 1 pc
EFRICRE2-030R03-10 D3(R0.3)X6X4.5(10)X50 (GNX610300310) 1 pc
EFRICRE2-030R03-12 D3(R0.3)X6X4.5(12)X50 (GNX610300312) 1 pc
EFRICRE2-030R03-14 D3(R0.3)X6X4.5(14)X60 (GNX610300314) 1 pc
EFRICRE2-030R03-16 D3(R0.3)X6X4.5(16)X60 (GNX610300316) 1 pc
EFRICRE2-030R03-20 D3(R0.3)X6X4.5(20)X60 (GNX610300320) 1 pc
EFRICRE2-030R03-26 D3(R0.3)X6X4.5(26)X65 (GNX610300326) 1 pc
EFRICRE2-030R03-30 D3(R0.3)X6X4.5(30)X70 (GNX610300330) 1 pc
EFRICRE2-030R03-35 D3(R0.3)X6X4.5(35)X70 (GNX610300335) 1 pc
EFRICRE2-030R03-40 D3(R0.3)X6X4.5(40)X80 (GNX610300340) 1 pc
EFRICRE2-030R03-50 D3(R0.3)X6X4.5(50)X100 (GNX610300350) 1 pc
EFRICRE2-030R05-8 D3(R0.5)X6X4.5(8)X50 (GNX610300508) 1 pc
EFRICRE2-030R05-10 D3(R0.5)X6X4.5(10)X50 (GNX610300510) 1 pc
EFRICRE2-030R05-12 D3(R0.5)X6X4.5(12)X50 (GNX610300512) 1 pc
EFRICRE2-030R05-14 D3(R0.5)X6X4.5(14)X60 (GNX610300514) 1 pc
EFRICRE2-030R05-16 D3(R0.5)X6X4.5(16)X60 (GNX610300516) 1 pc
EFRICRE2-030R05-20 D3(R0.5)X6X4.5(20)X60 (GNX610300520) 1 pc
EFRICRE2-030R05-26 D3(R0.5)X6X4.5(26)X65 (GNX610300526) 1 pc
EFRICRE2-030R05-30 D3(R0.5)X6X4.5(30)X70 (GNX610300530) 1 pc
EFRICRE2-030R05-35 D3(R0.5)X6X4.5(35)X70 (GNX610300535) 1 pc

40 more sizes are available in the option selector.

  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

YG-1 E·FORCE Long Neck Corner Radius End Mill, 2FA corner-radius end mill has a rounded corner on its flat end,... Read more

SKU: kb-958-1351

$18.97 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    YG-1 E·FORCE Long Neck Corner Radius End Mill, 2F

    A corner-radius end mill has a rounded corner on its flat end, used for pocketing, profiling and finishing where an internal radius is wanted. A reduced-diameter neck gives extra reach into deep pockets and walls. It is used on CNC machining centers and milling machines in mold, die and general machining.

    Key Features

    • The corner radius is stronger than a sharp corner and resists chipping.
    • Long neck reaches deep features but flexes more; use lighter cuts.
    • Check the work material and coating the series is made for.
    • Choose by diameter, flute count, length and shank to suit your holder.

    Specifications

    Model Specification Sold as
    EFRICRE2-025R02-20 D2.5(R0.2)X4X4(20)X50 (GNX610250220) 1 pc
    EFRICRE2-025R02-26 D2.5(R0.2)X4X4(26)X60 (GNX610250226) 1 pc
    EFRICRE2-025R02-30 D2.5(R0.2)X4X4(30)X70 (GNX610250230) 1 pc
    EFRICRE2-025R03-8 D2.5(R0.3)X4X4(8)X50 (GNX610250308) 1 pc
    EFRICRE2-025R03-10 D2.5(R0.3)X4X4(10)X50 (GNX610250310) 1 pc
    EFRICRE2-025R03-12 D2.5(R0.3)X4X4(12)X50 (GNX610250312) 1 pc
    EFRICRE2-025R03-14 D2.5(R0.3)X4X4(14)X50 (GNX610250314) 1 pc
    EFRICRE2-025R03-16 D2.5(R0.3)X4X4(16)X50 (GNX610250316) 1 pc
    EFRICRE2-025R03-20 D2.5(R0.3)X4X4(20)X50 (GNX610250320) 1 pc
    EFRICRE2-025R03-26 D2.5(R0.3)X4X4(26)X60 (GNX610250326) 1 pc
    EFRICRE2-025R03-30 D2.5(R0.3)X4X4(30)X70 (GNX610250330) 1 pc
    EFRICRE2-025R05-8 D2.5(R0.5)X4X4(8)X50 (GNX610250508) 1 pc
    EFRICRE2-025R05-10 D2.5(R0.5)X4X4(10)X50 (GNX610250510) 1 pc
    EFRICRE2-025R05-12 D2.5(R0.5)X4X4(12)X50 (GNX610250512) 1 pc
    EFRICRE2-025R05-14 D2.5(R0.5)X4X4(14)X50 (GNX610250514) 1 pc
    EFRICRE2-025R05-16 D2.5(R0.5)X4X4(16)X50 (GNX610250516) 1 pc
    EFRICRE2-025R05-20 D2.5(R0.5)X4X4(20)X50 (GNX610250520) 1 pc
    EFRICRE2-025R05-26 D2.5(R0.5)X4X4(26)X60 (GNX610250526) 1 pc
    EFRICRE2-025R05-30 D2.5(R0.5)X4X4(30)X70 (GNX610250530) 1 pc
    EFRICRE2-030R01-8 D3(R0.1)X6X4.5(8)X50 (GNX610300108) 1 pc
    EFRICRE2-030R01-10 D3(R0.1)X6X4.5(10)X50 (GNX610300110) 1 pc
    EFRICRE2-030R01-12 D3(R0.1)X6X4.5(12)X50 (GNX610300112) 1 pc
    EFRICRE2-030R01-14 D3(R0.1)X6X4.5(14)X60 (GNX610300114) 1 pc
    EFRICRE2-030R01-16 D3(R0.1)X6X4.5(16)X60 (GNX610300116) 1 pc
    EFRICRE2-030R01-20 D3(R0.1)X6X4.5(20)X60 (GNX610300120) 1 pc
    EFRICRE2-030R01-30 D3(R0.1)X6X4.5(30)X70 (GNX610300130) 1 pc
    EFRICRE2-030R01-35 D3(R0.1)X6X4.5(35)X70 (GNX610300135) 1 pc
    EFRICRE2-030R01-40 D3(R0.1)X6X4.5(40)X80 (GNX610300140) 1 pc
    EFRICRE2-030R01-50 D3(R0.1)X6X4.5(50)X100 (GNX610300150) 1 pc
    EFRICRE2-030R02-8 D3(R0.2)X6X4.5(8)X50 (GNX610300208) 1 pc
    EFRICRE2-030R02-10 D3(R0.2)X6X4.5(10)X50 (GNX610300210) 1 pc
    EFRICRE2-030R02-12 D3(R0.2)X6X4.5(12)X50 (GNX610300212) 1 pc
    EFRICRE2-030R02-14 D3(R0.2)X6X4.5(14)X60 (GNX610300214) 1 pc
    EFRICRE2-030R02-16 D3(R0.2)X6X4.5(16)X60 (GNX610300216) 1 pc
    EFRICRE2-030R02-20 D3(R0.2)X6X4.5(20)X60 (GNX610300220) 1 pc
    EFRICRE2-030R02-26 D3(R0.2)X6X4.5(26)X65 (GNX610300226) 1 pc
    EFRICRE2-030R02-30 D3(R0.2)X6X4.5(30)X70 (GNX610300230) 1 pc
    EFRICRE2-030R02-35 D3(R0.2)X6X4.5(35)X70 (GNX610300235) 1 pc
    EFRICRE2-030R02-40 D3(R0.2)X6X4.5(40)X80 (GNX610300240) 1 pc
    EFRICRE2-030R02-50 D3(R0.2)X6X4.5(50)X100 (GNX610300250) 1 pc
    EFRICRE2-030R03-8 D3(R0.3)X6X4.5(8)X50 (GNX610300308) 1 pc
    EFRICRE2-030R03-10 D3(R0.3)X6X4.5(10)X50 (GNX610300310) 1 pc
    EFRICRE2-030R03-12 D3(R0.3)X6X4.5(12)X50 (GNX610300312) 1 pc
    EFRICRE2-030R03-14 D3(R0.3)X6X4.5(14)X60 (GNX610300314) 1 pc
    EFRICRE2-030R03-16 D3(R0.3)X6X4.5(16)X60 (GNX610300316) 1 pc
    EFRICRE2-030R03-20 D3(R0.3)X6X4.5(20)X60 (GNX610300320) 1 pc
    EFRICRE2-030R03-26 D3(R0.3)X6X4.5(26)X65 (GNX610300326) 1 pc
    EFRICRE2-030R03-30 D3(R0.3)X6X4.5(30)X70 (GNX610300330) 1 pc
    EFRICRE2-030R03-35 D3(R0.3)X6X4.5(35)X70 (GNX610300335) 1 pc
    EFRICRE2-030R03-40 D3(R0.3)X6X4.5(40)X80 (GNX610300340) 1 pc
    EFRICRE2-030R03-50 D3(R0.3)X6X4.5(50)X100 (GNX610300350) 1 pc
    EFRICRE2-030R05-8 D3(R0.5)X6X4.5(8)X50 (GNX610300508) 1 pc
    EFRICRE2-030R05-10 D3(R0.5)X6X4.5(10)X50 (GNX610300510) 1 pc
    EFRICRE2-030R05-12 D3(R0.5)X6X4.5(12)X50 (GNX610300512) 1 pc
    EFRICRE2-030R05-14 D3(R0.5)X6X4.5(14)X60 (GNX610300514) 1 pc
    EFRICRE2-030R05-16 D3(R0.5)X6X4.5(16)X60 (GNX610300516) 1 pc
    EFRICRE2-030R05-20 D3(R0.5)X6X4.5(20)X60 (GNX610300520) 1 pc
    EFRICRE2-030R05-26 D3(R0.5)X6X4.5(26)X65 (GNX610300526) 1 pc
    EFRICRE2-030R05-30 D3(R0.5)X6X4.5(30)X70 (GNX610300530) 1 pc
    EFRICRE2-030R05-35 D3(R0.5)X6X4.5(35)X70 (GNX610300535) 1 pc

    40 more sizes are available in the option selector.

    • Brand: YG-1
    • Country of origin: Korea

    About YG-1

    YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

    Ordering & Shipping

    • Genuine product sourced through official Korean distribution
    • Ships worldwide from South Korea by FedEx International Priority Express
    • Import duties and taxes are payable by the recipient
    • Bulk and trade pricing available on request
