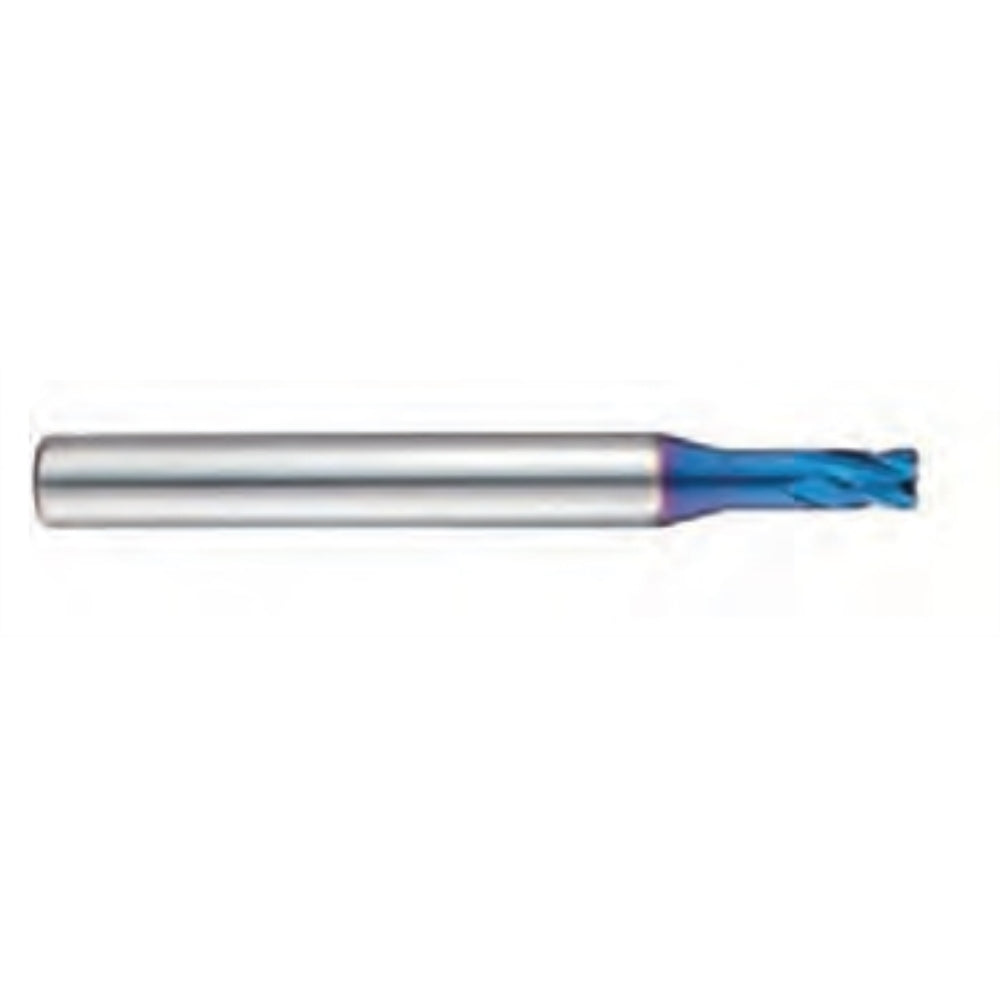

YG-1 E·FORCE Long Neck Corner Radius End Mill, 4F

Description

YG-1 E·FORCE Long Neck Corner Radius End Mill, 4F

A corner-radius end mill has a rounded corner on its flat end, used for pocketing, profiling and finishing where an internal radius is wanted. A reduced-diameter neck gives extra reach into deep pockets and walls. It is used on CNC machining centers and milling machines in mold, die and general machining.

Key Features

  • The corner radius is stronger than a sharp corner and resists chipping.
  • Long neck reaches deep features but flexes more; use lighter cuts.
  • Check the work material and coating the series is made for.
  • Choose by diameter, flute count, length and shank to suit your holder.

Specifications

Model Specification Sold as
EFRICRE4-010R00-3 D1(R0.05)X4X1.5(3)X50 (GNX6401000503) 1 pc
EFRICRE4-010R00-4 D1(R0.05)X4X1.5(4)X50 (GNX6401000504) 1 pc
EFRICRE4-010R00-6 D1(R0.05)X4X1.5(6)X50 (GNX6401000506) 1 pc
EFRICRE4-010R00-8 D1(R0.05)X4X1.5(8)X50 (GNX6401000508) 1 pc
EFRICRE4-010R00-10 D1(R0.05)X4X1.5(10)X50 (GNX6401000510) 1 pc
EFRICRE4-010R00-12 D1(R0.05)X4X1.5(12)X50 (GNX6401000512) 1 pc
EFRICRE4-010R00-14 D1(R0.05)X4X1.5(14)X50 (GNX6401000514) 1 pc
EFRICRE4-010R00-16 D1(R0.05)X4X1.5(16)X50 (GNX6401000516) 1 pc
EFRICRE4-010R00-20 D1(R0.05)X4X1.5(20)X50 (GNX6401000520) 1 pc
EFRICRE4-010R01-3 D1(R0.1)X4X1.5(3)X50 (GNX640100103) 1 pc

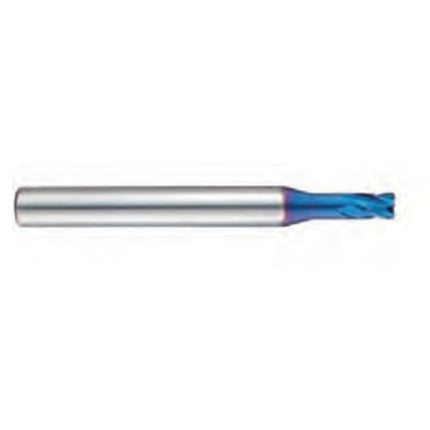

EFRICRE4-010R01-4 D1(R0.1)X4X1.5(4)X50 (GNX640100104) 1 pc
EFRICRE4-010R01-6 D1(R0.1)X4X1.5(6)X50 (GNX640100106) 1 pc
EFRICRE4-010R01-8 D1(R0.1)X4X1.5(8)X50 (GNX640100108) 1 pc
EFRICRE4-010R01-10 D1(R0.1)X4X1.5(10)X50 (GNX640100110) 1 pc
EFRICRE4-010R01-12 D1(R0.1)X4X1.5(12)X50 (GNX640100112) 1 pc
EFRICRE4-010R01-14 D1(R0.1)X4X1.5(14)X50 (GNX640100114) 1 pc
EFRICRE4-010R01-16 D1(R0.1)X4X1.5(16)X50 (GNX640100116) 1 pc
EFRICRE4-010R01-20 D1(R0.1)X4X1.5(20)X50 (GNX640100120) 1 pc
EFRICRE4-010R02-3 D1(R0.2)X4X1.5(3)X50 (GNX640100203) 1 pc
EFRICRE4-010R02-4 D1(R0.2)X4X1.5(4)X50 (GNX640100204) 1 pc
EFRICRE4-010R02-6 D1(R0.2)X4X1.5(6)X50 (GNX640100206) 1 pc
EFRICRE4-010R02-8 D1(R0.2)X4X1.5(8)X50 (GNX640100208) 1 pc
EFRICRE4-010R02-10 D1(R0.2)X4X1.5(10)X50 (GNX640100210) 1 pc
EFRICRE4-010R02-12 D1(R0.2)X4X1.5(12)X50 (GNX640100212) 1 pc
EFRICRE4-010R02-14 D1(R0.2)X4X1.5(14)X50 (GNX640100214) 1 pc
EFRICRE4-010R02-16 D1(R0.2)X4X1.5(16)X50 (GNX640100216) 1 pc
EFRICRE4-010R02-20 D1(R0.2)X4X1.5(20)X50 (GNX640100220) 1 pc
EFRICRE4-010R03-3 D1(R0.3)X4X1.5(3)X50 (GNX640100303) 1 pc
EFRICRE4-010R03-4 D1(R0.3)X4X1.5(4)X50 (GNX640100304) 1 pc
EFRICRE4-010R03-6 D1(R0.3)X4X1.5(6)X50 (GNX640100306) 1 pc
EFRICRE4-010R03-8 D1(R0.3)X4X1.5(8)X50 (GNX640100308) 1 pc
EFRICRE4-010R03-10 D1(R0.3)X4X1.5(10)X50 (GNX640100310) 1 pc
EFRICRE4-010R03-12 D1(R0.3)X4X1.5(12)X50 (GNX640100312) 1 pc
EFRICRE4-010R03-14 D1(R0.3)X4X1.5(14)X50 (GNX640100314) 1 pc
EFRICRE4-010R03-16 D1(R0.3)X4X1.5(16)X50 (GNX640100316) 1 pc
EFRICRE4-010R03-20 D1(R0.3)X4X1.5(20)X50 (GNX640100320) 1 pc
EFRICRE4-012R00-3 D1.2(R0.05)X4X1.8(3)X50 (GNX6401200503) 1 pc
EFRICRE4-012R00-4 D1.2(R0.05)X4X1.8(4)X50 (GNX6401200504) 1 pc
EFRICRE4-012R00-6 D1.2(R0.05)X4X1.8(6)X50 (GNX6401200506) 1 pc
EFRICRE4-012R00-8 D1.2(R0.05)X4X1.8(8)X50 (GNX6401200508) 1 pc
EFRICRE4-012R00-10 D1.2(R0.05)X4X1.8(10)X50 (GNX6401200510) 1 pc
EFRICRE4-012R00-12 D1.2(R0.05)X4X1.8(12)X50 (GNX6401200512) 1 pc
EFRICRE4-012R00-16 D1.2(R0.05)X4X1.8(16)X50 (GNX6401200516) 1 pc
EFRICRE4-012R00-20 D1.2(R0.05)X4X1.8(20)X50 (GNX6401200520) 1 pc
EFRICRE4-012R01-3 D1.2(R0.1)X4X1.8(3)X50 (GNX640120103) 1 pc
EFRICRE4-012R01-4 D1.2(R0.1)X4X1.8(4)X50 (GNX640120104) 1 pc
EFRICRE4-012R01-6 D1.2(R0.1)X4X1.8(6)X50 (GNX640120106) 1 pc
EFRICRE4-012R01-8 D1.2(R0.1)X4X1.8(8)X50 (GNX640120108) 1 pc
EFRICRE4-012R01-10 D1.2(R0.1)X4X1.8(10)X50 (GNX640120110) 1 pc
EFRICRE4-012R01-12 D1.2(R0.1)X4X1.8(12)X50 (GNX640120112) 1 pc
EFRICRE4-012R01-16 D1.2(R0.1)X4X1.8(16)X50 (GNX640120116) 1 pc
EFRICRE4-012R01-20 D1.2(R0.1)X4X1.8(20)X50 (GNX640120120) 1 pc
EFRICRE4-012R02-3 D1.2(R0.2)X4X1.8(3)X50 (GNX640120203) 1 pc
EFRICRE4-012R02-4 D1.2(R0.2)X4X1.8(4)X50 (GNX640120204) 1 pc
EFRICRE4-012R02-6 D1.2(R0.2)X4X1.8(6)X50 (GNX640120206) 1 pc
EFRICRE4-012R02-8 D1.2(R0.2)X4X1.8(8)X50 (GNX640120208) 1 pc
EFRICRE4-012R02-10 D1.2(R0.2)X4X1.8(10)X50 (GNX640120210) 1 pc
EFRICRE4-012R02-12 D1.2(R0.2)X4X1.8(12)X50 (GNX640120212) 1 pc
EFRICRE4-012R02-16 D1.2(R0.2)X4X1.8(16)X50 (GNX640120216) 1 pc
EFRICRE4-012R02-20 D1.2(R0.2)X4X1.8(20)X50 (GNX640120220) 1 pc

40 more sizes are available in the option selector.

  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

YG-1 E·FORCE Long Neck Corner Radius End Mill, 4FA corner-radius end mill has a rounded corner on its flat end,... Read more

SKU: kb-958-1569

$19.21 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
