YG-1 E·FORCE Long Neck Corner Radius End Mill, 4F (Part 2)

Description

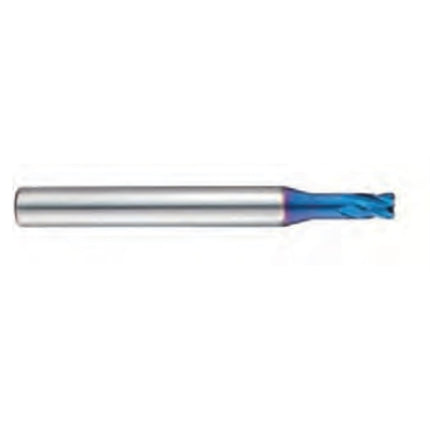

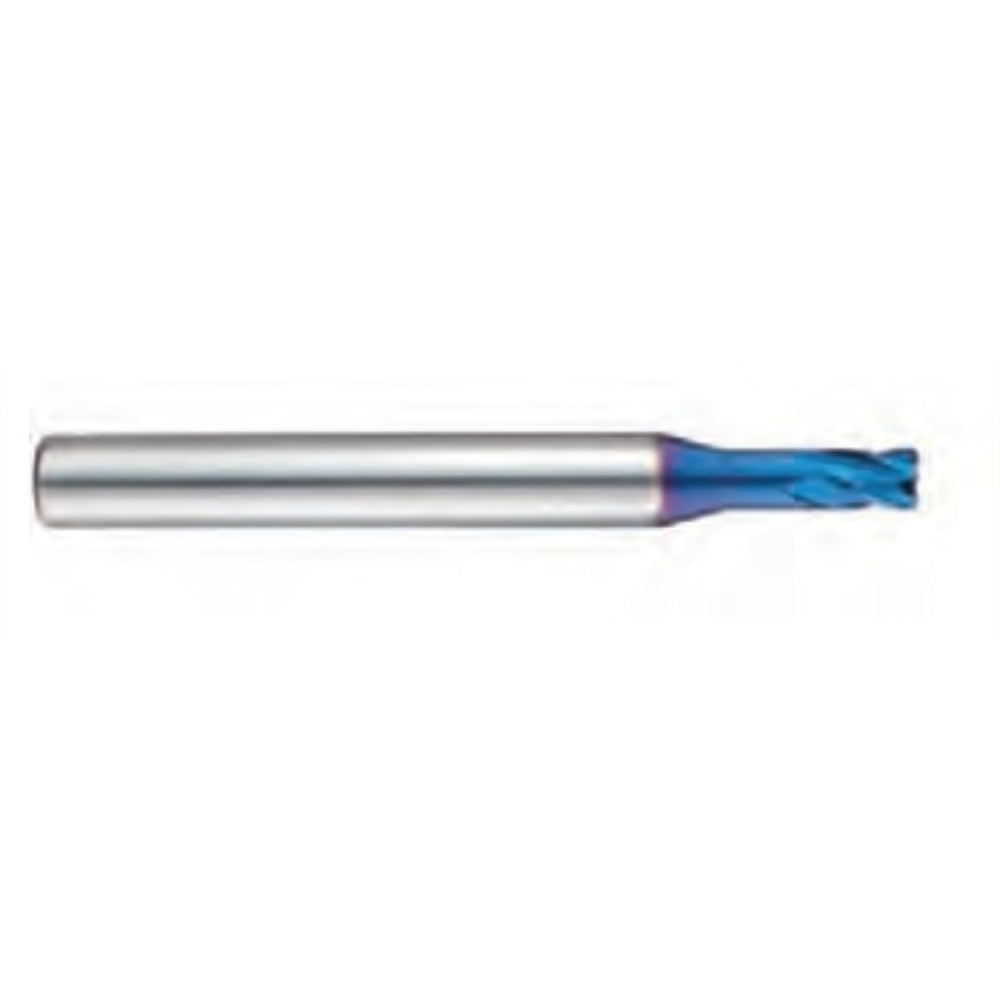

YG-1 E·FORCE Long Neck Corner Radius End Mill, 4F

A corner-radius end mill has a rounded corner on its flat end, used for pocketing, profiling and finishing where an internal radius is wanted. A reduced-diameter neck gives extra reach into deep pockets and walls. It is used on CNC machining centers and milling machines in mold, die and general machining.

Key Features

  • The corner radius is stronger than a sharp corner and resists chipping.
  • Long neck reaches deep features but flexes more; use lighter cuts.
  • Check the work material and coating the series is made for.
  • Choose by diameter, flute count, length and shank to suit your holder.

Specifications

Model Specification Sold as
EFRICRE4-015R03-16 D1.5(R0.3)X4X2.3(16)X50 (GNX640150316) 1 pc
EFRICRE4-015R03-20 D1.5(R0.3)X4X2.3(20)X50 (GNX640150320) 1 pc
EFRICRE4-015R03-22 D1.5(R0.3)X4X2.3(22)X60 (GNX640150322) 1 pc
EFRICRE4-015R03-26 D1.5(R0.3)X4X2.3(26)X60 (GNX640150326) 1 pc
EFRICRE4-015R05-4 D1.5(R0.5)X4X2.3(4)X50 (GNX640150504) 1 pc
EFRICRE4-015R05-6 D1.5(R0.5)X4X2.3(6)X50 (GNX640150506) 1 pc
EFRICRE4-015R05-8 D1.5(R0.5)X4X2.3(8)X50 (GNX640150508) 1 pc
EFRICRE4-015R05-10 D1.5(R0.5)X4X2.3(10)X50 (GNX640150510) 1 pc
EFRICRE4-015R05-12 D1.5(R0.5)X4X2.3(12)X50 (GNX640150512) 1 pc
EFRICRE4-015R05-14 D1.5(R0.5)X4X2.3(14)X50 (GNX640150514) 1 pc
EFRICRE4-015R05-16 D1.5(R0.5)X4X2.3(16)X50 (GNX640150516) 1 pc
EFRICRE4-015R05-20 D1.5(R0.5)X4X2.3(20)X50 (GNX640150520) 1 pc
EFRICRE4-015R05-22 D1.5(R0.5)X4X2.3(22)X60 (GNX640150522) 1 pc
EFRICRE4-015R05-26 D1.5(R0.5)X4X2.3(26)X60 (GNX640150526) 1 pc
EFRICRE4-020R01-6 D2(R0.1)X4X3(6)X50 (GNX640200106) 1 pc
EFRICRE4-020R01-8 D2(R0.1)X4X3(8)X50 (GNX640200108) 1 pc
EFRICRE4-020R01-10 D2(R0.1)X4X3(10)X50 (GNX640200110) 1 pc
EFRICRE4-020R01-12 D2(R0.1)X4X3(12)X50 (GNX640200112) 1 pc
EFRICRE4-020R01-14 D2(R0.1)X4X3(14)X50 (GNX640200114) 1 pc
EFRICRE4-020R01-16 D2(R0.1)X4X3(16)X50 (GNX640200116) 1 pc
EFRICRE4-020R01-20 D2(R0.1)X4X3(20)X50 (GNX640200120) 1 pc
EFRICRE4-020R01-22 D2(R0.1)X4X3(22)X60 (GNX640200122) 1 pc
EFRICRE4-020R01-26 D2(R0.1)X4X3(26)X60 (GNX640200126) 1 pc
EFRICRE4-020R01-30 D2(R0.1)X4X3(30)X70 (GNX640200130) 1 pc
EFRICRE4-020R01-35 D2(R0.1)X4X3(35)X70 (GNX640200135) 1 pc
EFRICRE4-020R02-6 D2(R0.2)X4X3(6)X50 (GNX640200206) 1 pc
EFRICRE4-020R02-8 D2(R0.2)X4X3(8)X50 (GNX640200208) 1 pc
EFRICRE4-020R02-10 D2(R0.2)X4X3(10)X50 (GNX640200210) 1 pc
EFRICRE4-020R02-12 D2(R0.2)X4X3(12)X50 (GNX640200212) 1 pc
EFRICRE4-020R02-14 D2(R0.2)X4X3(14)X50 (GNX640200214) 1 pc
EFRICRE4-020R02-16 D2(R0.2)X4X3(16)X50 (GNX640200216) 1 pc
EFRICRE4-020R02-20 D2(R0.2)X4X3(20)X50 (GNX640200220) 1 pc
EFRICRE4-020R02-22 D2(R0.2)X4X3(22)X60 (GNX640200222) 1 pc
EFRICRE4-020R02-26 D2(R0.2)X4X3(26)X60 (GNX640200226) 1 pc
EFRICRE4-020R02-30 D2(R0.2)X4X3(30)X70 (GNX640200230) 1 pc
EFRICRE4-020R02-35 D2(R0.2)X4X3(35)X70 (GNX640200235) 1 pc
EFRICRE4-020R03-6 D2(R0.3)X4X3(6)X50 (GNX640200306) 1 pc
EFRICRE4-020R03-8 D2(R0.3)X4X3(8)X50 (GNX640200308) 1 pc
EFRICRE4-020R03-10 D2(R0.3)X4X3(10)X50 (GNX640200310) 1 pc
EFRICRE4-020R03-12 D2(R0.3)X4X3(12)50 (GNX640200312) 1 pc
EFRICRE4-020R03-14 D2(R0.3)X4X3(14)X50 (GNX640200314) 1 pc
EFRICRE4-020R03-16 D2(R0.3)X4X3(16)X50 (GNX640200316) 1 pc
EFRICRE4-020R03-20 D2(R0.3)X4X3(20)X50 (GNX640200320) 1 pc
EFRICRE4-020R03-22 D2(R0.3)X4X3(22)X60 (GNX640200322) 1 pc
EFRICRE4-020R03-26 D2(R0.3)X4X3(26)X60 (GNX640200326) 1 pc
EFRICRE4-020R03-30 D2(R0.3)X4X3(30)X70 (GNX640200330) 1 pc
EFRICRE4-020R03-35 D2(R0.3)X4X3(35)X70 (GNX640200335) 1 pc
EFRICRE4-020R05-6 D2(R0.5)X4X3(6)X50 (GNX640200506) 1 pc
EFRICRE4-020R05-8 D2(R0.5)X4X3(8)X50 (GNX640200508) 1 pc
EFRICRE4-020R05-10 D2(R0.5)X4X3(10)X50 (GNX640200510) 1 pc
EFRICRE4-020R05-12 D2(R0.5)X4X3(12)X50 (GNX640200512) 1 pc
EFRICRE4-020R05-14 D2(R0.5)X4X3(14)X50 (GNX640200514) 1 pc
EFRICRE4-020R05-16 D2(R0.5)X4X3(16)X50 (GNX640200516) 1 pc
EFRICRE4-020R05-20 D2(R0.5)X4X3(20)X50 (GNX640200520) 1 pc
EFRICRE4-020R05-22 D2(R0.5)X4X3(22)X60 (GNX640200522) 1 pc
EFRICRE4-020R05-26 D2(R0.5)X4X3(26)X60 (GNX640200526) 1 pc
EFRICRE4-020R05-30 D2(R0.5)X4X3(30)X70 (GNX640200530) 1 pc
EFRICRE4-020R05-35 D2(R0.5)X4X3(35)X70 (GNX640200535) 1 pc
EFRICRE4-025R01-8 D2.5(R0.1)X4X4(8)X50 (GNX640250108) 1 pc
EFRICRE4-025R01-10 D2.5(R0.1)X4X4(10)X50 (GNX640250110) 1 pc

40 more sizes are available in the option selector.

  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

YG-1 E·FORCE Long Neck Corner Radius End Mill, 4FA corner-radius end mill has a rounded corner on its flat end,... Read more

SKU: kb-958-1673

$19.21 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
