YG-1 E·FORCE Long Neck Corner Radius End Mill, 4F (Part 4)

Description

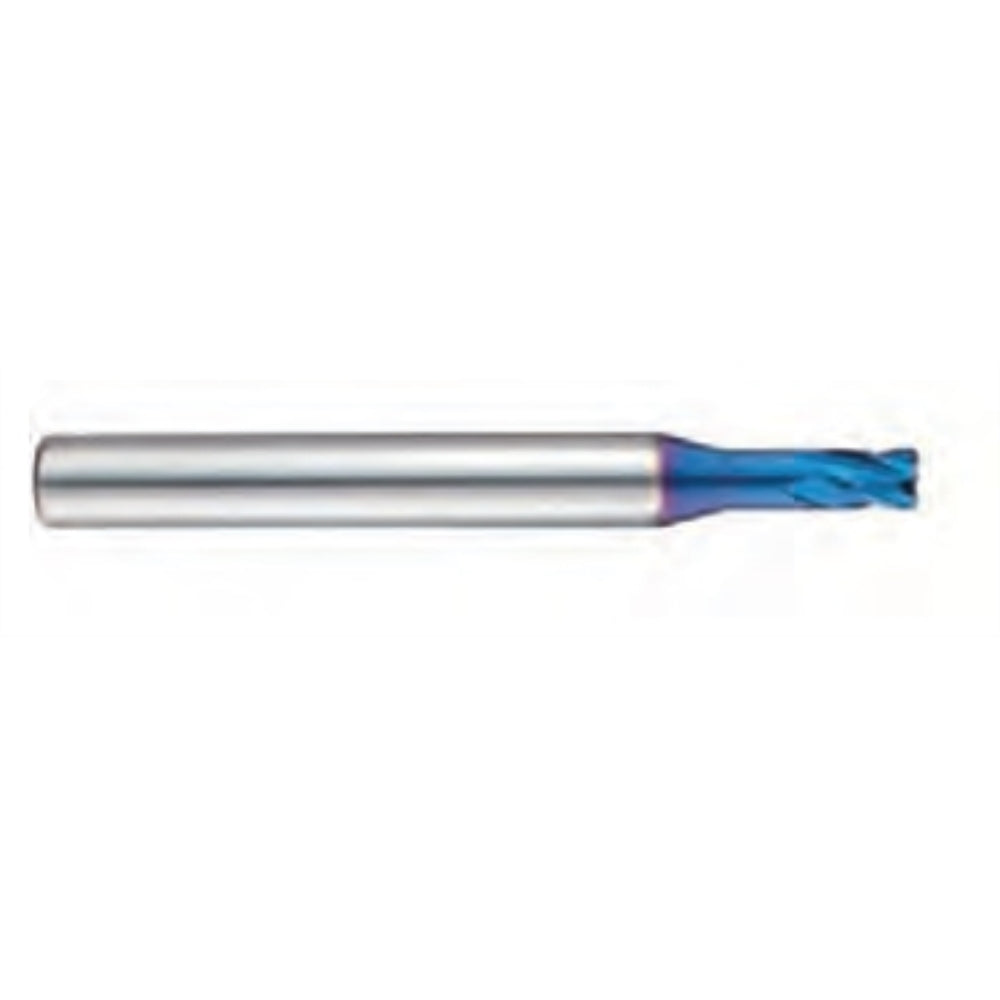

YG-1 E·FORCE Long Neck Corner Radius End Mill, 4F

A corner-radius end mill has a rounded corner on its flat end, used for pocketing, profiling and finishing where an internal radius is wanted. A reduced-diameter neck gives extra reach into deep pockets and walls. It is used on CNC machining centers and milling machines in mold, die and general machining.

Key Features

  • The corner radius is stronger than a sharp corner and resists chipping.
  • Long neck reaches deep features but flexes more; use lighter cuts.
  • Check the work material and coating the series is made for.
  • Choose by diameter, flute count, length and shank to suit your holder.

Specifications

Model Specification Sold as
EFRICRE4-050R02-15 D5(R0.2)X6X8(15)X60 (GNX640500215) 1 pc
EFRICRE4-050R02-25 D5(R0.2)X6X8(25)X70 (GNX640500225) 1 pc
EFRICRE4-050R02-30 D5(R0.2)X6X8(30)X70 (GNX640500230) 1 pc
EFRICRE4-050R02-40 D5(R0.2)X6X8(40)X80 (GNX640500240) 1 pc
EFRICRE4-050R02-50 D5(R0.2)X6X8(50)X100 (GNX640500250) 1 pc
EFRICRE4-050R03-15 D5(R0.3)X6X8(15)X60 (GNX640500315) 1 pc
EFRICRE4-050R03-25 D5(R0.3)X6X8(25)X70 (GNX640500325) 1 pc
EFRICRE4-050R03-30 D5(R0.3)X6X8(30)X70 (GNX640500330) 1 pc
EFRICRE4-050R03-40 D5(R0.3)X6X8(40)X80 (GNX640500340) 1 pc
EFRICRE4-050R03-50 D5(R0.3)X6X8(50)X100 (GNX640500350) 1 pc
EFRICRE4-050R05-15 D5(R0.5)X6X8(15)X60 (GNX640500515) 1 pc
EFRICRE4-050R05-25 D5(R0.5)X6X8(25)X70 (GNX640500525) 1 pc
EFRICRE4-050R05-30 D5(R0.5)X6X8(30)X70 (GNX640500530) 1 pc
EFRICRE4-050R05-40 D5(R0.5)X6X8(40)X80 (GNX640500540) 1 pc
EFRICRE4-050R05-50 D5(R0.5)X6X8(50)X100 (GNX640500550) 1 pc
EFRICRE4-050R10-15 D5(R1)X6X8(15)X60 (GNX640501015) 1 pc
EFRICRE4-050R10-25 D5(R1)X6X8(25)X70 (GNX640501025) 1 pc
EFRICRE4-050R10-30 D5(R1)X6X8(30)X70 (GNX640501030) 1 pc
EFRICRE4-050R10-40 D5(R1)X6X8(40)X80 (GNX640501040) 1 pc
EFRICRE4-050R10-50 D5(R1)X6X8(50)X100 (GNX640501050) 1 pc
EFRICRE4-050R15-15 D5(R1.5)X6X8(15)X60 (GNX640501515) 1 pc
EFRICRE4-050R15-25 D5(R1.5)X6X8(25)X70 (GNX640501525) 1 pc
EFRICRE4-050R15-30 D5(R1.5)X6X8(30)X70 (GNX640501530) 1 pc
EFRICRE4-050R15-40 D5(R1.5)X6X8(40)X80 (GNX640501540) 1 pc
EFRICRE4-050R15-50 D5(R1.5)X6X8(50)X100 (GNX640501550) 1 pc
EFRICRE4-050R20-15 D5(R2)X6X8(15)X60 (GNX640502015) 1 pc
EFRICRE4-050R20-25 D5(R2)X6X8(25)X70 (GNX640502025) 1 pc
EFRICRE4-050R20-30 D5(R2)X6X8(30)X70 (GNX640502030) 1 pc
EFRICRE4-050R20-40 D5(R2)X6X8(40)X80 (GNX640502040) 1 pc
EFRICRE4-050R20-50 D5(R2)X6X8(50)X100 (GNX640502050) 1 pc
EFRICRE4-060R01-20 D6(R0.1)x6x8(20)x60 (GNX6406001) 1 pc
EFRICRE4-060R01-30 D6(R0.1)X6X12(30)X90 (GNX6406001090) 1 pc
EFRICRE4-060R02-20 D6(R0.2)x6x8(20)x60 (GNX6406002) 1 pc
EFRICRE4-060R02-30 D6(R0.2)X6X12(30)X90 (GNX6406002090) 1 pc
EFRICRE4-060R03-20 D6(R0.3)x6x8(20)x60 (GNX6406003) 1 pc
EFRICRE4-060R03-30 D6(R0.3)X6X12(30)X90 (GNX6406003090) 1 pc
EFRICRE4-060R05-20 D6(R0.5)x6x8(20)x60 (GNX6406005) 1 pc

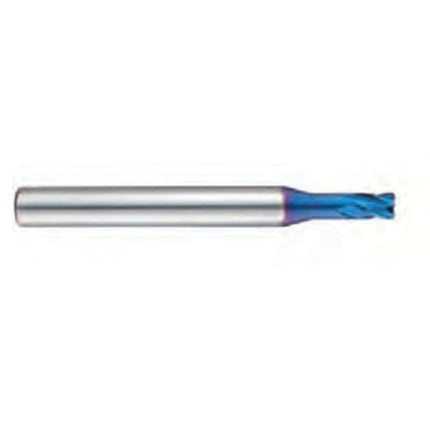

EFRICRE4-060R05-30 D6(R0.5)X6X12(30)X90 (GNX6406005090) 1 pc
EFRICRE4-060R10-20 D6(R1)x6x8(20)x60 (GNX6406010) 1 pc
EFRICRE4-060R10-30 D6(R1)X6X12(30)X90 (GNX6406010090) 1 pc
EFRICRE4-060R15-20 D6(R1.5)X6X8(20)X60 (GNX6406015) 1 pc
EFRICRE4-060R15-30 D6(R1.5)X6X12(30)X90 (GNX6406015090) 1 pc
EFRICRE4-060R20-20 D6(R2)X6X8(20)X60 (GNX6406020) 1 pc
EFRICRE4-060R20-30 D6(R2)X6X12(30)X90 (GNX6406020090) 1 pc
EFRICRE4-080R01-22 D8(R0.1)X8X10(22)X70 (GNX6408001) 1 pc
EFRICRE4-080R01-35 D8(R0.1)X8X16(35)X100 (GNX6408001100) 1 pc
EFRICRE4-080R02-22 D8(R0.2)x8x10(22)x70 (GNX6408002) 1 pc
EFRICRE4-080R02-35 D8(R0.2)X8X16(35)X100 (GNX6408002100) 1 pc
EFRICRE4-080R03-22 D8(R0.3)X8X10(22)X70 (GNX6408003) 1 pc
EFRICRE4-080R03-35 D8(R0.3)X8X16(35)X100 (GNX6408003100) 1 pc
EFRICRE4-080R05-22 D8(R0.5)x8x10(22)x70 (GNX6408005) 1 pc
EFRICRE4-080R05-35 D8(R0.5)X8X16(35)X100 (GNX6408005100) 1 pc
EFRICRE4-080R10-22 D8(R1)x8x10(22)x70 (GNX6408010) 1 pc
EFRICRE4-080R10-35 D8(R1)X8X16(35)X100 (GNX6408010100) 1 pc
EFRICRE4-080R15-22 D8(R1.5)X8X10(22)X70 (GNX6408015) 1 pc
EFRICRE4-080R15-35 D8(R1.5)X8X16(35)X100 (GNX6408015100) 1 pc
EFRICRE4-080R20-22 D8(R2)X8X10(22)X70 (GNX6408020) 1 pc
EFRICRE4-080R20-35 D8(R2)X8X16(35)X100 (GNX6408020100) 1 pc
EFRICRE4-100R01-25 D10(R0.1)X10X12(25)X75 (GNX6410001) 1 pc
EFRICRE4-100R01-40 D10(R0.1)X10X20(40)X100 (GNX6410001100) 1 pc

34 more sizes are available in the option selector.

  • Brand: YG-1
  • Country of origin: Korea

About YG-1

YG-1 of South Korea is a major manufacturer of solid cutting tools: end mills, drills, taps and thread mills for metalworking.

Ordering & Shipping

  • Genuine product sourced through official Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

YG-1 E·FORCE Long Neck Corner Radius End Mill, 4FA corner-radius end mill has a rounded corner on its flat end,... Read more

SKU: kb-958-1878

$23.05 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
