Description
KCC Gypsum Board
The KCC gypsum board is made by mixing by-product gypsum and FGD(Flue Gas Desulfurization) gypsum with water and then forming this mixture into board shapes using paper coating. It comprises of a crystallized gypsum core covered in two layers of paper and satisfies the key interior performance requirements of incombustibility, insulation, and soundproofing. In addition, various dry processing methods are applied to lower installation costs and KCC-exclusive CD(Controlled Density) technology makes our board perfectly suited for application in the modulation and weight-saving trends of today's modern buildings, and also has high economic efficiency.
KCC gypsum board boasts a variety of popular GB-R (Regular Gypsum Board), Perforated Sound Absorption Board used for areas in need of sound absorption, Waterproof Gypsum Board that is used for humid places including bathrooms and kitchens, Fireproof Gypsum Board for fire-resistant and soundproof structures, Antibacterial Gypsum Board that deters propagation and proliferation of mildew, High Waterproof Gypsum Board with high waterproof and mold-resistance capabilities, multifunctional Fireproof & Waterproof Gypsum Boards, Soundproof Gypsum Board, and High-Impact Gypsum Board, and High Impact & Waterproof Gypsum Board. We will sustain to develop and produce new and multi-functional gypsum boards necessary to our customers.

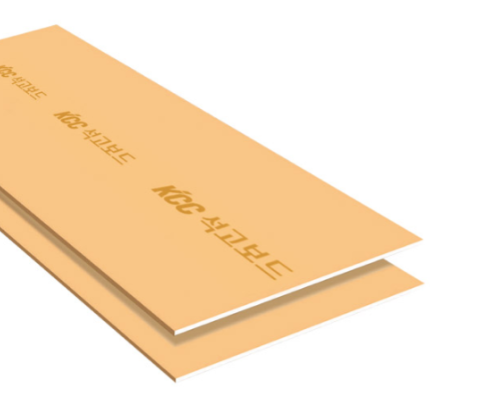

Fireproof & Waterproof Gypsum Board
The KCC Fireproof & Waterproof Gypsum Board is a multifunctional gypsum board offering both fireproof and waterproof performances and is used for application in bathrooms, kitchens, and other fireproofed areas exposed to high levels of humidity. Compared with the conventional method of adding the waterproof gypsum board to a fireproof wall, it is more economical and easier to work with.
Applications
Fireproof and soundproof partition walls
Of the application areas, those are exposed to high levels of humidity (bathrooms, kitchens, etc.).
Applications requiring both waterproof and fireproof performances
Properties
Waterproof performance standard
- Identical with the KS F 3504 Waterproof Board.
Fireproof performance standard
- Identical with the KS F 3504 Fireproof Board.
Dimensions(Unit: mm)
Dimensions(Unit: mm)
| Thickness |
Width |
Length |
Surface Color |
| 12.5 |
900 |
1,800 |
2,400 |
2,700 |
3,000 |
Orange |
| 1,200 |
1,800 |
2,400 |
|
|
| 15 |
900 |
1,800 |
2,400 |
2,700 |
|
| 1,200 |
1,800 |
2,400 |
|
|
| 19 |
900 |
1,800 |
2,400 |
|
|
| 1,200 |
1,800 |
2,400 |
|
|
- Adding 100mm to the prescribed length is available. Other dimensions are available on a custom order basis.
- Refer to KS F 3504 for the degree of error in product dimensions.
Certification of Fireproof/Soundproof Structures
Acquisition of the certification
- The KCC Fireproof & Waterproof Gypsum Board acquired a partition wall and soundproof partition wall certifications.
