Description
KCC Gypsum Board
The KCC gypsum board is made by mixing by-product gypsum and FGD(Flue Gas Desulfurization) gypsum with water and then forming this mixture into board shapes using paper coating. It comprises of a crystallized gypsum core covered in two layers of paper and satisfies the key interior performance requirements of incombustibility, insulation, and soundproofing. In addition, various dry processing methods are applied to lower installation costs and KCC-exclusive CD(Controlled Density) technology makes our board perfectly suited for application in the modulation and weight-saving trends of today's modern buildings, and also has high economic efficiency.
KCC gypsum board boasts a variety of popular GB-R (Regular Gypsum Board), Perforated Sound Absorption Board used for areas in need of sound absorption, Waterproof Gypsum Board that is used for humid places including bathrooms and kitchens, Fireproof Gypsum Board for fire-resistant and soundproof structures, Antibacterial Gypsum Board that deters propagation and proliferation of mildew, High Waterproof Gypsum Board with high waterproof and mold-resistance capabilities, multifunctional Fireproof & Waterproof Gypsum Boards, Soundproof Gypsum Board, and High-Impact Gypsum Board, and High Impact & Waterproof Gypsum Board. We will sustain to develop and produce new and multi-functional gypsum boards necessary to our customers.

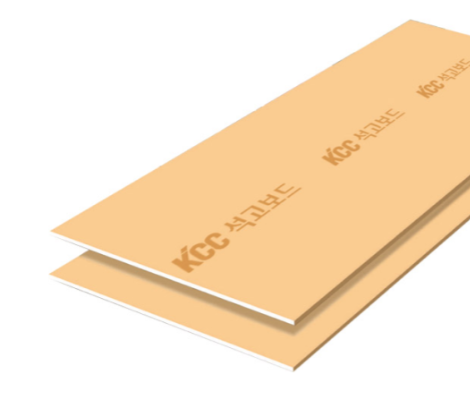

Soundproof Gypsum Board
The KCC Soundproof Gypsum Board can reduce additional costs associated with eliminating noise thanks to its enhanced soundproof performance. With excellent applicability, it not only reduces installation times, but is also suited for application in the modulation and weight-saving trends of modern buildings. It can also save structural costs as it is lighter than masonry or concrete walls.
Applications
Base structures including walls and ceilings, core for metallic panels, non-bearing drywalls, etc.
Properties
Properties
| Items |
Thickness |
Applied standards |
| 9.5mm |
12.5mm |
15mm |
| Moisture Content(%) |
3 or below |
KS F 3504
JIS A 6901 |
| Flexural Failure Load(N) |
Lengthwise |
360 or above |
500 or above |
650 or above |
| Widthwise |
140 or above |
180 or above |
220 or above |
| Fire Retardancy |
Semi-incombustible |
Incombustible |
| Heat Resistance(㎡K/W) |
0.043 or above |
0.060 or above |
0.069 or above |
- With the enhanced soundproof performance, other properties are equivalent or above those of the Regular Gypsum Board.
Dimensions(Unit: mm)
Dimensions(Unit: mm)
| Thickness |
Width |
Length |
Surface Color |
| 9.5 |
900 |
1,800 |
2,400 |
2,700 |
|
Orange |
| 12.5 |
900 |
1,800 |
2,400 |
2,700 |
3,000 |
| 1,200 |
1,800 |
2,400 |
|
|
| 15 |
900 |
1,800 |
2,400 |
2,700 |
|
| 1,200 |
1,800 |
2,400 |
|
|
- Adding 100mm to the prescribed length is available. Other dimensions are available on a custom order basis.
- Refer to KS F 3504 for the degree of error in product dimensions.
