Description

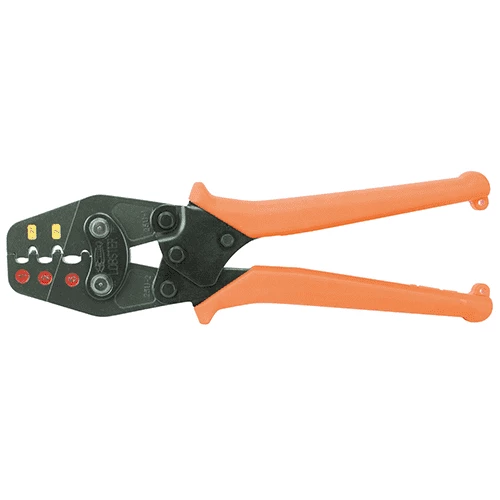

LOBSTER Multi type Mini Crimping tool AK-M1
2 in 1 crimping tool for Non-insulated terminals/sleeves and for Closed end insulated connectors!
・Compared with conventional model, about 20% less in load at the handle portion when tested by CE5
・Excellent layout of jaws to avoid misuse (For Non-insulated terminals/sleeves on once side, and for Closed end on another side)
・Integrated ratchet mechanism
・Elastomer grips fit in your hand
・Can temporarily hold terminals by single hand
| Product Code. |
Model No. |
(Product) weight |
size1 |
size2 |
Use range |
Remark |
| 215-6109 |
AKM1 |
325g |
214mm |
66mm |
①CE1・CE2・CE5 ②1.25・2(㎜2） |
①Closed end insulated connectors, ②Non-insulated terminals/sleeves |
IMPORTANT SAFETY INSTRUCTIONS
· Do not crimp or work nearby live wires.
· Use this tool properly with compatible cable connectors (Terminals / Sleeves) and cables
· To prevent crimping failure and to ensure crimping performance, the tool should be periodical (once or twice a year) inspected by Lobtex
· Lubricate moving parts of tool once or twice a month. Otherwise, may cause crimping failure due to friction
· The holes have no adequate strength. Do not use it as anti-dropping purpose.
! CAUTIONS ON INSCRIBED VALUES
※ Since dimensions, weights, etc. are nominal, there are possibly some numerical values.
* Specifications may be changed for improvement without prior notice.
