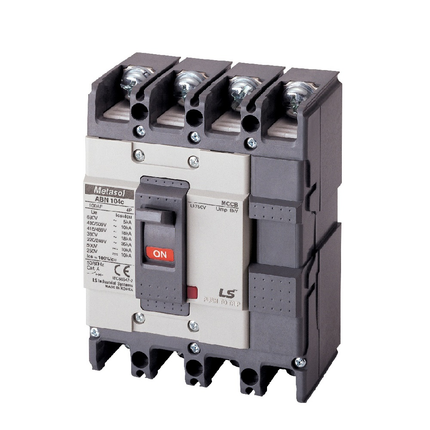

LS ELECTRIC Metasol Molded Case Circuit Breaker MCCB Standard ABN104c 50A

Description

General

Product code 0132006300
Product description ABN104c 50A EXP
Trip Unit FTU(Fixed-thermal, Fixed-magnetic)
[In] rated current 50 A at 40 ℃
Poles description 4P
Protected poles description 3T
Neutral position R-S-T-N
Network type AC (50/60 Hz), DC
Upside connection Front (screw)
Downside connection Front (screw)

Characteristics

[Ue] rated operational voltage (AC 50/60 Hz) 690 V AC
[Ue] rated operational voltage (DC) 500 V DC
[Uimp] rated impulse withstand voltage 8 kV
[Ui] rated insulation voltage 1000 V
Mechanical durability 25000 cycles
Electrical durability (AC) 10000 cycles
Electrical durability (DC) -
Utilisation category Category A
Suitability for isolation Yes
Reference standard IEC 60947-2
[Icu] rated Ultimate short-circuit breaking capacity 35 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
22 kA at 380 V AC 50/60 Hz, IEC 60947-2
18 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
10 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
5 kA at 690 V AC 50/60 Hz, IEC 60947-2
-
10 kA at 500 V DC (3poles in series), Reference
-
[Ics] rated service breaking capacity 35 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
22 kA at 380 V AC 50/60 Hz, IEC 60947-2
18 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
10 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
5 kA at 690 V AC 50/60 Hz, IEC 60947-2
-
10 kA at 500 V DC (3poles in series), Reference
-
[Icm] rated short-circuit marking capacity 73.5 kA at 220/250 V AC 50/60 Hz, IEC 60947-2
46.2 kA at 380 V AC 50/60 Hz, IEC 60947-2
36 kA at 415/460 V AC 50/60 Hz, IEC 60947-2
17 kA at 480/500 V AC 50/60 Hz, IEC 60947-2
7.5 kA at 690 V AC 50/60 Hz, IEC 60947-19
-
[Icw] rated short-time withstand current -
-
-
-
Trip unit characteristics Thermal-magnetic
L : for overload protection (long time)
-
I : for instantaneous short-circuit protection
-
-
-
-
-
-
[Ir] Long-time pick-up adjustment range Fixed
-
[Iu] Long-time pick-up adjustment range -
-
[tr] Long-time delay adjustment range -
-
[Isd] Short-time pick-up adjustment range -
-
[tsd] Short-time delay adjustment range -
-
-
-
-
-
-
[Ii] Instantaneous pick-up adjustment range Fixed
12 x In, tolerance ±20%
[Ig] Ground-fault protection pick-up adjustment range -
-
[tg] Ground-fault protection time delay adjustment range -
-
-
-
-
-
-
Earth leakage pick-up adjustment range -
-
Earth leakage alam time delay adjustment range -
-
Earth leakage trip time delay adjustment range -
-
[Ip] Pre-trip alarm pick-up adjustment range -
-
[tp] Pre-trip alarm time delay adjustment range -
-
Alarm LED -
-

Environment

Pollution degree 3, IEC 60664-1
Degree of protection IP20, IEC 60529
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…70 °C
Mounting mode Fixed
Mounting support Backplate
Approvals1) (General) CE (Europe)
-
-
CCC (China)
EAC (Russia)
IC (Korea)
Approvals (Marine) -
-
-
-
-
-
-

1) LS ELECTRIC's standard products are designed for CE.

To check the product with regional certificates, please contact LSE sales representatives.


Dimensions

Product Width 100 mm
Height 130 mm
Depth 60 mm
Weight 0.9 kg
Packing Width 289 mm
Height 567 mm
Depth 105 mm
Weight 10.4 kg
Quantity (in a box) 10 pcs.
