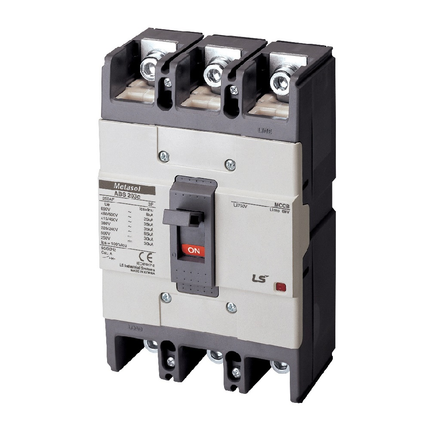

| [Ue] rated operational voltage (AC 50/60 Hz) |
690 V AC |
| [Ue] rated operational voltage (DC) |
500 V DC |
| [Uimp] rated impulse withstand voltage |
8 kV |
| [Ui] rated insulation voltage |
1000 V |
| Mechanical durability |
20000 cycles |
| Electrical durability (AC) |
5000 cycles |
| Electrical durability (DC) |
- |
| Utilisation category |
Category A |
| Suitability for isolation |
Yes |
| Reference standard |
IEC 60947-2 |
| [Icu] rated Ultimate short-circuit breaking capacity |
65 kA at 220/250 V AC 50/60 Hz, IEC 60947-2 |
| 30 kA at 380 V AC 50/60 Hz, IEC 60947-2 |
| 26 kA at 415/460 V AC 50/60 Hz, IEC 60947-2 |
| 18 kA at 480/500 V AC 50/60 Hz, IEC 60947-2 |
| 8 kA at 690 V AC 50/60 Hz, IEC 60947-2 |
| - |
| 10 kA at 500 V DC (3poles in series), Reference |
| - |
| [Ics] rated service breaking capacity |
65 kA at 220/250 V AC 50/60 Hz, IEC 60947-2 |
| 30 kA at 380 V AC 50/60 Hz, IEC 60947-2 |
| 26 kA at 415/460 V AC 50/60 Hz, IEC 60947-2 |
| 18 kA at 480/500 V AC 50/60 Hz, IEC 60947-2 |
| 8 kA at 690 V AC 50/60 Hz, IEC 60947-2 |
| - |
| 10 kA at 500 V DC (3poles in series), Reference |
| - |
| [Icm] rated short-circuit marking capacity |
143 kA at 220/250 V AC 50/60 Hz, IEC 60947-2 |
| 63 kA at 380 V AC 50/60 Hz, IEC 60947-2 |
| 54.6 kA at 415/460 V AC 50/60 Hz, IEC 60947-2 |
| 36 kA at 480/500 V AC 50/60 Hz, IEC 60947-2 |
| 13.6 kA at 690 V AC 50/60 Hz, IEC 60947-39 |
| - |
| [Icw] rated short-time withstand current |
- |
| - |
| - |
| - |
| Trip unit characteristics |
Thermal-magnetic |
| L : for overload protection (long time) |
| - |
| I : for instantaneous short-circuit protection |
| - |
| - |
| - |
| - |
| - |
| - |
| [Ir] Long-time pick-up adjustment range |
Fixed |
| - |
| [Iu] Long-time pick-up adjustment range |
- |
| - |
| [tr] Long-time delay adjustment range |
- |
| - |
| [Isd] Short-time pick-up adjustment range |
- |
| - |
| [tsd] Short-time delay adjustment range |
- |
| - |
| - |
| - |
| - |
| - |
| - |
| [Ii] Instantaneous pick-up adjustment range |
Fixed |
| 12 x In, tolerance ±20% |
| [Ig] Ground-fault protection pick-up adjustment range |
- |
| - |
| [tg] Ground-fault protection time delay adjustment range |
- |
| - |
| - |
| - |
| - |
| - |
| - |
| Earth leakage pick-up adjustment range |
- |
| - |
| Earth leakage alam time delay adjustment range |
- |
| - |
| Earth leakage trip time delay adjustment range |
- |
| - |
| [Ip] Pre-trip alarm pick-up adjustment range |
- |
| - |
| [tp] Pre-trip alarm time delay adjustment range |
- |
| - |
| Alarm LED |
- |
| - |
