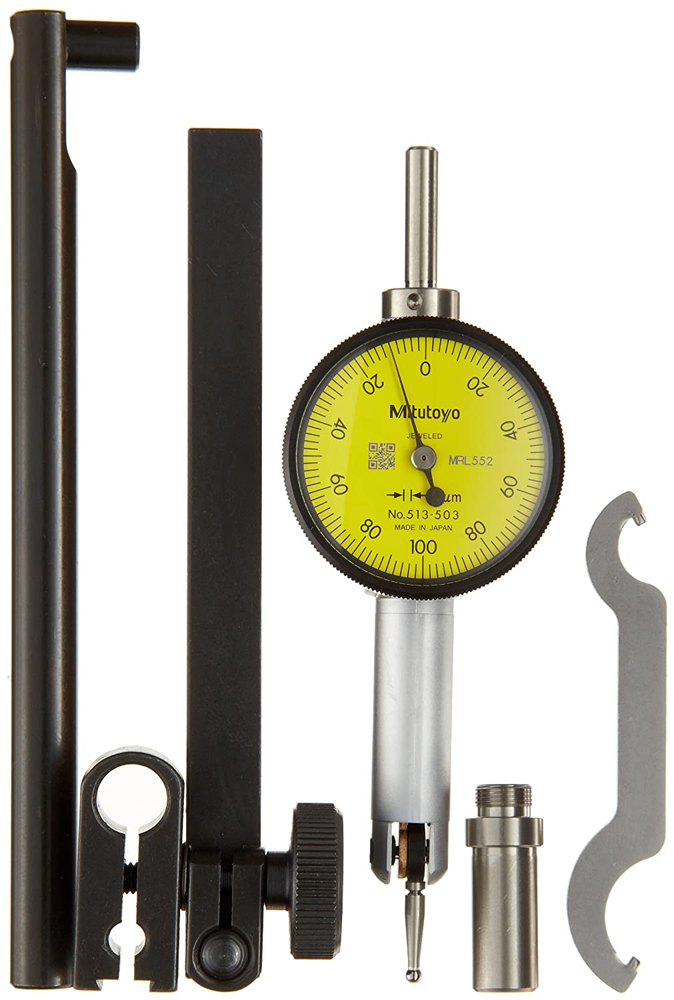

Mitutoyo 513-503T Pocket Type Dial Test Indicator, Full Set, Horizontal Type, 8mm Stem Dia, Yellow Dial, 0-100-0 Reading, 33mm Dial Dia, 0-0.2mm Range

Description

Mitutoyo 513-503T Pocket Type Dial Test Indicator, Full Set, Horizontal Type, 8mm Stem Dia, Yellow Dial, 0-100-0 Reading, 33mm Dial Dia, 0-0.2mm Range

  • Series 513 dial test indicator with reversible measuring direction and adjustable contact point, for measuring surface variations in narrow or recessed areas
  • Units displayed in fractional millimeters (mm), and has a rotating bezel and limit markers
  • Pocket-type indicator with horizontal face parallel to the axis and three dovetail mounts for mounting horizontally or vertically from the front, top, or back of the indicator
  • Jeweled bearings provide high sensitivity and accuracy, reversible measuring direction, and a 220-degree adjustable contact point
  • Meets Japanese Industrial Standard (JIS) B7533-1990
Specifications for this item
Brand Name Mitutoyo
Colour Yellow
Display Type 0-100-0
Ean 4946368383521
Item Diameter 33 millimetres
Item Weight 41.0 grams
Manufacturer Series Number Pocket Type Dial Test Indicator
Material Steel
Measurement Accuracy +/-0.003mm
Measurement System Metric
Model Number 513-503T
Number of Items 1
Part Number 513-503T
Range 0-0.2mm
Resolution 0.002mm
Size 0-0.2mm, 8mm Stem
Special Features Jeweled Bearing
Stem Outside Diameter 8.0 millimetres
Style 0-100-0, 0.002mm Graduation
Product form

Mitutoyo 513-503T Pocket Type Dial Test Indicator, Full Set, Horizontal Type, 8mm Stem Dia, Yellow Dial, 0-100-0 Reading, 33mm Dial... Read more

SKU: 513-503-10T

$219.67 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
