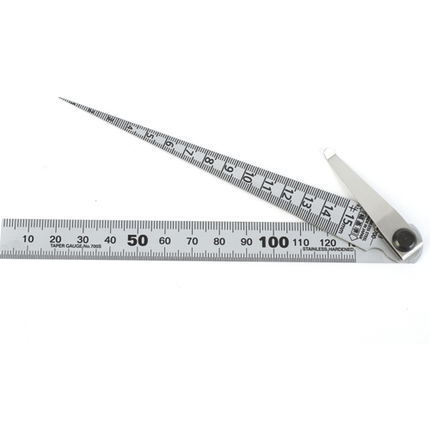

Niigata Seiki (SK) Taper gauge TPG-700S

Description

Niigata Seiki (SK) Taper gauge TPG-700S

Feature

  • A taper gauge (# 700 1-15) and a straightedge 130 mm are set, with a clip that is convenient to carry.
  • Silver finish
  • A set of straightedge and feeler gauge! It is a clip type that can be stored in a pocket.

specification

  • Measurement of grooves, gaps, hole diameters, etc., length measurement
  • Material: Stainless hardened steel (SUS420J2)
  • Body mass: 40g
  • Standard: 700S
  •
  • [Taper gauge]
  • Measuring range (mm): 1 to 15
  • Instrumental error: (mm): ± 0.05
  • Scale (mm): 0.1
  • Taper angle: 7 ° 9′10 ″
  • Body length: 148.5mm
  •
  • 【Straight scale】
  • Measuring range (mm): 0 to 130
  • Instrumental error: (mm): ± 0.13
  • Scale (mm): 0.5
  • Body length: 155mm

Package size: 55 x 9 x 205 mm 　30 g

      Product form

      Niigata Seiki (SK) Taper gauge TPG-700S Feature A taper gauge (# 700 1-15) and a straightedge 130 mm are set,... Read more

      SKU: 413-0275

      $19.19 Excl. VAT

        • Ships within 5–10 business days
        • Ships from South Korea
        • Export packing available
        • Worldwide shipping
        • Secure payments Paypal
        Need a bulk or multi-brand quotation?

        Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
        Korean brands at ProSource MRO — operated by the same team.

        Request a Bulk Quote →

        Description

        Niigata Seiki (SK) Taper gauge TPG-700S

        Feature

        • A taper gauge (# 700 1-15) and a straightedge 130 mm are set, with a clip that is convenient to carry.
        • Silver finish
        • A set of straightedge and feeler gauge! It is a clip type that can be stored in a pocket.

        specification

        • Measurement of grooves, gaps, hole diameters, etc., length measurement
        • Material: Stainless hardened steel (SUS420J2)
        • Body mass: 40g
        • Standard: 700S
        •
        • [Taper gauge]
        • Measuring range (mm): 1 to 15
        • Instrumental error: (mm): ± 0.05
        • Scale (mm): 0.1
        • Taper angle: 7 ° 9′10 ″
        • Body length: 148.5mm
        •
        • 【Straight scale】
        • Measuring range (mm): 0 to 130
        • Instrumental error: (mm): ± 0.13
        • Scale (mm): 0.5
        • Body length: 155mm

        Package size: 55 x 9 x 205 mm 　30 g
