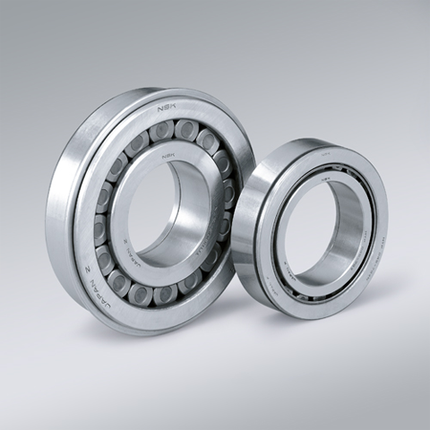

NSK Cylindrical Roller Bearings, Single-Row  NU-Type, NU2216W ,D=80

Description

NSK Cylindrical Roller Bearings, Single-Row  NU-Type, NU2216W ,D=80



Bearing
Numbers
Boundary Dimensions
(mm)
Basic Load Ratings
(kN)
Limiting Speeds
(min-1)
Mass
(kg)
approx.
d D B r
min.
r1
min.
Fw Ew Cr C0r Thermal
Reference
Mechanical Grease Oil
NU2216W 80 140 33 2 2 95.3   186 243 5000   4000 5000 2.18


DESIGN, TYPES, AND FEATURES



Cylindrical roller bearings are classified into the following types depending on whether or not they have ribs on their rings:





Types NU, N, NNU, and NN are suitable as free-end bearings. Types NJ and NF can sustain limited axial loads in one direction. Types NH and NUP can be used as fixed-end bearings.
The NH type consists of NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars
The inner ring loose rib of the NUP type should be mounted so that the marked side is on the outside.





If a cage is nonstandard for a given bearing number the number of rollers may vary; in such a case, the load rating will differ from that listed in the bearing tables.
Many NN double-row bearings have tapered bores, and they are primarily used in the main spindles of machine tools. Cages are made of either molded polyphenylenesulfide (PPS) or machined brass.





□Formulation of Bearing Designations

Single-Row Cylindrical Roller Bearing





①Bearing type NU : Single-row cylindrical roller bearings
(Outer ring with both ribs + Inner ring without rib) Please refer to page C124 for detailed information.
②Dimension Series  10 : 10 Series, 2: 02 Series, 22 : 22 Series, 3 : 03 Series, 23 : 23 Series, 4 : 04 Series,
③Bore number   Less than 03, Bearing bore 01 : 12mm, 02 : 15mm, 03 : 17mm Over 04, Bearing bore Bore number X 5 (mm)
④Internal design E : High load capacity
⑤Cage  W : Pressed-steel Cage, M : Machined Brass Cage, No designation : Machined-brass cage (in Series 10) T : Polyamide 66 resin cage, T7 : L-PPS resin cage
⑥Internal clearance  For All Radial Brgs.
Omitted : CN clearance, C3 : Clearance greater than CN, C4 : Clearance greater than C3, CG : Special Clearance
For Non-Interchangeable Cylindrical Roller Bearings
CC : Normal Clearance, CC3 : Clearance greater than CC, CC4 : Clearance greater than CC3, CCG : Special Clearance
⑦Tolerance class  Omitted : ISO Normal,P6 : ISO Class 6,
P5 : ISO Class 5,P4 : ISO Class 4
⑧NSKHPSTM  & : NSKHPSTM Designation Tolerance Class : ISO Normal
Product form

NSK Cylindrical Roller Bearings, Single-Row  NU-Type, NU2216W ,D=80   Bearing Numbers Boundary Dimensions (mm) Basic Load Ratings (kN) Limiting Speeds... Read more

SKU: NU2216W
Barcode: NU2216W

$133.19 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: May 28, 2024 17:00:00 +0900

    Description

    NSK Cylindrical Roller Bearings, Single-Row  NU-Type, NU2216W ,D=80



    Bearing
    Numbers
    Boundary Dimensions
    (mm)
    Basic Load Ratings
    (kN)
    Limiting Speeds
    (min-1)
    Mass
    (kg)
    approx.
    d D B r
    min.
    r1
    min.
    Fw Ew Cr C0r Thermal
    Reference
    Mechanical Grease Oil
    NU2216W 80 140 33 2 2 95.3   186 243 5000   4000 5000 2.18


    DESIGN, TYPES, AND FEATURES



    Cylindrical roller bearings are classified into the following types depending on whether or not they have ribs on their rings:





    Types NU, N, NNU, and NN are suitable as free-end bearings. Types NJ and NF can sustain limited axial loads in one direction. Types NH and NUP can be used as fixed-end bearings.
    The NH type consists of NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars
    The inner ring loose rib of the NUP type should be mounted so that the marked side is on the outside.





    If a cage is nonstandard for a given bearing number the number of rollers may vary; in such a case, the load rating will differ from that listed in the bearing tables.
    Many NN double-row bearings have tapered bores, and they are primarily used in the main spindles of machine tools. Cages are made of either molded polyphenylenesulfide (PPS) or machined brass.





    □Formulation of Bearing Designations

    Single-Row Cylindrical Roller Bearing





    ①Bearing type NU : Single-row cylindrical roller bearings
    (Outer ring with both ribs + Inner ring without rib) Please refer to page C124 for detailed information.
    ②Dimension Series  10 : 10 Series, 2: 02 Series, 22 : 22 Series, 3 : 03 Series, 23 : 23 Series, 4 : 04 Series,
    ③Bore number   Less than 03, Bearing bore 01 : 12mm, 02 : 15mm, 03 : 17mm Over 04, Bearing bore Bore number X 5 (mm)
    ④Internal design E : High load capacity
    ⑤Cage  W : Pressed-steel Cage, M : Machined Brass Cage, No designation : Machined-brass cage (in Series 10) T : Polyamide 66 resin cage, T7 : L-PPS resin cage
    ⑥Internal clearance  For All Radial Brgs.
    Omitted : CN clearance, C3 : Clearance greater than CN, C4 : Clearance greater than C3, CG : Special Clearance
    For Non-Interchangeable Cylindrical Roller Bearings
    CC : Normal Clearance, CC3 : Clearance greater than CC, CC4 : Clearance greater than CC3, CCG : Special Clearance
    ⑦Tolerance class  Omitted : ISO Normal,P6 : ISO Class 6,
    P5 : ISO Class 5,P4 : ISO Class 4
    ⑧NSKHPSTM  & : NSKHPSTM Designation Tolerance Class : ISO Normal
