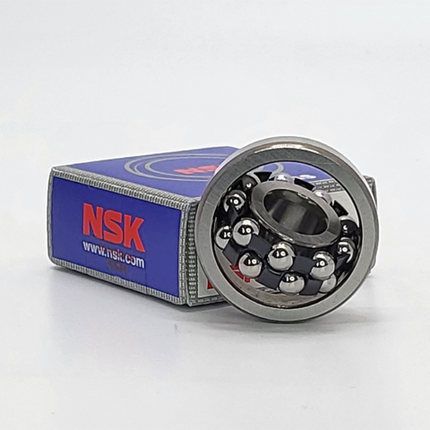

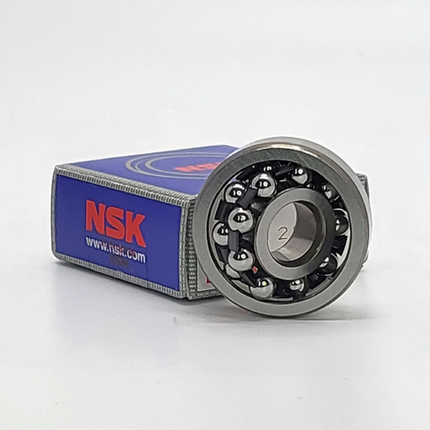

NSK Self-Aligning Ball Bearings, Cylindrical Bore Bearings 1218 ,D=90

Description

NSK Self-Aligning Ball Bearings, Cylindrical Bore Bearings 1218 ,D=90



Bearing
Numbers
Boundary Dimensions
(mm)
Basic Load Ratings
(kN)
Limiting Speeds
(min-1)
Constant

e
Axial Load
Factors
Mass
(kg)
approx.
d D B r
min.
Cr C0r Grease Oil
Y2 Y3 Y0
1218 90 160 30 2 57.5 23.5 3600 4300 0.17 5.8 3.8 3.9 2.5



DESIGN, TYPES, AND FEATURES

The outer ring of a self-aligning ball bearing has a spherical raceway and its center of curvature coincides with that of the bearing; therefore, the axis of the inner ring, balls and cage can deflect to some extent around the bearing center. This type is recommended when the alignment of the shaft and housing is difficult and when the shaft may bend. Since the contact angle is small, axial load capacity is low.
Pressed-steel cages are usually used.






PROTRUSION AMOUNT

 Some self-aligning ball bearings have balls that protrude from the side face as shown below. This protrusion amount b1 is listed in the following table.










PERMISSIBLE MISALIGNMENT

 The permissible misalignment of self-aligning ball bearings is approximately 0.07 to 0.12 radian (4° to 7°) under normal loads. However, depending on the surrounding structure, such an angle may not be possible. Take care in the design of the bearing surroundings.

Product form

NSK Self-Aligning Ball Bearings, Cylindrical Bore Bearings 1218 ,D=90    Bearing Numbers Boundary Dimensions (mm) Basic Load Ratings (kN) Limiting... Read more

SKU: 1218
Barcode: 1218

$209.08 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      NSK Self-Aligning Ball Bearings, Cylindrical Bore Bearings 1218 ,D=90



      Bearing
      Numbers
      Boundary Dimensions
      (mm)
      Basic Load Ratings
      (kN)
      Limiting Speeds
      (min-1)
      Constant

      e
      Axial Load
      Factors
      Mass
      (kg)
      approx.
      d D B r
      min.
      Cr C0r Grease Oil
      Y2 Y3 Y0
      1218 90 160 30 2 57.5 23.5 3600 4300 0.17 5.8 3.8 3.9 2.5



      DESIGN, TYPES, AND FEATURES

      The outer ring of a self-aligning ball bearing has a spherical raceway and its center of curvature coincides with that of the bearing; therefore, the axis of the inner ring, balls and cage can deflect to some extent around the bearing center. This type is recommended when the alignment of the shaft and housing is difficult and when the shaft may bend. Since the contact angle is small, axial load capacity is low.
      Pressed-steel cages are usually used.






      PROTRUSION AMOUNT

       Some self-aligning ball bearings have balls that protrude from the side face as shown below. This protrusion amount b1 is listed in the following table.










      PERMISSIBLE MISALIGNMENT

       The permissible misalignment of self-aligning ball bearings is approximately 0.07 to 0.12 radian (4° to 7°) under normal loads. However, depending on the surrounding structure, such an angle may not be possible. Take care in the design of the bearing surroundings.
