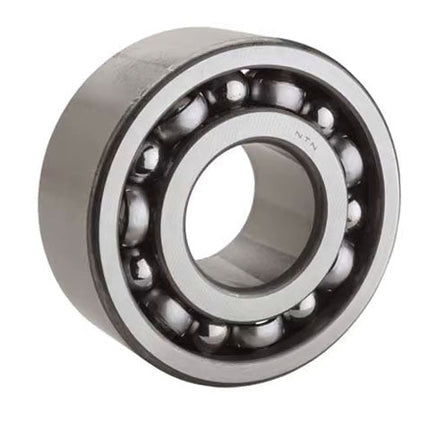

NTN Double Row Angular Contact Bearing , 5310

Description





Item # d D B r Static Load Rating Dynamic Load Rating
 5310 1.9685 in
50.000 mm
4.3307 in
110.000 mm
1.7480 in
44.400 mm
0.0787 in
2.000 mm
13800 lbf
61500 N
61.50 kN
18300 lbf
81500 N
81.50 kN





Angular Contact Ball Bearings




1. Design features and characteristics

1.1  Angular contact ball bearing

Angular contact ball bearings are non-separable bearings with a defined contact angle in the radial direction relative to the straight line that runs through the point where each ball makes contact with the inner and outer rings (see Fig. 1). Table 1 provides information on contact angles and their designated codes.

In addition to radial loads, angular contact ball bearings can accommodate single direction axial loads. Since an axial load is generated from a radial force, these bearings are generally used in pairs. Table 2 shows general angular contact ball bearing characteristics, Table 3 shows information on using duplex (side by side) angular contact ball bearings, and Table 4 shows information on multiple-row angular contact ball bearings.

For bearings with a contact angle of 15° and bearing tolerance JIS Class 5 or higher, see special catalog “Precision rolling bearings (CAT. No. 2260/E)”.





1.2  Four-point angular contact ball bearings


Four-point angular contact ball bearings have a contact angle of 30° and a split inner ring. As shown in Fig. 2, when the inner and outer rings receive a radial load, the ball contacts the inner and outer rings at four points. This construction enables a single bearing to accommodate axial loads from either direction, and when under a simple axial load or heavy axial load, the bearing relies on two contact points like ordinary bearings.




1.3  Double row angular contact ball bearings

The structure of double row angular contact ball bearings is designed by arranging two single row angular contact bearings back-to-back in duplex (DB) to form a single bearing with a contact angle of 25°.
These bearings are capable of accommodating radial loads, axial loads in either direction, and have a high capacity for moment loads.
As shown in Fig. 4, sealed and shielded type double row angular contact ball bearings are also available. Standard loads vary from those of open type bearings.








Product form

Item # d D B r Static Load Rating Dynamic Load Rating  5310 1.9685 in 50.000 mm 4.3307 in 110.000... Read more

SKU: 5310

$54.79 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Oct 09, 2024 17:00:00 +0900

    Description





    Item # d D B r Static Load Rating Dynamic Load Rating
     5310 1.9685 in
    50.000 mm
    4.3307 in
    110.000 mm
    1.7480 in
    44.400 mm
    0.0787 in
    2.000 mm
    13800 lbf
    61500 N
    61.50 kN
    18300 lbf
    81500 N
    81.50 kN





    Angular Contact Ball Bearings




    1. Design features and characteristics

    1.1  Angular contact ball bearing

    Angular contact ball bearings are non-separable bearings with a defined contact angle in the radial direction relative to the straight line that runs through the point where each ball makes contact with the inner and outer rings (see Fig. 1). Table 1 provides information on contact angles and their designated codes.

    In addition to radial loads, angular contact ball bearings can accommodate single direction axial loads. Since an axial load is generated from a radial force, these bearings are generally used in pairs. Table 2 shows general angular contact ball bearing characteristics, Table 3 shows information on using duplex (side by side) angular contact ball bearings, and Table 4 shows information on multiple-row angular contact ball bearings.

    For bearings with a contact angle of 15° and bearing tolerance JIS Class 5 or higher, see special catalog “Precision rolling bearings (CAT. No. 2260/E)”.





    1.2  Four-point angular contact ball bearings


    Four-point angular contact ball bearings have a contact angle of 30° and a split inner ring. As shown in Fig. 2, when the inner and outer rings receive a radial load, the ball contacts the inner and outer rings at four points. This construction enables a single bearing to accommodate axial loads from either direction, and when under a simple axial load or heavy axial load, the bearing relies on two contact points like ordinary bearings.




    1.3  Double row angular contact ball bearings

    The structure of double row angular contact ball bearings is designed by arranging two single row angular contact bearings back-to-back in duplex (DB) to form a single bearing with a contact angle of 25°.
    These bearings are capable of accommodating radial loads, axial loads in either direction, and have a high capacity for moment loads.
    As shown in Fig. 4, sealed and shielded type double row angular contact ball bearings are also available. Standard loads vary from those of open type bearings.
