Description
CKD R3100-10-W — Reverse Regulator, genuine CKD product.
Overview
A reverse regulator is a pressure-reducing valve built for installations where air must be able to flow back from the outlet to the inlet side. This CKD unit holds a stable secondary pressure for cylinders and tools while allowing residual pressure to exhaust upstream when supply is shut off. It is used in pneumatic circuits that need fast, reliable depressurization of downstream equipment.
Key Features
- Maintains steady secondary pressure despite supply fluctuations
- Allows reverse flow for exhausting downstream air
- Knob adjustment with optional pressure gauge port
- Fits modular F.R.L. lines in the same size class
Specifications
| Part No. |
Max. Operating Pressure (MPa) |
Fluid |
Accessories |
Thread Type |
Relief |
Operating Temp. Range (˚C) |
Set Pressure Range (MPa) |
Port Size (Rc) |
Pressure Gauge |
Mass (kg) |
Flow Direction |
| R3100-10-W |
1 |
Compressed air |
Pressure gauge, nut for panel mount |
Rc |
With relief mechanism |
5～60 |
0.05～0.85 |
3/8 |
With standard pressure gauge (G401-W) |
0.45 |
Standard flow (left→right) |
How to Order
Confirm port size and thread type, set pressure range, flow direction and whether a gauge is required. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

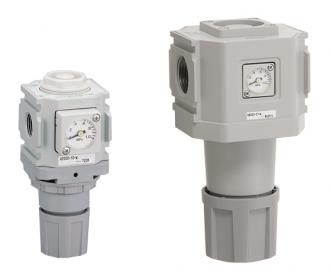

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
