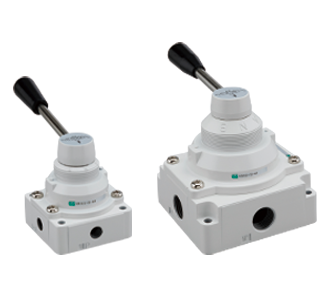

CKD HSVEC-15-4H — Manual Selector Valve HSVE Series, genuine CKD product.OverviewThe CKD HSVE Series manual selector valve switches or shuts off air flow by hand operation. Turning or shifting the handle changes the internal flow path, letting operators select supply or exhaust without electrical controls. It is used on machine air supplies, test equipment, maintenance isolation points and simple manually controlled pneumatic circuits.Key Features Manual operation, no power needed Clear position indication Threaded ports for piping Specifications Part No. Port Size Mass (g) Type Enclosure Protection No. of Ports Max. Operating Pressure (MPa) Thread Type Fluid Piping Fluid Temp. (℃) Min. Operating Pressure (MPa) Operating Angle (°) HSVEC-15-4H Rc1/2 1100 Standard type Dustproof 4 ports 1 Rc Compressed air Horizontal piping 5～50 0.05 90 How to OrderConfirm port size, number of positions and handle type. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD BNE-8P10R — Air Blow Nozzle (Energy Saving Type) BNE Series, genuine CKD product.OverviewThe CKD BNE Series energy-saving air blow nozzle is designed to deliver effective blowing force while reducing compressed air consumption. The nozzle geometry entrains surrounding air to amplify the flow leaving the tip. It is used for blowing off chips, dust and water on machine tools, conveyors and cleaning or drying stations.Key Features Reduces compressed air consumption Effective blowing force Threaded connection for easy installation Specifications Part No. Shape Type Heat Resistance Temp. (℃) Hole Diameter (Ømm) Air Consumption (L/min ANR) Port Size No. of Holes Max. Operating Pressure (MPa) Material Mass (g) BNE-8P10R Round type Energy-saving type 60 1 245 R1/4 8 0.7 Resin (PP) 2 How to OrderSelect the nozzle size and connection thread for your application. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

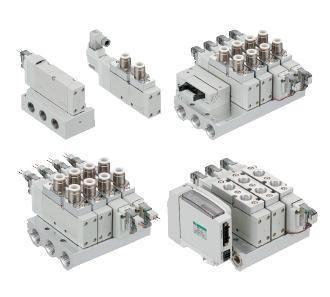

CKD 4GB420R-15-B-3 — Pilot Operated 5-Port Valve, Base Piping, 2-Position Double, genuine CKD product.OverviewThis CKD pilot-operated 5-port valve uses base piping and a 2-position double solenoid configuration. A momentary signal to either coil shifts the spool, and the valve holds its position when power is removed. It is used for cylinders that must maintain position on signal loss.Key Features 2-position double solenoid holds last position Base piping for easy maintenance Pilot-operated spool Manifold-ready Specifications Part No. Options Port Size Type Valve Specification Voltage (V) Enclosure Protection Power Consumption (W) Max. Operating Pressure (MPa) Fluid Fluid Temp. (℃) Min. Operating Pressure (MPa) Heat Resistance Class 4GB420R-15-B-3 サ-ジキラ-・ランプ付(ランプは端子箱に付属) [P, R1, R2 ports] Rc1/2 Single valve Pilot Soft spool valve DC24 Jet-proof type (IP65 equivalent) 0.4 0.7 Compressed air 5～55 0.2 How to OrderSpecify valve size, port size, manifold base and coil voltage. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD BNE-8P10F — Air Blow Nozzle (Energy Saving Type) BNE Series, genuine CKD product.OverviewThe CKD BNE Series energy-saving air blow nozzle is designed to deliver effective blowing force while reducing compressed air consumption. The nozzle geometry entrains surrounding air to amplify the flow leaving the tip. It is used for blowing off chips, dust and water on machine tools, conveyors and cleaning or drying stations.Key Features Reduces compressed air consumption Effective blowing force Threaded connection for easy installation Specifications Part No. Shape Air Consumption (L/min ANR) Mass (g) Material Hole Diameter (Ømm) Max. Operating Pressure (MPa) No. of Holes Heat Resistance Temp. (℃) Type Port Size BNE-8P10F Flat type (42mm) 440 9 Resin (PPS) 1 0.7 16 120 Energy-saving type R1/4 How to OrderSelect the nozzle size and connection thread for your application. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

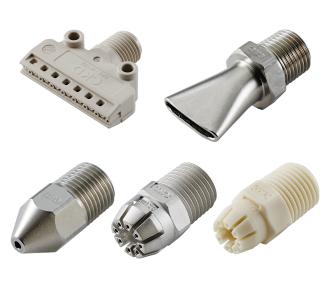

CKD BNB — Air Blow Nozzle (Blower Type) BNB Series, genuine CKD product.OverviewThe CKD BNB series is an air blow nozzle of blower type that produces a directed air stream for cleaning, cooling or drying. It is installed on blow lines or guns. It is used for removing chips, water and dust from workpieces. Nozzle design helps concentrate the air flow on the target area.Key Features Directed air stream for blowing tasks Compact nozzle for blow lines Push-in or threaded connections Suitable for cleaning and drying Specifications Part No. Shape Dimensions (mm) Air Consumption (L/min ANR) Mass (g) Type Material Heat Resistance Temp. (℃) Max. Operating Pressure (MPa) Port Size BNB-6S15T Fan type 13×1.5 (hole) 736(0.3MPa)/0.17(20kPa) 10 Blow specification Metal (stainless steel 304) 400 0.7 R1/8 BNB-8S15T Fan type 17×1.5 (hole) 1016(0.3MPa)/0.24(20kPa) 16 Blow specification Metal (stainless steel 304) 400 0.7 R1/4 How to OrderCheck tube or port size and required flow. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD SW-T — Cylinder Switch T Series, Reed 2-Wire, genuine CKD product.OverviewThe CKD T Series reed 2-wire cylinder switch senses piston position in magnet-equipped pneumatic cylinders. It provides a contact signal to controllers for confirming stroke end positions. It is used throughout automated assembly and handling equipment. The switch is fixed with a band or rail mount so the detection point can be adjusted along the cylinder body as needed.Key Features Reed switch detects piston magnet position 2-wire connection for simple wiring LED indicator for status checks Various lead wire lengths available Specifications Part No. Leakage Current (mA) Ambient Temp. (℃) Lead Wire (m) Indicator Lamp Internal Voltage Drop (V) Lead Wire Exit Direction Enclosure Protection Wiring Method Type View SW-T0H 0 -10～+60 1 (oil-resistant vinyl cabtire cord 2-core 0.2mm2) Red LED (lights when ON) 3 or less (for DC, at load current 30mA) Straight type IEC standard IP67, JIS C0920 (immersion-proof), oil-resistant 2-wire type Contact type Single-color indicator type SW-T0H3 0 -10～+60 3 (oil-resistant vinyl cabtire cord 2-core 0.2mm2) Red LED (lights when ON) 3 or less (for DC, at load current 30mA) Straight type IEC standard IP67, JIS C0920 (immersion-proof), oil-resistant 2-wire type Contact type Single-color indicator type SW-T0H5 0 -10～+60 5 (oil-resistant vinyl cabtire cord 2-core 0.2mm2) Red LED (lights when ON) 3 or less (for DC, at load current 30mA) Straight type IEC standard IP67, JIS C0920 (immersion-proof), oil-resistant 2-wire type Contact type Single-color indicator type SW-T0V 0 -10～+60 1 (oil-resistant vinyl cabtire cord 2-core 0.2mm2) Red LED (lights when ON) 3 or less (for DC, at load current 30mA) L-type IEC standard IP67, JIS C0920 (immersion-proof), oil-resistant 2-wire type Contact type Single-color indicator type SW-T8H 0 -10～+60 1 (oil-resistant vinyl cabtire cord 2-core 0.3mm2) Red LED (lights when ON) 4 or less Straight type IEC standard IP67, JIS C0920 (immersion-proof), oil-resistant 2-wire type Contact type Single-color indicator type How to OrderCheck cylinder compatibility, operating voltage and lead wire length. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD SW-T2 — Cylinder Switch T Series, Solid State 2-Wire, genuine CKD product.OverviewThe CKD T Series cylinder switch is a solid-state 2-wire sensor mounted on a pneumatic cylinder to detect piston position via a magnet. It provides a signal to a PLC or controller when the piston reaches a set point. Solid-state switches offer long life and fast response compared with reed types.Key Features Solid-state sensing with no moving contacts 2-wire connection simplifies wiring LED indicator for switching status Mounts on compatible cylinder grooves Specifications Part No. Wiring Method Lead Wire Exit Direction Indicator Lamp Internal Voltage Drop (V) Lead Wire (m) View Load Current (mA) Ambient Temp. (℃) Enclosure Protection Leakage Current (mA) Type SW-T2H 2-wire type Straight type Red LED (lights when ON) 4 or less 1 (oil-resistant vinyl cabtire cord 2-core 0.2mm2) Single-color indicator type 5~20 (load voltage: DC10~30V) -10～+60 IEC standard IP67, JIS C0920 (immersion-proof), oil-resistant 1 or less Contactless SW-T2H3 2-wire type Straight type Red LED (lights when ON) 4 or less 3 (oil-resistant vinyl cabtire cord 2-core 0.2mm2) Single-color indicator type 5~20 (load voltage: DC10~30V) -10～+60 IEC standard IP67, JIS C0920 (immersion-proof), oil-resistant 1 or less Contactless SW-T2V 2-wire type L-type Red LED (lights when ON) 4 or less 1 (oil-resistant vinyl cabtire cord 2-core 0.2mm2) Single-color indicator type 5~20 (load voltage: DC10~30V) -10～+60 IEC standard IP67, JIS C0920 (immersion-proof), oil-resistant 1 or less Contactless How to OrderCheck cylinder compatibility, cable length, connection type and operating voltage. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD SW-T3H — Cylinder Switch T Series, Solid State 3-Wire NPN, genuine CKD product.OverviewThe CKD T Series cylinder switch is a solid-state sensor that detects the magnet on a pneumatic cylinder piston through the cylinder wall. When the piston reaches the switch position, the 3-wire NPN output turns on and signals a PLC or controller. It is used for stroke-end confirmation and sequence control in automated machines.Key Features Solid-state switch with no mechanical contacts 3-wire NPN output for PLC input Mounts on cylinders with magnet pistons Specifications Part No. Leakage Current (μA) Enclosure Protection Indicator Lamp Lead Wire (m) Power Consumption (mA) Wiring Method Internal Voltage Drop (V) View Supply Voltage (V) Load Current (mA) Ambient Temp. (℃) SW-T3H 10 or less IEC standard IP67, JIS C0920 (immersion-proof), oil-resistant Red LED (lights when ON) 1 (oil-resistant vinyl cabtire cord 3-core 0.2mm2) 10 or less at DC24V 3-wire type 0.5 or less Single-color indicator type DC10～28 100 or less (load voltage: DC30V or less) -10～+60 How to OrderConfirm output type, lead length and compatibility with your cylinder. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

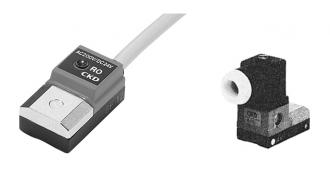

CKD SW-R0 — Cylinder Switch R Series, Reed 2-Wire, genuine CKD product.OverviewThe CKD R series reed switch is a 2-wire cylinder switch that detects the magnet in a cylinder piston. It provides a signal to controllers to confirm cylinder position. It is used with switch-ready cylinders on automation equipment. Reed switches are simple, economical sensors that require no separate power circuit in 2-wire form.Key Features Reed contact for magnetic piston detection 2-wire connection Compact size for cylinder grooves Indicator lamp on many models Specifications Part No. Lead Wire Exit Direction Leakage Current (mA) Compatible Cylinder View Enclosure Protection Lead Wire (m) Type Ambient Temp. (℃) Internal Voltage Drop (V) Indicator Lamp Wiring Method SW-R0 Straight type 0 GLC、HCA、MFC、SHC Single-color indicator type IEC standard IP67, JIS C0920 (immersion-proof), oil-resistant 1 (oil-resistant vinyl cabtire cord 2-core 0.3mm2) Contact type -10～+60 3.0 or less Red LED (lights when ON) 2-wire type How to OrderCheck compatible cylinder type, voltage and lead wire length. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

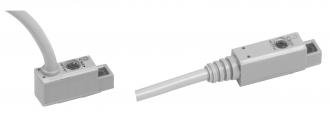

CKD SW-M0H — Cylinder Switch M Series, Reed 2-Wire, genuine CKD product.OverviewThe CKD M Series reed 2-wire cylinder switch detects the position of a magnet-equipped cylinder piston. When the piston magnet passes, the reed contact closes and sends a signal to a PLC or relay. It is used for end-of-stroke confirmation in pneumatic automation. Its slim housing fits into the switch rail of compatible cylinders.Key Features Reed contact actuated by piston magnet Simple 2-wire connection Indicator lamp for status Compact for mounting on cylinder rails Specifications Part No. Enclosure Protection Lead Wire (m) Type Internal Voltage Drop (V) Wiring Method View Leakage Current (mA) Ambient Temp. (℃) Indicator Lamp Lead Wire Exit Direction SW-M0H IEC standard IP67, JIS C0920 (immersion-proof), oil-resistant 1 (oil-resistant vinyl cabtire cord 2-core 0.2mm2) Contact type 3 or less 2-wire type Single-color indicator type 0 -10～+60 Red LED (lights when ON) Straight type How to OrderConfirm cylinder compatibility, voltage, lead wire length and connection type. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

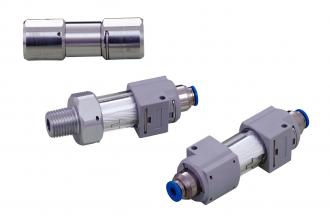

CKD FCS500-H6H6 — Inline Clean Filter FCS500 Series, Resin, genuine CKD product.OverviewThe CKD FCS500 inline clean filter has a resin body and is installed directly in tubing to remove fine particles from compressed air or gases just before the point of use. It is suited to clean applications in electronics, medical and precision equipment. It is often placed just before nozzles, sensors or pneumatic instruments that need clean air.Key Features Inline mounting directly in tubing Resin body for lightweight installation Removes fine particles near point of use Push-in tube connections Specifications Part No. Differential Pressure Resistance (MPa) Withstand Pressure (MPa) Operating Pressure (MPa) Mass (g) Cleaning Pipe Port Size Filtration Rating (㎛) Material (Case) Material (Element) Characteristics Flow Capacity (L/min[ANR]) Ambient and Fluid Temp. (℃) FCS500-H6H6 0.5 (0.2 when fluid/ambient temperature is 45~50℃) 1.5 -0.095～0.99 45 Degreased and cleaned (IN side) one-touch fitting Φ6, (OUT side) one-touch fitting Φ6 0.01 (removal efficiency 99.99%) Transparent polyamide Polypropylene + urethane (Assembly, inspection, packaging) integrated production in clean room 50 5～50 How to OrderConfirm tube diameter, filtration rating and flow requirement. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD SCA2-00-40B-50 — Selex Cylinder SCA2 Series (SCA2-00-), genuine CKD product.OverviewThe CKD SCA2 Series Selex cylinder is a standard tie-rod pneumatic cylinder used for general purpose linear motion. Compressed air moves a piston to extend and retract the rod, and cushions decelerate the stroke ends. It is widely applied in machinery for pushing, lifting and clamping.Key Features Tie-rod construction for durability Adjustable cushioning at stroke ends Many mounting styles available Wide range of bore sizes and strokes Specifications Part No. Max. Operating Pressure (MPa) Magnet Cushion Mass (kg) Effective Length (mm) Stroke (mm) Port Size Withstand Pressure (MPa) Fluid Lubrication Ambient Temp. (℃) Min. Operating Pressure (MPa) SCA2-00-40B-50 1.0 (Cylinder switch detection) yes With air cushion on both sides 1 (Air cushion) 14.6 50 Rc1/4 1.6 Compressed air Not required (when lubricating, use turbine oil class 1 ISO VG32) -10~60 (no freezing) 0.05 How to OrderSpecify bore size, stroke, mounting style and cushion or switch options. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

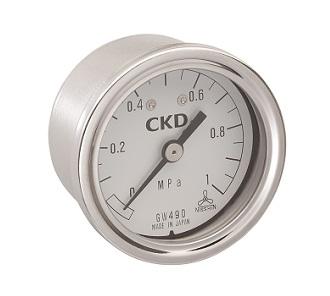

CKD GW49D-6-P10 — Pressure Gauge Outdoor Series GW49D, genuine CKD product.OverviewThe CKD GW49D is a pressure gauge built for outdoor use, offering weather-resistant construction for exposed pneumatic installations. It shows line pressure in outdoor equipment or utility lines. It suits construction, infrastructure and outdoor machinery. The large, readable dial helps operators verify pressure during routine inspections in all weather conditions.Key Features Weather-resistant construction for outdoor sites Clear dial for pressure reading Threaded connection Suitable for exposed air lines How to OrderCheck pressure range, connection thread and dial size. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD AF2-05P-FLA09029 — Medium Main Line Filter Element Kit, genuine CKD product.OverviewThis element kit is for medium main line filters from CKD, used to remove particulates and moisture from compressed air at the main supply. Replacing elements at the recommended interval keeps air clean and minimizes pressure drop across the system. Keeping a kit in stock shortens planned maintenance downtime.Key Features Replacement element for medium main line filters Supports high-flow main supply filtration Restores performance and lowers pressure drop Kit format simplifies maintenance Specifications Part No. Drain Port Size Compatible Part No. Fluid Initial Pressure Drop (MPa) Drain Discharge Steady-State Pressure Drop (MPa) Class Withstand Pressure (MPa) Compatible Compressor Port Size (Rc) Mass (kg) Set Contents AF2-05P-FLA09029 1/8 AF2-05P25A Compressed air 0.0055 Built-in (NO type: discharges when unpressurized) 0.0125 Part (element kit) 1.5 15kW～120kW 1 2.2 Element: 1 pc, element O-ring: 2 pcs, bowl O-ring: 1 pc How to OrderConfirm the filter model and filtration grade. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

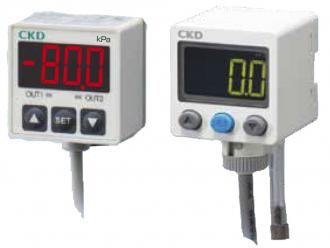

CKD PPG-C-PNA-6B — Electronic Pressure Sensor with Digital Display PPG-C, genuine CKD product.OverviewThe CKD PPG-C is an electronic pressure sensor with a digital display for monitoring air or gas pressure. It shows real-time pressure and provides switching or analog outputs for control systems. It is used to monitor supply pressure, vacuum level and process pressure on automation equipment.Key Features Digital display for clear pressure reading Switching and analog output options Compact body for panel or inline mounting Easy set-point configuration Specifications Part No. Sensor Type Power Supply (V) Type Port Size PPG-C-PNA-6B Pressure sensor DC12～24 Electronic pressure sensor Rc1/8 How to OrderChoose pressure range, output type, port size and connection method. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

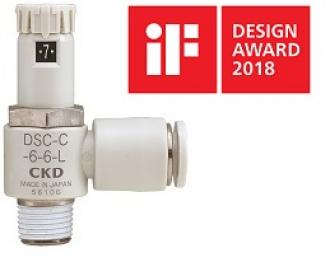

CKD DSC-C-M5-6 — Speed Controller with Dial (Compact Type), genuine CKD product.OverviewThe CKD DSC compact type speed controller with dial offers a scaled adjustment in a small body. It regulates cylinder speed by throttling air flow, with a check valve allowing free flow in reverse. The dial allows exact repeat of settings on small cylinders and compact machines.Key Features Compact body for small cylinders Dial scale for repeatable adjustment Built-in check valve Specifications Part No. Material (Body) Control Direction Body Shape Connection Method Thread Type Tube Outer Diameter (Ø) Port Size DSC-C-M5-6 Polybutylene terephthalate Meter-out Elbow M×tube OD M 6 M5 How to OrderSelect the port thread and tube diameter needed. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD 4GB — Pilot Operated 5-Port Pneumatic Valve, Base Piping 4GB, genuine CKD product.OverviewThe CKD 4GB is a pilot-operated 5-port solenoid valve designed for base piping, where air connections are made on a sub-base or manifold rather than the valve body. This allows the valve to be replaced without disturbing piping. It is used in manifold systems for automation equipment.Key Features Base piping simplifies valve replacement Pilot-operated spool Manifold-friendly design Multiple position types Specifications Part No. Vibration Resistance (m/s2) No. of Ports Heat Resistance Class Port Size Lubrication Vibration (m/s2) Max. Operating Pressure (MPa) No. of Positions Fluid Temp. (℃) Shock (m/s2) Enclosure Protection Min. Operating Pressure (MPa) Withstand Pressure (MPa) Atmosphere Ambient Temp. (℃) Type Proof Pressure (MPa) 4GB110R-06-E0-1 B Rc1/8 Not required 50 or less 2-position single 5～55 300 or less 0.2 Not usable in corrosive gas atmosphere Pilot operated soft spool valve 1.05 4GB119R-00-E2-3 5 4GB219R-00-A2NH-3 5 4GB219R-00-E00-3 5 4GB219R-00-E2A-3 5 4GB219R-00-E2H-1 50 or less B Not required 0.7 5～55 Dustproof 0.2 1.05 Not usable in corrosive gas atmosphere -5~55 (no freezing) Pilot operated soft spool valve 4GB220R-08-E21-3 5 4GB239R-00-B-1 5 4GB249R-00-E20H-3 5 4GB310R-10-B-3 5 How to OrderSpecify valve size, position type, base or manifold, and coil voltage. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

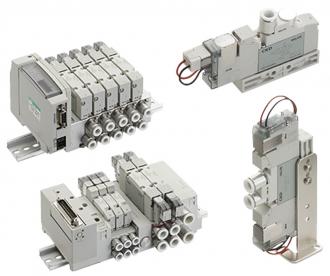

CKD 4GA — Pilot Operated 5-Port Pneumatic Valve, Direct Piping 4G, genuine CKD product.OverviewThe CKD 4G Series is a pilot operated 5-port solenoid valve with direct piping ports. Compact and lightweight, it switches compressed air to double-acting cylinders and can be mounted individually or on manifolds. It is used widely in automated assembly, packaging and material handling. Its slim width keeps manifolds compact.Key Features Direct piping with push-in or threaded ports Compact, lightweight body Individual or manifold mounting Multiple wiring and coil options Specifications Part No. Fluid Temp. (℃) No. of Ports Vibration Resistance (m/s2) Enclosure Protection Port Size Operating Pressure (MPa) Withstand Pressure (MPa) Pilot Exhaust Method Shock (Durability) (m/s2) Type Options Switching Position Type Atmosphere Rated Voltage (V) Fluid Ambient Temp. (℃) Model No. Wire Connection Method Valve Specification 4GA119R-C4-A2NH-3 5 50 or less Φ4 one-touch fitting 1.05 Main valve / pilot valve common exhaust type Non-locking / locking dual manual device 2-position single DC24 Compressed air -5~55 (no freezing) A-type connector 4GA119R-C4-E2H-3 5～55 5 Φ4 one-touch fitting 0.2～0.7 1.05 Main valve / pilot valve common exhaust type 300 or less Single valve direct piping (for base mounting) With exhaust malfunction prevention valve Not usable in corrosive gas atmosphere 4GA1 4GA210R-C6-3 5 50 or less Dustproof 0.2～0.7 1.05 300 or less 2-position single Not usable in corrosive gas atmosphere DC24 Compressed air -5~55 (no freezing) 4GA2 4GA219R-C6-E0-3 5～55 5 50 or less Dustproof Main valve / pilot valve common exhaust type 300 or less Single valve direct piping (for base mounting) Non-locking / locking dual manual device Not usable in corrosive gas atmosphere Compressed air 4GA2 E-type connector (top/side direction shared) 4GA219R-C6-E2-1 5～55 50 or less Φ6 one-touch fitting 1.05 Main valve / pilot valve common exhaust type 300 or less Non-locking / locking dual manual device 2-position single Compressed air 4GA2 E-type connector (top/side direction shared), with surge killer and lamp Pilot operated soft spool valve How to OrderSpecify port size, number of positions, coil voltage and wiring type. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD 3GA110R-M5-3 — Pilot Operated 3-Port Pneumatic Valve, Direct Piping 3G, genuine CKD product.OverviewThe CKD 3G Series is a pilot-operated 3-port pneumatic valve for direct piping, used to supply and exhaust air for single-acting cylinders and air blow. Pilot operation keeps coil power low while handling moderate flows. It is widely used in general automation equipment. Its compact width allows several valves to be mounted close together on equipment.Key Features Pilot-operated 3-port valve Direct piping connection to body ports Low power coil Compact body for machine mounting Specifications Part No. Max. Operating Pressure (MPa) Manual Override Atmosphere Rated Voltage Fluctuation Range Fluid Proof Pressure (MPa) Pilot Exhaust Method Enclosure Protection Lubrication Min. Operating Pressure (MPa) Fluid Temp. (℃) Shock (m/s2) 3GA110R-M5-3 0.7 Non-locking / locking dual type Not usable in corrosive gas atmosphere ±10% Compressed air 1.05 Main valve / pilot valve common exhaust type Dustproof Not required 0.2 5～55 300 or less How to OrderCheck port size, coil voltage, normally closed/open function and electrical connection. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD STS-M-16-20 — STS Series Guided Cylinder (STS-M-), genuine CKD product.OverviewThe CKD STS-M Series guided cylinder uses slide bearings for the guide rods, offering high resistance to lateral loads and impact. The guided design prevents rod rotation and maintains accuracy under load. It is suited to stoppers and pushers on conveyor lines where loads can be heavy.Key Features Slide bearing guides for high load resistance Non-rotating guided motion Compact integrated body Specifications Part No. Operation Type Stroke (mm) Tube Inner Diameter (Ømm) STS-M-16-20 Double acting, single rod type 20 16 How to OrderSpecify bore size, stroke and switch options. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD STS-B-12-10 — STS Series Guided Cylinder (STS-B-), genuine CKD product.OverviewThe CKD STS-B Series guided cylinder combines a pneumatic cylinder with two guide rods running in ball bushings. The guides resist rotation and side loads, giving smooth, accurate linear motion with low sliding resistance. It is used for stoppers, lifters, pushers and transfer units on conveyors and automated assembly equipment.Key Features Ball bushing guides for smooth motion Resists side load and rotation Compact integrated mounting Various bore sizes and strokes Specifications Part No. Tube Inner Diameter (Ømm) Stroke (mm) Operation Type STS-B-12-10 12 10 Double acting, single rod type How to OrderSpecify bore size, stroke and any cylinder switch requirement. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD L3000-BOWL — L3000 Series Lubricator White Series, genuine CKD product.OverviewThis is a replacement bowl for the CKD L3000 White Series lubricator. The bowl holds lubricating oil and allows the level to be checked visually. Replace when cracked, clouded or damaged by chemicals. Keeping a spare bowl in stock allows quick recovery if the original is damaged during operation or maintenance.Key Features Fits L3000 White Series lubricators Transparent for oil level checking Restores safe operation Straightforward replacement Specifications Part No. Class L3000-BOWL Part How to OrderConfirm the lubricator model is L3000 before ordering. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

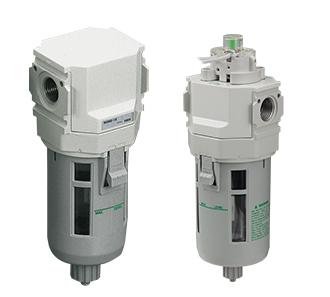

CKD M3000 — M3000 Series Oil Mist Filter White Series, genuine CKD product.OverviewThis item is a replacement component for the CKD M3000 Series oil mist filter in the White Series range. The mantle assembly or kit restores the filter's ability to coalesce and remove oil mist from compressed air. It supports clean air requirements in painting, food and instrumentation applications.Key Features Replacement mantle or kit for M3000 filters Removes fine oil mist from compressed air Restores filtration performance Supports routine maintenance Specifications Part No. Type Class Part Name Set Contents M3000-KIT Part Oil mist filter consumables kit M3000-KIT-X Part Oil mist filter consumables kit M3000-MANTLE-ASSY M type Part Oil mist filter mantle O-ring, mantle M3000-MANTLE-ASSY-S Part Oil mist filter mantle How to OrderConfirm the filter series and the specific spare kit required. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD SSD-K-32K — SSD Series Super Compact Cylinder (SSD-K-), genuine CKD product.OverviewThis CKD SSD-K variant is a super compact cylinder with a short body for limited installation spaces. It provides pushing, clamping and positioning for jigs and assembly equipment. The K designation identifies a specific version in the SSD family with defined mounting and switch options.Key Features Short overall length Suitable for jigs and fixtures Switch mountable versions Range of bores and strokes Specifications Part No. Operation Type Class Tube Inner Diameter (Ømm) SSD-K-32K Double acting type Part 32 How to OrderSpecify bore, stroke and the exact SSD-K variation required. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD F2000-ELEMENT — F2000 Series Air Filter, genuine CKD product.OverviewThis item is a replacement element for the CKD F2000 Series air filter, a compact to mid-size filter for machine air preparation. Replacing the element at regular intervals restores filtration efficiency and keeps pressure drop low. It helps maintain a clean compressed air supply to valves, cylinders and other pneumatic components on the line.Key Features Designed for F2000 filter bodies Simple drop-in replacement Restores filtration performance Specifications Part No. Part Name Class F2000-ELEMENT Filter element Part How to OrderConfirm the filter model and filtration rating before ordering. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

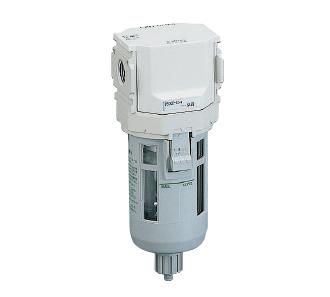

CKD F1000 — F1000 Series Air Filter, genuine CKD product.OverviewThese are replacement parts for the CKD F1000 series air filter, including element assemblies and bowls. Regular element replacement maintains filtration efficiency and low pressure drop. Bowls are replaced when damaged or contaminated. Using genuine parts keeps the filter matched to its original specifications and helps prevent leaks.Key Features Dedicated to F1000 filters Element assembly restores performance Replacement bowl option Easy maintenance Specifications Part No. Class Part Name F1000-ELEMENT-ASSY Part Filter element F1000-W-BOWL Part How to OrderConfirm the filter model and choose element or bowl. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD 4K9-111 — 4KA, genuine CKD product.OverviewThe CKD 4KA Series is a pilot operated 5-port solenoid valve used to drive double-acting cylinders in general automation. It can be mounted individually or on manifolds, with a range of electrical connection styles. Compact dimensions and good flow make it a common choice for machine builders.Key Features Individual or manifold mounting options Multiple electrical connection styles Manual override for commissioning AC or DC coil variants Specifications Part No. Class No. of Ports 4K9-111 Part 5 How to OrderSpecify valve size, port size, coil voltage, wiring option and number of positions. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

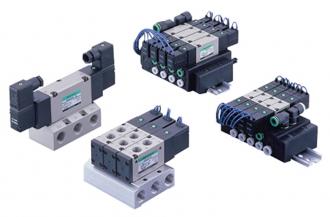

CKD 4KB329-00 — 4KB Series Pneumatic Pilot 5-Port Valve, genuine CKD product.OverviewThe 4KB Series pneumatic pilot 5-port valve from CKD switches air to double-acting cylinders using an air signal or solenoid pilot. Built for reliable switching in general automation, it supports a range of port sizes and mounting configurations, including manifold use. Spool construction gives consistent response over long service lives.Key Features Pilot operated spool for reliable switching Manifold and individual mounting options Manual override for setup Range of port sizes Specifications Part No. No. of Ports Fluid Rated Voltage (V) 4KB329-00-LS-AC100V 5 Compressed air AC100 4KB329-00-M1LS-AC100V 5 Compressed air AC100 How to OrderConfirm port size, pilot type, coil voltage and mounting style. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD N4E040-C6-E-3 — 4E Series Wire-Saving Block Manifold, Pilot Operated, genuine CKD product.OverviewThe CKD 4E Series is a wire-saving block manifold for pilot-operated solenoid valves, combining multiple valves on one base with consolidated wiring. Serial or multi-pin connections reduce wiring effort and panel space. It is used on machines with many actuators, such as packaging and assembly lines.Key Features Block manifold mounting multiple valves Consolidated wiring reduces installation effort Pilot-operated valves for efficient switching Flexible number of valve stations How to OrderConfirm number of stations, valve functions, port size and electrical connection type. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD 4KB219-00 — 4KA, genuine CKD product.OverviewThe CKD 4KA Series is a pilot operated 5-port solenoid valve used to drive double-acting cylinders in general automation. It can be mounted individually or on manifolds, with a range of electrical connection styles. Compact dimensions and good flow make it a common choice for machine builders.Key Features Individual or manifold mounting options Multiple electrical connection styles Manual override for commissioning AC or DC coil variants Specifications Part No. Fluid Fluid Temp. (℃) Type Rated Voltage (V) Temperature Rise No. of Ports Response Time 4KB219-00-AC200V Compressed air AC200 5 4KB219-00-B-AC200V 5～50 Solenoid valve single unit for manifold 43℃ 5 30ms or less 4KB219-00-C2-AC100V Compressed air AC100 5 4KB219-00-DC24V Compressed air DC24 5 4KB219-00-K-AC100V Compressed air AC100 5 4KB219-00-L-AC100V Compressed air AC100 5 4KB219-00-L-DC24V Compressed air DC24 5 4KB219-00-M1L-DC24V Compressed air DC24 5 How to OrderSpecify valve size, port size, coil voltage, wiring option and number of positions. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD 4KB11 — 4KA, genuine CKD product.OverviewThe CKD 4KA Series is a pilot operated 5-port solenoid valve used to drive double-acting cylinders in general automation. It can be mounted individually or on manifolds, with a range of electrical connection styles. Compact dimensions and good flow make it a common choice for machine builders.Key Features Individual or manifold mounting options Multiple electrical connection styles Manual override for commissioning AC or DC coil variants Specifications Part No. No. of Ports Rated Voltage (V) Max. Operating Pressure (MPa) Starting Current (A) Thread Type Min. Operating Pressure (MPa) Temperature Rise Port Size Voltage (V) Response Time Power Consumption (W) Holding Current (A) Type Heat Resistance Class Fluid Temp. (℃) Fluid 4KB110-06-D3-DC24V 5 DC24 Rc Rc1/8 Compressed air 4KB119-00-AC100V 5 0.7 0.056/0.044 0.15 43℃ AC100(50/60Hz) 30ms or less 1.8 1.4 (with lamp 1.8 1.5) 0.028/0.022 Solenoid valve single unit for manifold B (molded coil) 4KB119-00-AC200V 5 0.7 0.15 43℃ AC200(50/60Hz) 30ms or less 1.8 1.4 (with lamp 1.8 1.5) 0.014/0.011 Solenoid valve single unit for manifold B (molded coil) 4KB119-00-C2-DC24V 5 0.7 0.15 43℃ DC24 30ms or less 1.8 (with lamp 2.0) 0.075 Solenoid valve single unit for manifold B (molded coil) 5～50 Compressed air 4KB119-00-DC24V 5 0.7 0.15 43℃ DC24 30ms or less 1.8 (with lamp 2.0) 0.075 Solenoid valve single unit for manifold B (molded coil) 5～50 Compressed air How to OrderSpecify valve size, port size, coil voltage, wiring option and number of positions. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD SCM-Y-25 — SCM Series Super Micro Cylinder (SCM-Y), genuine CKD product.OverviewThe CKD SCM Series super micro cylinder is a compact round-body pneumatic cylinder for small loads. This SCM-Y listing covers a rod-end accessory such as a knuckle used to link the cylinder to its load. Super micro cylinders are used on small machines, jigs and automated devices.Key Features Accessory for SCM cylinder rod ends Simplifies connection to levers and mechanisms Matched to specific bore sizes Specifications Part No. Operation Type Tube Inner Diameter (Ømm) Class SCM-Y-25 Single acting, retract type 25 Part How to OrderConfirm the cylinder bore size and the rod end thread. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD GWJL — New Joint Mini Type, Elbow, genuine CKD product.OverviewThis CKD New Joint mini elbow is a compact push-in fitting that turns tubing 90 degrees at small ports. It allows tight routing in small pneumatic devices. Push-in connection simplifies installation and maintenance. Mini fittings are popular on compact valves, small cylinders and vacuum pads where space is very limited.Key Features Compact elbow for small ports Push-in tube connection Rotatable body for routing Small thread sizes Specifications Part No. Fluid Port Size Mass (g) Shape Material (Threaded Part) Thread Type Material (Packing) Max. Operating Pressure (MPa) Fluid Temp. (℃) Applicable Pipe O.D. (Ømm) Material (Body) GWJL4-M3 Compressed air M3 4.0 Elbow Brass M Nitrile rubber 1 -10~60 (no freezing) 4 Polybutylene terephthalate GWJL6-M5 Compressed air M5 7.0 Elbow Brass M Nitrile rubber 1 -10~60 (no freezing) 6 Polybutylene terephthalate How to OrderSpecify tube outside diameter and port thread size. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD SCM-40BK — SCM Series Super Micro Cylinder (SCM-4), genuine CKD product.OverviewThe SCM Series super micro cylinder from CKD is a very small pneumatic cylinder for light-duty, precise movements. It is used in electronics assembly, medical devices and small automation where space and weight are constrained. Its low weight also makes it suitable for mounting on moving heads and small robot tooling where every gram counts.Key Features Very small bore and lightweight body Suited to light-load precision motion Multiple mounting options Cylinder switch compatible versions Specifications Part No. Operation Type Tube Inner Diameter (Ømm) Class SCM-40BK Double acting type 40 Part How to OrderCheck bore, stroke, mounting style and switch requirement. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD SCM-32BK — SCM Series Super Micro Cylinder (SCM-3), genuine CKD product.OverviewThe CKD SCM Series super micro cylinder is a small-bore, lightweight cylinder for compact equipment. It is used for light pushing, positioning and stopping where minimal space and weight are critical. Common in electronics assembly and small automation modules. The very short stroke options suit gentle pushing of light parts and small positioning tasks.Key Features Small bore and lightweight body Compact for miniature equipment Switch mounting available on many models Range of stroke options Specifications Part No. Tube Inner Diameter (Ømm) Class Operation Type SCM-32BK 32 Part Double acting type How to OrderCheck bore, stroke, mounting type and cushion requirements. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD STS-B-25-25 — STS Series Guided Cylinder (STS-B-), genuine CKD product.OverviewThe CKD STS-B Series guided cylinder combines a pneumatic cylinder with two guide rods running in ball bushings. The guides resist rotation and side loads, giving smooth, accurate linear motion with low sliding resistance. It is used for stoppers, lifters, pushers and transfer units on conveyors and automated assembly equipment.Key Features Ball bushing guides for smooth motion Resists side load and rotation Compact integrated mounting Various bore sizes and strokes Specifications Part No. Tube Inner Diameter (Ømm) Stroke (mm) Operation Type STS-B-25-25 25 25 Double acting, single rod type How to OrderSpecify bore size, stroke and any cylinder switch requirement. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD STS-32K — STS Series Guided Cylinder (STS-32), genuine CKD product.OverviewThe CKD STS series guided cylinder, in this case 32 mm bore, integrates guide rods for anti-rotation and side-load support. It enables direct mounting of jigs or stoppers on the plate. It is common on transfer and assembly equipment. Guided cylinders reduce the need for separate linear guides and simplify machine design.Key Features Integrated guide rods Anti-rotation function Mounting plate for tools Position sensing options Specifications Part No. Operation Type Tube Inner Diameter (Ømm) Class STS-32K Double acting type 32 Part How to OrderConfirm bore, stroke, guide type and switch requirements. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD STS-32CK — STS Series Guided Cylinder (STS-32), genuine CKD product.OverviewThe CKD STS series guided cylinder, in this case 32 mm bore, integrates guide rods for anti-rotation and side-load support. It enables direct mounting of jigs or stoppers on the plate. It is common on transfer and assembly equipment. Guided cylinders reduce the need for separate linear guides and simplify machine design.Key Features Integrated guide rods Anti-rotation function Mounting plate for tools Position sensing options Specifications Part No. Operation Type Class Tube Inner Diameter (Ømm) STS-32CK Double acting type Part 32 How to OrderConfirm bore, stroke, guide type and switch requirements. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD STS-20K — STS Series Guided Cylinder (STS-20), genuine CKD product.OverviewThe STS Series is a CKD guided cylinder that combines a pneumatic cylinder with guide rods for precise, rigid linear motion. The guides resist side loads and rotation, making it suitable for pushing, lifting and stopping workpieces on conveyors and assembly equipment. Several mounting faces allow it to be fixed from the top, side or bottom of a machine.Key Features Integrated guide rods resist side loads Non-rotating rod for accurate positioning Compact body with multiple mounting faces Cylinder switch compatible Specifications Part No. Operation Type Tube Inner Diameter (Ømm) Class STS-20K Double acting type 20 Part How to OrderSpecify bore, stroke, bearing type and switch requirements. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD STR2 — STR2 Series Super Twin Rod Cylinder, genuine CKD product.OverviewThe CKD STR2 Series super twin rod cylinder has two parallel piston rods, giving non-rotating motion and better resistance to lateral loads than a single-rod cylinder. It suits guiding, pushing and lifting tasks where a separate guide would otherwise be needed. Applications include assembly, packaging and transfer equipment.Key Features Twin rods provide anti-rotation function Improved resistance to side loads Compact body for direct mounting Switch mounting options Specifications Part No. Stroke (mm) Operation Type Class Tube Inner Diameter (Ømm) STR2-20K Double acting type Part 20 STR2-M-16-30 30 Double acting, standard type 16 STR2-M-16-30-F 30 Double acting, standard type 16 STR2-M-20-80 80 Double acting, standard type 20 STR2-M-20-80-F 80 Double acting, standard type 20 How to OrderSelect bore, stroke, mounting and switch requirements. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD STS-25K — STS Series Guided Cylinder (STS-25), genuine CKD product.OverviewThis listing covers a repair kit for the CKD STS-25 guided cylinder. The STS Series combines a cylinder with guide rods for non-rotating, rigid motion, and the kit renews seals and wear parts. Guided cylinders are used for pushing, lifting and stopping in conveyor and assembly lines.Key Features Replacement seals for STS-25 cylinders Restores sealing and smooth operation Extends the life of existing cylinders Specifications Part No. Class Tube Inner Diameter (Ømm) Operation Type STS-25K Part 25 Double acting type How to OrderConfirm the bore size, guide bearing type and model of the cylinder. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD STG-16K — STG Series Guided Cylinder (STG-16), genuine CKD product.OverviewThe CKD STG series is a guided cylinder combining a pneumatic cylinder with guide rods for precise linear motion. This model is the 16 mm bore size. It is used for lifting, pushing and stopping on conveyors and assembly lines. The guides allow tooling to be attached directly without an external slide.Key Features Guide rods for side-load resistance Compact body with integrated guides Plate for direct tooling mount Switch mounting available Specifications Part No. Class Tube Inner Diameter (Ømm) Operation Type STG-16K Part 16 Double acting type How to OrderSpecify bore, stroke, bearing type and switch needs. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

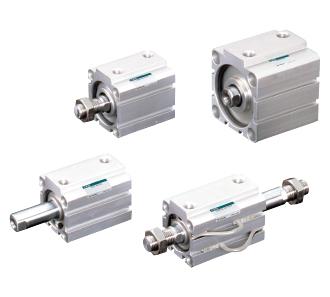

CKD SSD-KL-20-50-N — SSD Series Super Compact Cylinder (SSD-KL), genuine CKD product.OverviewThe SSD Series super compact cylinder from CKD packs a full pneumatic stroke into a short body, ideal for limited spaces. The SSD-KL version offers specific mounting and rod configurations. It is used in clamping, pushing, stopping and positioning on assembly lines and jigs. The compact length often allows a cylinder to fit where a standard round body would not.Key Features Short body for tight installation spaces Double-acting pneumatic operation Multiple mounting options Switch-ready versions for position sensing Specifications Part No. Stroke (mm) Tube Inner Diameter (Ømm) Operation Type SSD-KL-20-50-N 50 20 Double acting, heavy-load type How to OrderCheck bore, stroke, mounting style and whether cylinder switches are needed. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD SSD — SSD Series Super Compact Cylinder (SSD-~), genuine CKD product.OverviewThe CKD SSD Series super compact cylinder has a short overall length relative to its stroke, making it ideal for space-limited fixtures and assembly equipment. It is widely used for clamping, pushing, lifting and stopping workpieces. Many variants support switch mounting for position detection. Its square body can often be mounted directly through holes without separate brackets.Key Features Short body length for compact designs Wide range of bores and strokes Switch-mountable versions Direct mounting through body holes Specifications Part No. Operation Type Class Tube Inner Diameter (Ømm) Stroke (mm) SSD-20-25 Double acting, single rod type 20 25 SSD-20K Double acting type Part 20 SSD-25K Double acting type Part 25 SSD-32K Double acting type Part 32 How to OrderSpecify bore, stroke, mounting style and switch options. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

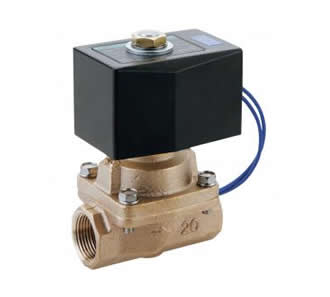

CKD SPK11 — SPK Series Pilot Operated 2-Port Solenoid Valve for Steam, genuine CKD product.OverviewThe CKD SPK Series is a pilot-operated 2-port solenoid valve designed for steam service. The pilot uses line pressure to open the main valve, allowing large flow from a compact body. It is used for steam supply control in heating equipment, sterilizers, cleaning machines and process plants.Key Features Designed for steam temperatures and pressures Pilot operation for large flow paths Threaded ports for steam piping Specifications Part No. Operation Type Fluid Ambient Temp. (℃) Coil Housing Orifice Diameter (Ømm) Pipe Port Size Max. Operating Pressure (MPa) Rated Voltage (V) Material (Body) No. of Ports Fluid Temp. (℃) Thread Type SPK11-15A-C4A-AC200V Pilot operated type Steam -10～60 Lead wire 16 1/2 1.0 AC200 Bronze 2 5～180 Rc SPK11-20A-C4A-AC200V Pilot operated type Steam -10～60 Lead wire 23 3/4 1.0 AC200 Bronze 2 5～180 Rc SPK11-25A-C4A-AC100V Pilot operated type Steam -10～60 Lead wire 28 1 1.0 AC100 Bronze 2 5～180 Rc SPK11-25A-C4A-AC200V Pilot operated type Steam -10～60 Lead wire 28 1 1.0 AC200 Bronze 2 5～180 Rc How to OrderConfirm port size, steam pressure range and coil voltage. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD SLW — SLW-*L Series Silencer, High Flow, genuine CKD product.OverviewThe CKD SLW L series is a high-flow silencer that reduces exhaust noise from valves and cylinders while maintaining large exhaust capacity. Sintered or porous elements diffuse airflow to cut noise. It is used on valve exhaust ports of high-flow pneumatic systems. Lower noise also improves the working environment around machines.Key Features High flow capacity with low back pressure Reduces exhaust noise Threaded connection to exhaust ports Durable sound-absorbing element Specifications Part No. Noise Reduction (dB) Cross-Sectional Area (㎟) Operating Temp. Range (˚C) Max. Operating Pressure (MPa) Fluid Class Port Size Proof Pressure (MPa) Flow Rate (L/min(ANR)) Fluid Temp. (℃) Port Applicable Cylinder Bore (Ømm) Mass (g) SLW-10L 30 or more 60 -10~60℃ (no freezing) 1.0 Compressed air Made of resin R3/8 1.5 4000 5~60 (no freezing) R 50～100 SLW-8L 30 or more -10~60℃ (no freezing) 1.0 Compressed air Made of resin R1/4 1.5 2000 5~60 (no freezing) R 32～80 15 How to OrderCheck the port thread size and required exhaust flow. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

CKD SLW-H — SLW-H Series Silencer, One-Touch Type, genuine CKD product.OverviewThe SLW-H Series is a CKD one-touch silencer that connects directly to push-in fittings or tube ends. It reduces exhaust noise from valves and manifolds without threaded installation. It is used on compact automation equipment where tubing is routed to remote exhaust points. Its light body adds almost no load to tubing or fittings.Key Features One-touch connection without threading Reduces exhaust air noise Lightweight compact body Easy to install and remove Specifications Part No. Port Cross-Sectional Area (㎟) Tube Outer Diameter (Ø) Noise Reduction (dB) Connection Method Material (Body) SLW-H10 One-touch piping 17.5 10 20 or more One-touch piping Resin SLW-H6 One-touch piping 7 6 20 or more One-touch piping Resin SLW-H8 One-touch piping 8.5 8 20 or more One-touch piping Resin How to OrderConfirm the tube or fitting size it connects to. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less

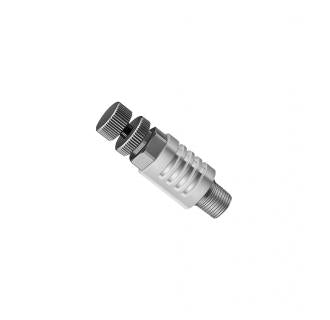

CKD SMW — SMW Series Metering Valve with Silencer, genuine CKD product.OverviewThe CKD SMW Series combines a metering valve with a silencer, fitted directly to valve exhaust ports. It controls exhaust flow to adjust actuator speed while reducing exhaust noise. It is a compact way to meter-out cylinder speed without separate speed controllers. It is popular on small valve manifolds where space for inline speed controllers is limited.Key Features Metering valve and silencer in one unit Adjusts actuator speed by exhaust control Reduces exhaust noise Screw-in installation on exhaust ports Specifications Part No. Material (Body) Thread Type Connection Method Applicable Cylinder Bore (Ømm) Flow Rate (L/min) Cross-Sectional Area (㎟) Port Size Noise Reduction (dB) Port SMW-10A Brass R R 50～100 1700 25 R3/8 20 or more R SMW-15A Brass R R 50～100 2600 39 R1/2 20 or more R SMW2-6A Resin R R 20～50 370 5.6 R1/8 23 or more R SMW2-8A Resin R R 32～75 660 9.9 R1/4 28 or more R How to OrderChoose the thread size and confirm the exhaust flow range. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.Product image is representative of the CKD series; appearance varies by size and model.About CKDCKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.Ordering & Shipping Genuine CKD product sourced through Korean distribution Ships worldwide from South Korea by FedEx International Priority Express Lead time varies by model; please inquire for exact delivery Import duties and taxes are payable by the recipient Bulk and trade pricing available on request

Read more less
