Description
CKD Lubricator — Lubricator, genuine CKD product.
Overview
A lubricator adds a fine mist of oil to compressed air so that downstream cylinders, valves and air motors receive continuous lubrication. CKD lubricators draw oil from the reservoir by the pressure difference created by the airflow and release adjustable drops into the air stream. They are typically placed after the filter and regulator in an FRL combination on production machinery.
Key Features
- Adjustable drip rate set with a needle on the sight dome
- Oil drawn into the airflow proportionally to air consumption
- Reservoir can be refilled without removing the unit
- Fits as the final stage of a filter-regulator-lubricator set
Specifications
| Part No. |
Ambient and Fluid Temp. (℃) |
Overall Length (mm) |
Thread Type |
Max. Flow (L) |
Port Size |
Reservoir Capacity (cm3) |
Applicable Oil |
Max. Operating Pressure (MPa) |
Fluid |
Min. Drip Flow Rate (L/min) (ANR) |
| 3003E-6C |
5～65 |
259 |
Rc |
2400 |
3/4 |
660 |
Turbine oil class 1, ISO VG32 (spindle oil not usable) |
1 |
Compressed air |
60 |
| A3019-2C |
5～65 |
117 |
Rc |
250 |
1/4 |
25 |
Turbine oil class 1, ISO VG32 (spindle oil not usable) |
1 |
Compressed air |
20 |
How to Order
Check port size and thread type, maximum flow, reservoir capacity and the recommended turbine oil grade. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

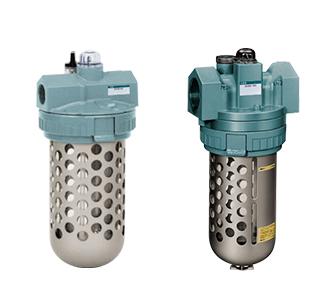

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
