CKD 4F1 — Pilot Operated 5-Port Selex Valve 4F1 Series, genuine CKD product.
Overview
The CKD 4F1 Series is a compact pilot-operated 5-port solenoid valve used to switch compressed air to double-acting cylinders and other pneumatic actuators. A small pilot solenoid shifts the main spool using supply air, so low coil power can control a relatively large flow. It is widely installed on automated assembly machines, packaging lines and general factory automation equipment.
Key Features
- Pilot-operated spool design for low power consumption and stable switching
- Available in single and double solenoid configurations with various voltages
- Suitable for individual mounting or manifold assembly
- Compact body sized for small to medium bore cylinders
Specifications
| Part No. |
Vibration (m/s2) |
Operating Pressure (MPa) |
Wiring Connection |
Switching Method |
Shock (Durability) (m/s2) |
Rated Voltage (V) |
No. of Positions |
Fluid Temp. (℃) |
Fluid |
Enclosure Protection |
Valve Specification |
Lubrication |
Ambient Temp. (℃) |
Cross-Sectional Area (㎟) |
Class |
Port Size (Rc) |
Port Size |
Atmosphere |
Proof Pressure (MPa) |
No. of Ports |
| 4F110-06-AC100V |
|
|
|
2-position single |
|
AC100(50/60Hz) |
2 |
5～60 |
Compressed air |
|
Pilot operated soft spool valve |
Not required |
-5～60 |
11 |
Direct piping type |
1/8 |
|
|
|
5 |
| 4F110-06-AC200V |
50 or less |
0.15～1.0 |
Small terminal box |
|
300 or less |
AC200(50/60Hz) |
|
5～60 |
Compressed air |
|
Pilot operated soft spool valve |
|
-5～60 |
|
Direct piping type |
1/8 |
|
|
1.5 |
|
| 4F110-06-DC24V |
|
0.15～1.0 |
Small terminal box |
2-position single |
|
|
|
5～60 |
|
Dustproof |
Pilot operated soft spool valve |
Not required |
|
|
Direct piping type |
1/8 |
Rc1/8 |
Not usable in corrosive gas atmosphere |
|
5 |
| 4F110-08-AC100V |
50 or less |
0.15～1.0 |
|
2-position single |
|
AC100(50/60Hz) |
|
5～60 |
Compressed air |
Dustproof |
Pilot operated soft spool valve |
Not required |
|
|
Direct piping type |
|
|
Not usable in corrosive gas atmosphere |
1.5 |
|
| 4F110-08-AC200V |
50 or less |
|
|
|
300 or less |
AC200(50/60Hz) |
|
5～60 |
Compressed air |
Dustproof |
|
Not required |
-5～60 |
11 |
Direct piping type |
1/4 |
|
Not usable in corrosive gas atmosphere |
|
|
| 4F110-08-DC24V |
50 or less |
|
Small terminal box |
2-position single |
300 or less |
DC24V |
2 |
|
Compressed air |
|
|
|
-5～60 |
|
Direct piping type |
1/4 |
|
Not usable in corrosive gas atmosphere |
|
5 |
| 4F110-08E-AC100V |
50 or less |
|
Small terminal box |
|
|
AC100(50/60Hz) |
2 |
5～60 |
|
Dustproof |
Pilot operated soft spool valve |
|
-5～60 |
11 |
Direct piping type |
|
|
Not usable in corrosive gas atmosphere |
|
5 |
| 4F120-08-AC200V |
50 or less |
|
|
2-position double |
300 or less |
AC200(50/60Hz) |
2 |
5～60 |
Compressed air |
Dustproof |
|
Not required |
-5～60 |
|
Direct piping type |
|
|
|
1.5 |
|
How to Order
Confirm the solenoid type, coil voltage (AC100V, AC200V or DC24V), port size and electrical connection before ordering. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

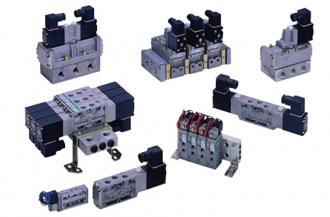

Product image is representative of the CKD series; appearance varies by size and model.
