CKD 4F2 — Pilot Operated 5-Port Selex Valve 4F2 Series, genuine CKD product.
Overview
The 4F2 Series is a pilot-operated 5-port solenoid valve from CKD's Selex line, used to switch compressed air to double-acting cylinders and other pneumatic actuators. A small solenoid pilot shifts a main spool, so the valve handles substantial flow with low coil power. It is common on assembly machines, packaging lines and general factory automation equipment.
Key Features
- Pilot-operated spool design for efficient switching of larger flows
- Available with AC and DC coil voltages
- Suitable for driving double-acting cylinders
- Manual override for setup and troubleshooting
Specifications
| Part No. |
Operating Pressure (MPa) |
Port Size (Rc) |
Port Size |
Atmosphere |
Mass (kg) |
Switching Method |
Enclosure Protection |
Valve Specification |
Vibration (m/s2) |
Rated Voltage (V) |
Cross-Sectional Area (㎟) |
Sonic Conductance C [dm3/(s·bar)] |
Ambient Temp. (℃) |
Max. Operating Pressure (MPa) |
Lubrication |
Wiring Connection |
Fluid |
Class |
Shock (Durability) (m/s2) |
Fluid Temp. (℃) |
No. of Positions |
Proof Pressure (MPa) |
| 4F210-08-AC100V |
0.10-1.0 |
1/4 |
Rc1/4 |
Not usable in corrosive gas atmosphere |
|
2-position single |
|
Pilot operated soft spool valve |
50 or less |
|
18 |
|
-5～60 |
|
Not required |
|
Compressed air |
|
|
5～60 |
|
|
| 4F210-08-AC200V |
|
1/4 |
Rc1/4 |
|
0.60 |
|
Dustproof |
Pilot operated soft spool valve |
|
|
|
3.0 |
|
1.0 |
|
DIN terminal box |
|
Direct piping type |
300 or less |
5～60 |
|
1.5 |
| 4F210-08-DC24V |
0.1～1.0 |
|
|
|
|
2-position single |
Dustproof |
|
50 or less |
DC24V |
|
|
-5～60 |
1.0 |
|
DIN terminal box |
|
|
300 or less |
5～60 |
2 |
1.5 |
| 4F220-08-AC100V |
0.10-1.0 |
1/4 |
|
|
0.93 |
|
Dustproof |
Pilot operated soft spool valve |
50 or less |
|
18 |
|
|
1.0 |
Not required |
|
|
Direct piping type |
300 or less |
|
2 |
|
| 4F220-08-AC200V |
|
|
|
Not usable in corrosive gas atmosphere |
0.93 |
2-position double |
Dustproof |
Pilot operated soft spool valve |
|
|
|
|
|
1.0 |
|
|
Compressed air |
Direct piping type |
300 or less |
5～60 |
2 |
1.5 |
How to Order
Confirm the coil voltage, port size, number of positions and whether single or double solenoid operation is required. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

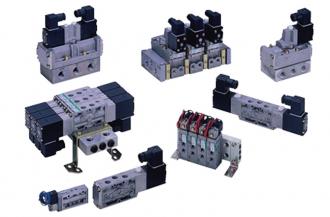

Product image is representative of the CKD series; appearance varies by size and model.
