CKD 4F4 — Pilot Operated 5-Port Selex Valve 4F4 Series, genuine CKD product.
Overview
CKD's 4F4 Series is a larger-body member of the Selex pilot-operated 5-port valve family, intended for cylinders and actuators that need higher air flow. The solenoid pilot moves the main spool, allowing compact coils to control a sizeable flow path. Typical uses include press feeders, material handling machinery and large-bore cylinder circuits.
Key Features
- Larger flow capacity than smaller 4F frame sizes
- Pilot operation keeps solenoid power consumption low
- Threaded body ports for direct piping
- AC and DC coil options to match control circuits
Specifications
| Part No. |
Proof Pressure (MPa) |
Fluid |
Atmosphere |
Fluid Temp. (℃) |
Switching Method |
Power Supply (V) |
Operating Pressure (MPa) |
Sonic Conductance C [dm3/(s·bar)] |
Vibration (m/s2) |
Enclosure Protection |
Rated Voltage (V) |
Ambient Temp. (℃) |
Shock (Durability) (m/s2) |
Port Size |
Valve Specification |
Wiring Connection |
Class |
No. of Positions |
Mass (kg) |
No. of Ports |
Lubrication |
Cross-Sectional Area (㎟) |
Port Size (Rc) |
| 4F410-08-AC100V |
|
Compressed air |
Not usable in corrosive gas atmosphere |
|
2-position single |
|
0.10-1.0 |
5.0 |
50 or less |
|
|
-5～60 |
300 or less |
|
|
DIN terminal box |
|
2 |
1.01 |
|
|
32 |
|
| 4F410-08-AC200V |
1.5 |
Compressed air |
Not usable in corrosive gas atmosphere |
|
|
|
|
5.0 |
50 or less |
|
AC200(50/60Hz) |
-5～60 |
|
RC1/4 |
Pilot operated spool valve |
|
Sub-plate piping type |
|
|
5 |
Not required |
|
|
| 4F410-10-AC100V |
1.5 |
|
|
5～60 |
|
AC100 |
0.10-1.0 |
5.0 |
|
|
|
-5～60 |
|
RC3/8 |
|
|
Sub-plate piping type |
2 |
|
5 |
Not required |
|
3/8 |
| 4F410-10-AC200V |
1.5 |
Compressed air |
Not usable in corrosive gas atmosphere |
5～60 |
|
AC200 |
|
|
|
Dustproof |
|
-5～60 |
|
|
Pilot operated soft spool valve |
|
|
2 |
1.01 |
5 |
Not required |
|
|
| 4F420-10-AC200V |
|
|
|
5～60 |
2-position double |
|
|
|
|
Dustproof |
|
-5～60 |
|
RC3/8 |
|
DIN terminal box |
Sub-plate piping type |
2 |
1.30 |
5 |
Not required |
|
3/8 |
How to Order
Check the port thread size, coil voltage, number of positions and required effective cross-sectional area before ordering. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

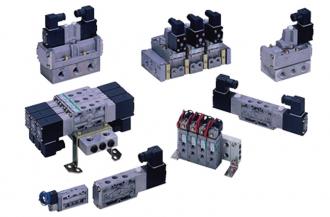

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
