CKD 4F510-1 — Pilot Operated 5-Port Selex Valve 4F5 Series, genuine CKD product.
Overview
The 4F5 Series is a pilot operated 5-port solenoid valve from the CKD Selex family, designed to direct compressed air to double-acting cylinders and larger actuators. A small solenoid pilot shifts the main spool, so a compact coil can switch high flow. It is common on packaging machines, presses, conveyors and general factory automation.
Key Features
- Internal pilot design keeps coil power low
- High flow capacity for large-bore cylinders
- Manual override for setup and troubleshooting
- Available in AC and DC coil voltages
Specifications
| Part No. |
No. of Positions |
Fluid |
Lubrication |
Cross-Sectional Area (㎟) |
Wiring Connection |
Ambient Temp. (℃) |
No. of Ports |
Shock (Durability) (m/s2) |
Port Size |
Class |
Operating Pressure (MPa) |
Fluid Temp. (℃) |
Rated Voltage (V) |
Vibration (m/s2) |
Atmosphere |
Switching Method |
Enclosure Protection |
Proof Pressure (MPa) |
| 4F510-10-AC100V |
2 |
Compressed air |
|
47 |
DIN terminal box |
-5～60 |
5 |
|
RC3/8 |
|
0.10-1.0 |
|
AC100(50/60Hz) |
50 or less |
|
2-position single |
Dustproof |
|
| 4F510-10-AC200V |
2 |
Compressed air |
|
47 |
DIN terminal box |
-5～60 |
5 |
300 or less |
|
|
0.10-1.0 |
|
|
50 or less |
Not usable in corrosive gas atmosphere |
2-position single |
|
1.5 |
| 4F510-15-AC100V |
|
Compressed air |
Not required |
47 |
|
|
5 |
300 or less |
RC1/2 |
|
0.10-1.0 |
5～60 |
AC100(50/60Hz) |
50 or less |
|
2-position single |
|
1.5 |
| 4F510-15-AC200V |
2 |
|
Not required |
47 |
|
-5～60 |
|
300 or less |
RC1/2 |
Sub-plate piping type |
0.10-1.0 |
|
AC200(50/60Hz) |
50 or less |
Not usable in corrosive gas atmosphere |
|
|
1.5 |
How to Order
Specify port size, number of positions, coil voltage and electrical connection type before ordering. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

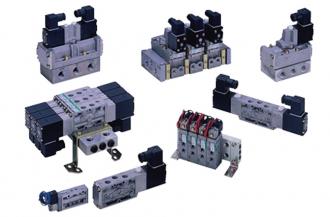

Product image is representative of the CKD series; appearance varies by size and model.
