Description
CKD 4F610-20-AC200V — Pilot Operated 5-Port Selex Valve 4F6 Series, genuine CKD product.
Overview
The CKD 4F6 Series is the large-flow member of the 4F pilot-operated 5-port valve family, intended for big-bore cylinders and high-flow pneumatic circuits. The pilot solenoid uses supply air to move a main spool, giving fast response with modest electrical power. Typical uses include presses, large clamping fixtures, material handling equipment and heavy-duty automation where flow capacity matters.
Key Features
- High flow capacity for large cylinders and actuators
- Pilot-operated spool keeps coil power low
- Shares the operating concept of the wider 4F family
- Threaded ports in larger sizes for main supply lines
Specifications
| Part No. |
Operating Pressure (MPa) |
Cross-Sectional Area (㎟) |
Class |
Power Supply (V) |
Fluid Temp. (℃) |
Wiring Connection |
Port Size |
Mass (kg) |
No. of Positions |
No. of Solenoids |
No. of Ports |
| 4F610-20-AC200V |
0.15-1.0 |
90 |
Sub-plate type |
AC200 |
-10～60 |
DIN terminal box |
RC3/4 |
1.92 |
2 |
Single |
5 |
How to Order
Specify port size, single or double solenoid, coil voltage and any manual override or wiring option. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

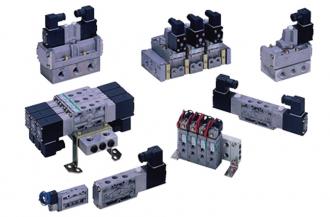

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
