Description
CKD 4KA110-M5-DC24V — Selex Valve 4KA, genuine CKD product.
Overview
The CKD Selex Valve 4KA series is a family of pilot-operated 5-port solenoid valves used to switch compressed air to double-acting cylinders and other actuators. A small solenoid pilot shifts the main spool, giving compact size with good flow capacity. The 4KA is widely used for individual or manifold mounting on assembly equipment, packaging machines and general automation.
Key Features
- Pilot-operated spool design for low coil power
- Available in single and double solenoid configurations
- Suitable for individual piping or manifold installation
- Manual override provided for setup and maintenance
Specifications
| Part No. |
No. of Ports |
Valve Specification |
Cross-Sectional Area (㎟) |
Vibration (m/s2) |
Wire Connection Method |
Shock (Durability) (m/s2) |
Fluid Temp. (℃) |
Lubrication |
Atmosphere |
Proof Pressure (MPa) |
Fluid |
Class |
| 4KA110-M5-DC24V |
5 |
Pilot operated soft spool valve |
3 |
50 or less |
Grommet lead wire (terminal box) |
300 or less |
5～50 |
Not required |
300 or less |
1.05 |
Compressed air |
Direct piping type |
How to Order
Specify valve size, solenoid configuration, port size and coil voltage (for example DC24V or AC200V). Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

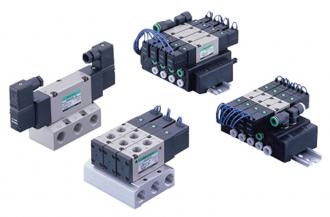

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
