CKD 4KB110-06 — Pilot Operated 4-Port Selex Valve 4KB1 Series, genuine CKD product.
Overview
The CKD 4KB1 Series is a compact pilot operated 4-port solenoid valve used to extend and retract double-acting pneumatic cylinders. A solenoid-driven pilot stage shifts the main valve, giving reliable switching with modest power draw. Typical uses include assembly equipment, jigs, clamping fixtures and small automated cells where panel or manifold space is limited.
Key Features
- Small body suits manifold or individual mounting
- Pilot operation for consistent response and low consumption
- Choice of AC100V, AC200V or DC24V coils
- Manual operation button for maintenance checks
Specifications
| Part No. |
Material (Body) |
Proof Pressure (MPa) |
Heat Resistance Class |
No. of Ports |
Valve Specification |
Holding Current (A) |
Temperature Rise |
Fluid Temp. (℃) |
Shock (m/s2) |
Response Time |
Power Consumption (W) |
Rated Voltage Fluctuation Range |
Max. Operating Pressure (MPa) |
Manual Operation |
Min. Operating Pressure (MPa) |
Fluid |
Switching Position Type |
Ambient Temp. (℃) |
Lubrication |
Enclosure Protection |
Port Size (Rc) |
Switching Method |
Vibration (m/s2) |
| 4KB110-06-AC100V |
|
1.05 |
B (molded coil) |
|
|
|
|
5～50 |
|
30ms or less |
|
±10% |
|
|
0.15 |
Compressed air |
2-position single |
-5～50 |
Not required |
Dustproof |
|
|
50 or less |
| 4KB110-06-AC200V |
Aluminum alloy die casting |
|
B (molded coil) |
|
Pilot operated soft spool valve |
50Hz：0.01460Hz：0.011 |
|
5～50 |
|
|
50Hz：1.860Hz：1.4 |
|
0.7 |
Non-locking manual device |
0.15 |
|
2-position single |
|
Not required |
|
|
2-position single |
|
| 4KB110-06-DC24V |
|
1.05 |
|
4 |
Pilot operated soft spool valve |
|
43℃ |
|
300 or less |
|
1.8 |
±10% |
|
Non-locking manual device |
0.15 |
|
|
|
Not required |
|
1/8 |
|
50 or less |
How to Order
Check port size, coil voltage, manifold or single mounting and the required minimum operating pressure. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

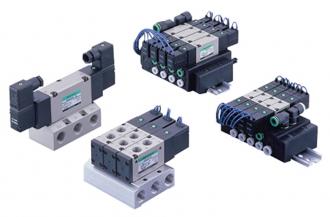

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
