CKD 4KB210-0 — Pilot Operated 5-Port Selex Valve 4KB2 Series, genuine CKD product.
Overview
The 4KB2 Series is a CKD pilot-operated 5-port valve built for general pneumatic control of cylinders and air-driven devices. Supply air assists the pilot section in shifting a spool, so the valve switches reliably with a low-wattage coil. It suits machine tools, conveyors, packaging equipment and other industrial machinery that needs a dependable, mid-size directional control valve.
Key Features
- 5-port, 2- or 3-position spool valve for double-acting cylinders
- Pilot operation for efficient switching with small coils
- Body ported for direct piping or manifold use
- Multiple coil voltages to match control circuits
Specifications
| Part No. |
Proof Pressure (MPa) |
Port Size (Rc) |
Class |
Starting Current (A) |
Wire Connection Method |
Shock (m/s2) |
Cross-Sectional Area (㎟) |
Temperature Rise |
Ambient Temp. (℃) |
Fluid Temp. (℃) |
Power Consumption (W) |
Atmosphere |
Vibration (m/s2) |
Valve Specification |
Manual Operation |
Mass (g) |
Heat Resistance Class |
Material (Body) |
Rated Voltage (V) |
Switching Position Type |
Holding Current (A) |
Response Time |
Lubrication |
Fluid |
Min. Operating Pressure (MPa) |
Max. Operating Pressure (MPa) |
Enclosure Protection |
| 4KB210-06-AC100V |
|
|
|
50Hz：0.05660Hz：0.044 |
|
|
|
43℃ |
-5～50 |
|
|
Not usable in corrosive gas atmosphere |
50 or less |
|
Non-locking manual device |
|
|
Aluminum alloy die casting |
AC100(50/60Hz) |
2-position single |
50Hz：0.02860Hz：0.022 |
|
|
Compressed air |
|
|
Dustproof |
| 4KB210-06-AC200V |
1.05 |
|
|
|
|
|
|
|
|
|
50Hz：1.860Hz：1.4 |
Not usable in corrosive gas atmosphere |
50 or less |
Pilot operated soft spool valve |
|
200 |
|
|
|
2-position single |
50Hz：0.01460Hz：0.011 |
30ms or less |
Not required |
|
0.15 |
0.7 |
|
| 4KB210-08-AC100V |
1.05 |
|
|
50Hz：0.05660Hz：0.044 |
Grommet lead wire |
|
|
|
-5～50 |
|
50Hz：1.860Hz：1.4 |
Not usable in corrosive gas atmosphere |
|
|
Non-locking manual device |
|
|
Aluminum alloy die casting |
|
2-position single |
50Hz：0.02860Hz：0.022 |
|
|
Compressed air |
|
|
Dustproof |
| 4KB210-08-AC200V |
|
1/4 |
|
50Hz：0.02860Hz：0.022 |
Grommet lead wire |
|
14 |
|
|
|
50Hz：1.860Hz：1.4 |
|
|
|
|
|
B (molded coil) |
|
|
2-position single |
|
30ms or less |
|
Compressed air |
0.15 |
0.7 |
Dustproof |
| 4KB210-08-DC24V |
|
|
Sub-plate piping type |
|
|
300 or less |
|
43℃ |
|
5～50 |
|
Not usable in corrosive gas atmosphere |
|
Pilot operated soft spool valve |
Non-locking manual device |
|
|
|
|
2-position single |
0.075 |
30ms or less |
|
|
0.15 |
0.7 |
|
How to Order
Confirm the number of positions, port size, coil voltage and whether individual or manifold mounting is needed. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

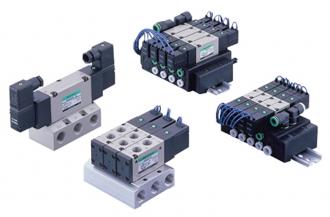

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
